ATNEDCVH WG502F Ethernet extender pair 6560ft 100Mbps
A pair of Ethernet extenders that push 100 Mbps over Cat5e/6 up to 6560 ft or twisted-pair up to 3280 ft, with 10–60 V terminal-block power for remote devices
- Wireless Data Rates100 megabits_per_second
- Operating Range6560 feet
- Operating ModeAdvanced Signal Handling, Wide Voltage Power Supply
- LEDAdvanced Signal Handling, Wide Voltage Power Supply
- Weight0.209 kilograms
- FeaturesAdvanced Signal Handling, Wide Voltage Power Supply
- Extends Ethernet up to 6560 ft over Cat5e/6/6e cable
- Reaches 3280 ft using twisted-pair UTP cable
- Delivers 100 Mbps data rate for IP cameras and DVRs
- Powers remote devices via 10-60 V terminal block
- All-metal 84 × 59 × 23 mm housing dissipates heat efficiently
Ethernet extender kit for IP cameras
The ATNEDCVH WG502F ships as a paired transmitter and receiver that extend a wired Ethernet link up to 6560 feet over Cat5e, Cat6 or Cat6e cable. Each unit fits security monitoring, elevator video coverage, multimedia distribution and automation control systems where a single cable run must bridge long distances without fibre. The compact metal enclosure measures 84 by 59 by 23 millimetres and weighs 0.209 kilograms. A 12-volt power adapter is included for each side.
100 megabits per second over copper defines
The link rate is fixed at 100 megabits per second, so the 6560-foot maximum applies only when Cat5e or better cable is used. With RVV twisted-pair cable the reach drops to 3280 feet. Both ends require a DC power source; the kit does not support Power over Ethernet. Each converter accepts 10 to 60 volts through its barrel jack and passes the same voltage out through a terminal block to power a camera or other device at the remote end.
Two RJ45 ports and a wide-voltage terminal block

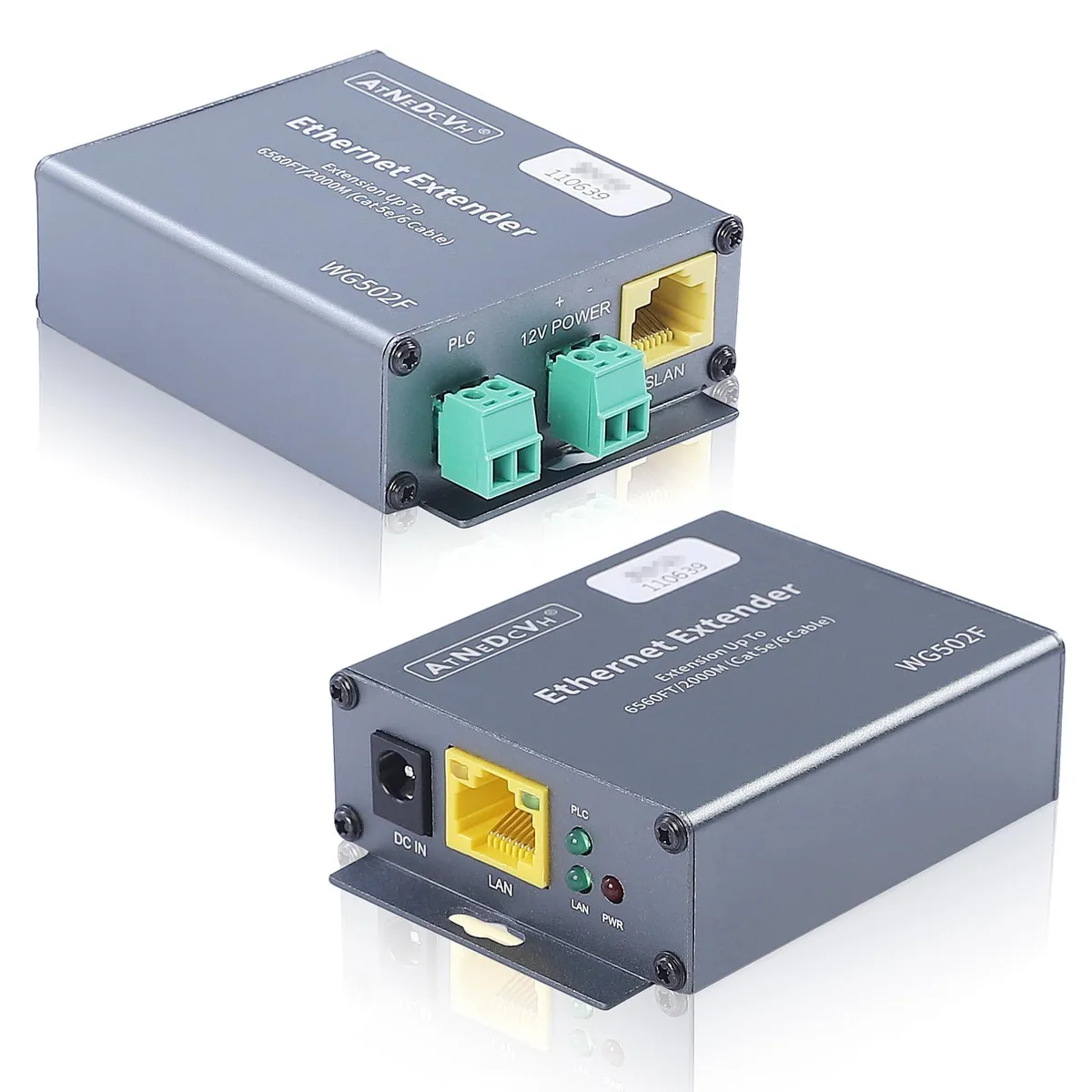

Each converter provides one SLAN port and one LAN port, both 100 megabit RJ45, plus a DC jack and a screw-terminal block for 10 to 60 volt input and pass-through. The metal chassis acts as a heatsink, eliminating the need for a fan. Installers gain a single-cable backbone that carries data and remote power together, freeing the far-end device from a separate mains outlet. The package includes one pair of converters and a user guide.
Highlights
- Extends Ethernet up to 6560 ft over Cat5e/6/6e cable
- Reaches 3280 ft using twisted-pair UTP cable
- Delivers 100 Mbps data rate for IP cameras and DVRs
- Powers remote devices via 10-60 V terminal block
- All-metal 84 × 59 × 23 mm housing dissipates heat efficiently
Specifications
| Brand | ATNEDCVH |
|---|---|
| Model | WG502F |
| Part Number | WG502F |
| Wireless Data Rates | 100 megabits_per_second |
| Operating Range | 6560 feet |
| Operating Mode | Advanced Signal Handling, Wide Voltage Power Supply |
| LED | Advanced Signal Handling, Wide Voltage Power Supply |
| Weight | 0.209 kilograms |
| Features | Advanced Signal Handling, Wide Voltage Power Supply |
| Package Contents | WG502F EOC Converter * 1 Pair; User Guide * 1pcs; |
Questions about this item
What does 100 Mbps mean for my IP cameras or DVR?
The pair delivers up to 100 megabits per second over the link, enough for standard-definition and many HD camera streams, but not for multi-gigabit backbone traffic.
How far will the signal travel on Cat5e, Cat6 or Cat6e cable?
Up to 6560 feet (2000 metres) on Cat5e, Cat6 or Cat6e; on twisted-pair RVV cable the maximum drops to 3280 feet (1000 metres).
What are the physical dimensions and mounting needs?
Each unit measures 84 by 59 by 23 millimetres, weighs 0.209 kilograms, has an all-metal shell for heat dissipation, and fits on a DIN rail or flat surface with no special brackets.
