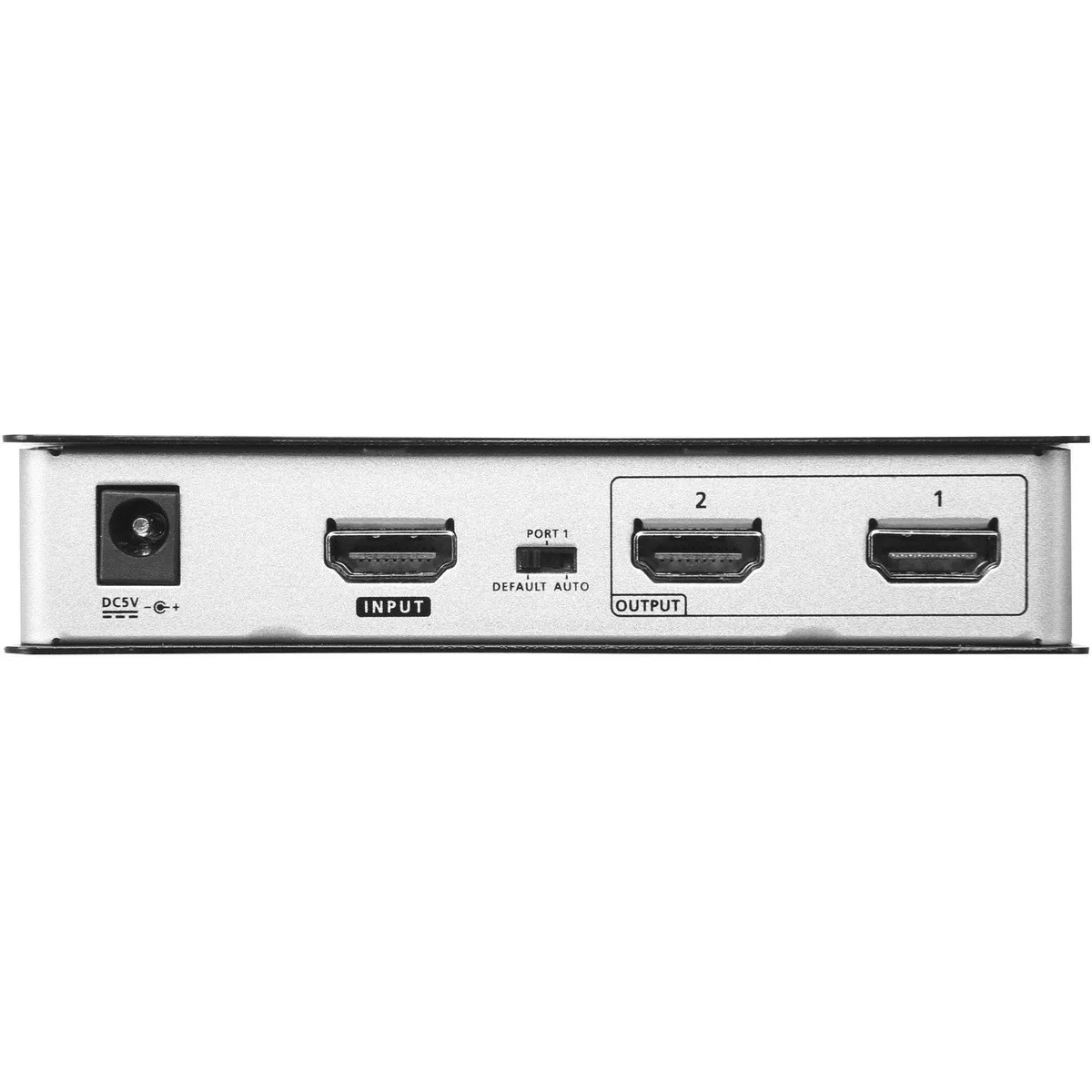

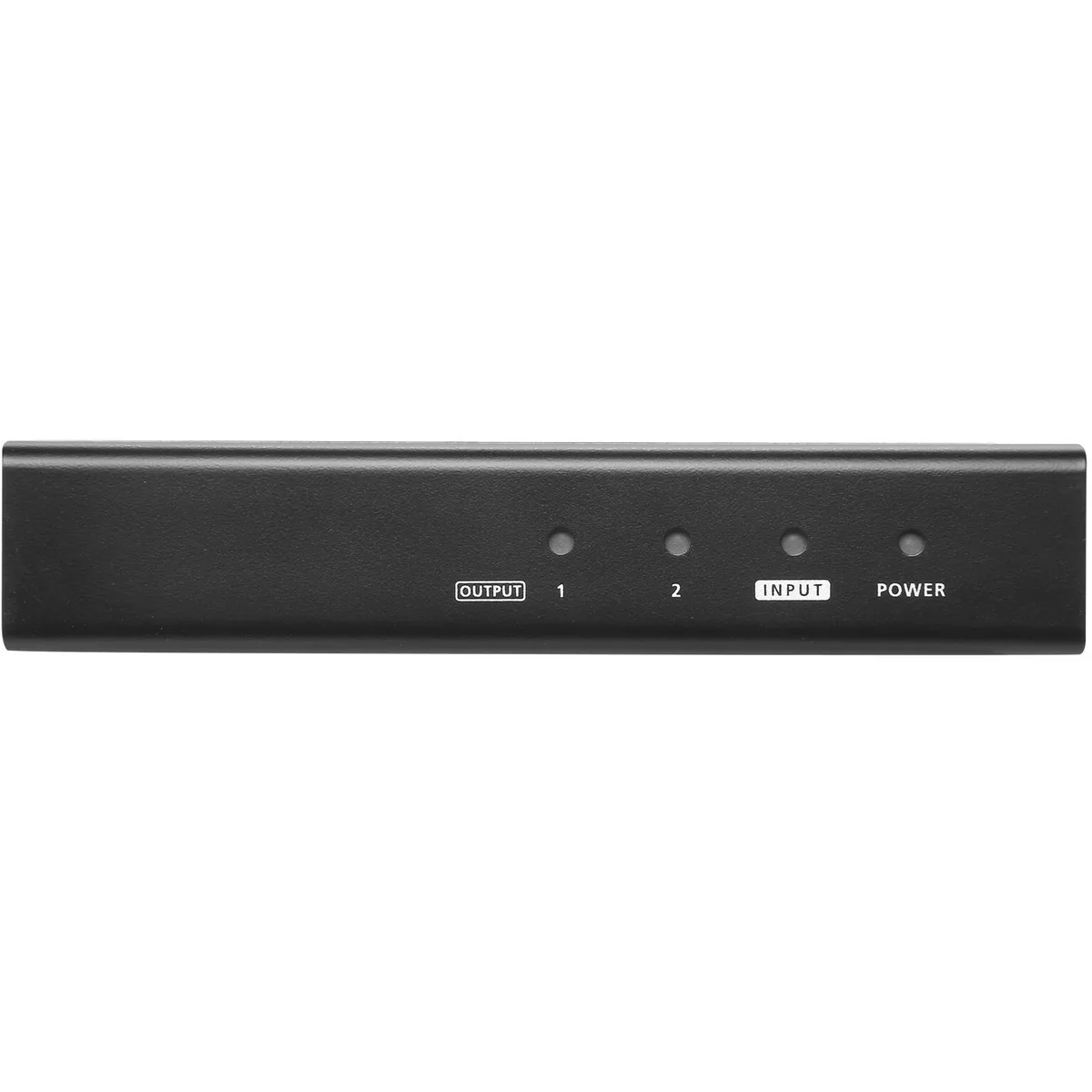

Compact black HDMI splitter with two output ports

ATEN

ATEN VS182B 2-Port 4K HDMI Splitter

SKU CH-6Y48-5AN0N MPN VS182B

Sends one HDMI source to two displays at 4K 60 Hz with HDCP 2.2 and HDR support

  • Computer Connections2 x HDMI Type A Female (Black)
  • FeaturesConnects one HDMI source to two HDMI displays at the same ti
  • Dimensions0.98" x 4.92" x 3.15"
  • Sends one HDMI source to two displays simultaneously
  • Supports 4096 x 2160 resolution at 60 Hz refresh rate
  • HDCP 2.2 compatibility protects premium 4K content
  • HDR support delivers richer colour and contrast
  • Compact 0.98" x 4.92" x 3.15" form factor

One source, two 4K displays

The ATEN VS182B is a True 4K HDMI splitter that connects one HDMI source to two HDMI displays at the same time. It serves home-theatre enthusiasts, corporate presenters, educators and commercial installers who need identical high-definition video on twin screens from a single player, set-top box or computer.

HDMI 2.0 with 4:4:4 chroma at 60 Hz

The unit is HDMI 2.0 compliant and supports maximum resolutions of 4096 x 2160 and 3840 x 2160 at 60 Hz with 4:4:4 colour sampling. HDCP 2.2 compatibility protects premium content, while HDR pass-through preserves dynamic range for compatible displays.

Passive cooling in a compact metal case

The enclosure measures .98 x 4.92 x 3.15 inches and operates without a fan, so it adds no audible noise to the environment. Power draw is minimal for a splitter of this class, and the small footprint allows discreet placement behind displays or inside equipment racks.

Highlights

  • Sends one HDMI source to two displays simultaneously
  • Supports 4096 x 2160 resolution at 60 Hz refresh rate
  • HDCP 2.2 compatibility protects premium 4K content
  • HDR support delivers richer colour and contrast
  • Compact 0.98" x 4.92" x 3.15" form factor

Specifications

BrandATEN
ModelVS182B
Computer Connections2 x HDMI Type A Female (Black)
FeaturesConnects one HDMI source to two HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Supports HDR
Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
Long distance transmission- up to 15 m(1920x1200)/ 1.8m (True 4K)
Max pixel clock rate up to 600 MHz
Max data rate up to 18 Gbps (6 Gbps per lane)
LED indication of power status and source devices
EDID Expert - Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1
Dimensions0.98" x 4.92" x 3.15"
Shipping weight0.91 kg
Package size305 × 229 × 110 mm

Questions about this item

What does the 4096 x 2160 at 60 Hz rating mean when the splitter is connected to two screens?

The splitter sends an identical 4K 60 Hz 4:4:4 signal to both HDMI outputs simultaneously, so each display receives the full 4096 x 2160 resolution without downscaling.

Which HDMI version and HDCP level does the VS182B implement, and what bandwidth limit does that set?

It is HDMI 2.0 compliant with HDCP 2.2, capping the link at 18 Gbps which is sufficient for 4K 60 Hz 4:4:4 and HDR content.

How much desk space does the unit need and what mounting options exist?

The enclosure measures 4.92 inches wide, 3.15 inches deep and 0.98 inches high; it sits flat or can be secured with the included rack-mount brackets.
