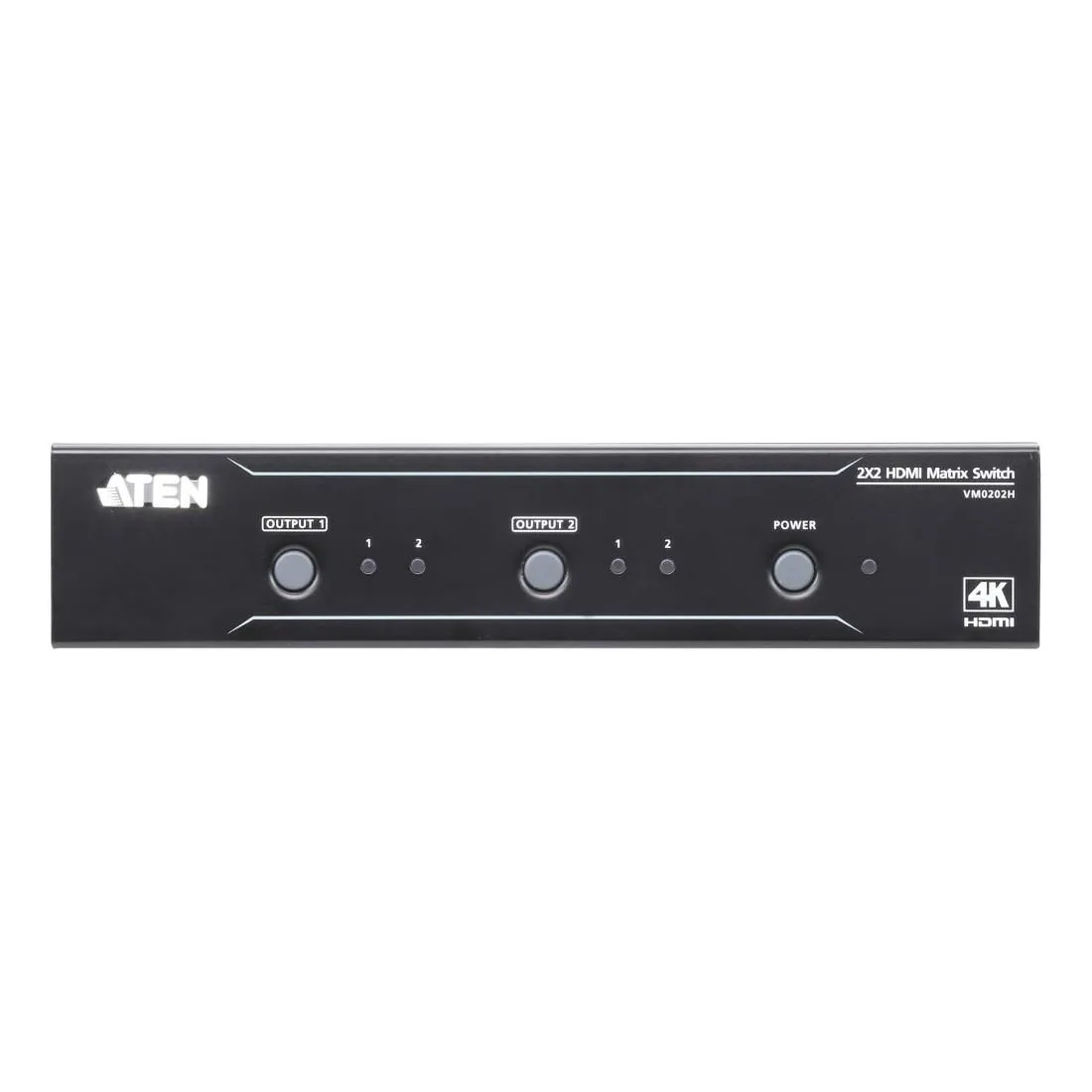

ATEN VM0202H 2x2 4K HDMI Matrix KVM Switch
Connects two HDMI sources to two displays at up to 4096 x 2160 resolution at 60 Hz
- TypeHDMI
- PC Connectors2 x HDMI Type A Female (Black)
- Video ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
- Humidity0 - 80% RH, Non-Condensing
- FeaturesConnects 2 HDMI sources to any 2 HDMI displays HDMI (3D, Dee
- View two 4K sources on two displays simultaneously
- 4096 x 2160 resolution at 60 Hz for sharp detail
- 2 Gbps bandwidth handles high-speed video
- Rack-mountable 1.7-inch height fits standard cabinets
- Includes IR remote and receiver for flexible control
2×2 4K HDMI Matrix KVM
The ATEN VM0202H connects two HDMI sources to two HDMI displays and lets you route any source to any screen. It handles video resolutions up to 4096 × 2160 at 60 Hz with 4:2:0 chroma subsampling. The unit is rack-mountable and includes an IR remote for convenient switching.
For dual-display multi-source setups
This switch suits users who need to share two computers, media players or cameras across two monitors or projectors without re-plugging cables. It does not suit installations that require more than two inputs or two outputs, or workflows that demand full 4:4:4 colour sampling at 4K 60 Hz.
Check your cables and power before ordering
Verify that your source devices and displays use standard HDMI Type A connectors and can operate within the 10.2 Gbps maximum data rate. Confirm the 70.87 inch maximum operating distance covers your cable runs. Ensure a suitable power outlet is available for the included adapter.
Highlights
- View two 4K sources on two displays simultaneously
- 4096 x 2160 resolution at 60 Hz for sharp detail
- 2 Gbps bandwidth handles high-speed video
- Rack-mountable 1.7-inch height fits standard cabinets
- Includes IR remote and receiver for flexible control
Specifications
| Brand | ATEN |
|---|---|
| Model | VM0202H |
| Type | HDMI |
| PC Connectors | 2 x HDMI Type A Female (Black) |
| Video Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); |
| Humidity | 0 - 80% RH, Non-Condensing |
| Features | Connects 2 HDMI sources to any 2 HDMI displays HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible Supports computer and video resolutions up to 4K Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane) Supports long distance transmission at a distance up to 15 meters Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control EDID Expert - Selects optimum EDID settings for smooth power- up, high- quality display and use of the best video |
| Shipping weight | 1.36 kg |
| Package size | 305 × 229 × 110 mm |
Questions about this item
What HDMI cables do I need to connect two sources and two displays to the VM0202H?
You need four HDMI Type A cables — two for the source inputs and two for the display outputs — all supporting up to 4K at 60 Hz and 10.2 Gbps bandwidth.
Will the VM0202H pass 4K 60 Hz video from a newer source to an older 1080p display I keep?
The switch supports resolutions up to 4096 x 2160 at 60 Hz and is HDCP 1.4 compatible; it will pass the signal through, but the older display must negotiate its own maximum resolution.
How can I verify the VM0202H is switching correctly after installation?
Use the front-panel push buttons or the included IR remote to toggle each output between the two inputs and confirm both displays show the expected 4K source at 60 Hz.
