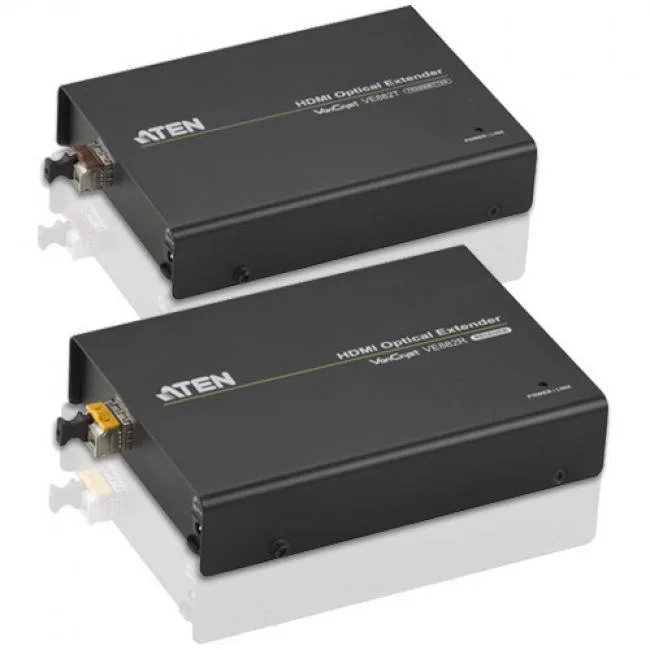

ATEN VE882 HDMI optical extender unit with metal housing and LC fiber connector

ATEN

ATEN VE882 HDMI optical extender 600m 1080p@60Hz

SKU CH-VWHH-H5GGP MPN VE882

Extends HDMI, IR and RS-232 signals up to 600 m over single fibre with 1080p at 60 Hz

  • Extender & Repeater TypeVideo Extender
  • SpecificationDimension: 5.58" x 4.06" x 1.23" Weight: 0.93 lbs. 1 x HDMI
  • FeatureExtends the transmission range of HDMI, IR and RS-232 signal
  • Extends HDMI, IR and RS-232 signals up to 600 m over one fibre cable
  • Delivers 1080p at 60 Hz with 3.125 Gbps data rate for high-quality video
  • Compact metal housing measures 5.58 x 4.06 x 1.23 inches and weighs 0.93 lbs
  • Low power draw of 2.4 W at 5.3 V DC for efficient operation
  • Includes HDMI, LC simplex, 3-pole captive screw, 3.5 mm jack and DC connections

HDMI, IR and RS-232 over fibre

This ATEN VE882 extender sends HDMI video up to 1080p at 60 Hz together with IR and RS-232 control signals over a single single-mode fibre strand. It reaches 600 m while keeping HDCP and 3D Deep Color intact. The unit draws 2.4 W from a 5.3 V supply and fits in a metal housing measuring 5.58" x 4.06" x 1.23". An LC simplex connector handles the optical link and a green power LED confirms the link status.

Installers needing 600 m reach at 1080p

The extender suits integrators running HDMI, IR and RS-232 to distant displays in classrooms, signage or control rooms where 600 m single-mode fibre is available. It does not suit buyers who need 4K resolution, HDR metadata or HDMI 2.0 bandwidth beyond 3.125 Gbit/s. It also does not suit projects that require multi-mode fibre or HDBaseT cabling instead of single-mode LC.

600 m single-mode fibre at 1080p60

The decisive specification is the 600 m reach over single-mode fibre at 1080p 60 Hz with a 3.125 Gbit/s signalling rate. Wavelengths are 1310 nm and 1550 nm for the single strand. If the installation distance exceeds 600 m or the source requires higher resolutions, this model will not meet the requirement.

Highlights

  • Extends HDMI, IR and RS-232 signals up to 600 m over one fibre cable
  • Delivers 1080p at 60 Hz with 3.125 Gbps data rate for high-quality video
  • Compact metal housing measures 5.58 x 4.06 x 1.23 inches and weighs 0.93 lbs
  • Low power draw of 2.4 W at 5.3 V DC for efficient operation
  • Includes HDMI, LC simplex, 3-pole captive screw, 3.5 mm jack and DC connections

Specifications

BrandATEN
ModelVE882
Extender & Repeater TypeVideo Extender
SpecificationDimension: 5.58" x 4.06" x 1.23"
Weight: 0.93 lbs.
1 x HDMI Type A Female (Black)
1 x LC Simplex Connector (SFP)
1 x captive screw connector, 3 pole
1 x 3.5mm phone jack (Black)
1 x DC Jack (Black)
600 m with single mode (SM) fi ber
Wavelength: 1310/1550 nm for SM
Data rate: Single fi ber: 1080p/60Hz (24-bits,3.125G bps ), 720p/60Hz(24-bits,3.125G bps)
1 (Green) Power/Link LED
Power Consumption: DC5.3V, 2.4W
Metal Housing
FeatureExtends the transmission range of HDMI, IR and RS-232 signals using one fi ber optic cable
Very long distance transmission - up to 600m for VE882
HDMI (3D, Deep Color), HDCP compatible - signaling rates up to 3.125 Gbits
Superior video quality - up to 1080p@60Hz
FPGA design extends digital signals to longer distances
Uses one fiber optic cable to connect the local and remote units
Supports wide screen formats
Built-in 8KV/15KV ESD protection
Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
Supports bi-directional IR signal transmiss
Shipping weight0.68 kg
Package size203 × 165 × 76 mm

Questions about this item

How much power does the VE882 draw when it runs continuously?

The unit consumes 2.4 W from a 5.3 V DC supply, so heat output stays low during all-day operation.

What cables and fibre type must I already have to install the VE882?

You need one single-mode fibre cable with LC simplex connectors, an HDMI cable for the source, and a 3.5 mm cable for IR if required.

Will the VE882 pass RS-232 control signals to a legacy touch screen or barcode scanner?

Yes, the built-in captive-screw RS-232 port transports serial data alongside the video stream for older peripherals.
