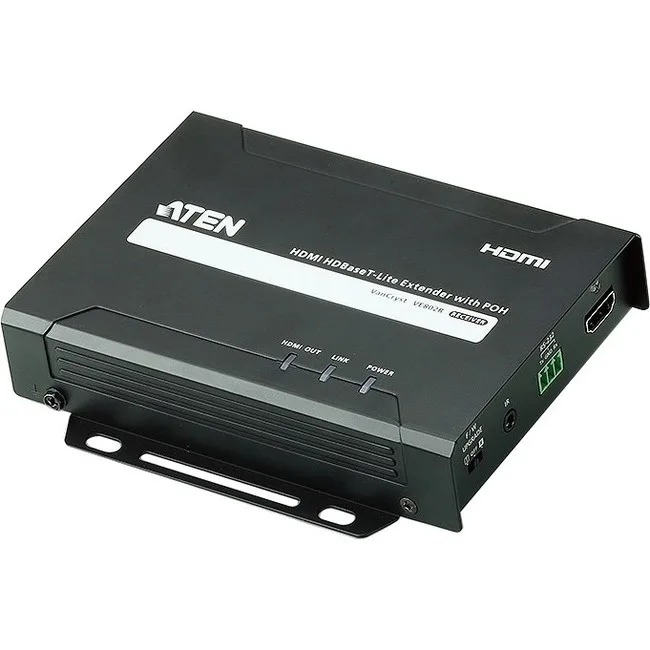

Compact metal box with HDMI port, RJ45 jack and power input

ATEN

ATEN VE802R HDMI HDBaseT-Lite Receiver with POH

SKU CH-HN1Z-A65Y6

Extends HDMI up to 4K at 35 or 40 metres over a single Cat 5e/6/6a cable with power over HDBaseT

  • HousingMetal
  • Resolution SupportUp to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 10
  • VideoMax. Data Rate: 10.2 Gbps (3.4 Gbps per lane) Max. Pixel Clo
  • HDMIInput Interfaces: 1 x HDMI Type A Female (Black) Impedance:
  • Other ConnectorPower: 1 x DC Jack (Black) with locking Unit To Unit: 1 x RJ
  • Power Consumption4.37W
  • Extends HDMI up to 40 metres over a single Cat 6a cable
  • Delivers 4K 60 Hz 4:2:0 and 4K 30 Hz 4:4:4 video quality
  • Powers the receiver through the HDBaseT link so no local outlet is needed
  • Controls remote displays via RS-232 and IR for centralised management
  • Compact metal housing fits tight rack or wall spaces

HDMI HDBaseT-Lite Receiver

The ATEN VE802R receives HDMI video over a single Cat 5e/6/6a cable at distances up to 40 metres for 4K or 70 metres for 1080p. It is designed for installers who need reliable long-range distribution in professional AV environments. Power over HDBaseT allows the unit to draw power from a compatible transmitter, reducing local cabling. The metal housing supports rack or surface mounting with the included bracket.

HDBaseT Class B distance limits

4K signals reach 35 metres over Cat 5e/6 and 40 metres over Cat 6a or ATEN 2L-2910 Cat 6 cable. 1080p extends to 60 metres on Cat 5e/6 and 70 metres on Cat 6a or ATEN 2L-2910 Cat 6 cable. The HDMI output cable is limited to 1.8 metres. HDCP and CEC pass through transparently. Builders who need longer 4K runs or fibre-based extension cannot use this receiver.

4K 4:2:0 at 60 Hz headroom

The receiver handles 4096 x 2160 and 3840 x 2160 at 60 Hz with 4:2:0 chroma subsampling and at 30 Hz with 4:4:4. Maximum data rate is 10.2 Gbps with a 340 MHz pixel clock. RS-232 and IR ports provide bidirectional control for connected displays. Installations requiring 4K 4:4:4 at 60 Hz or HDR metadata transport exceed the available bandwidth.

Highlights

  • Extends HDMI up to 40 metres over a single Cat 6a cable
  • Delivers 4K 60 Hz 4:2:0 and 4K 30 Hz 4:4:4 video quality
  • Powers the receiver through the HDBaseT link so no local outlet is needed
  • Controls remote displays via RS-232 and IR for centralised management
  • Compact metal housing fits tight rack or wall spaces

Specifications

BrandATEN
ModelVE802R
HousingMetal
Resolution SupportUp to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
* 4K supported: 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
VideoMax. Data Rate: 10.2 Gbps (3.4 Gbps per lane)
Max. Pixel Clock: 340 MHz
Compliance:
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
HDMIInput
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 ohm
Max. Distance: 1.8m
Output
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 ohm
Other ConnectorPower: 1 x DC Jack (Black) with locking
Unit To Unit: 1 x RJ-45 Female
Power Consumption4.37W
SpecificationControl
RS-232:
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits: 8
Stop Bits: 1, no parity and flow control
IR: 1 x Mini Stereo Jack Female (Black)
Environmental
Operating Temperature: 0 - 50 celsius degree
Storage Temperature: -20 - 60 celsius degree
Humidity: 0 - 80% RH, Non-Condensing
FeatureHDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel - IR t
DimensionsDimensions with bracket: 1.18" x 4.84" x 5.53"
Dimensions without bracket: 1.14" x 3.98" x 5.35"
Weight1.01 lbs.
Package Content1 x VE802R HDMI HDBaseT-Lite Receiver with POH
1 x Power Adapter
1 x IR Receiver
1 x Terminal Block
1 x User Instruction

Questions about this item

How do I pick the right Cat cable to reach the distance I need?

Use Cat 5e or Cat 6 for 4K up to 35 metres or 1080p up to 60 metres. For 4K at 40 metres or 1080p at 70 metres, use Cat 6a or the ATEN 2L-2910 Cat 6 cable.

What does the 10.2 Gbps rating mean when the receiver is installed?

It supports video up to 4096 x 2160 or 3840 x 2160 at 60 Hz with 4:2:0 chroma subsampling, or at 30 Hz with 4:4:4 colour, within the 340 MHz pixel clock limit.

What does the HDBaseT Class B label cap in practice?

It limits the link to the distances above — 4K at 35 or 40 metres depending on cable grade, and 1080p at 60 or 70 metres — with a maximum data rate of 10.2 Gbps over a single RJ-45 connection.
