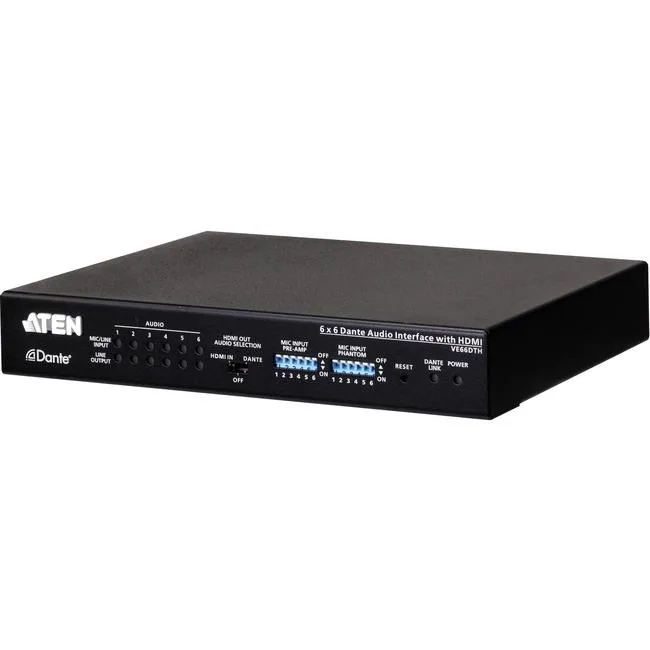

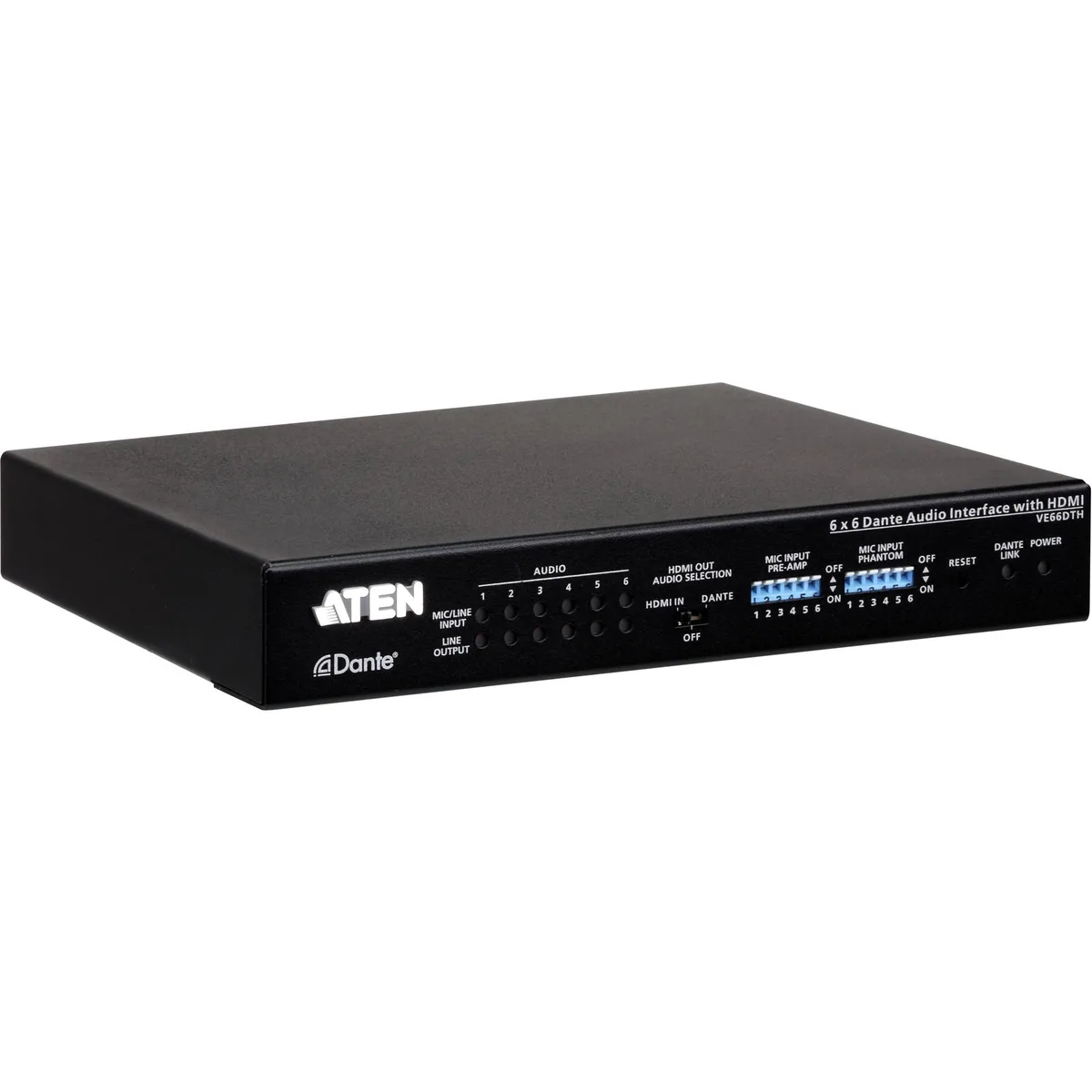

Black metal rack unit with six XLR combo jacks, HDMI ports and RJ-45 network socket

ATEN

ATEN VE66DTH 6x6 Dante Audio Interface HDMI 4K

SKU CH-3ZBP-VJ8H1

Six-channel Dante audio interface with HDMI 4K de-embedding and 48 V phantom power for microphones

  • 6 Dante network channels carry uncompressed audio with near-zero latency
  • 6 inputs accept line, dynamic and condenser microphones simultaneously
  • 48 V phantom power supplied to condenser microphones from the same unit
  • Powered over Ethernet via PoE so no separate mains adapter is needed
  • HDMI audio de-embedding and embedding at 4096 x 2160 resolution

6×6 Dante audio interface with HDMI

The ATEN VE66DTH provides six analogue inputs and six outputs over a Dante network alongside HDMI connectivity. It accepts line-level signals as well as dynamic and condenser microphones on the same channels. Condenser microphones receive 48 V phantom power from the unit. The interface is designed for professional audio installations that require networked distribution.

Upgrading from analogue-only or stereo Dante units

Replacing a stereo Dante device or a purely analogue mixer adds four additional networked channels and HDMI de-embedding and embedding in one box. The jump is worthwhile when a project needs more than two Dante channels and simultaneous HDMI audio extraction or insertion without extra converters. It also removes the need for separate phantom-power supplies for condenser microphones.

Integration into a Dante and video system

A single RJ-45 connection carries audio, control and PoE power from a compatible PSE switch. The HDMI input accepts video up to 4096×2160 and de-embeds stereo audio to the Dante network while the HDMI output embeds Dante audio back into the video stream. This frees up separate audio embedders and de-embedders and reduces cabling to one twisted-pair run.

Highlights

  • 6 Dante network channels carry uncompressed audio with near-zero latency
  • 6 inputs accept line, dynamic and condenser microphones simultaneously
  • 48 V phantom power supplied to condenser microphones from the same unit
  • Powered over Ethernet via PoE so no separate mains adapter is needed
  • HDMI audio de-embedding and embedding at 4096 x 2160 resolution

Specifications

No published specifications for this item yet.

Questions about this item

Does the VE66DTH need a separate power adapter or can it run from the network cable?

The unit has built-in PoE so it can be powered by a compatible PSE device through the Ethernet cable.

What is the correct way to connect condenser microphones to the six inputs?

Enable the 48V phantom power on the interface before plugging in condenser microphones; the inputs also accept dynamic microphones and line-level sources simultaneously.

Will the HDMI port pass 4K video while audio is being de-embedded or embedded?

Yes, the HDMI input and output support 4K UHD at 4096 x 2160 while stereo audio is de-embedded to or embedded from the Dante network.
