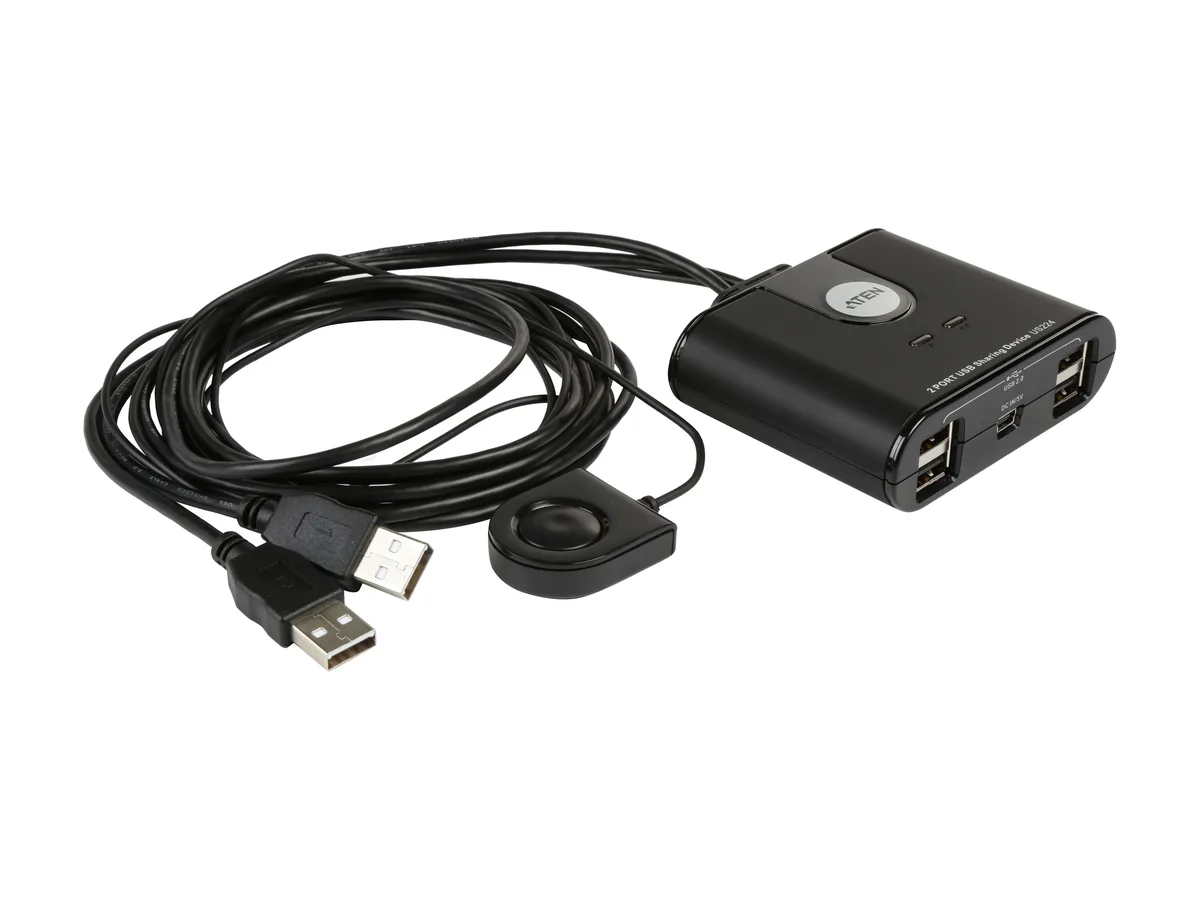

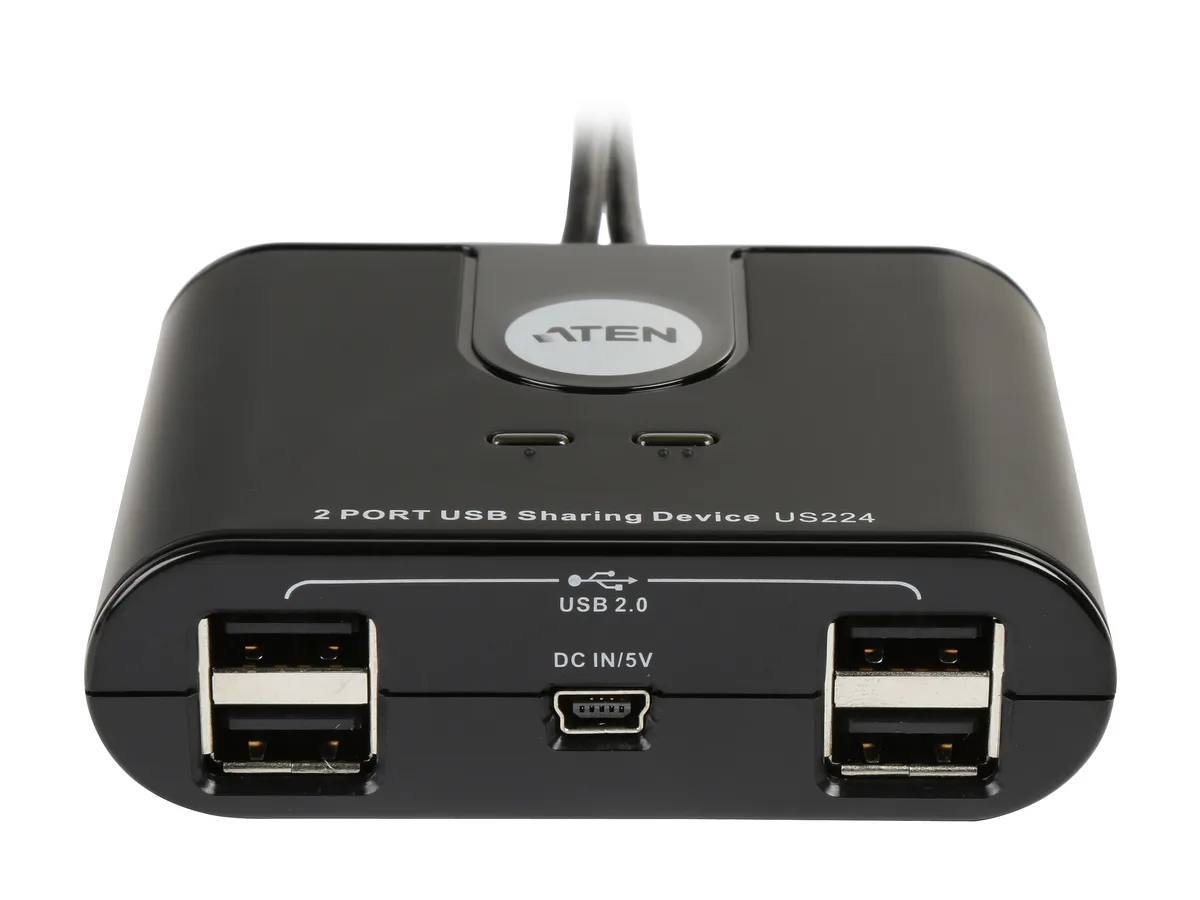

ATEN US224 2-Port USB KVM Switch 4 Console Ports
Lets two computers share four USB peripherals with an all-in-one design that reduces cable clutter
- TypeUSB
- PC Connectors2 x USB Type A Male (Black)
- Console Connectors4 x USB Type A Female (Black)
- LED IndicatorsSelected: 2 (Green)
- Temperature0ºC to 40ºC(32ºF to 104ºF)
- Humidity0% to 80%,Non-Condensing
- Share four USB devices between two computers via four console ports
- Reduce cable clutter with all-in-one design and no separate USB cables needed
- External remote port selector simplifies desktop layout and computer selection
- Operates reliably from 32°F to 104°F and up to 80% humidity
- Compact 1.00" x 2.62" x 3.24" form factor weighs only .31 lb
2-Port USB Peripheral Sharing Switch
The ATEN US224 lets two computers share four USB devices such as a keyboard, mouse and two additional peripherals. Its all-in-one design connects both hosts with a single unit, removing the need for duplicate cables. A remote port selector simplifies switching between the attached systems. The device operates without mandatory external power.
Sustained operation within rated limits
The switch is rated for continuous use between 0 and 40 degrees Celsius with humidity up to 80 percent non-condensing. Green LEDs indicate the active computer port during extended sessions. An optional USB mini-B power input is available if the host ports cannot supply sufficient current for connected peripherals over long periods.
Verify host ports and peripheral power needs
Check that each computer provides a USB Type-A port for the supplied cables. Confirm the combined draw of your keyboard, mouse and extra devices does not exceed what the host ports can deliver, otherwise the optional power adapter will be required. The unit measures 1.00 by 2.62 by 3.24 inches and weighs .31 lb.
Highlights
- Share four USB devices between two computers via four console ports
- Reduce cable clutter with all-in-one design and no separate USB cables needed
- External remote port selector simplifies desktop layout and computer selection
- Operates reliably from 32°F to 104°F and up to 80% humidity
- Compact 1.00" x 2.62" x 3.24" form factor weighs only .31 lb
Specifications
| Brand | ATEN |
|---|---|
| Model | US224 |
| Type | USB |
| PC Connectors | 2 x USB Type A Male (Black) |
| Console Connectors | 4 x USB Type A Female (Black) |
| LED Indicators | Selected: 2 (Green) |
| Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | Power (Optional): 1 x USB mini B Female (Black) |
| Features | 4 built in USB ports - all-in-one design allows for a neat and tidy installation that reduces cable clutter Enables 2 computers to share 4 USB devices - a USB keyboard, mouse and up to two peripheral devices Simple port selection via remote port selector for convenient switch placement USB 2.0 compliant Multiplatform support - Windows, Linux ,Mac and Sun LED indicators display port focus Overcurrent protection Non-powered (supports optional USB power adapter) Hot pluggable |
| Dimensions | 1.00" x 2.62" x 3.24" |
| Weight | 0.31 lb. |

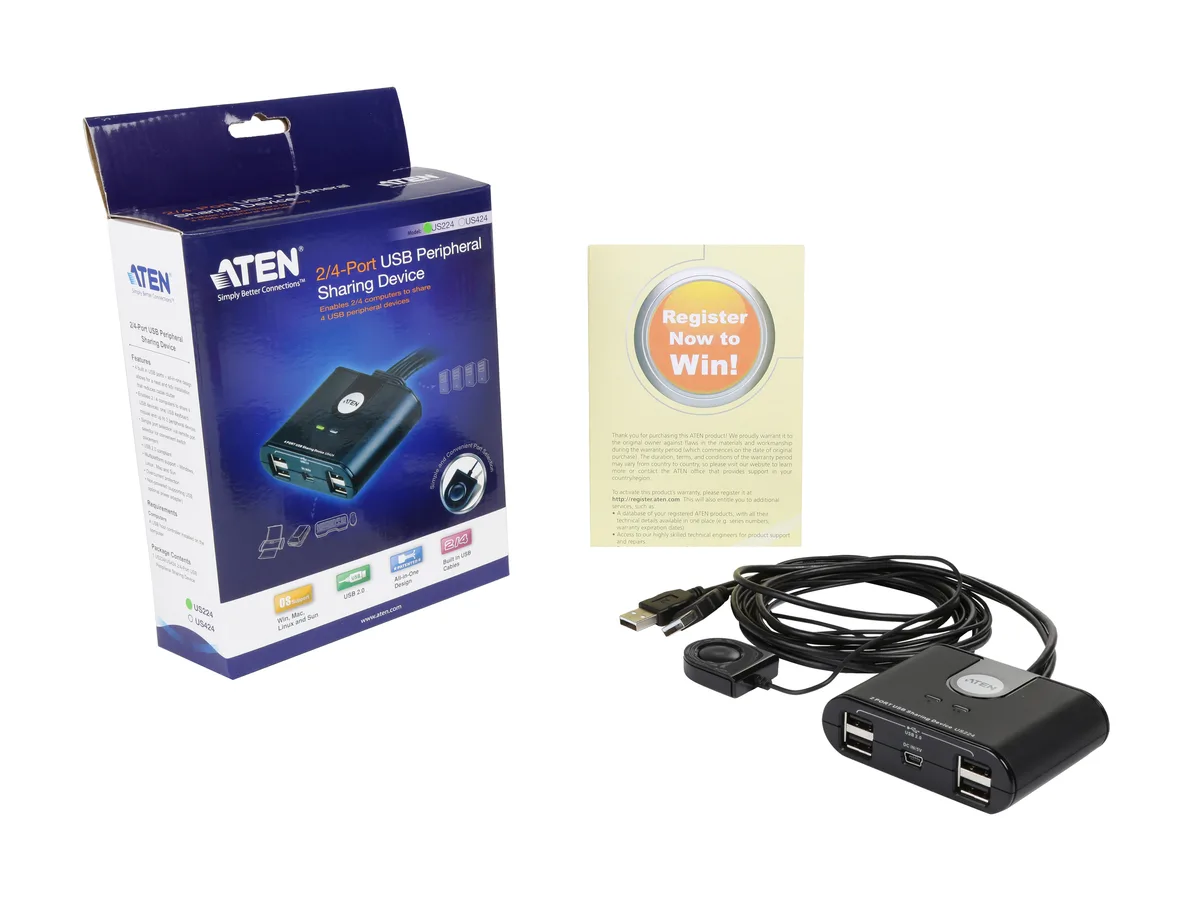

| Package Contents | 1 x US224 2-Port USB Peripheral Sharing Device |
| Shipping weight | 0.21 kg |
| Package size | 185 × 157 × 58 mm |
Questions about this item
Does the ATEN US224 generate noticeable heat or noise when left running all day?
The switch operates passively with no fan, so it produces no audible noise; its rated operating range is 0 °C to 40 °C (32 °F to 104 °F) with up to 80 % non-condensing humidity.
What cables or ports must my two computers already have to use this KVM?
Each computer needs a free USB Type-A port for the two attached USB Type-A male cables that come permanently fixed to the US224.
Will my older USB 1.1 keyboard and mouse work through the US224 alongside newer peripherals?
Yes — the four downstream USB Type-A female ports accept any standard USB keyboard, mouse or other peripheral regardless of its USB version.
