ATEN
ATEN US221A 2-Port USB 2.0 KVM Switch
Lets two computers share one USB 2.0 peripheral with push-button or auto switching, bus-powered in a compact enclosure
- TypeUSB
- PC Connectors2 x USB Type B
- Console Connectors2
- LED IndicatorsDevices: 1 (Orange) Selected: 2 (Green)
- Temperature0ºC to 40ºC(32ºF to 104ºF)
- Humidity0% to 80%,Non-Condensing
- Share one USB peripheral between two computers
- USB bus powered so no external adapter needed
- Simple port selection via pushbuttons or Auto Switch
- Compact 0.96" x 2.59" x 2.83" design fits any desk
- Operates from 32°F to 104°F for reliable use
Two-Port USB 2.0 KVM Switch
The ATEN US221A lets two computers share one USB peripheral such as a printer, scanner or external drive. It draws power from the USB bus so no external adapter is required. Front push-buttons, a software utility or an automatic switching mode select the active host. The unit operates from 0°C to 40°C in non-condensing humidity up to 80%.
Replaces Manual Cable Swapping
Instead of unplugging and reconnecting a device each time you change systems, this switch keeps the peripheral permanently attached and routes the connection electronically. The upgrade is worthwhile when two workstations or a PC and a Mac regularly need the same USB 2.0 accessory without network sharing overhead. Auto Switch mode removes the need for a dedicated print server.
Suits Dual-System Desks Needing One USB Device
Ideal for users who alternate between two computers and want a single USB 2.0 peripheral always ready. Not suited for anyone requiring simultaneous access from both hosts, switching of video or audio signals, or support for USB 3.0 and higher bandwidth devices. Builders needing more than two host ports should consider a larger switch.
Highlights
- Share one USB peripheral between two computers
- USB bus powered so no external adapter needed
- Simple port selection via pushbuttons or Auto Switch
- Compact 0.96" x 2.59" x 2.83" design fits any desk
- Operates from 32°F to 104°F for reliable use
Specifications
| Brand | ATEN |
|---|---|
| Model | US221A |
| Type | USB |
| PC Connectors | 2 x USB Type B |
| Console Connectors | 2 |
| LED Indicators | Devices: 1 (Orange) Selected: 2 (Green) |
| Temperature | 0ºC to 40ºC(32ºF to 104ºF) |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | USB Bus Powered |
| USB Features | with USB support |
| Features | Enables two computers to share a single USB peripheral device Simple port selection via pushbuttons, configuration utility, or Auto Switch function Auto Switch Function - no need for print server USB 2.0 compliant Supports transfer rates up to 480 Mbps Multiplatform support - Windows and Mac LED indicators display port focus Overcurrent protection Bus-powered Hot pluggable Buzzer indicates switching between computers Supports multifunction printers |
| Dimensions | 0.96" x 2.59" x 2.83" |
| Weight | 0.13 lb. |

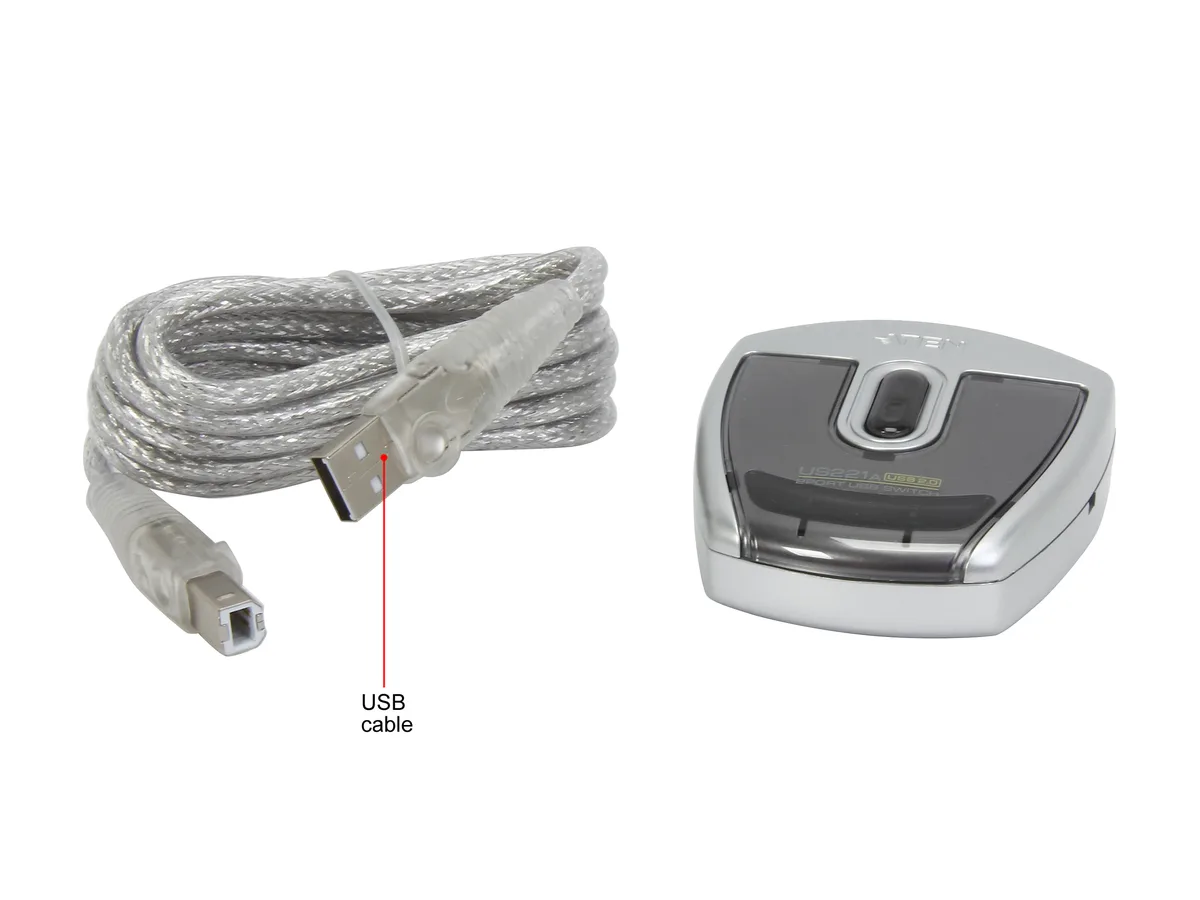

| Package Contents | 1 x 2-Port USB 2.0 Peripheral Switch 1 x USB Type A to USB Type B Cable(1.8m) 1 x Installation disk 1 x User Instructions |
| Shipping weight | 0.25 kg |
| Package size | 250 × 145 × 69 mm |
Questions about this item
What console connectors does the US221A provide for the shared USB peripheral?
The switch offers two console connectors so a single USB peripheral can be shared between the two connected computers.
How is the US221A powered and what cable is used to connect each computer?
It draws power from the USB bus and each computer connects with a USB Type A to Type B cable (1.8 m included).
What operating temperature and humidity range should be maintained for reliable operation?
Operate between 0 °C and 40 °C (32 °F to 104 °F) with humidity from 0 % to 80 % non-condensing.
