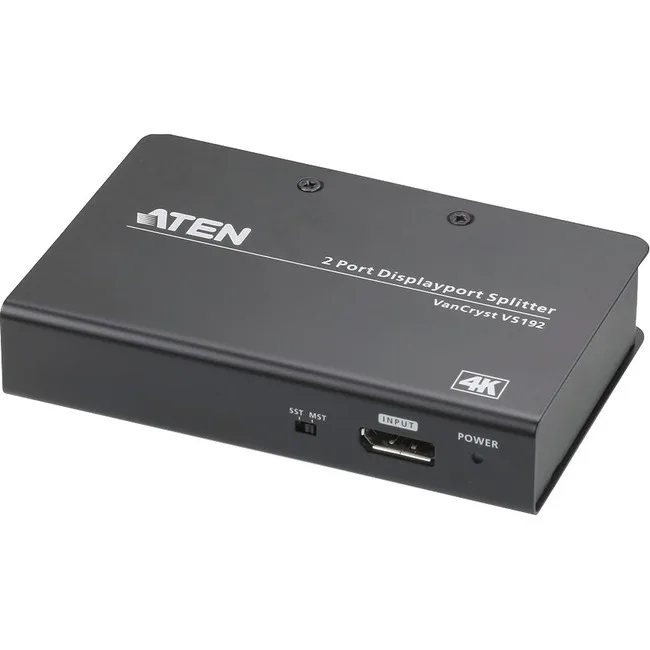

Compact metal box with one DisplayPort input and two outputs, matte finish

ATEN TECHNOLOGIES

ATEN TECHNOLOGIES VS192 2-Port 4K DisplayPort Splitter

SKU CH-BNXV-HAXYD MPN VS192

Splits one DisplayPort source to two monitors at up to 4096 x 2160 @ 60 Hz with MST and SST modes

  • Splitter TypeDisplayport
  • SpecificationEnvironmental Operating Temperature: 0-40 celsius degree Sto
  • Resolution SupportMax. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
  • VideoCompliance: DP 1.2a; HDCP 1.3 Max. Data Rate: 21.6 Gbps (5.4
  • Other ConnectorVideo Output: Interfaces: 2 x DisplayPort Female (Black) Vid
  • FeatureConnects one DisplayPort source to two or four DisplayPort m
  • Splits one DisplayPort source to two 4K monitors
  • Metal housing withstands 0 to 40 °C operating temperature
  • DP 1.2a and HDCP 1.3 compliance protect 4K content
  • 6 Gbps total bandwidth carries 4096 × 2160 at 60 Hz
  • MST extend and SST split modes suit different workflows

2-Port 4K DisplayPort Splitter

The ATEN VS192 takes a single DisplayPort source and distributes it to two DisplayPort monitors. It supports resolutions up to 4096 x 2160 or 3840 x 2160 at 60 Hz with a maximum data rate of 21.6 Gbps. The metal housing operates reliably between 0 and 40 °C.

MST Extend and SST Split Modes

This splitter suits users who need to mirror content across two screens or extend a desktop across both displays using MST. It is not for buyers who require more than two outputs or who need to split a signal to four monitors from one unit. HDCP 1.3 compliance protects premium video streams.

Source and Display Compatibility

Verify that your source device supports DisplayPort 1.2a and the desired MST or SST mode before ordering. Both connected monitors must accept a DisplayPort input at the target resolution and refresh rate. A 5 V DC power adapter is included for the unit.

Highlights

  • Splits one DisplayPort source to two 4K monitors
  • Metal housing withstands 0 to 40 °C operating temperature
  • DP 1.2a and HDCP 1.3 compliance protect 4K content
  • 6 Gbps total bandwidth carries 4096 × 2160 at 60 Hz
  • MST extend and SST split modes suit different workflows

Specifications

BrandATEN
ModelVS192
Splitter TypeDisplayport
SpecificationEnvironmental
Operating Temperature: 0-40 celsius degree
Storage Temperature: -20 - 60 celsius degree
Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
Housing: Metal
Resolution SupportMax. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
VideoCompliance: DP 1.2a; HDCP 1.3
Max. Data Rate: 21.6 Gbps (5.4 Gbps per lane)
Other ConnectorVideo Output:
Interfaces: 2 x DisplayPort Female (Black)
Video Input:
Interfaces: 1 x DisplayPort Female (Black)
Power: 1 x DC Jack
FeatureConnects one DisplayPort source to two or four DisplayPort monitors
Supports DisplayPort 1.2a; HDCP 1.3
Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
Supports MST/ Extend Mode and SST/ Split Mode*
MST/ Extend Mode:
Extend a video source across 2 displays with a maximum resolution of 4K.
SST/ Split Mode:
Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor
Supports Linkrate: HBR2 (High Bit Rate 2)
Note:
* The VS192 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1.
Dimensions0.98" x 4.92" x 3.15"
Weight0.66 lb.
Package Content1 x VS192 2-Port 4K DisplayPort Splitter
1 x Power Adapter
1 x User Instructions
Shipping weight0.57 kg
Package size241 × 160 × 61 mm

Questions about this item

What source connection do I need to feed the VS192's single DisplayPort input?

A DisplayPort 1.2a source with HDCP 1.3 support, such as a graphics card or laptop port that can output up to 4096 x 2160 at 60 Hz and 21.6 Gbps total bandwidth.

Can I keep my older 1080p DisplayPort monitors and still use the splitter's MST extend mode?

Yes, each output negotiates its own link; the 5.4 Gbps per lane capacity will downscale to the monitor's native timing while the second display shows an independent extended desktop.

How can I confirm the splitter is delivering 4K 60 Hz to both screens after setup?

Check each monitor's on-screen information menu — both should report 3840 x 2160 or 4096 x 2160 at 60 Hz with HDCP 1.3 active and no frame drops.
