Silver rack-mountable 8-port HDMI production switcher with front panel buttons and rear HDMI ports

ATEN TECHNOLOGIES

ATEN TECHNOLOGIES VS0801HB 8-port production switcher

SKU CH-B8QG-SF26M MPN VS0801HB

Routes eight HDMI sources to one display with true 4K at 60 Hz 4:4:4 and HDCP 2.2 compliance

  • Power ConsumptionDC5.3V:3.73W:17BTU
  • SpecificationSwitches DIP: 1 x Auto Switch ON / OFF Video Input Interface
  • FeatureAllows up to 8 HDMI sources to be connected to one HDMI disp
  • Dimensions1.73" x 17.21" x 6.23"
  • Weight4.71 lbs.
  • Connect up to eight HDMI sources to a single display
  • True 4K video at 4096 x 2160 resolution and 60 Hz refresh rate
  • HDMI 2.0 with HDCP 2.2 compliance protects premium content
  • Built-in RS-232 serial port enables high-end system control
  • Rack-mountable 1.73-inch height fits standard 1U enclosures

8-port True 4K HDMI production switcher

The ATEN VS0801HB routes up to eight HDMI sources to a single display. It supports True 4K resolutions of 4096 x 2160 and 3840 x 2160 at 60 Hz with 4:4:4 colour sampling. HDMI 2.0 and HDCP 2.2 compliance ensure compatibility with protected content. The unit fits a standard rack at 1.73 inches high, 17.21 inches wide and 6.23 inches deep.

Suited for multi-source presentation rooms

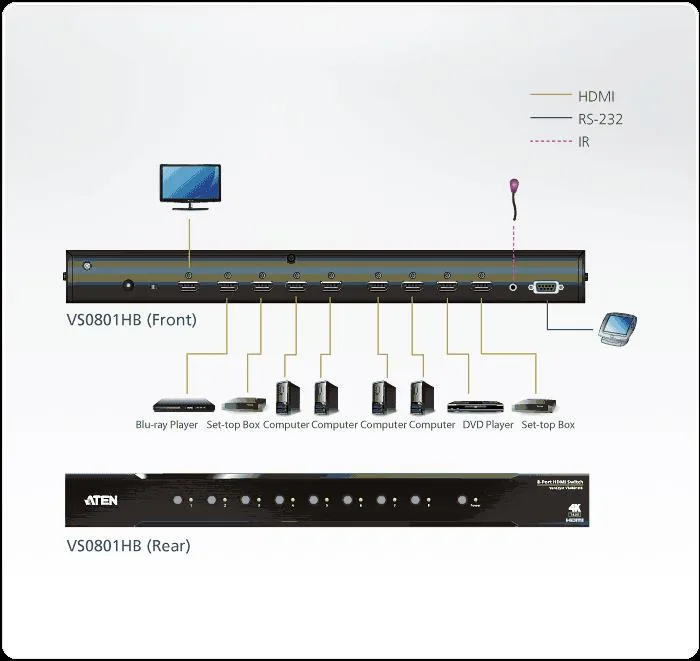

Installers who need to switch between eight computers, set-top boxes or media players on one screen will benefit. The bi-directional RS-232 port allows integration with control systems. Users requiring multiple simultaneous outputs or support for more than eight inputs should consider a matrix switcher instead.

Verify source cable lengths

Each HDMI input accepts cables up to 5 metres at full 4K 60 Hz 4:4:4. Confirm that all source devices output resolutions within the 4096 x 2160 maximum. The switcher draws 3.73 watts from a 5.3 V DC supply, so ensure the included adapter matches your mains voltage.

Highlights

  • Connect up to eight HDMI sources to a single display
  • True 4K video at 4096 x 2160 resolution and 60 Hz refresh rate
  • HDMI 2.0 with HDCP 2.2 compliance protects premium content
  • Built-in RS-232 serial port enables high-end system control
  • Rack-mountable 1.73-inch height fits standard 1U enclosures

Specifications

BrandATEN
ModelVS0801HB
Power ConsumptionDC5.3V:3.73W:17BTU
SpecificationSwitches
DIP: 1 x Auto Switch ON / OFF
Video Input
Interfaces: 8 x HDMI Type A Female (Black)
Impedance: 100 ohm
Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 ohm
Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate: 18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock: 600 MHz
Compliance:
- HDMI 2.0 (3D, Deep Color)
- HDCP 2.2
- Consumer Electronics Control (CEC)
Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60H
FeatureAllows up to 8 HDMI sources to be connected to one HDMI display
HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
Supports HDR10+
Built-in bi-directional RS-232 serial port for high-end system control
Auto switching modes for auto port selection
Supports IR extension
Clear LED indication of device status
Plug-and-play
Rack Mountable
Dimensions1.73" x 17.21" x 6.23"
Weight4.71 lbs.
Shipping weight2.27 kg
Package size457 × 178 × 76 mm

Questions about this item

What HDMI sources must I already own to connect to the eight HDMI Type A inputs?

Any mix of displays, set-top boxes, Blu-ray players, DVD players or computers with HDMI outputs — up to eight devices total.

Will the single HDMI output drive my existing 1080p display at 60 Hz alongside newer 4K sources?

Yes, the switch passes standard 1920 x 1080 at 60 Hz as well as 3840 x 2160 and 4096 x 2160 at 60 Hz 4:4:4.

How can I verify the VS0801HB is switching correctly after I cable everything?

Use the front-panel push buttons or the bi-directional RS-232 port to select each input and confirm the chosen source appears on the HDMI display.
