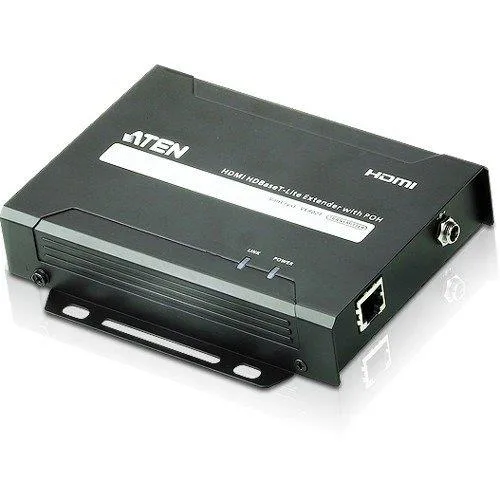

ATEN VE802T HDMI HDBaseT-Lite transmitter with POH

ATEN TECHNOLOGIES

ATEN TECHNOLOGIES VE802T HDMI HDBaseT-Lite Transmitter with POH

SKU CH-ZYSD-5365G

Extends HDMI signals up to 70 m over a single Cat cable with RS-232 and IR pass-through plus Power over HDBaseT

  • Extends HDMI up to 70 m over a single Cat 5e/6/6a cable
  • Powers the remote receiver through the same cable with Power over HDBaseT
  • Passes RS-232 and IR control both ways for source and display management
  • Supports 3D, Deep Color and 4K video with HDCP compliance
  • Works as the local transmitter paired with a VE802R receiver for complete extension

HDMI HDBaseT-Lite Transmitter with POH

The VE802T transmits HDMI signals up to 70m over a single Cat 5e/6/6a cable. It supports RS-232 and IR pass-through for remote source control and display access. Power over HDBaseT delivers electricity through the same cable, removing the need for a separate supply at the receiver. The unit handles 4K, 3D and Deep Color content with HDCP compliance.

Extends HDMI over copper infrastructure

This transmitter replaces direct HDMI runs that exceed reliable cable lengths. The jump is worth it when the source and display are separated by up to 70m and existing twisted-pair cabling is available. It also consolidates video, control and power into one link, reducing installation complexity. Not suited for runs beyond the 70m limit or for fibre-only backbone environments.

Cat 5e/6/6a distance and feature constraints

Signal reach is capped at 70m over Cat 5e/6/6a; longer distances require a different extension method. HDCP and 4K support depend on the connected receiver and display capabilities. RS-232 and IR pass-through operate only with compatible remote units. POH eliminates a local power adapter but requires the receiver to accept power over the same cable.

Highlights

  • Extends HDMI up to 70 m over a single Cat 5e/6/6a cable
  • Powers the remote receiver through the same cable with Power over HDBaseT
  • Passes RS-232 and IR control both ways for source and display management
  • Supports 3D, Deep Color and 4K video with HDCP compliance
  • Works as the local transmitter paired with a VE802R receiver for complete extension

Specifications

No published specifications for this item yet.

Questions about this item

What cable type and maximum distance does the VE802T transmitter require for HDBaseT extension?

The VE802T extends HDMI, RS-232 and IR signals up to 70 metres over a single Cat 5e, Cat 6 or Cat 6a cable.

How is the VE802T powered during installation, and what common step is missed?

The unit uses Power over HDBaseT so it draws power from the connected receiver over the same Cat cable; the step often missed is ensuring the receiver (VE802R) is powered and the link is active before expecting the transmitter to operate.

Which control signals pass through the VE802T and may need re-configuration if the remote device changes?

RS-232 and IR signals pass through bidirectionally, so any new remote source or display will require the control system to address the same serial and IR paths carried over the HDBaseT link.
