ATEN CS1824 4-port HDMI KVM switch with USB 3.0 hub

ATEN TECHNOLOGIES

ATEN TECHNOLOGIES CS1824 4-Port USB 3.0 4K HDMI KVMP Switch

SKU CH-XNZ5-1M5TK MPN CS1824

Controls four HDMI computers from one keyboard, mouse and monitor at 4096 x 2160 @ 60Hz with a built-in USB 3.1 Gen 1 hub

  • Manage four computers from one keyboard, mouse and monitor
  • 4K DCI resolution up to 4096 x 2160 at 60Hz
  • Video DynaSync™ for faster switching and better display resolution
  • Audio Mixer Mode blends sound from two systems so alerts are never missed
  • Built-in USB 3.1 Gen 1 hub delivers 5 Gbps data transfer for shared peripherals

Four-Computer HDMI KVMP Control

The ATEN CS1824 lets you operate four HDMI computers from one USB keyboard, mouse and HDMI monitor. It supports video up to 4096 x 2160 at 60 Hz and includes a built-in USB 3.1 Gen 1 hub for 5 Gbps peripheral sharing. Audio Mixer Mode blends sound from two systems so alerts are never missed. The switch targets professionals in CGI, graphic design and video post-production who need simultaneous multi-system access.

Replaces Separate KVM and USB Hubs

This unit consolidates a four-port KVM, a USB 3.0 hub and audio mixing into a single device, removing cable clutter and the need to swap cables manually. Video DynaSync™ technology preserves native resolution and accelerates switching between sources. The upgrade is worthwhile when workflow demands instant access to four 4K workstations with shared high-speed storage and mixed audio monitoring.

Verify HDMI 4K 60 Hz Output and USB 3.0 Ports

Confirm each source computer provides an HDMI output capable of 4096 x 2160 at 60 Hz and at least one USB 3.0 port for the hub link. Ensure the single monitor accepts that resolution and refresh rate. Check that keyboard, mouse and any shared peripherals use standard USB-A connectors compatible with the front hub. Audio mixing requires analogue audio outputs on the two systems you wish to blend.

Highlights

  • Manage four computers from one keyboard, mouse and monitor
  • 4K DCI resolution up to 4096 x 2160 at 60Hz
  • Video DynaSync™ for faster switching and better display resolution
  • Audio Mixer Mode blends sound from two systems so alerts are never missed
  • Built-in USB 3.1 Gen 1 hub delivers 5 Gbps data transfer for shared peripherals

Specifications

No published specifications for this item yet.

Questions about this item

What video resolution and refresh rate does the CS1824 support for the HDMI monitor?

The CS1824 supports up to 4K DCI resolution at 4096 x 2160 @ 60Hz for the connected HDMI monitor.

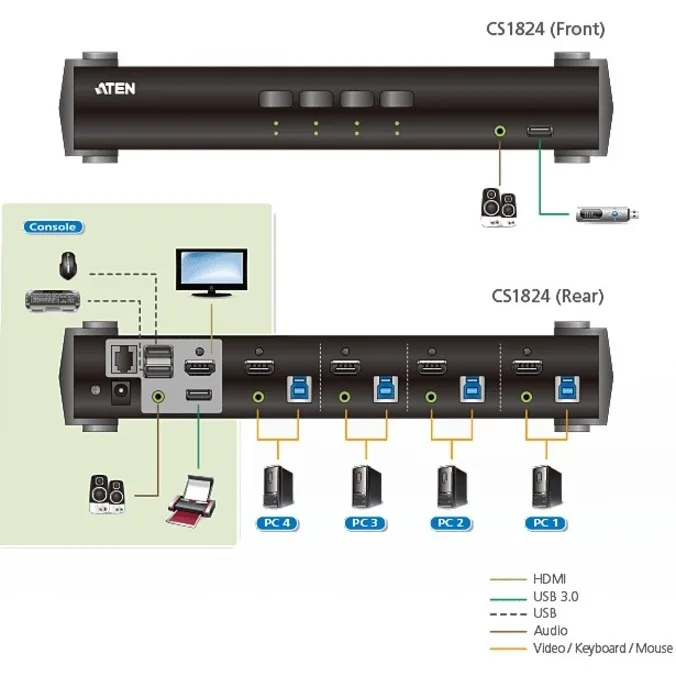

How do I connect the four computers and shared peripherals to the CS1824?

Connect each computer via its HDMI and USB cables to the CS1824 ports, then attach one USB keyboard, mouse, and HDMI monitor to the console ports; a common mistake is swapping the HDMI and USB links for a given port.

What USB standard does the built-in hub use for peripheral sharing?

The built-in hub uses USB 3.1 Gen 1, providing data transfer rates up to 5 Gbps for shared USB peripherals.
