ATEN KL1516AM 16-port CAT5 dual rail LCD KVM switch
A 1U rack console with a sliding 17-inch LCD, keyboard and touchpad controls 16 servers over Cat 5e/6 cables up to 40 metres at 1280 x 1024 resolution
- TypeRJ-45
- Computer Connections16 Ports

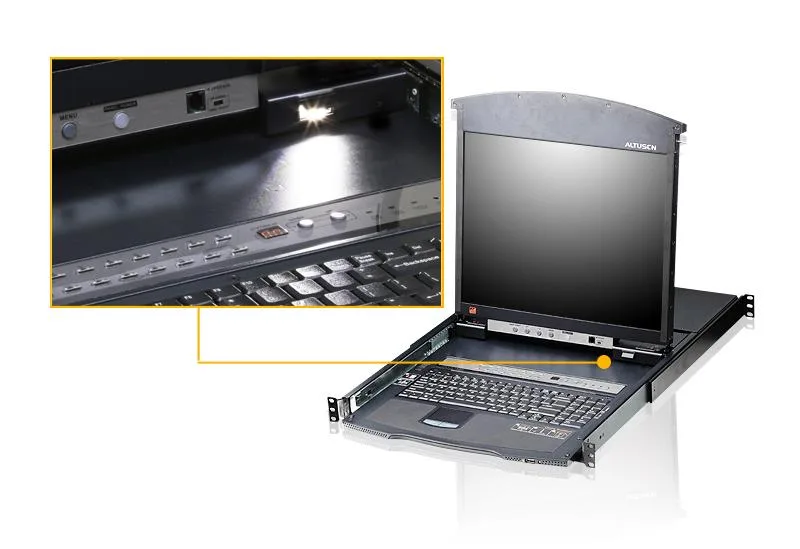

- LED IndicatorsPower On: 1 (Blue) On Line: 16 (Green) Station ID: 2 x 7 Seg
- FeaturesKVM console with 17"or 19" LCD monitor in a sliding housing
- Dimensions28.00" x 19.00" x 1.70" Unit 32.50" x 5.10" x 26.50" Case
- Package Contents1x 16-Port Cat 5 High-Density Dual Rail LCD KVM Switch with
- Control 16 servers from one rack console
- 17-inch LCD slides independently of keyboard tray
- Dual-rail design fits in 1U with clearance
- Cat 5e/6 links reach 40 metres at 1280 x 1024 60 Hz
- Mix PCs, Macs, Sun and serial devices via adapter cables
All-in-One Rack Console

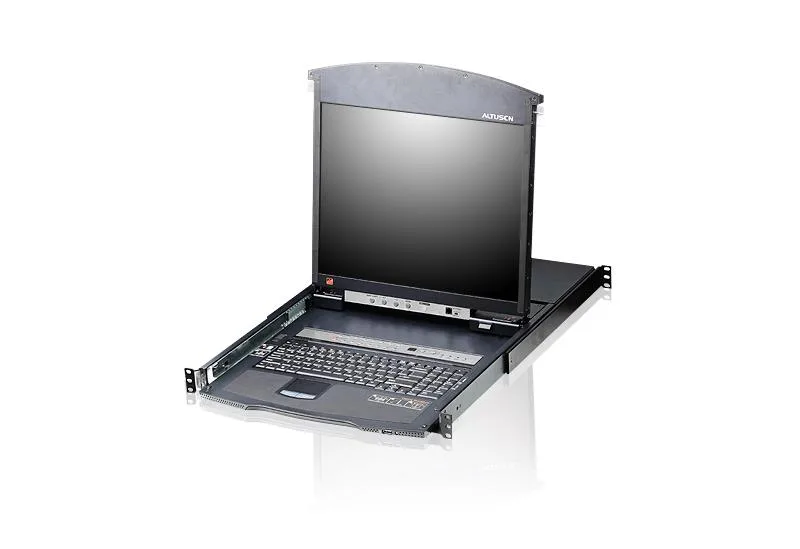

The ATEN KL1516AM is a 1U rackmount KVM console that integrates a 17-inch or 19-inch LCD, keyboard, and touchpad into a single sliding unit. It provides 16 RJ-45 ports for CAT5 connections, allowing administrators to manage up to sixteen computers from one location. The dual-rail design lets the display slide independently of the input devices for flexible positioning within the rack.
Sustained Operation
The dual-rail mechanism reduces mechanical stress by allowing the LCD panel to remain open while the keyboard tray is stowed, supporting continuous monitoring without repeated full extension cycles. CAT5e/6 cabling carries video signals up to 40 metres at 1280 x 1024 resolution and 60 Hz, maintaining stable image quality over long cable runs in dense server rooms. LED indicators for power, online status, and port selection give immediate visual feedback during extended management sessions.
Installation Notes
The unit mounts in a standard 19-inch rack using the included hardware and occupies 1.70 inches of vertical space with top and bottom clearance for smooth sliding. Separate KVM adapter cables are required to connect each computer’s video, keyboard, and mouse ports to the RJ-45 inputs; these are not supplied. Firmware upgrades are performed via the provided cable, and a six-foot power cord is included for immediate power-up.
Highlights
- Control 16 servers from one rack console
- 17-inch LCD slides independently of keyboard tray
- Dual-rail design fits in 1U with clearance
- Cat 5e/6 links reach 40 metres at 1280 x 1024 60 Hz
- Mix PCs, Macs, Sun and serial devices via adapter cables
Specifications
| Brand | ATEN |
|---|---|
| Model | KL1516AM |
| Type | RJ-45 |
| Computer Connections | 16 Ports |
| LED Indicators | Power On: 1 (Blue) On Line: 16 (Green) Station ID: 2 x 7 Segment (Red) Selected: 16 (Red) |
| Features | KVM console with 17"or 19" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rack Dual Rail operation - LCD monitor slides independently of the keyboard/touchpad LCD module rotates up to 120 degrees for a more comfortable viewing angle Console lock enables the sliding console to remain securely locked away when not in use A single console controls up to 16 computers - daisy chain up to 31 additional units to control up to 512 computers KVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun comp |
| Dimensions | 28.00" x 19.00" x 1.70" Unit 32.50" x 5.10" x 26.50" Case |
| Package Contents | 1x 16-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit 1x Firmware Upgrade Cable 1x Power Cord (6ft.) 1x User Manual 1x Quick Start Guide |
| Shipping weight | 26.31 kg |
| Package size | 508 × 508 × 508 mm |
Questions about this item
How much heat and noise does the KL1516AM produce when the 17-inch LCD and keyboard are left running all day?
The unit fits in 1.70 inches of rack height with top and bottom clearance for airflow, and it uses a single blue power LED plus green and red status LEDs — no fan noise is mentioned in the design.
Which KVM adapter cables must I already own to connect my PCs, Macs or Sun servers to the 16 RJ-45 ports?
The switch requires ATEN KVM adapter cables for the final link to each computer; those cables are not included in the package.
Will the dual-rail console still slide smoothly if I mount the KL1516AM above or below older 1U equipment in the same rack?
Yes — the housing is slightly under 1U with clearance top and bottom, so the LCD and keyboard rails operate independently without binding against adjacent gear.
