ATEN KH1516A 16-port CAT5 KVM switch
Control up to 16 servers from one PS/2 or USB console, expandable to 512 via daisy-chained CAT5 links at 1600 x 1200 resolution
- TypeD-Sub, USB, PS/2
- PC ConnectorsKeyboard, Mouse, and Monitor: 16 x RJ45
- Console ConnectorsKeyboard, Mouse, and Monitor: PS/2 and / or USB Monitor: RJ9
- Computer Connections16 Ports
- Monitor Connections1 Port
- Video Resolution1600 x 1200
- Control 16 servers from one console with direct RJ45 connections
- Daisy-chain 31 extra units to manage up to 512 computers from a single keyboard, monitor and mouse
- Switch instantly via front-panel buttons, hotkeys or on-screen display with no software to install
- Supports video resolution up to 1600 x 1200 for clear display output

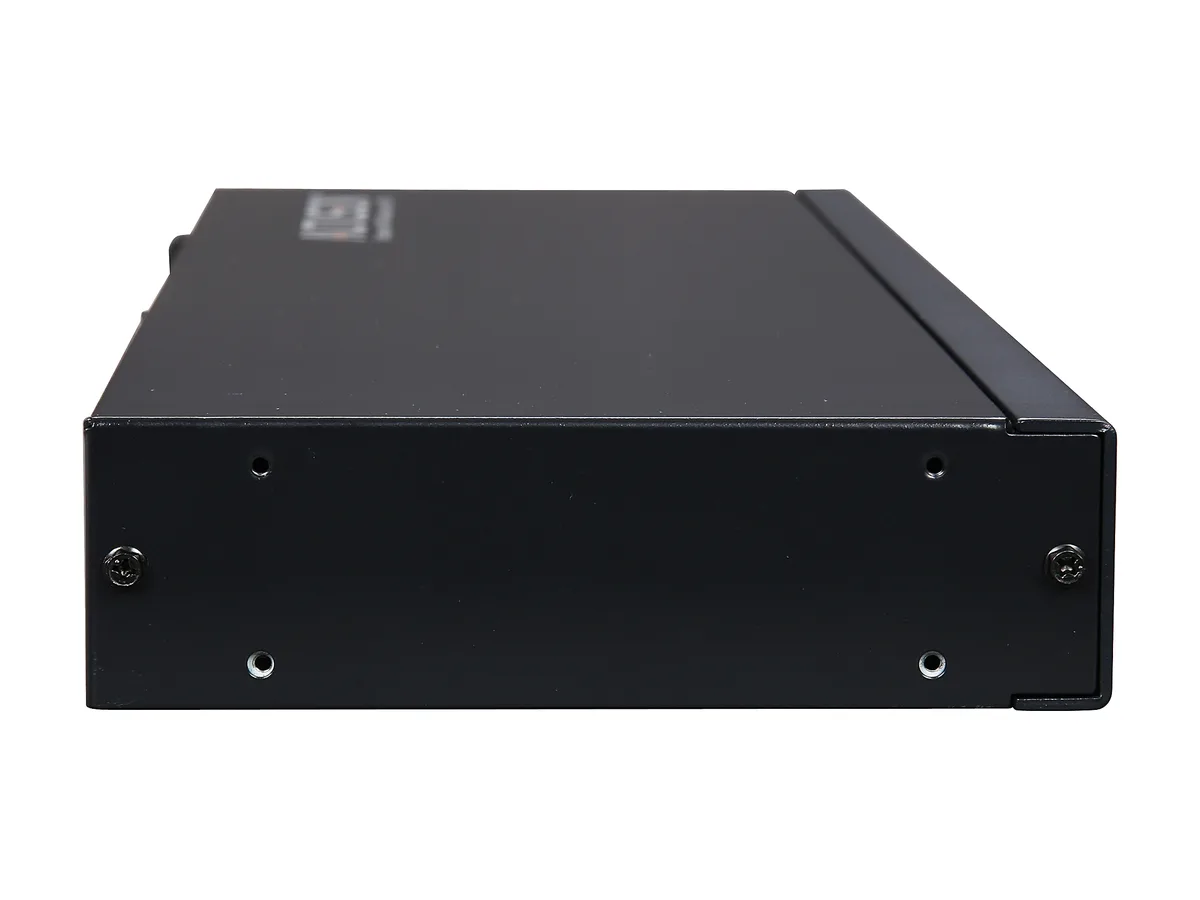

- Rack-mountable 1U chassis measuring 17.2" x 6.3" x 1.7" fits standard cabinets
16-port CAT5 KVM switch
The ATEN KH1516A is a 1U rack-mountable KVM switch that lets a single PS/2 or USB console manage up to 16 servers directly. It connects to each server through RJ45 CAT5 links and supports video resolutions up to 1600 x 1200. The unit operates in temperatures from 32F to 122F and includes a firmware upgrade cable, power cord, rack mounting kit and user manual.
Who this suits and who should look elsewhere
This switch suits administrators who need to control up to 16 computers from one keyboard, monitor and mouse using PS/2 or USB peripherals. It also fits environments that may expand to 512 systems by daisy-chaining up to 31 additional units. Buyers who require digital video inputs such as HDMI or DisplayPort, or who need remote IP-based KVM access, should consider a different product.
Capacity and headroom
A single unit handles 16 server connections with one local console port and a maximum video resolution of 1600 x 1200. Daisy-chaining extends the total reach to 512 computers while keeping the same console. The CAT5 links support distances up to 164.04 ft between the switch and connected servers. Beyond 16 direct ports or the stated resolution the switch cannot scale without adding more units.
Highlights
- Control 16 servers from one console with direct RJ45 connections
- Daisy-chain 31 extra units to manage up to 512 computers from a single keyboard, monitor and mouse
- Switch instantly via front-panel buttons, hotkeys or on-screen display with no software to install
- Supports video resolution up to 1600 x 1200 for clear display output
- Rack-mountable 1U chassis measuring 17.2" x 6.3" x 1.7" fits standard cabinets
Specifications
| Brand | ATEN |
|---|---|
| Model | KH1516A |
| Type | D-Sub, USB, PS/2 |

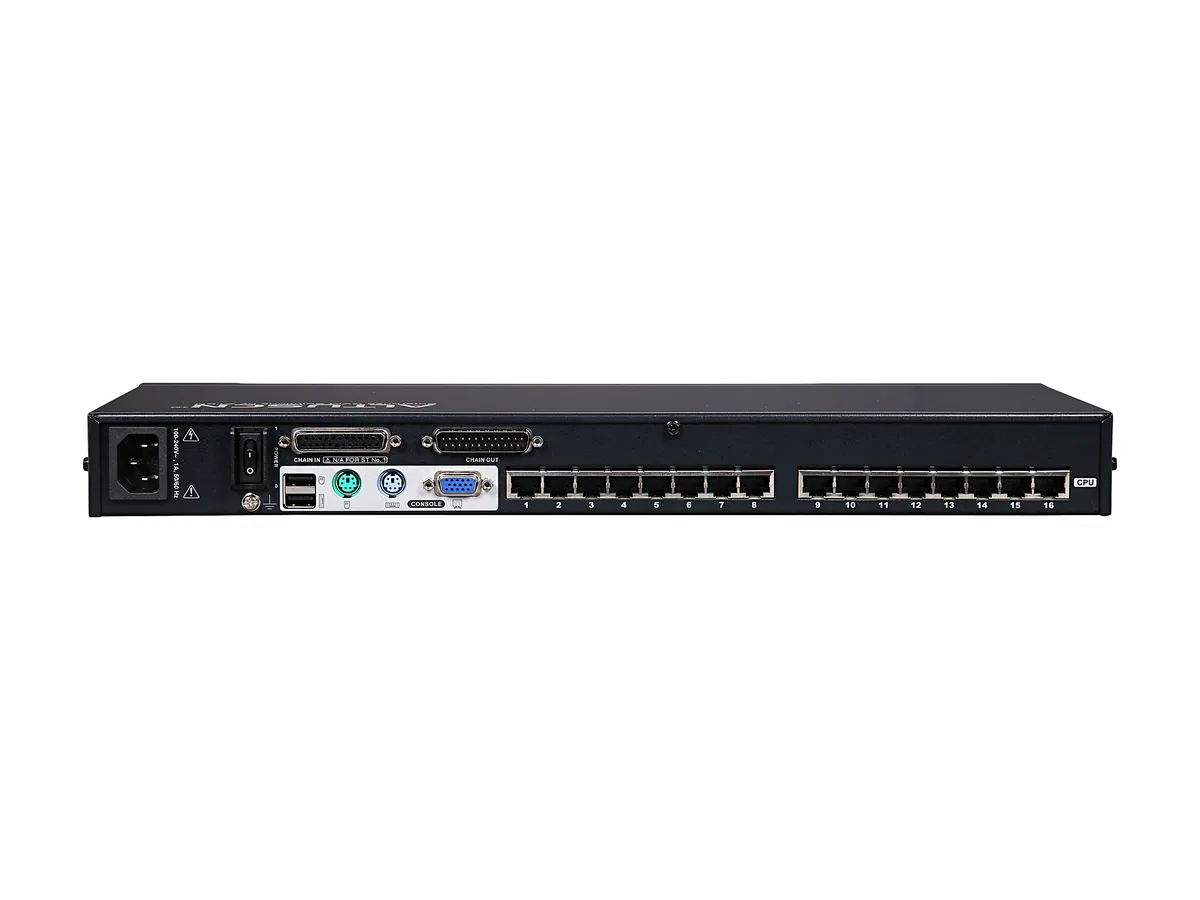

| PC Connectors | Keyboard, Mouse, and Monitor: 16 x RJ45 |
| Console Connectors | Keyboard, Mouse, and Monitor: PS/2 and / or USB Monitor: RJ9 |
| Computer Connections | 16 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 1600 x 1200 |
| PC Selection | Push Buttons/Hot Keys/OSD |

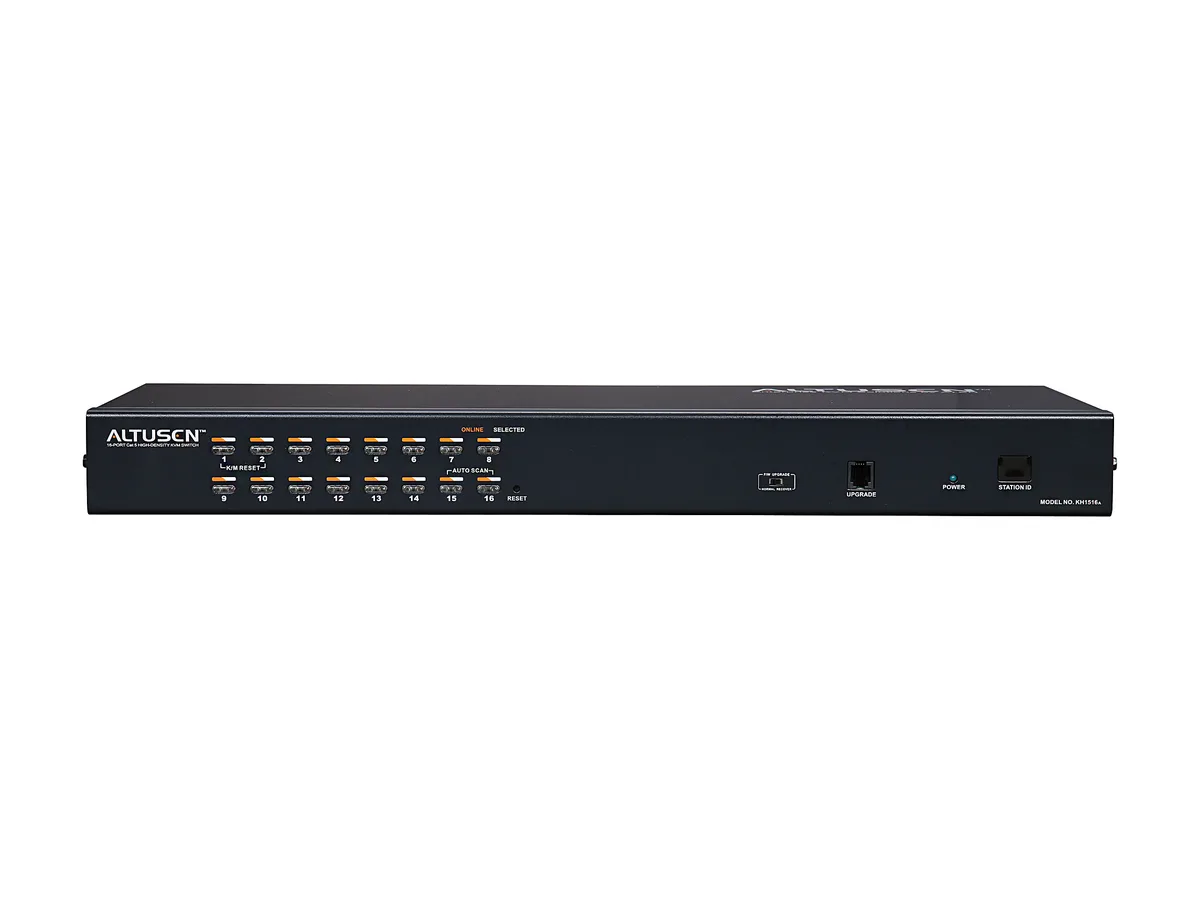

| LED Indicators | On Line: 16 [Green] Selected: 16 [Red] Station ID: 2 x 7 Segment [Red] Power On: 1 [Blue] |
| Temperature | 32F~122F |
| Humidity | 0 - 80% RH, Non-condensing |
| Features | A single console controls up to 16 directly connected servers Daisy chain up to 31 additional units - control up to 512 computers from a single console No software required - convenient computer selection via Hotkeys and intuitive OSD menus Auto Scan feature for monitoring user-selectable servers Hot Pluggable - add or remove computers without having to power down the switch Custom ASIC (patent pending) for increased reliability and enhanced performance Auto-sensing of station's position on daisy chained installations - no need for manual DIP Switch setting -port names are automatica |
| Dimensions | 17.2" x 6.3" x 1.7" |
| Weight | 6 lbs |

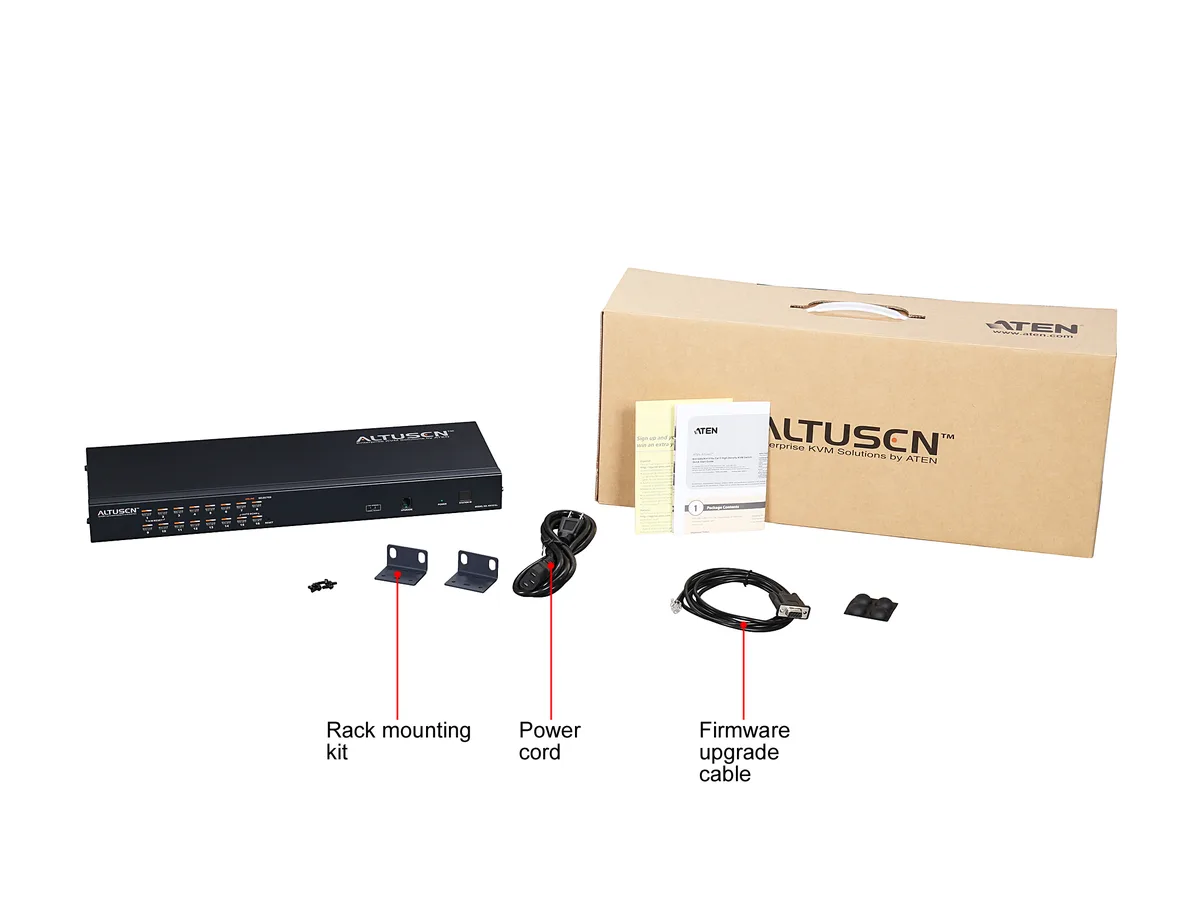

| Package Contents | 1 x KH1516A KVM Switch 1 x firmware upgrade cable 1 x 3 prong AC power cord 1 x rack mounting kit 1 x user manual |
| Shipping weight | 3.67 kg |
| Package size | 541 × 234 × 135 mm |
Questions about this item
Do I need to buy separate CAT5 cables to link my 16 servers to the 16 RJ-45 ports on this KH1516A?
Yes, the unit provides 16 RJ-45 server ports; you must supply the CAT5 cables that run from each server to those ports.
Can I keep my existing PS/2 keyboard and mouse and plug them into the console ports on this switch?
The console side accepts both PS/2 and USB keyboards and mice, so your current PS/2 peripherals will work directly.
Which LEDs on the front panel confirm that a server port is active and which one is currently selected?
Each of the 16 ports has a green On Line LED and a red Selected LED; the red LED lights for the port you are controlling.
