ATEN KH1508Ai 8-port Cat5 IP KVM switch
Eight-port Cat5 KVM switch with IP remote access and 1600 x 1200 video in a 1U rackmount
- TypeD-Sub, USB, PS/2
- PC ConnectorsKeyboard, Video, Mouse: 8 x RJ-45 Female
- Console ConnectorsKeyboard: 1 x 6-pin Mini-DIN Female / 1 x USB Type A Female
- Computer Connections8 Ports
- Monitor Connections1 Port
- Video Resolution1600 x 1200
- Control up to 8 servers from one console with 8 RJ-45 ports
- Access remotely over IP using a single dedicated bus for KVM control
- Connect a laptop directly via the dedicated USB console port for quick local management
- Fit 16 ports in 1U rack space using high-density RJ-45 connectors
- Support PS/2, USB, Sun Legacy and serial devices across Windows, Mac, Sun and Linux
8-port Cat5 IP KVM Switch

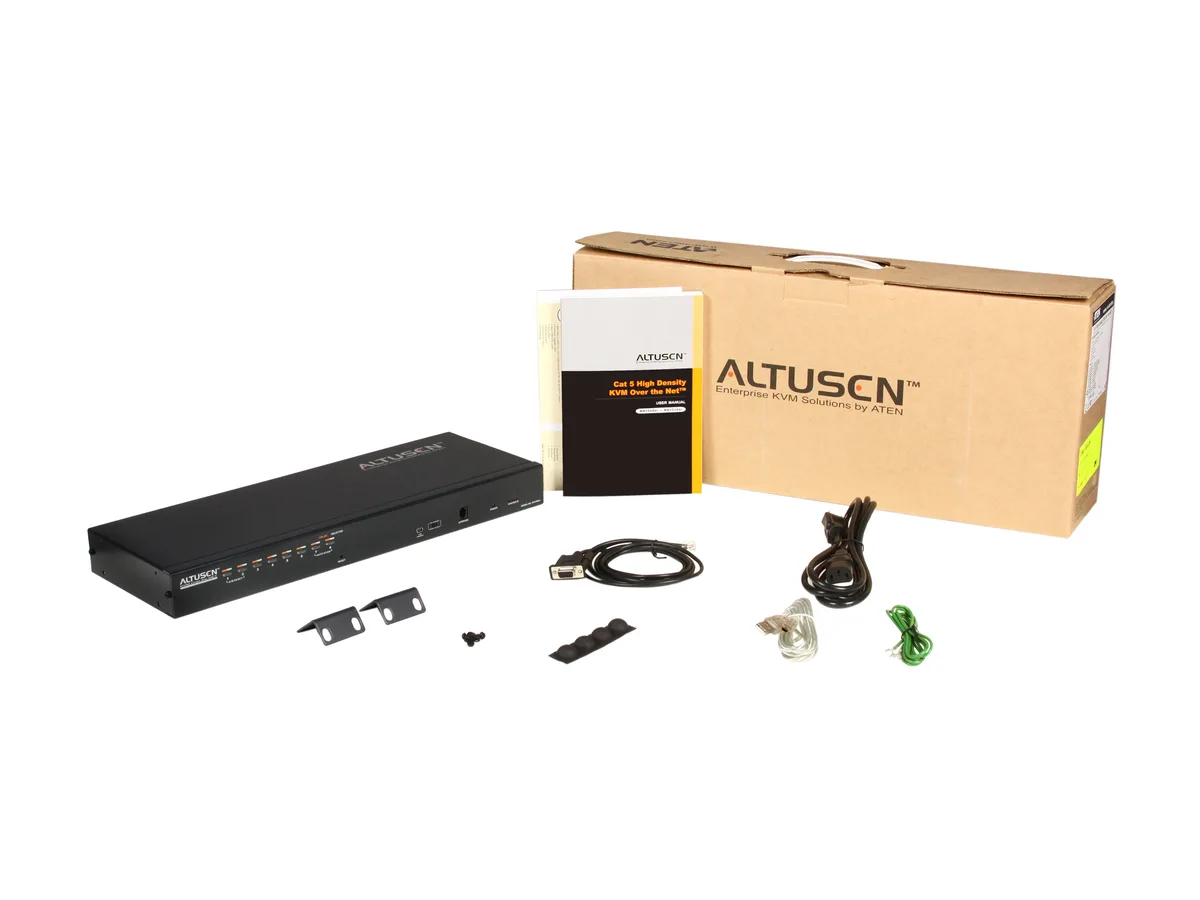

The ATEN KH1508Ai is a 1U rack-mount KVM switch that lets one administrator control up to eight servers from a single keyboard, monitor and mouse console. It connects to each server through Cat5 cabling using RJ-45 links, and adds a dedicated IP bus for remote over-IP management. The unit ships new with power cord, firmware cable, rack kit and documentation.
Cat5 cabling with RJ-45 server links

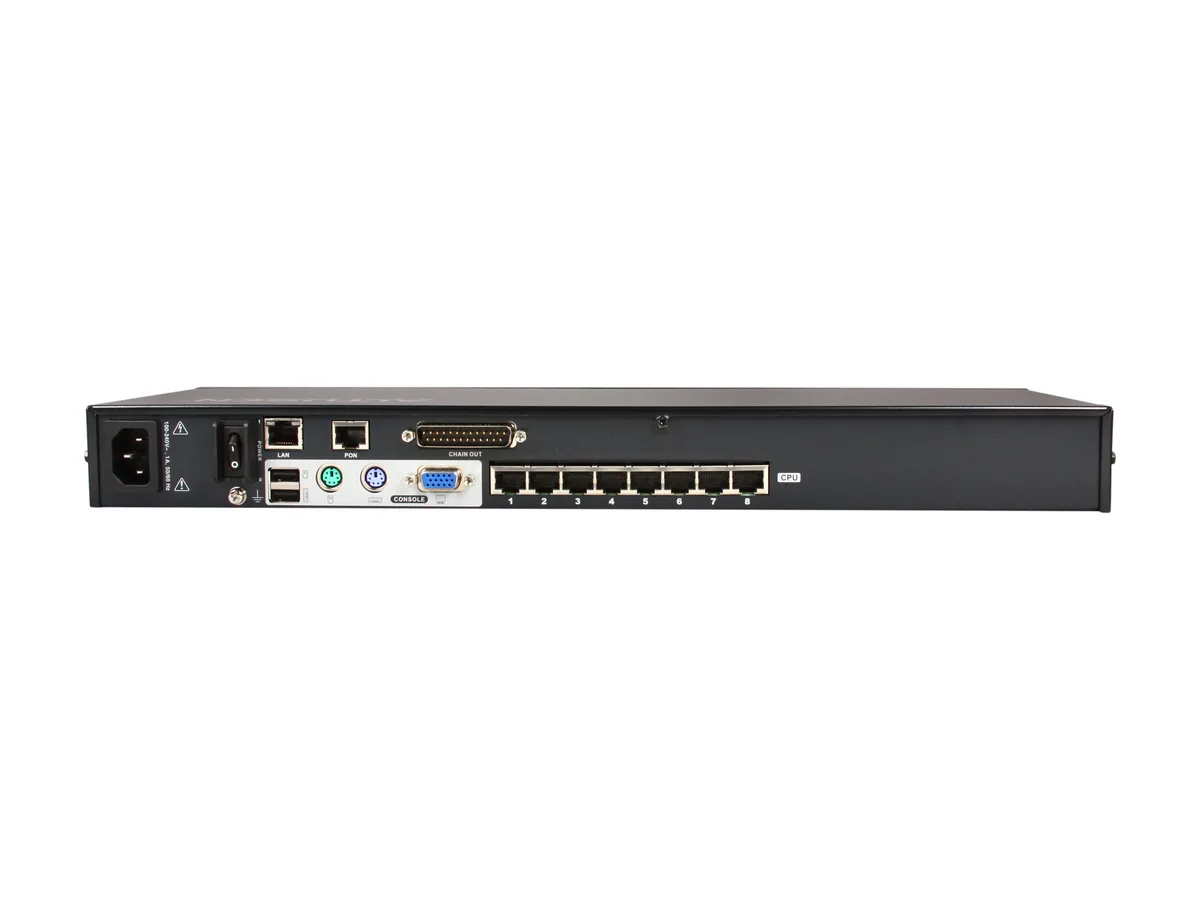

The decisive specification is the use of eight RJ-45 ports for server connections over Cat5 cable, supporting video up to 1600 x 1200 at 60 Hz across distances of 40 metres and 1280 x 1024 at 75 Hz across 50 metres. A single HDB-15 port serves the local monitor, while PS/2 and USB connectors handle local keyboard and mouse. Front push buttons and LED indicators provide local port selection and status.
Suited for dense server racks needing IP access
This switch suits environments that need high port density in 1U and require remote KVM over IP alongside local console control. It is not for buyers who need more than eight server ports, who require digital video inputs such as DVI or HDMI, or who need multi-user simultaneous access.
Highlights
- Control up to 8 servers from one console with 8 RJ-45 ports
- Access remotely over IP using a single dedicated bus for KVM control
- Connect a laptop directly via the dedicated USB console port for quick local management
- Fit 16 ports in 1U rack space using high-density RJ-45 connectors
- Support PS/2, USB, Sun Legacy and serial devices across Windows, Mac, Sun and Linux
Specifications
| Brand | ATEN |
|---|---|
| Model | KH1508Ai |
| Type | D-Sub, USB, PS/2 |
| PC Connectors | Keyboard, Video, Mouse: 8 x RJ-45 Female |
| Console Connectors | Keyboard: 1 x 6-pin Mini-DIN Female / 1 x USB Type A Female Mouse: 1 x 6-pin Mini-DIN Female / 1 x USB Type A Female Monitor: 1 x HDB-15 Female |
| Computer Connections | 8 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 1600 x 1200 |
| PC Selection | Push Buttons |
| LED Indicators | Power On: 1 (Blue) Link: 8 (Orange) Selected: 8 (Orange) 10/100 Mbps: 1 (Orange / Green) |
| Features | Dedicated USB port directly connects to a laptop for easy console operation High port density – RJ-45 connectors for up to 16 ports in a 1U housing One bus for remote KVM over IP access Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity Local console provides PS/2 and USB keyboard and mouse support Supports multiplatform server environments: Windows, Mac, Sun, Linux and serial devices High video resolution – up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters, with the new ATEN KVM Cable Adapter KA7000 series. Daisy chain up to 31 |
| Dimensions | 17.2" x 6.4" x 1.7" |
| Weight | 6.2 lbs |
| Package Contents | 1x KH1508Ai 1x Power Cord 1x Firmware Upgrade Cable 1x Rack Mount Kit 1x Foot Pad(4pcs) 1x User Manual 1x Quick Start Guide |
| Shipping weight | 4.99 kg |
| Package size | 546 × 241 × 23 mm |
Questions about this item
Will the 1600 x 1200 resolution hold over the full Cat5 cable run?
The switch supports 1600 x 1200 at 60 Hz up to 40 meters and 1280 x 1024 at 75 Hz up to 50 metres over Cat5.
What does the 10/100 Mbps LAN port limit for remote access?
Remote KVM over IP runs over a single 10/100 Mbps Ethernet link, capping session bandwidth to 100 Mbps.
How much rack depth does the 1U chassis need?
The unit is 17.2 inches deep, 6.4 inches wide and 1.7 inches high; a rack-mount kit is included.
