ATEN KE8900SR KVM Switch HDMI 1920 x 1200
IP-based KVM extender delivers 1920 x 1200 HDMI video and USB control to a remote console with virtual media and RS-232 support
- TypeKVM Extender
- Video Resolution1920 x 1200
- HDMI output up to 1920 x 1200 resolution
- Remote USB console access over IP network
- Virtual Media support for flexible data transfer
- RS-232 serial command capability included

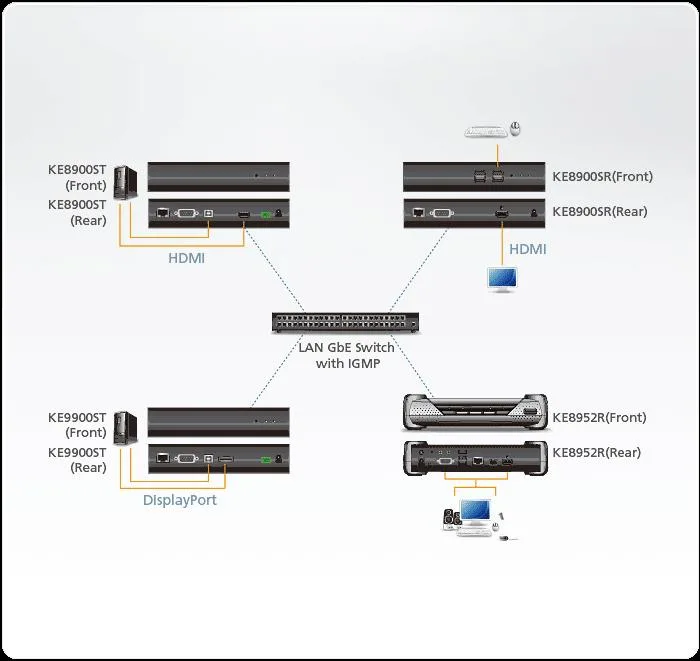

- Integrates into KVM over IP matrix system

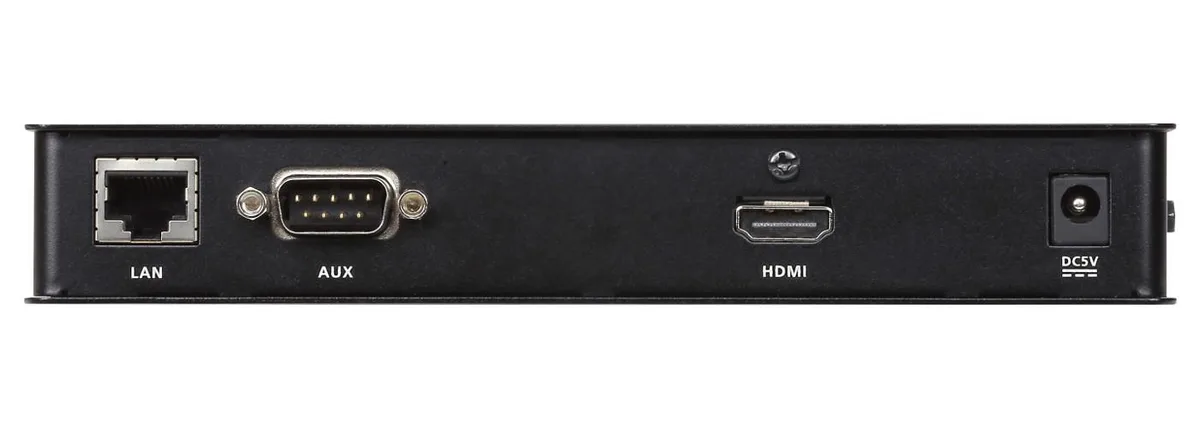

Compact IP KVM Receiver
The ATEN KE8900SR is a slim HDMI receiver that lets you operate a remote computer from a local USB keyboard, mouse and monitor over a standard network link. It targets administrators who need secure, out-of-band access to servers kept in a controlled environment. The unit works as a standalone extender or as part of a larger matrix when managed by KE Matrix Management Software.
Simple network deployment

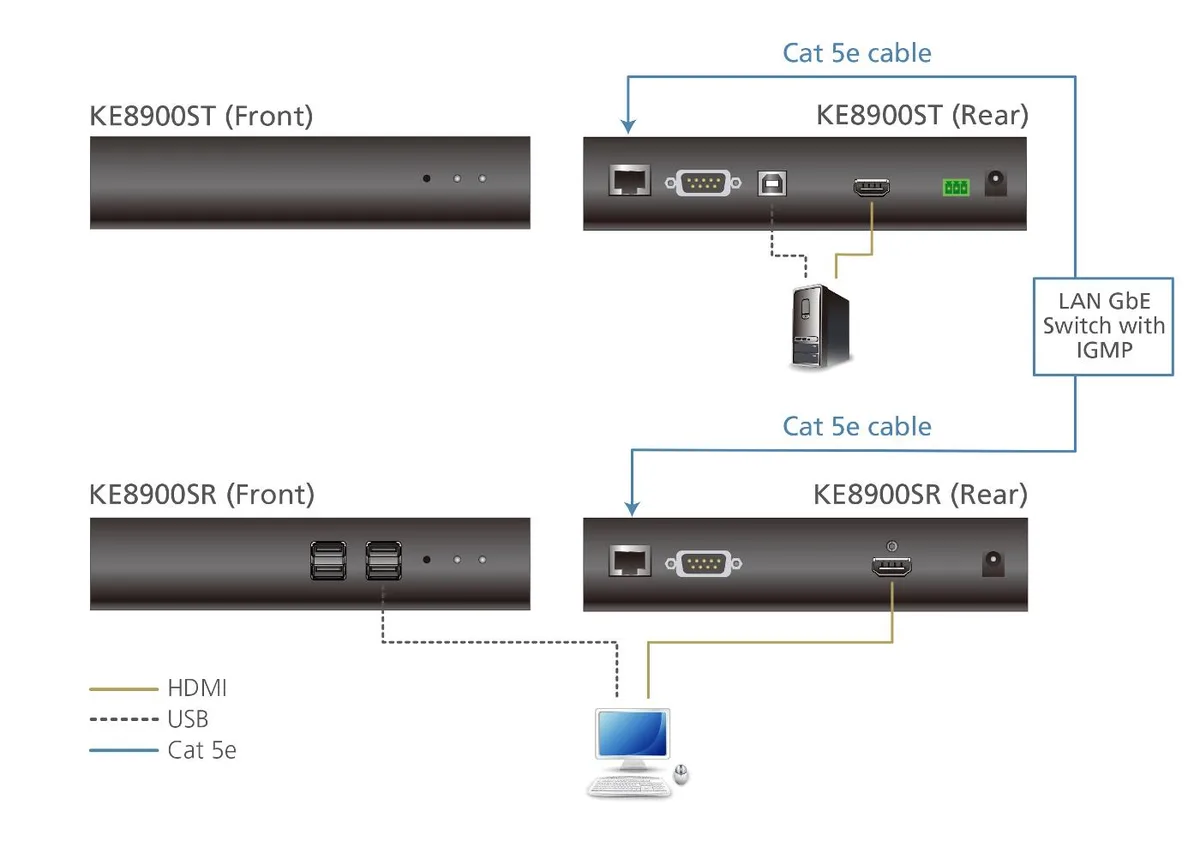

Connect the receiver to an HDMI display and USB peripherals, then link it to the same intranet as a KE8900ST transmitter; no proprietary cabling is required. Configuration can be handled through the on-screen display, a web browser or the management software. The main limitation is that the receiver supports only a single local display, so multi-monitor setups are not possible.
1920 x 1200 single-head capacity
Video is delivered at up to 1920 x 1200 with lossless compression and minimal latency, which is sufficient for typical server administration consoles and text-heavy workloads. Graphics-intensive applications or higher-resolution content will exceed the supported output. Virtual media and RS-232 serial control are available for remote maintenance tasks.
Highlights
- HDMI output up to 1920 x 1200 resolution
- Remote USB console access over IP network
- Virtual Media support for flexible data transfer
- RS-232 serial command capability included
- Integrates into KVM over IP matrix system
Specifications
| Brand | ATEN |
|---|---|
| Type | KVM Extender |
| Video Resolution | 1920 x 1200 |
| Shipping weight | 1.02 kg |
| Package size | 284 × 175 × 102 mm |
Questions about this item
How do I confirm the KE8900SR is delivering 1920 x 1200 video after setup?
Connect an HDMI monitor to the receiver output and verify the display settings show 1920 x 1200 resolution with no visible compression artefacts.
What comes with the KE8900SR and what must I add?
The unit is the receiver only; you must supply an HDMI monitor, USB keyboard, USB mouse and a network link to a paired KE8900ST transmitter.
Which KE8900 model fits a single-display 1920 x 1200 remote console?
Choose the KE8900SR receiver when you need one HDMI output at 1920 x 1200 for a remote USB console.
