ATEN CS84U 4-port USB/PS/2 KVM switch 2048x1536
A four-port KVM switch lets one VGA console control four computers with 2048 x 1536 video and USB or PS/2 peripherals
- TypeD-Sub, USB, PS/2
- PC Connectors4 x SPHD-18 Female (Yellow)
- Console ConnectorsKeyboard: 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN
- Computer Connections4 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536
- Control four computers from one console with 2048 x 1536 video
- Switch instantly via pushbuttons, hotkeys or mouse
- Dual PS/2 and USB ports fit any keyboard and mouse
- Auto-scan cycles every 3, 5, 10 or 20 seconds
- Low 1.2 W power draw from DC 5 V supply
Four-computer VGA KVM switch

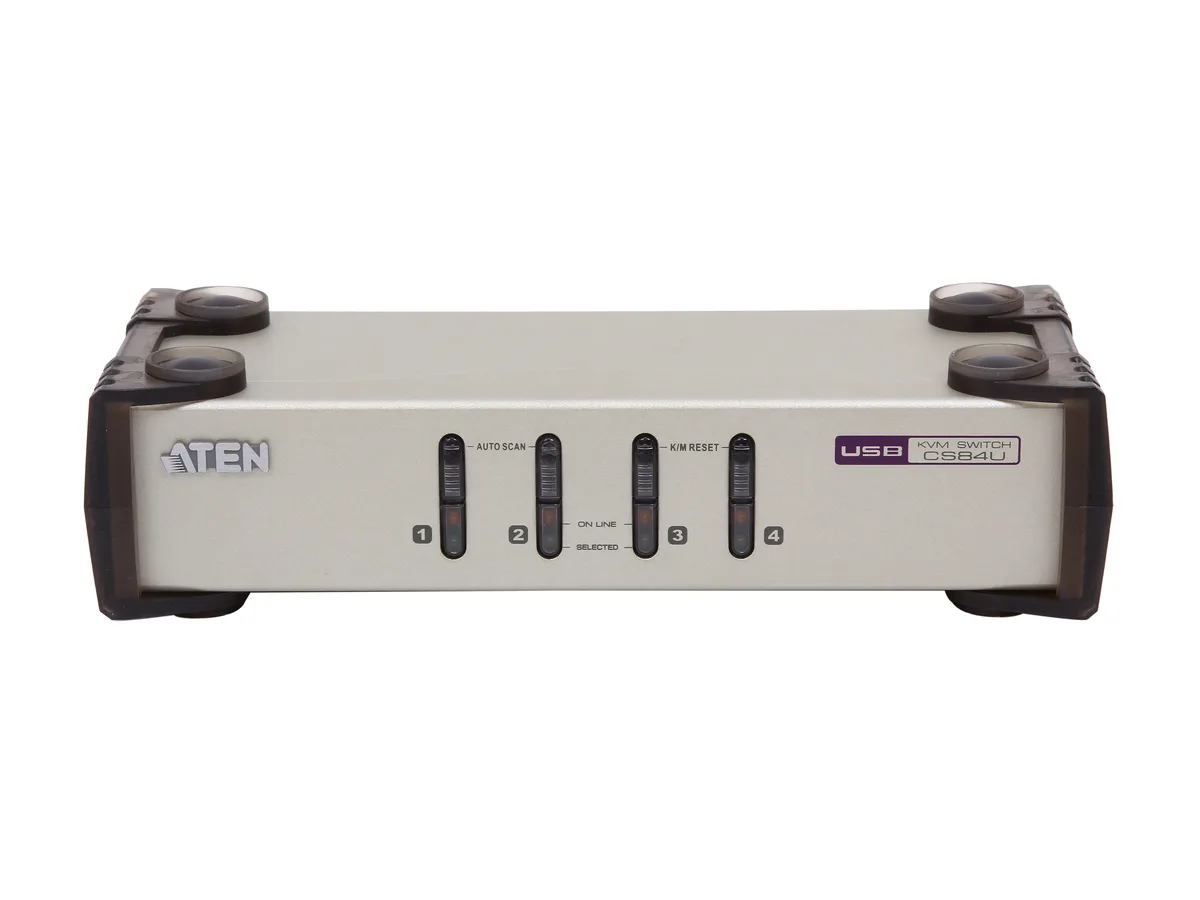

The ATEN CS84U lets one VGA monitor, keyboard and mouse control four computers. It accepts both PS/2 and USB keyboard and mouse ports on each connected system. Front-panel push buttons and hot-key sequences switch the active computer. Auto-scan cycles through ports at 3, 5, 10 or 20 second intervals.
Mixed PS/2 and USB environments
Suits administrators who manage a rack of legacy and newer servers that still use VGA video. Not suited for setups that require digital video such as DVI, HDMI or DisplayPort. Buyers needing more than four computer ports should look at a larger switch.
2048 x 1536 maximum video resolution
The switch passes analog VGA signals up to 2048 x 1536. This resolution ceiling decides whether the unit matches the display and graphics hardware in use. Higher-resolution or digital-only monitors will not work at their native modes through this device.
Highlights
- Control four computers from one console with 2048 x 1536 video
- Switch instantly via pushbuttons, hotkeys or mouse
- Dual PS/2 and USB ports fit any keyboard and mouse
- Auto-scan cycles every 3, 5, 10 or 20 seconds
- Low 1.2 W power draw from DC 5 V supply
Specifications
| Brand | ATEN |
|---|---|
| Model | CS84U |
| Type | D-Sub, USB, PS/2 |
| PC Connectors | 4 x SPHD-18 Female (Yellow) |
| Console Connectors | Keyboard: 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Purple) Video: 1 x HDB-15 Female (Blue) Mouse: 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Green) |
| Computer Connections | 4 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3, 5, 10, 20 secs. (5 secs. default) |
| LED Indicators | On Line: 4 (Orange) Selected: 4 (Green) |
| Temperature | Operating Temp: 0-50 degree C Storage Temp: -20-60 degree C |
| Humidity | 0 - 80% RH, Non-condensing |
| Power Features | Power Consumption: DC 5V, 1.2W |
| USB Features | with USB support |
| Features | One PS/2-USB VGA console controls four VGA interface computers. Dual Interface - supports computers with PS/2 or USB keyboards and mice Computer selection via front panel pushbuttons, hotkeys, and mouse Multiplatform support - Windows, Linux, Mac, and Sun Superior video quality - 2048 x 1536; DDC2B Video DynaSync - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keyb |
| Dimensions | 8.27" x 3.43" x 2.17" |
| Weight | 1.7 lbs. |

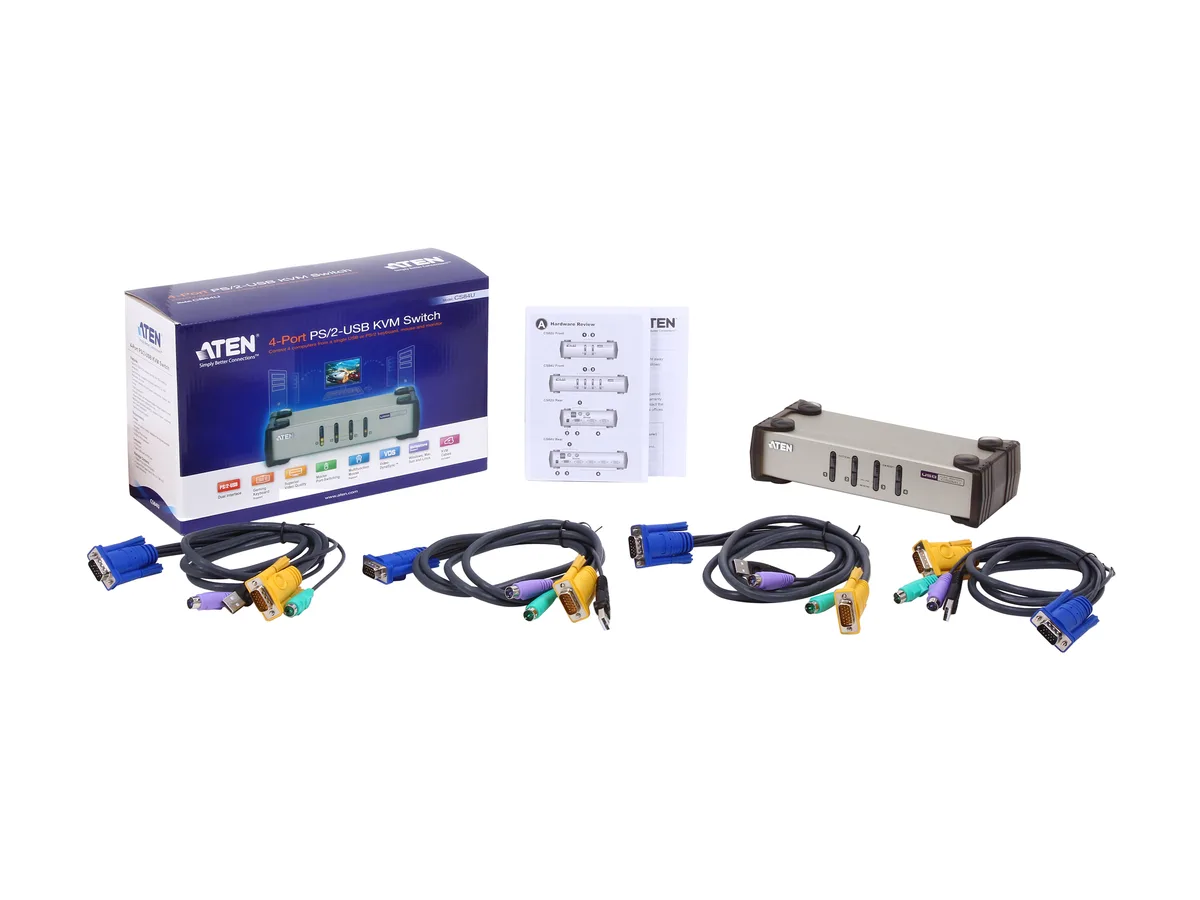

| Package Contents | 1x CS84U PS/2-USB KVM Switch 4x Custom KVM Cable Sets 1x User Guide |
| Shipping weight | 1.70 kg |
| Package size | 284 × 173 × 102 mm |
Questions about this item
What video resolution does the HDB-15 console port support?
The console video port is an HDB-15 female connector that handles up to 2048 x 1536 resolution.
How much desk space does the CS84U occupy?
The unit measures 8.27 inches wide by 3.43 inches deep by 2.17 inches high and weighs 1.7 lbs.
How do I switch between the four connected computers?
Press the front-panel push buttons or use keyboard hotkeys; the default AutoScan interval is 5 seconds if automatic switching is enabled.
