ATEN
ATEN CS82U 2-Port PS/2-USB KVM Switch 2048x1536
Controls two VGA computers from one PS/2 or USB keyboard, mouse and monitor at up to 2048×1536 resolution
- TypeD-Sub, USB, PS/2
- PC Connectors2 x SPHD-18 Female (Yellow)
- Console ConnectorsKeyboard: 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536
- Control two computers from one PS/2 or USB keyboard, mouse and VGA monitor

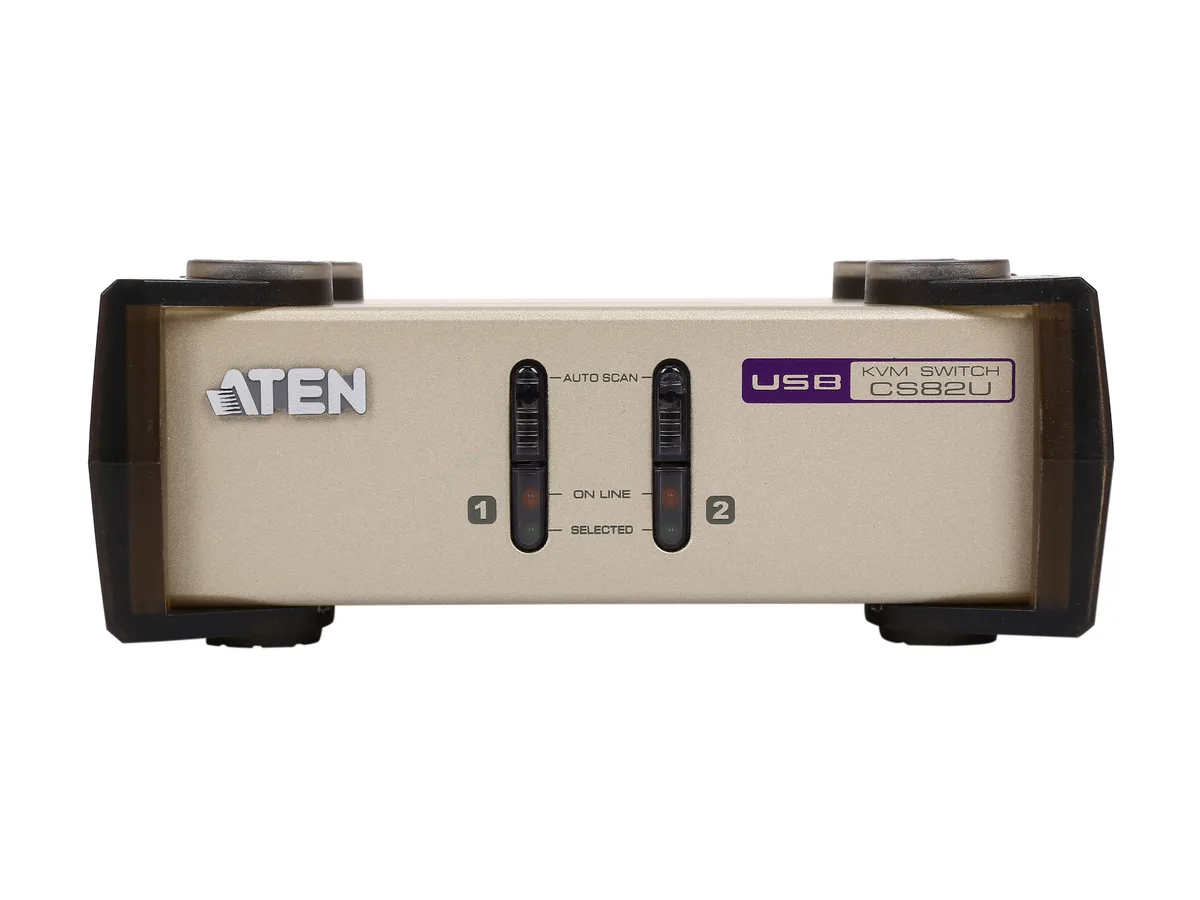

- Front-panel pushbuttons, hotkeys and mouse give instant computer switching
- Auto-scan cycles every 3, 5, 10 or 20 seconds for hands-free monitoring
- Supports video resolution up to 2048 x 1536 for sharp VGA output
- Compact 5.51 x 3.43 x 2.17 inch design fits any desktop
Two-computer desktop KVM

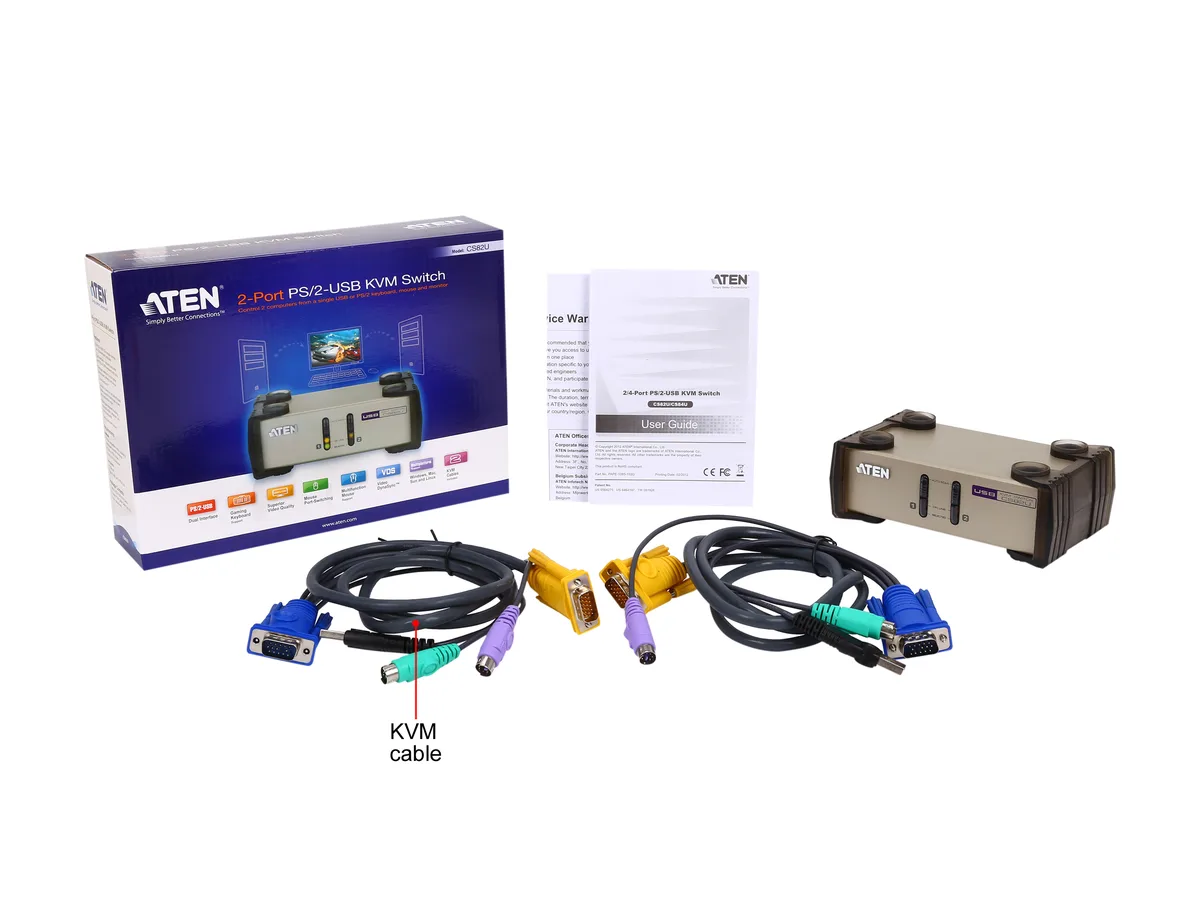

The ATEN CS82U lets one VGA monitor and a single PS/2 or USB keyboard and mouse control two computers. It supports both PS/2 and USB peripherals on the console side and connects each computer through an SPHD-18 cable set. No software or drivers are required, so the switch works across multiple operating systems immediately after plugging in the cables. The compact desktop unit includes two custom KVM cable sets and a user guide.
Sustained multi-system operation
The switch draws only DC 5 V at 1.1 W and is rated for continuous operation between 0 °C and 50 °C with humidity up to 80 % non-condensing. Front-panel push buttons, hot-key sequences and mouse switching all function without latency during extended sessions, and the AutoScan feature cycles between the two ports at 3, 5, 10 or 20 second intervals. Video DynaSync technology maintains the selected resolution through reboots and long-running workloads, preventing display handshake losses.
2048 x 1536 maximum resolution
The single HDB-15 VGA console port supports up to 2048 x 1536, which determines whether the switch can drive a given monitor at its native setting. Buyers whose displays require a higher resolution will need a different KVM solution. The unit provides one monitor connection and two computer connections, so setups needing more than two sources or multiple simultaneous displays are not supported.
Highlights
- Control two computers from one PS/2 or USB keyboard, mouse and VGA monitor
- Front-panel pushbuttons, hotkeys and mouse give instant computer switching
- Auto-scan cycles every 3, 5, 10 or 20 seconds for hands-free monitoring
- Supports video resolution up to 2048 x 1536 for sharp VGA output
- Compact 5.51 x 3.43 x 2.17 inch design fits any desktop
Specifications
| Brand | ATEN |
|---|---|
| Model | CS82U |
| Type | D-Sub, USB, PS/2 |
| PC Connectors | 2 x SPHD-18 Female (Yellow) |

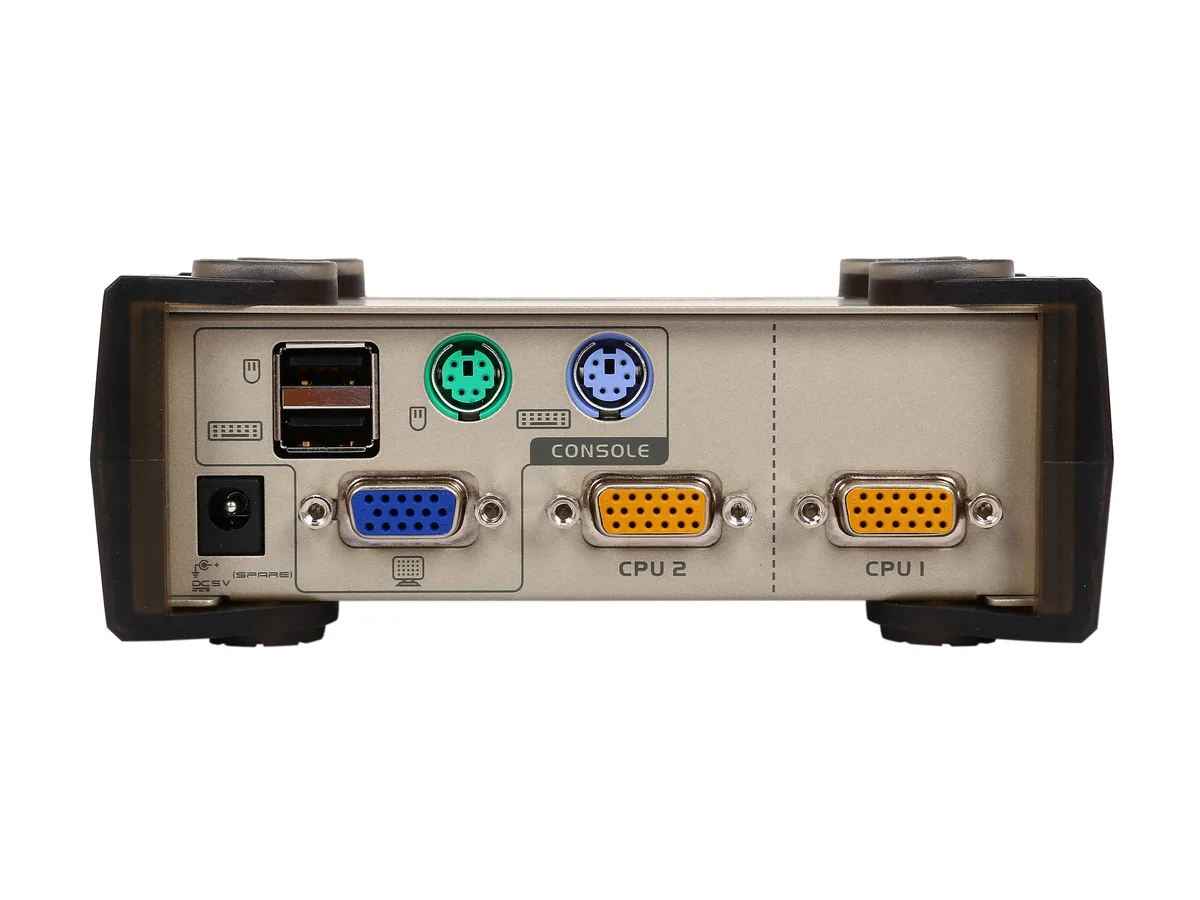

| Console Connectors | Keyboard: 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Purple) Video: 1 x HDB-15 Female (Blue) Mouse: 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Green) |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 3, 5, 10, 20 secs. (5 secs. default) |
| LED Indicators | On Line: 2 (Orange) Selected: 2 (Green) |
| Temperature | Operating Temp: 0-50°C Storage Temp: -20-60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Power Features | Power Consumption: DC 5V, 1.1W |
| USB Features | with USB support |
| Features | One PS/2-USB VGA console controls two VGA interface computers. Dual Interface - supports computers with PS/2 or USB keyboards and mice Computer selection via front panel pushbuttons, hotkeys, and mouse Multiplatform support - Windows, Linux, Mac, and Sun Superior video quality - 2048 x 1536; DDC2B Video DynaSync - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keybo |
| Dimensions | 5.51" x 3.43" x 2.17" |
| Weight | 1.19 lbs. |
| Shipping weight | 0.98 kg |
| Package size | 239 × 163 × 64 mm |
Questions about this item
How much power does the CS82U draw when it runs continuously?
It consumes DC 5 V at 1.1 W according to the published power rating.
Which cables or adapters must I already have to connect the CS82U to my computers?
Each computer needs a SPHD-18 cable that splits to VGA, PS/2 or USB keyboard, and PS/2 or USB mouse; two custom sets are included in the box.
Will the CS82U pass the 2048 x 1536 signal from my legacy VGA tower without scaling issues?
Yes, the switch supports up to 2048 x 1536 and includes Video DynaSync to eliminate boot-up display problems on older VGA sources.
