ATEN CS724KM 4-port USB Boundless KM Switch
A four-port KM switch with boundless switching across four computers, eight USB ports and a network port in a rack-mountable unit
- TypeKM Switchbox
- Computer Connections4 Ports
- USB Featureswith USB support
- FeaturesNumber of Local Users Supported:1 Number of Network (RJ-45)
- DimensionsHeight:1" x Width:7.9" x Depth:3.2"
- Weight1.10 lb
- Controls four computers with one keyboard and mouse
- Boundless switching moves cursor across screen edges instantly
- Eight USB ports connect peripherals to all four systems
- Single RJ-45 port enables firmware updates over network
- Rack-mountable 1U form factor installs in standard cabinets
Four-Port KM Switch for Multi-System Control
The ATEN CS724KM connects a single keyboard and mouse to four computers via USB 2.0 links. It supports one local user and adds a network port for remote management integration. The rack-mountable chassis suits server rooms, labs or multi-workstation desks where separate monitors are already in place.
Eight USB Ports and Audio Cabling Included

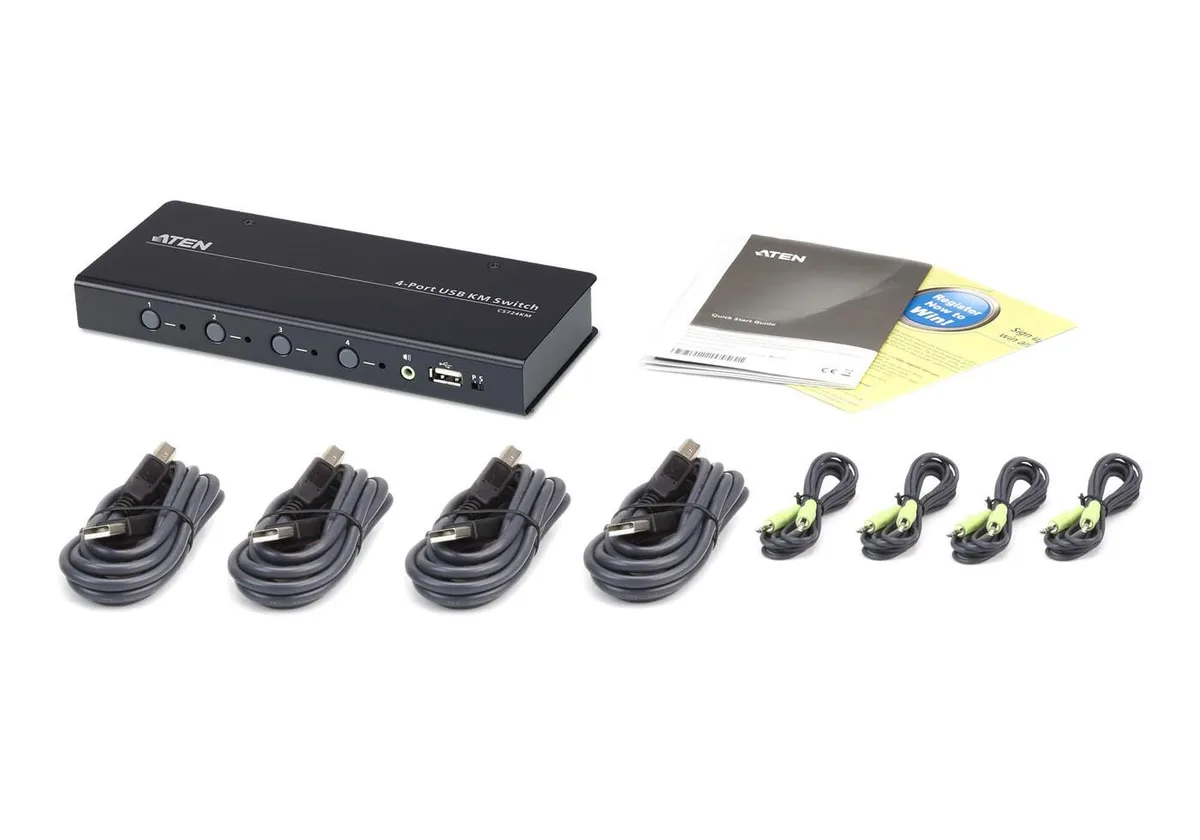

The package supplies four USB 2.0-A to USB 2.0-B cables at 1.8 m each plus four matching audio cables. Eight USB ports on the switch handle keyboard, mouse and peripheral sharing without extra hubs. Boundless switching lets the cursor move across screen edges to change the active system instantly.
Four-Computer Limit and USB 2.0 Bandwidth
The switch handles four connected hosts comfortably for office, monitoring or light creative workloads. USB 2.0 throughput caps peripheral speed, so high-bandwidth devices such as fast external storage will run below their rated performance. Buyers needing five or more systems or USB 3.x data rates must look elsewhere.
Highlights
- Controls four computers with one keyboard and mouse
- Boundless switching moves cursor across screen edges instantly
- Eight USB ports connect peripherals to all four systems
- Single RJ-45 port enables firmware updates over network
- Rack-mountable 1U form factor installs in standard cabinets
Specifications
| Brand | ATEN |
|---|---|
| Model | CS724KM |
| Type | KM Switchbox |
| Computer Connections | 4 Ports |
| USB Features | with USB support |
| Features | Number of Local Users Supported:1 Number of Network (RJ-45) Ports:1 Number of USB Ports:8 Form Factor:Rack-mountable Package Contents: 4-port USB Boundless KM Switch 4 x USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft) 4 x Audio Cables (1.8m/6ft) 1 x User Instructions |
| Dimensions | Height:1" x Width:7.9" x Depth:3.2" |
| Weight | 1.10 lb |
Questions about this item
How often will the included 1.8m USB 2.0-A to USB 2.0-B cables need replacement under daily switching?
The four supplied 1.8m USB 2.0 cables are rated for standard USB 2.0 durability; replace only if connectors loosen or cables show physical wear.
What limit appears first when the CS724KM manages four computers continuously?
The single local-user design means only one keyboard and mouse set controls all four ports at once; simultaneous multi-user operation is not supported.
How much heat or fan noise does the rack-mountable unit produce during all-day operation?
The 1.10 lb, 1-inch-high chassis has no active cooling; it runs silently with negligible heat under normal KM switching loads.
