ATEN CS1953 3-Port USB-C DisplayPort KVM Switch
Control one DisplayPort monitor, keyboard and mouse across two DisplayPort computers and one USB-C device with 4K 60 Hz video and shared USB 3.1 peripherals
- TypeDisplayPort, USB
- Console Connectors2 x USB Type A Female, 1 x DisplayPort Female (Black), 2 x 3
- Computer ConnectionsCPU1 and CPU2: 2 x USB 3.1 Gen 1 Type B Female (Blue); 2 x D
- PC SelectionHotkey / Pushbutton / Mouse / Remote Port Selector
- LED IndicatorsKVM: 3 (Orange) Audio: 3 (Green) USB: 3 (Green)
- TemperatureOperating Temperature: 0 ~ 50°C Storage Temperature: -20 ~ 6
- Controls one DisplayPort monitor, keyboard, mouse and two USB peripherals across three computers
- Switches between two DisplayPort PCs and one USB-C device via hotkey, button, mouse or remote selector
- Delivers 4K DCI 4096 x 2160 at 60 Hz video quality on the console display
- Shares stereo speakers and microphone through 3.5 mm audio jacks on each connected system
- Operates reliably from 0 to 50 °C with 12 V DC 5.78 W power consumption
Three-port KVM with USB-C and DisplayPort
The ATEN CS1953 lets one DisplayPort monitor, keyboard and mouse control two DisplayPort computers and a USB-C device. It is built for professionals who need to switch between multiple sources without changing cables.
Hybrid connectivity for desktop workflows
Two upstream ports accept DisplayPort 1.2 and USB 3.1 Gen 1 from desktop PCs while a third port takes USB-C from a laptop or tablet. A remote port selector and hot-key switching free the desk from extra button presses. Two downstream USB Type-A ports share peripherals such as flash drives or cameras across all connected systems.
4K DCI video and shared audio support
The switch passes 4096 x 2160 at 60 Hz for high-resolution work and includes 3.5 mm audio jacks for speaker sharing. It operates from 0 to 50 °C and draws 5.78 W from the supplied 12 V adapter. Buyers who need more than three computer ports or require HDMI inputs will need a different solution.
Highlights
- Controls one DisplayPort monitor, keyboard, mouse and two USB peripherals across three computers
- Switches between two DisplayPort PCs and one USB-C device via hotkey, button, mouse or remote selector
- Delivers 4K DCI 4096 x 2160 at 60 Hz video quality on the console display
- Shares stereo speakers and microphone through 3.5 mm audio jacks on each connected system
- Operates reliably from 0 to 50 °C with 12 V DC 5.78 W power consumption
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1953 |
| Type | DisplayPort, USB |

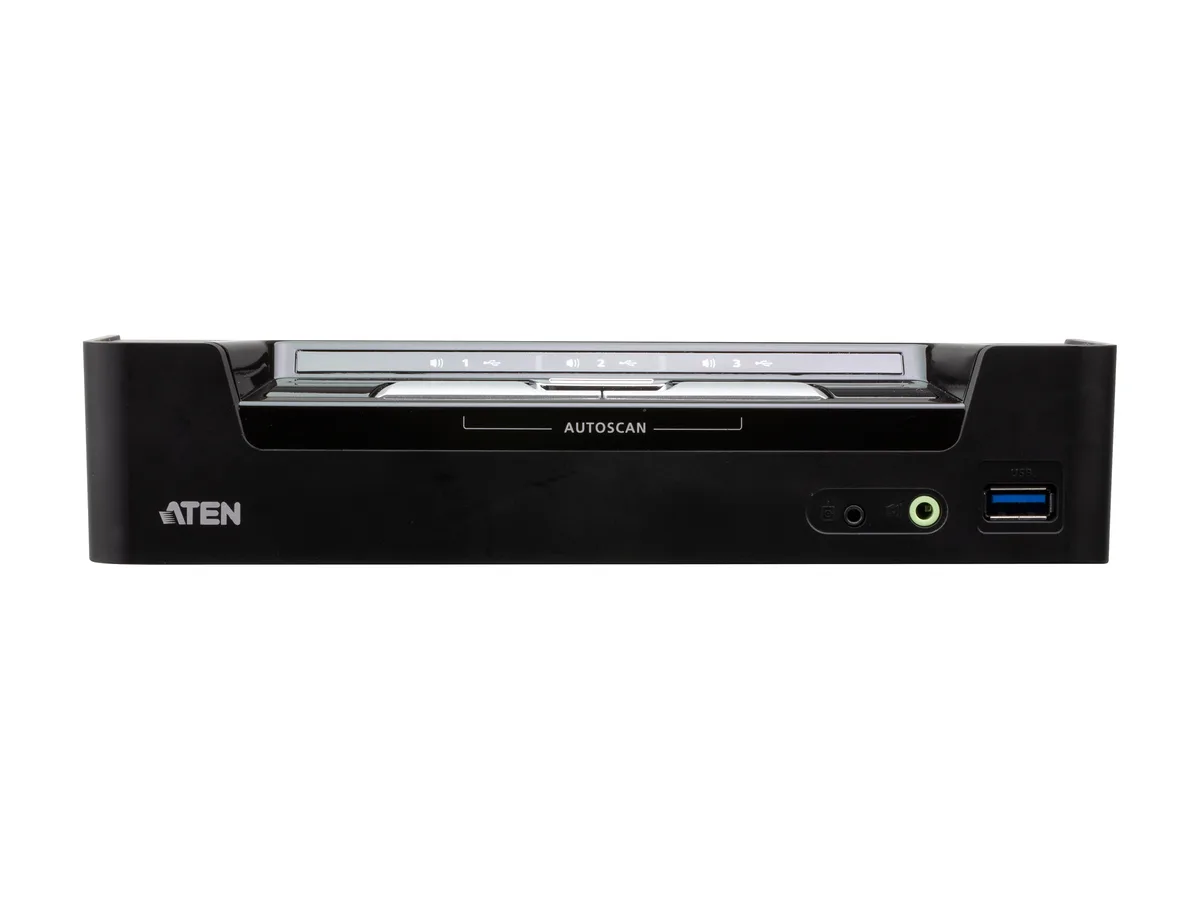

| Console Connectors | 2 x USB Type A Female, 1 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) |

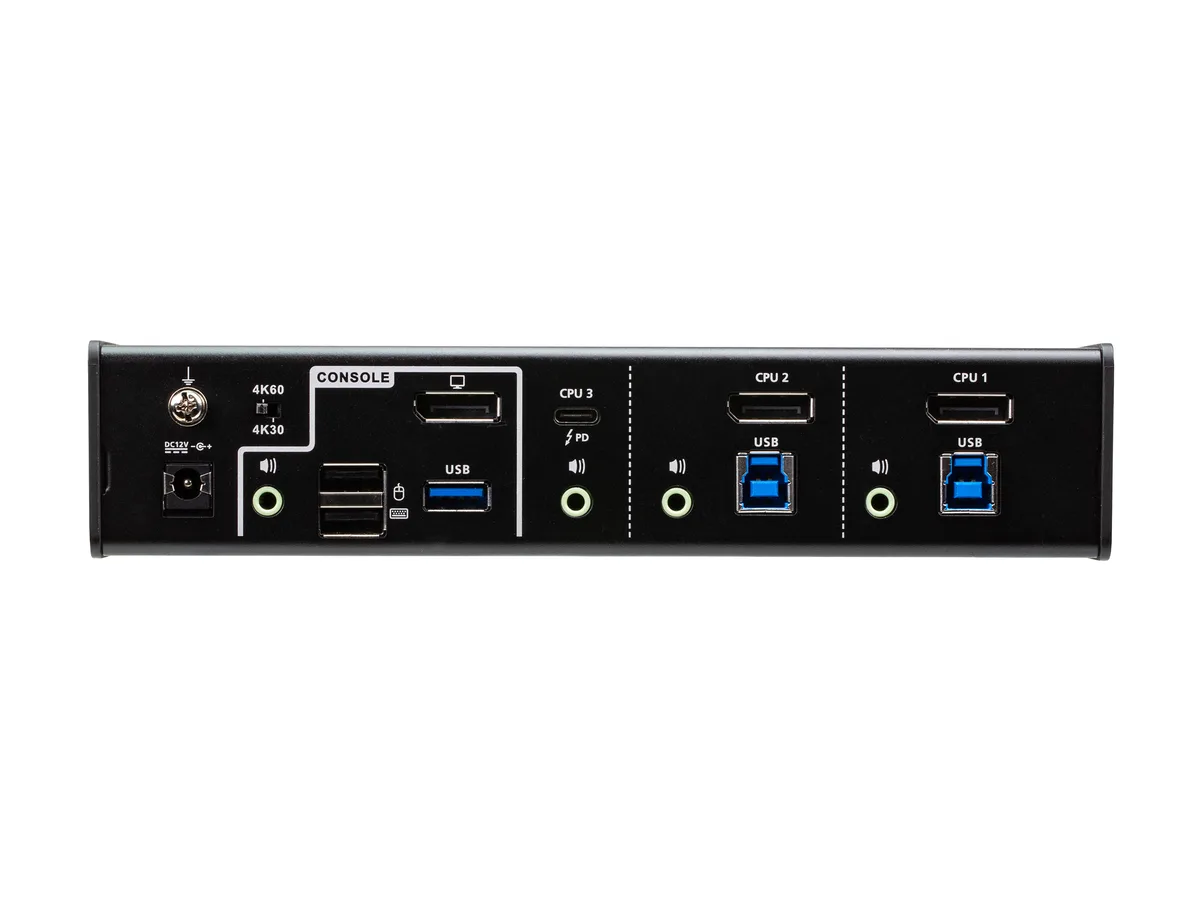

| Computer Connections | CPU1 and CPU2: 2 x USB 3.1 Gen 1 Type B Female (Blue); 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) CPU3: 1 x USB Type-C Female (Black); 1 x 3.5mm Audio Jack Female (Green) |
| PC Selection | Hotkey / Pushbutton / Mouse / Remote Port Selector |
| LED Indicators | KVM: 3 (Orange) Audio: 3 (Green) USB: 3 (Green) |
| Temperature | Operating Temperature: 0 ~ 50°C Storage Temperature: -20 ~ 60°C |
| Humidity | 0-80% RH, Non-condensing |
| Power Features | DC 12V: 5.78W: 269BTU |
| Features | One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals Supports superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz) Provides USB Power Delivery 3.0 for USB-C device charging up to 45W Computer selection via pushbuttons, hotkeys, mouse, and remote port selector Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals Independent switching of KVM, USB peripheral, and audi |
| Dimensions | 1.73" x 8.12" x 2.97" |
| Weight | 1.10 lbs. |
| Package Contents | 1 x CS1953 3-Port USB-C DisplayPort Hybrid KVMP Switch 2 x DisplayPort 1.2 Cables 2 x USB 3.0 Type-A to Type-B Cables 1 x USB-C Cable 3 x Audio Cables 1 x Remote Port Selector 1 x User Instructions 1 x Power Adapter* Note: *The CS1953 is provided in two packages; one package contains a power adapter, the other does not. |
| Shipping weight | 0.91 kg |
| Package size | 254 × 127 × 102 mm |
Questions about this item
What is the maximum power draw the CS1953 can reach under continuous load?
The unit draws 5.78 W from its 12 V supply, which equals 269 BTU per hour of heat output.
How hot and loud does the CS1953 get when left running all day?
It operates silently with no fan, staying within a 0–50 °C range and 0–80 % non-condensing humidity.
Which cables must I already own to connect two DisplayPort PCs and one USB-C laptop?
Two DisplayPort 1.2 cables, two USB 3.0 Type-A to Type-B cables and one USB-C cable are included in the box.
