ATEN CS1792 2-Port HDMI USB KVMP Switch
A 2-port HDMI KVMP switch that lets one USB console control two computers and two extra USB devices with 1080p video and audio support
- TypeHDMI
- PC ConnectorsHDMI, USB, Audio ports (optional)
- Console ConnectorsHDMI, USB, Microphone and speakers
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution1080p DVI-D(Single Link) 1920 x 1200
- Controls two HDMI computers from one USB console
- Switches two extra USB peripherals between both PCs
- Supports 1080p and 1920 x 1200 DVI-D resolution
- Auto-scan cycles every 1 to 99 seconds
- Dolby True HD and DTS HD Master Audio support
Two-port HDMI KVMP switch
The ATEN CS1792 lets one USB console command two HDMI computers while sharing two extra USB peripherals. It passes 1080p video and Dolby True HD or DTS HD Master Audio through a single monitor connection. Hot-key and push-button switching plus an auto-scan timer of one to 99 seconds keep changeovers fast and hands-free.
Replaces separate KVM, USB hub and audio switch
Instead of juggling three boxes and their cables, this unit merges KVM control, a two-port USB 2.0 hub and HDMI 1.3a video switching with HDCP compliance. The jump makes sense when desk space is tight and you need to flip between two HDMI sources — PCs, media players or consoles — without unplugging speakers, microphone or keyboard and mouse.
Suits dual-PC desks and home-theatre setups
Video DynaSync remembers each computer’s display settings so the monitor never loses sync during a switch. Buyers who need more than two computer ports, resolutions above 1080p, or a dedicated DisplayPort or USB-C link should look at larger or newer KVM models.
Highlights
- Controls two HDMI computers from one USB console
- Switches two extra USB peripherals between both PCs
- Supports 1080p and 1920 x 1200 DVI-D resolution
- Auto-scan cycles every 1 to 99 seconds
- Dolby True HD and DTS HD Master Audio support
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1792 |
| Type | HDMI |

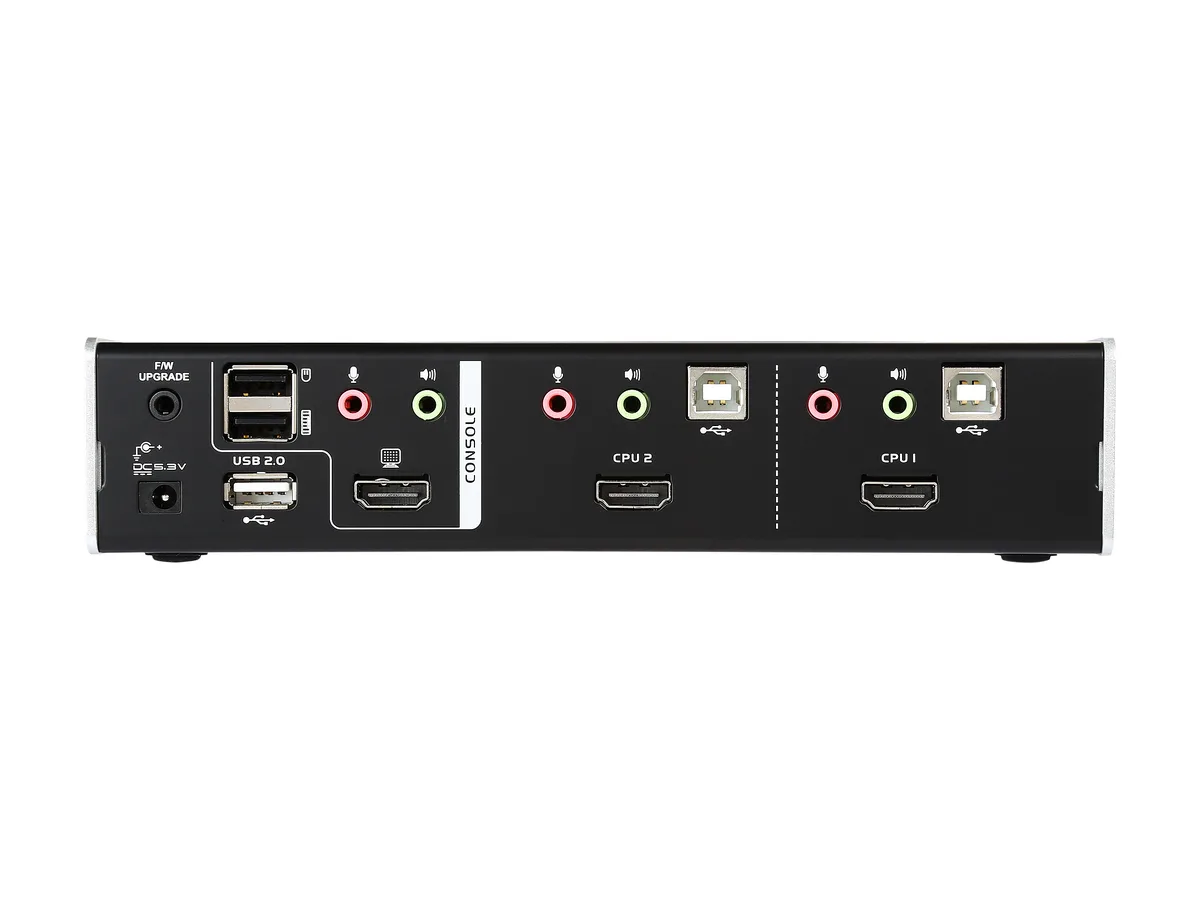

| PC Connectors | HDMI, USB, Audio ports (optional) |
| Console Connectors | HDMI, USB, Microphone and speakers |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 1080p DVI-D(Single Link) 1920 x 1200 |

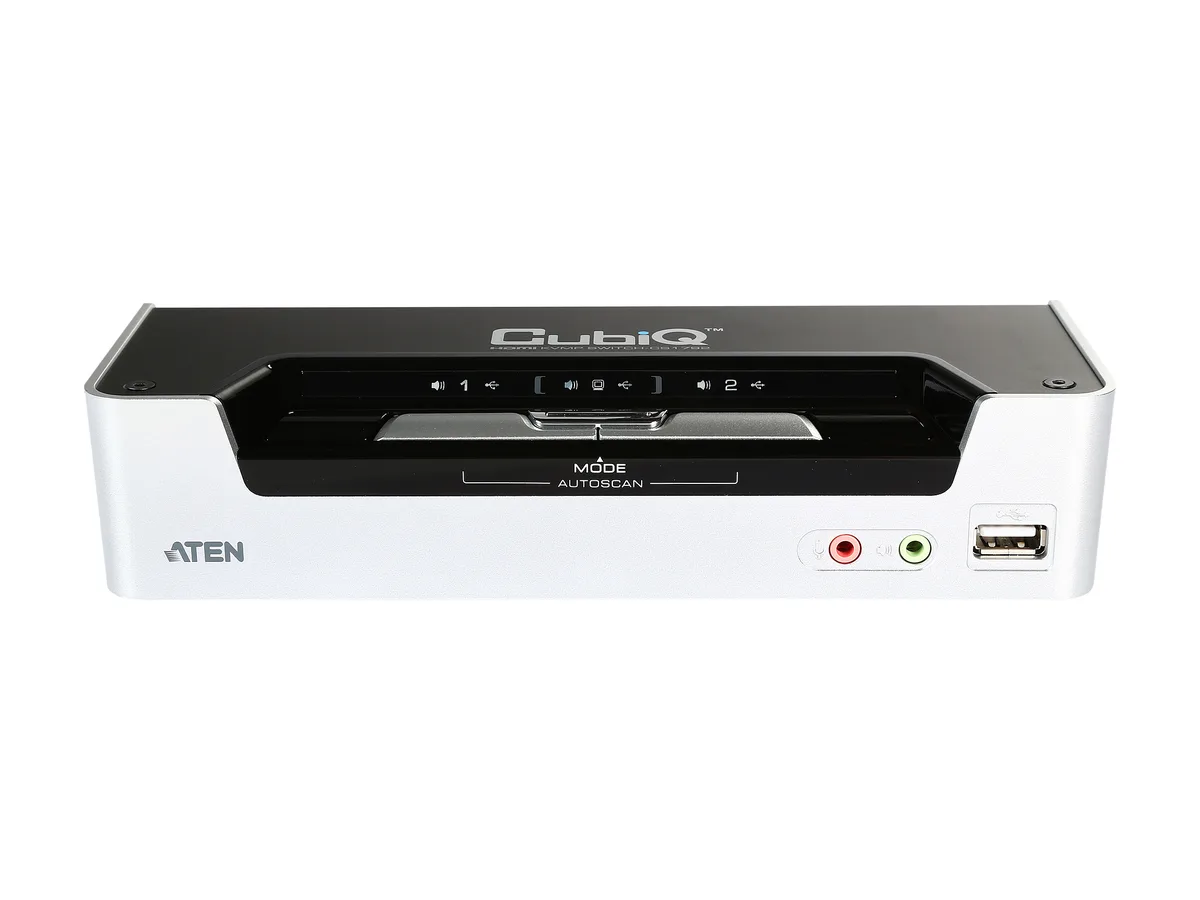

| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 1-99 secs. (Default: 5 secs) |
| LED Indicators | KVM: 3 (Orange) USB Peripherals: 3 (Green) Audio: 3 (Green) |
| Temperature | Operation Temperature: 32F~122F (0C~50C) Storage Temperature: -4F~140F (-20C ~ +60C) |
| Humidity | 0 ~ 80% RH, Non-condensing |
| Power Features | Unit Power: 5.3VDC @ 1A [max] Power Consumption: 4W 13.6 BTU/ Hr |
| Features | 2-port HDMI USB 2.0 KVMP Switch One USB console controls two HDMI computers and two additional USB devices HDMI 1.3a and HDCP compliant Dolby True HD and DTS HD Master Audio support Video DynaSync - stores the console monitors EDID (Extended DisplayIdentification Data) to optimize display resolution Supports resolutions 480i, 480p, 720p, 1080i, and 1080p Supports widescreen resolutions Supports both HDMI and DVI -D monitors (adapter required) 2-port USB 2.0 hub built in USB 2.0 Compliant Computer selection via front panel pushbuttons and hotkeys Power on detection - if one of the com |

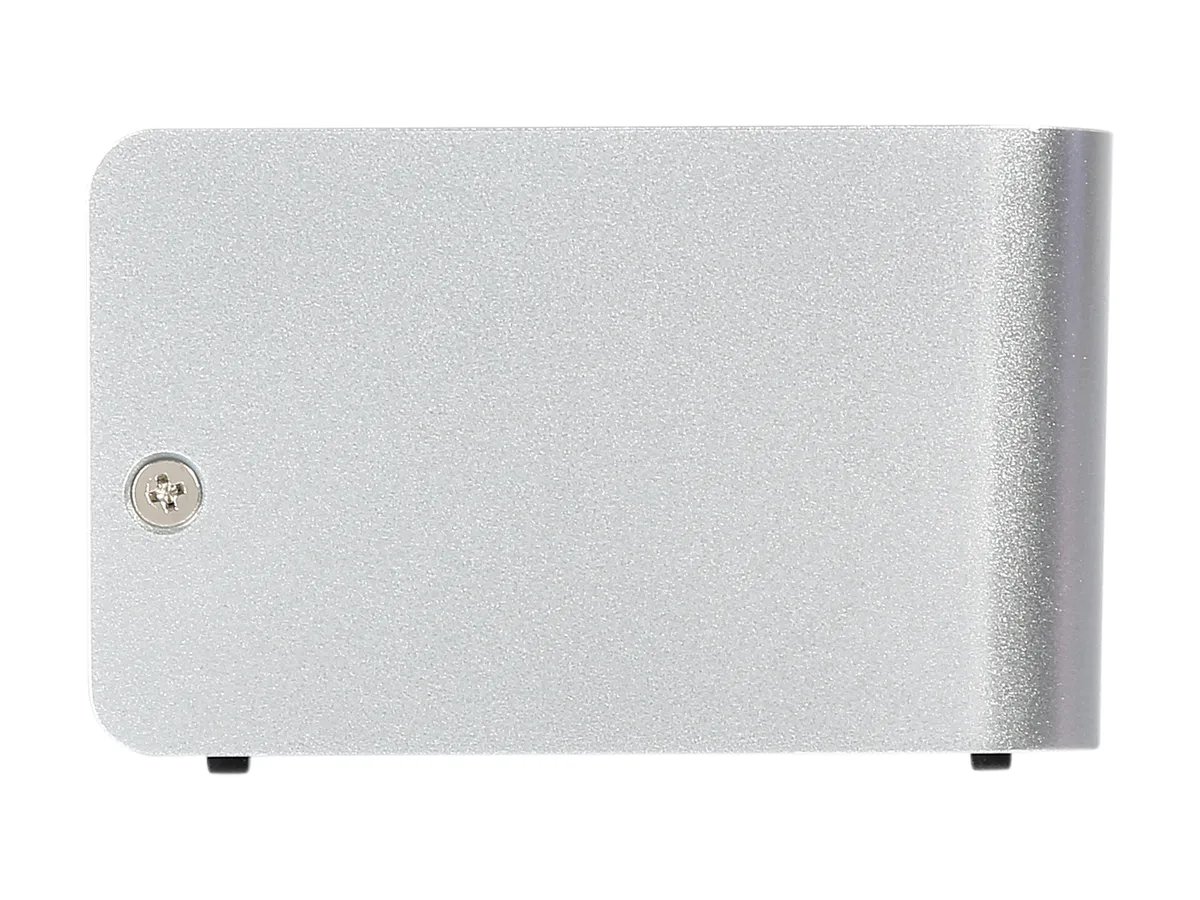

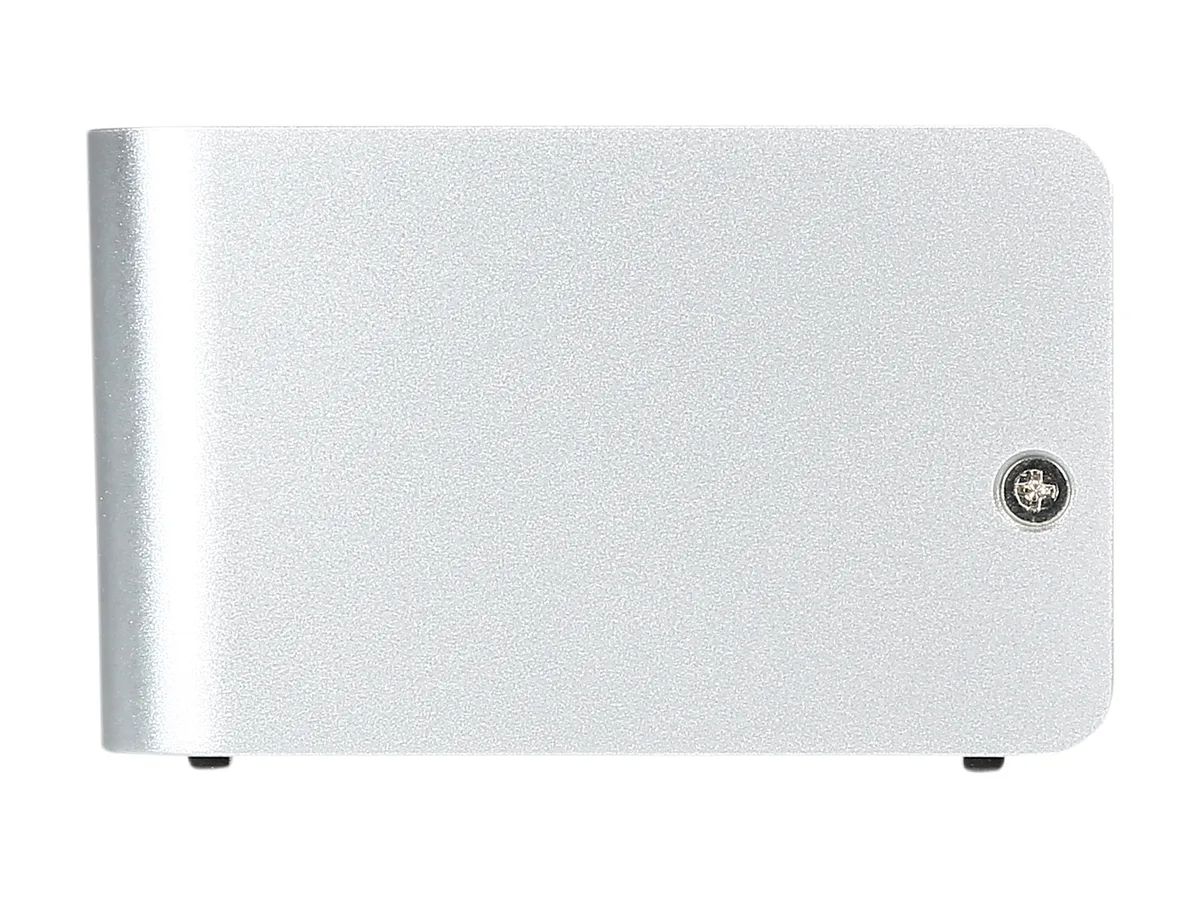

| Dimensions | 8.1" x 2.9" x 1.8" |
| Weight | 1 lbs. |

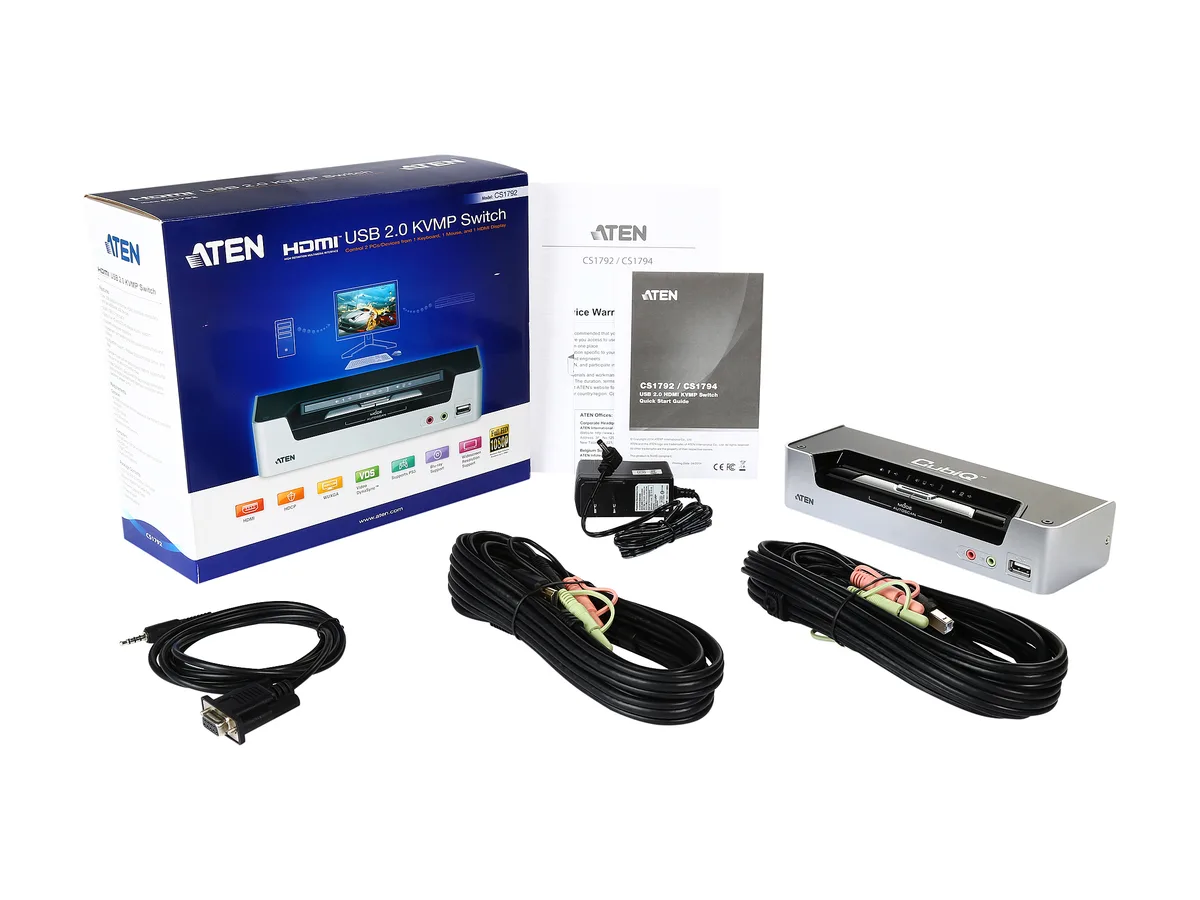

| Package Contents | 1 x CS1792 USB 2.0 HDMI KVMP Switch 2 x KVM Cable (HDMI, USB, Audio; 1.8m/6ft) 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x User Instructions |
| Shipping weight | 1.45 kg |
| Package size | 269 × 224 × 99 mm |
Questions about this item
How much desk depth does the 8.1-inch wide CS1792 need?
The switch measures 8.1 inches wide by 2.9 inches deep by 1.8 inches high and weighs 1 lb, so it fits on a shallow shelf or desk corner.
Which cables must be plugged in first to avoid a no-signal boot?
Connect each computer’s HDMI, USB and audio cables to the switch, then attach the console monitor, keyboard, mouse and speakers before powering on the 5.3 VDC adapter.
When should the firmware upgrade cable be used?
Use the supplied firmware upgrade cable only when ATEN releases a new firmware version to add compatibility or fix bugs; routine operation does not require it.
