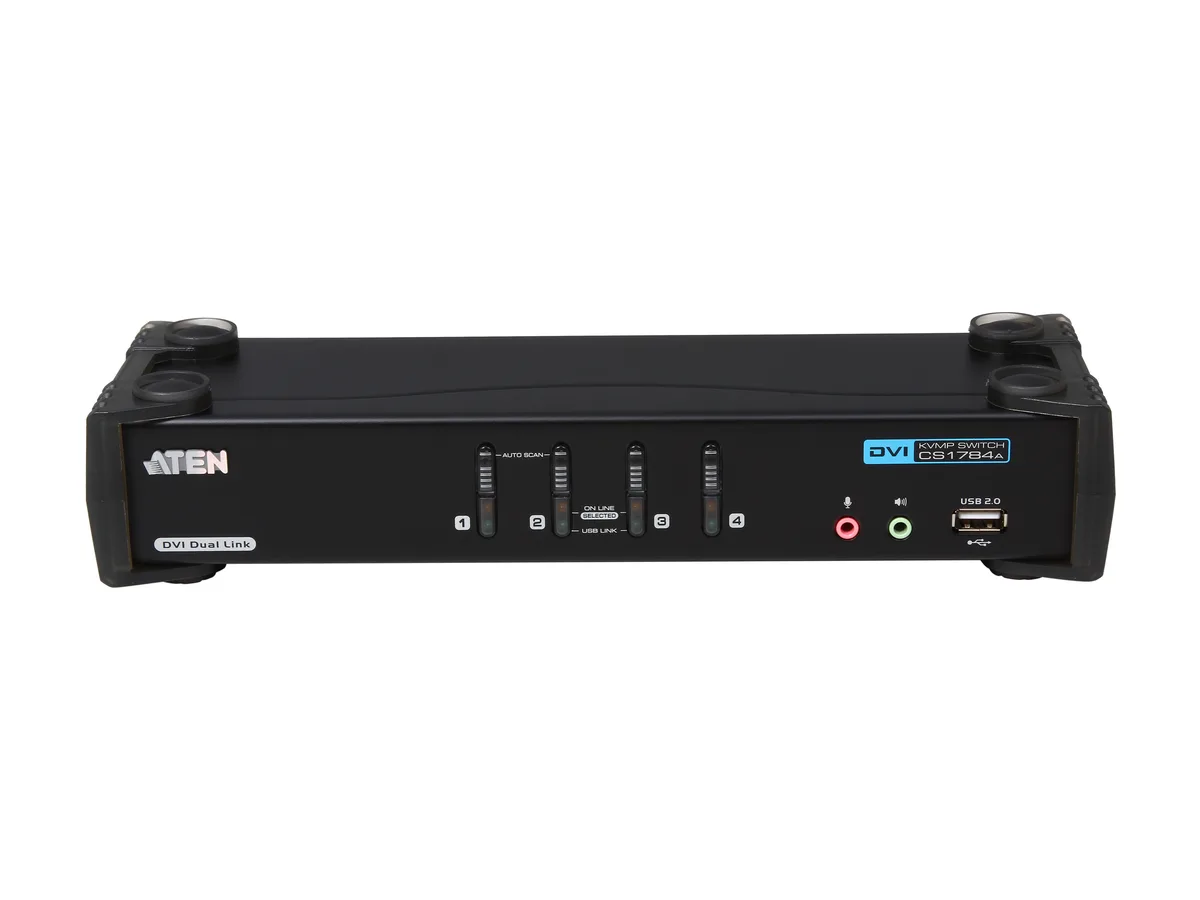

ATEN CS1784A 4-Port Dual-Link DVI KVM Switch
Controls four computers from one Dual-Link DVI console with USB 2.0 hub and audio switching up to 2560×1600 resolution
- TypeUSB
- Console ConnectorsKeyboard: 1x USB Type A Female (Rear Panel) Monitor: 1x DVI-
- Computer Connections4 Ports
- Video ResolutionDVI-D( Dual Link): 2560x1600 DVI-D(Single Link): 1920x1200
- TemperatureOperation Temperature: 32~122 F (0~50C) Storage Temperature:
- Humidity0~80% RH, Non-condensing
- Control four computers from one console with a single keyboard, monitor and mouse
- Drive dual-link DVI displays at 2560×1600@60Hz for crisp, high-resolution output
- Built-in two-port USB 2.0 hub shares peripherals across all connected systems
- Switch KVM focus and USB/audio channels independently for flexible workflow
- Operates reliably from 0°C to 50°C in non-condensing humidity up to 80% RH
Four-Port DVI KVM Switch
The ATEN CS1784A lets one keyboard, mouse and monitor control four computers through dual-link DVI connections. It is built for administrators, developers or multi-system workstations that need reliable switching without software overhead. A built-in two-port USB 2.0 hub handles shared peripherals such as drives or printers. Independent asynchronous switching keeps keyboard, video, mouse and audio paths separate when required.
Dual-Link Resolution Limits
Dual-link DVI supports 2560x1600 at 60 Hz while single-link DVI tops out at 1920x1200 at 60 Hz. The unit operates from 0 to 50 °C with humidity up to 80 % non-condensing. Cables included are DVI-D to DVI-D with USB, so analog VGA sources cannot be connected without an active adapter. Audio switching covers 2.1 channel output for basic multimedia monitoring.
Upgrade From Two-Port Or Analog KVMs
Moving from a two-port switch adds two extra computer paths without extra desk hardware. Replacing an analog VGA KVM gains digital clarity at 2560x1600 and removes signal degradation on long cables. The jump is worth it when four digital sources must share one high-resolution display and USB peripherals. Buyers who need DisplayPort, HDMI or more than four ports will need a different platform.
Highlights
- Control four computers from one console with a single keyboard, monitor and mouse
- Drive dual-link DVI displays at 2560×1600@60Hz for crisp, high-resolution output
- Built-in two-port USB 2.0 hub shares peripherals across all connected systems
- Switch KVM focus and USB/audio channels independently for flexible workflow
- Operates reliably from 0°C to 50°C in non-condensing humidity up to 80% RH
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1784A |
| Type | USB |

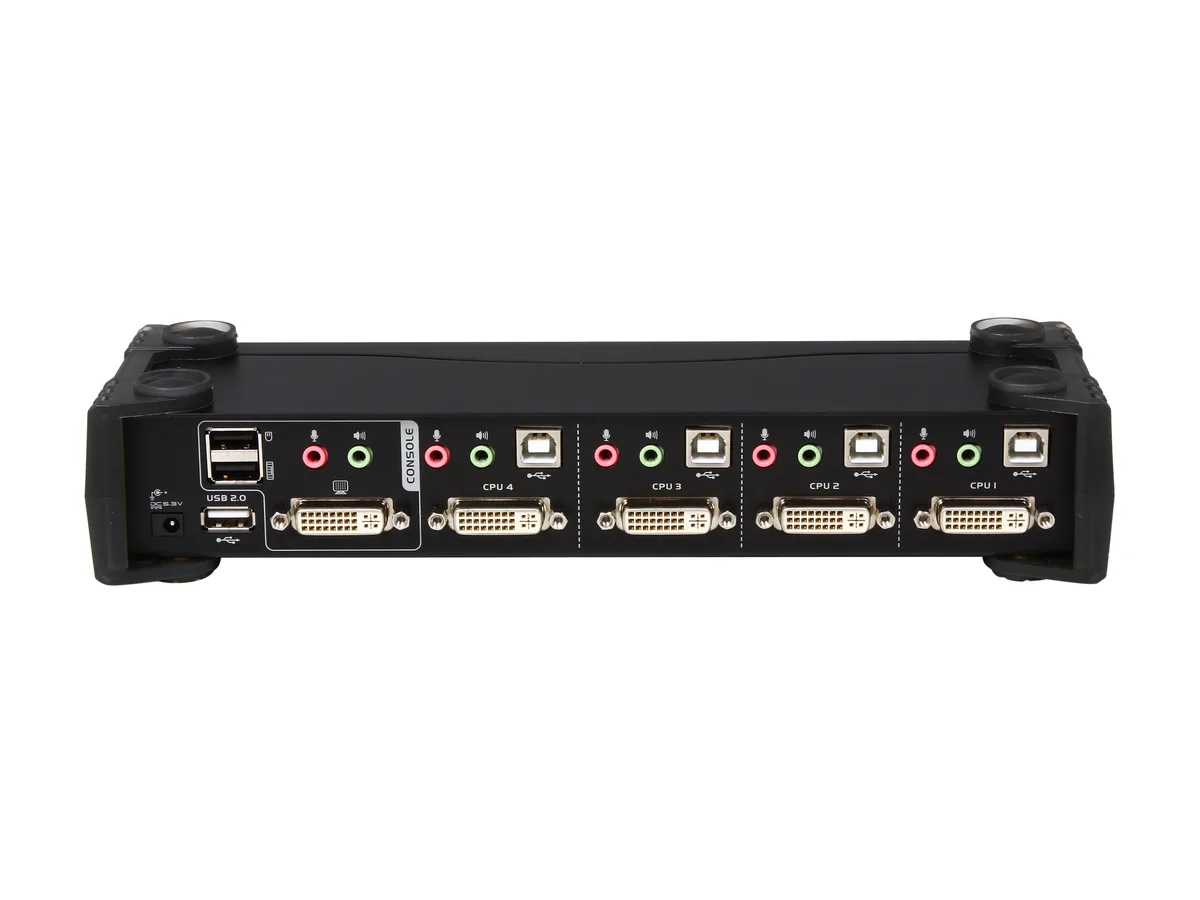

| Console Connectors | Keyboard: 1x USB Type A Female (Rear Panel) Monitor: 1x DVI-I Female (Rear Panel) Mouse: 1x USB Type A Female (Rear Panel) |
| Computer Connections | 4 Ports |
| Video Resolution | DVI-D( Dual Link): 2560x1600 DVI-D(Single Link): 1920x1200 |
| Temperature | Operation Temperature: 32~122 F (0~50C) Storage Temperature: -4~140F (-20~60C) |
| Humidity | 0~80% RH, Non-condensing |
| Features | Resloution: 2560x1600@60Hz (Dual Link); 1920x1200@60Hz( Single Link) Built-in High-Speed 2-port USB 2.0 Hub Supports high end gaming keyboards and mice Independent (Asynchronous) switching of KVM and peripheral USB/Audio ports Support high Quality 2.1 channel surround sound system Support widescreen resolutions Sources selection via front panel pushbuttons, hotkeys, and Mouse Multiplatform support: Windows 2000/XP/Vista, Linux, MAc, and Sun Video DynaSync - Exclusive technology that eliminate boot-up display problem and optimizes resolution when switch between ports Support gaming/mu |
| Dimensions | 2 x 10.6 x 3.4in |
| Weight | 2.2 lbs |

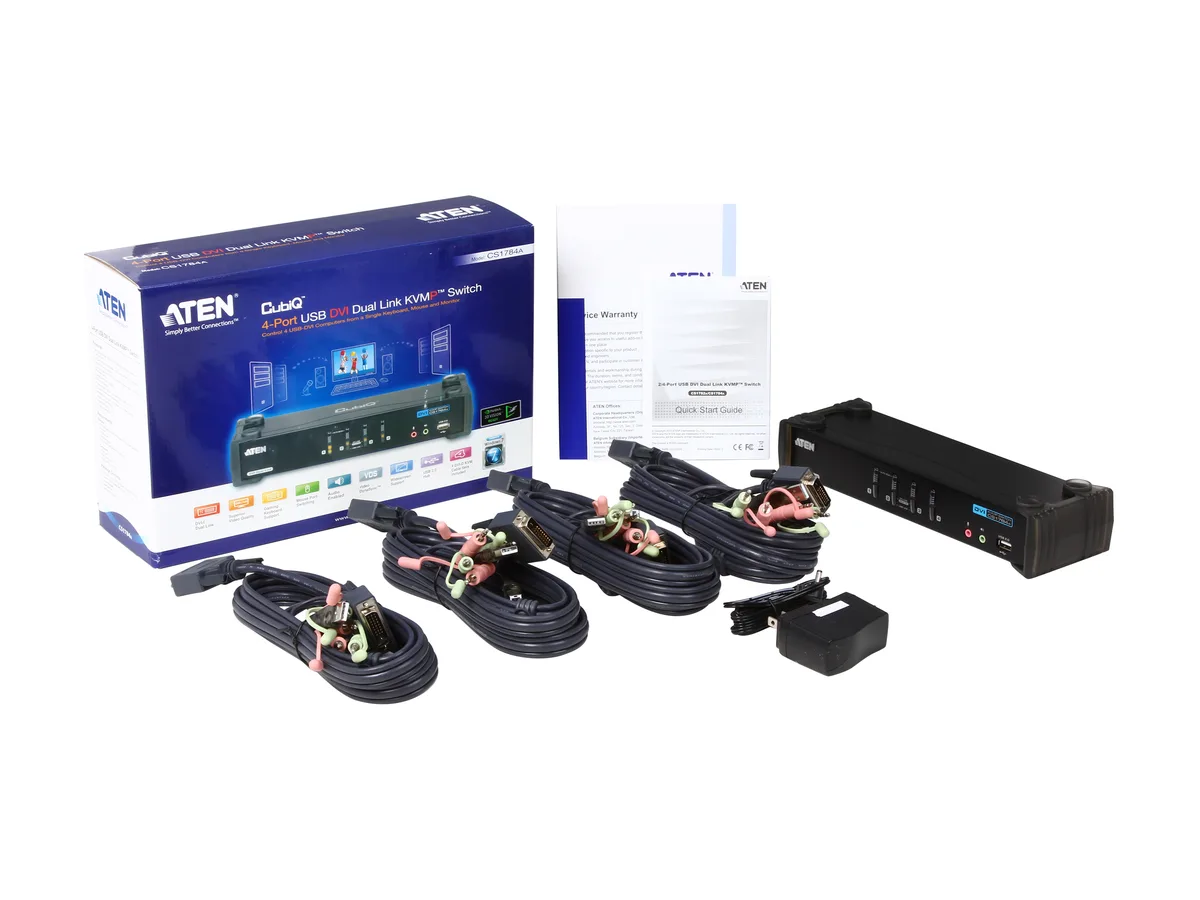

| Package Contents | 1x CS1784A USB DVI Dual Link KVMP Switch 4x DVI-D/USB KVM cables 1x Power Adapter 1x User Manual 1x Quick Start Guide |
| Shipping weight | 3.18 kg |
| Package size | 333 × 221 × 23 mm |
Questions about this item
How many computers can I connect to this KVM switch?
The CS1784A supports up to four computer connections, letting you control all four from a single keyboard, monitor and mouse.
What resolution will I actually get on a dual-link DVI monitor?
Dual-link DVI delivers 2560x1600 at 60 Hz, while single-link DVI is limited to 1920x1200 at 60 Hz.
Does the built-in USB 2.0 hub share bandwidth with the KVM switching?
The two-port USB 2.0 hub operates independently, so peripheral switching is asynchronous and does not interrupt the KVM session.
