ATEN CS1764A 4-Port USB DVI Audio KVM Switch
Controls four DVI computers and two USB 2.0 devices from one console with 1920 x 1200 resolution and audio support
- TypeDVI, USB
- PC ConnectorsDVI-I, USB, Mini Stereo Jack 4 x stereo speaker; 4 x Microph
- Console ConnectorsDVI-I, USB, Mini Stereo Jack
- Computer Connections4 Ports
- Monitor Connections1 Port
- Video Resolution1920 x 1200
- Controls four DVI computers from one USB console with integrated 2-port USB 2.0 hub
- Supports 1920 x 1200 video resolution for sharp digital display output

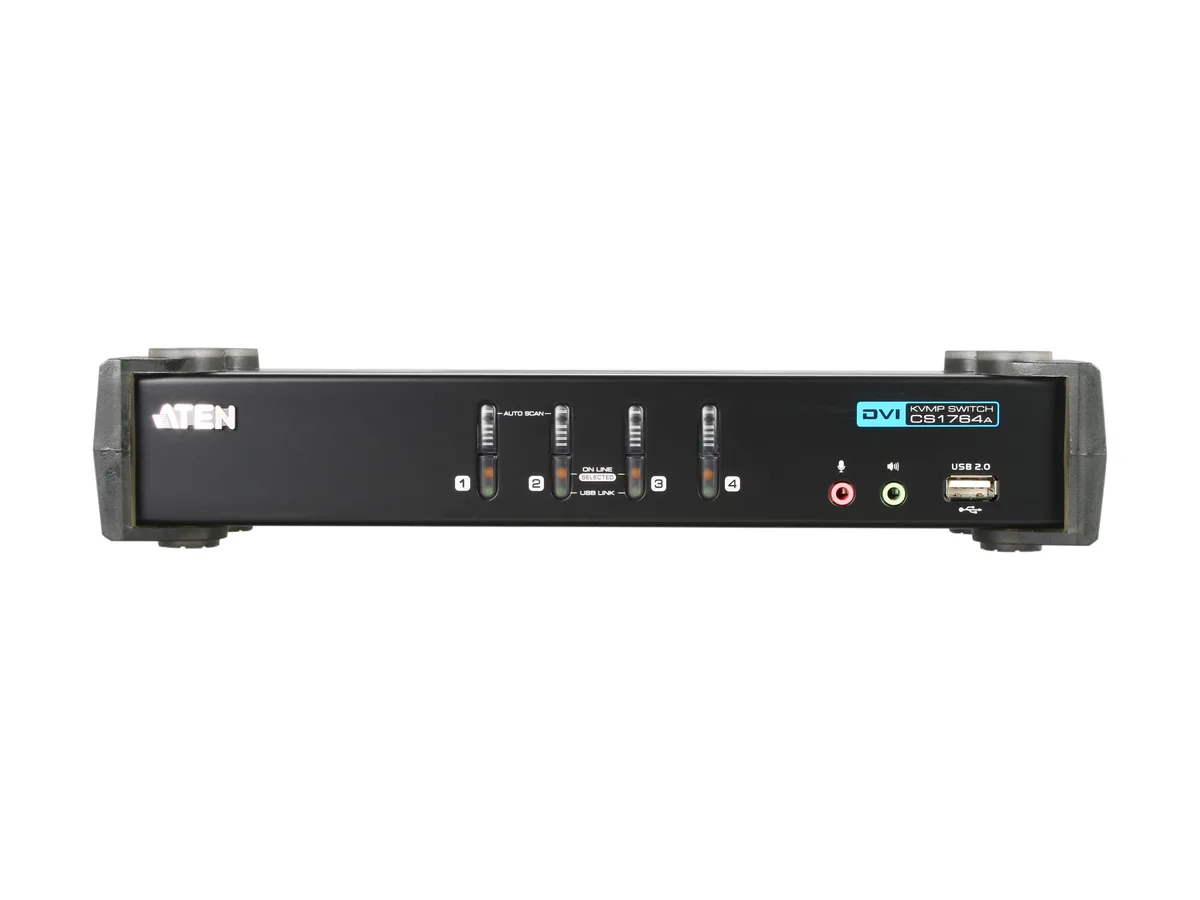

- Switch systems instantly via front pushbuttons or configurable hotkeys
- Built-in audio support with full bass response for speakers and microphone
- Auto-scan cycles through connected PCs at adjustable 1-99 second intervals
Four-port DVI KVM with USB hub
The ATEN CS1764A lets one USB keyboard, mouse and DVI monitor control four computers while adding a built-in two-port USB 2.0 hub for shared peripherals. It supports video up to 1920 x 1200 and switches sources via front-panel buttons or hotkeys. Audio paths for speakers and microphone are included on every port. The unit ships with four 1.8 m KVM cables and a power adapter.
Replaces separate switch, hub and audio splitter
Instead of juggling a basic KVM, a standalone USB hub and individual audio cables, this single box handles video, USB and stereo audio for four systems. The upgrade is worth it when you need simultaneous peripheral sharing and audio monitoring across multiple DVI workstations. Auto-scan intervals from 1 to 99 seconds let you cycle through sources automatically.
Suits multi-system DVI workstations
Ideal for operators who manage several DVI computers from one desk and want unified USB and audio control without extra cables. Not suited for users who require DisplayPort, HDMI or higher resolutions such as 4K, nor for setups that need more than four computer connections. Buyers needing dual-monitor output or newer digital interfaces should look elsewhere.
Highlights
- Controls four DVI computers from one USB console with integrated 2-port USB 2.0 hub
- Supports 1920 x 1200 video resolution for sharp digital display output
- Switch systems instantly via front pushbuttons or configurable hotkeys
- Built-in audio support with full bass response for speakers and microphone
- Auto-scan cycles through connected PCs at adjustable 1-99 second intervals
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1764A |
| Type | DVI, USB |

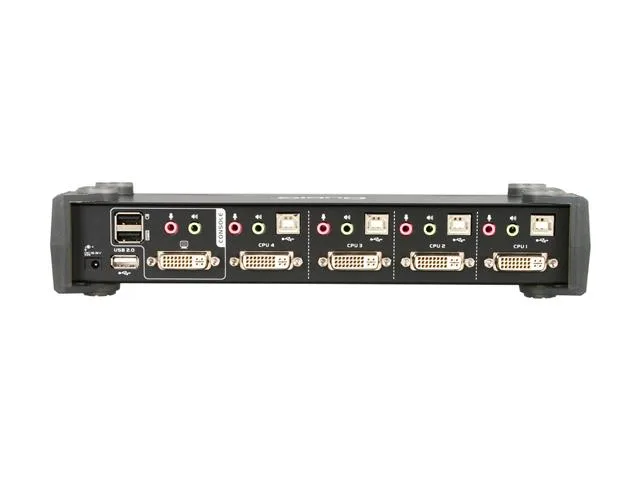

| PC Connectors | DVI-I, USB, Mini Stereo Jack 4 x stereo speaker; 4 x Microphone |
| Console Connectors | DVI-I, USB, Mini Stereo Jack |
| Computer Connections | 4 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 1920 x 1200 |
| PC Selection | Push Buttons/Hot Keys |
| AutoScan Interval | 1-99 secs. (5 secs. default) |
| LED Indicators | Selected: 4 USB Peripherals: 4 |
| Temperature | Operation Temperature: 32F~122F (0C~50C) Storage Temperature: -4F~140F (-20C ~ +60C) |
| Humidity | 0 ~ 80% RH, Non-condensing |
| Power Features | Power Consumption: 10.07W / 34.4 Btu/hour Voltage: DC 5.3V Amps: 2A |
| Features | One USB console controls four DVI computers and two additional USB 2.0 devices Fully compliant built in 2-port USB 2.0 hub. Computer selection via front panel pushbuttons or hotkeys Audio enabled - full bass response 2.1 channel sound Multiplatform support - Windows 2000 / XP / Vista, Linux, Mac, and Sun Superior video quality - 1920 x 1200, 60Hz; DDC2B Independent switching of KVM, USB, and Audio focus DVI digital and analog monitor support - fully compliant with the DVI specifications HDCP compliant Video DynaSync - stores the console monitor's EDID (Extended Display Identification |
| Dimensions | 10.6" x 3.4" x 2.2" |
| Weight | 2.2 lbs. |

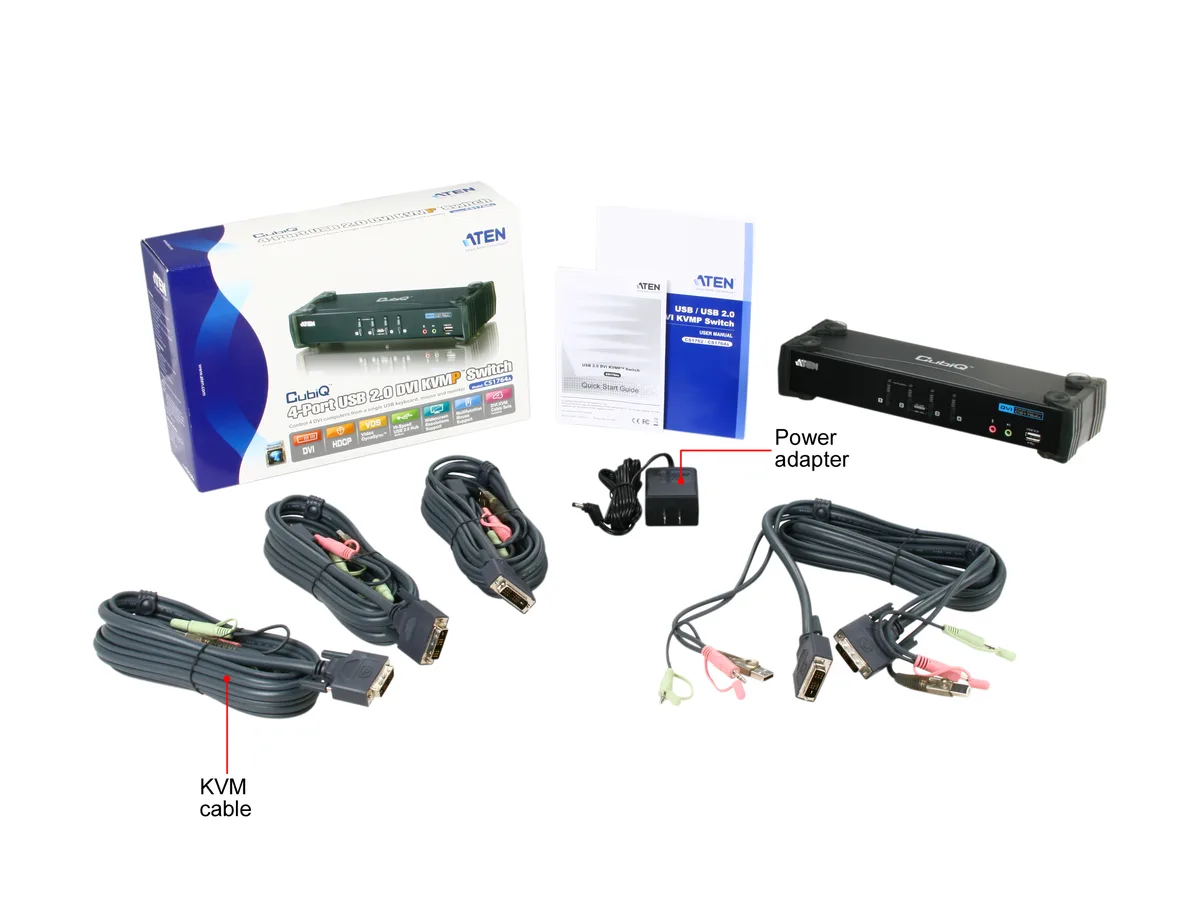

| Package Contents | 1 x CS1764A USB 2.0 DVI KVMP Switch 4 x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft) 1 x Power Adapter 1 x User Instructions |
| Shipping weight | 2.44 kg |
| Package size | 328 × 211 × 107 mm |
Questions about this item
What console video connector does the CS1764A require for the monitor?
The console side uses a single DVI-I port for the monitor connection, supporting up to 1920 x 1200 resolution.
How do you switch between the four connected computers, and what is the default AutoScan timing?
Switch using the front-panel push buttons or keyboard hotkeys; AutoScan cycles every 5 seconds by default, adjustable from 1 to 99 seconds.
Which included cables need replacing if they wear out, and what length are they?

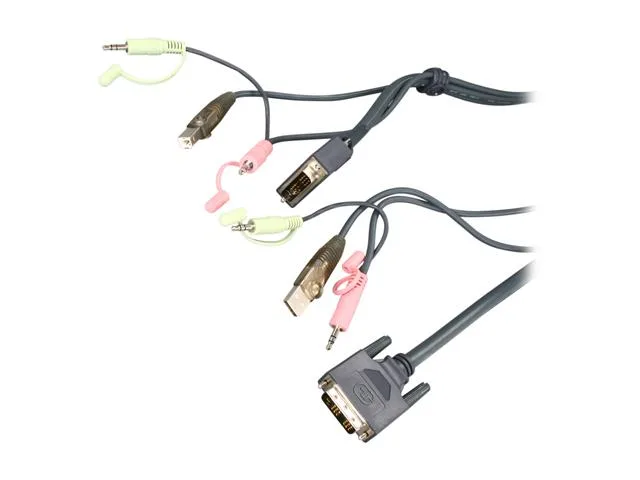

The four supplied KVM cables (DVI-D, USB, audio) are each 1.8 m long; the power adapter and USB 2.0 hub cables are also replaceable if damaged.
