ATEN CS1716I 16-port KVM switch
Control up to 256 computers from one console with 16 ports, daisy-chain expansion, and IP-based remote access
- TypeUSB, PS/2
- PC ConnectorsSPHD-17
- Console ConnectorsSPHD-18
- Computer Connections16 Ports
- Monitor Connections1 Port
- Video ResolutionLocal: 2048x1536; DDC2B Remote: 1600x1200@60Hz/24bit color d
- Monitor and control 16 computers from one console
- Access servers remotely via IP using a web browser
- Daisy-chain up to 15 additional units for 256 total computers
- Local video up to 2048x1536 resolution with DDC2B support
- Auto-scan interval adjustable from 1 to 255 seconds

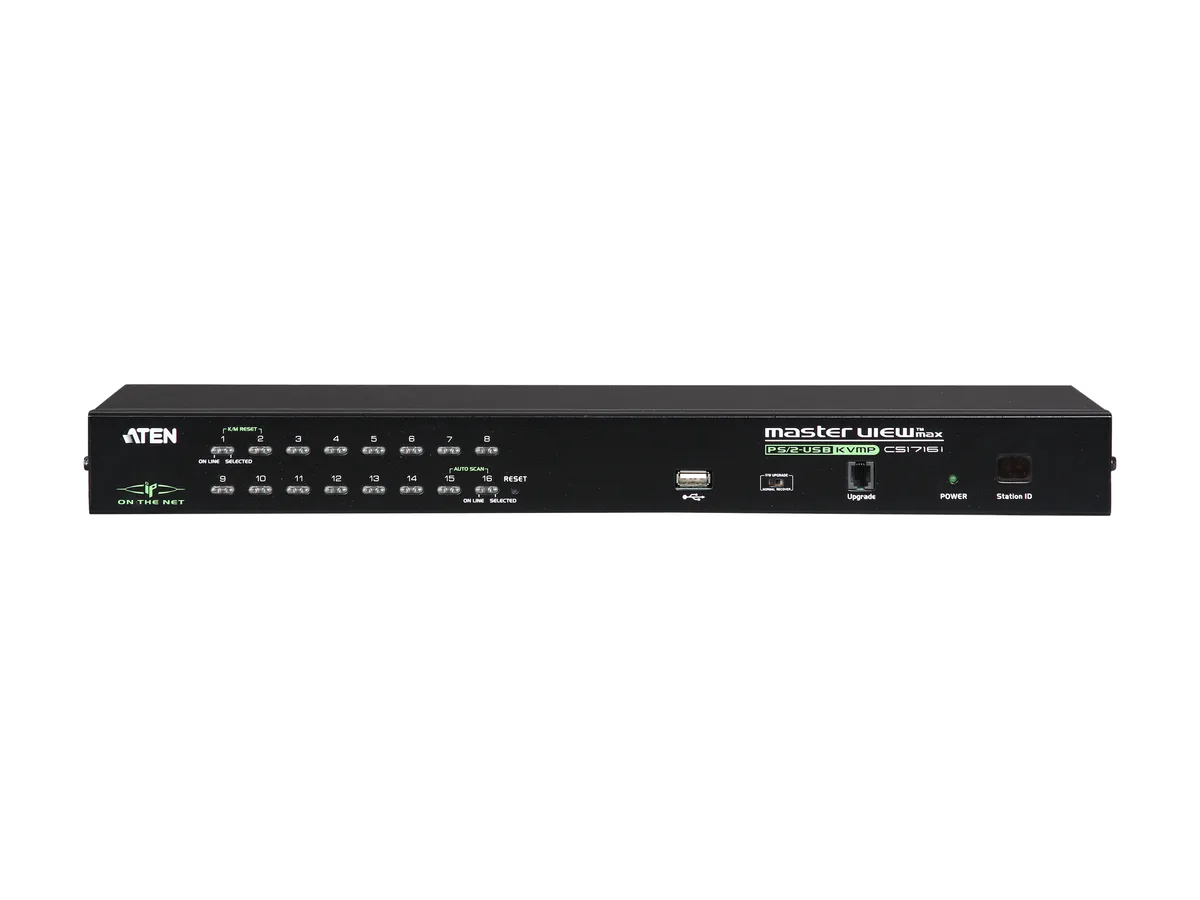

16-port IP KVM switch
The ATEN CS1716I is a 16-port KVM switch that lets administrators manage multiple servers from one local console or remotely over IP. It supports USB and PS/2 computer connections through SPHD-17 ports and a single monitor output via SPHD-18. The unit is designed for rack-mounted server rooms and data centres requiring centralised hardware control.
Remote access resolution limit
Remote sessions are capped at 1600x1200 at 60 Hz with 24-bit colour, while the local console supports up to 2048x1536 via DDC2B. The integrated 10/100 Mbps LAN port handles all IP traffic, so bandwidth-heavy graphical tasks over the network will be constrained by that link speed. Daisy-chaining adds latency across the chain.

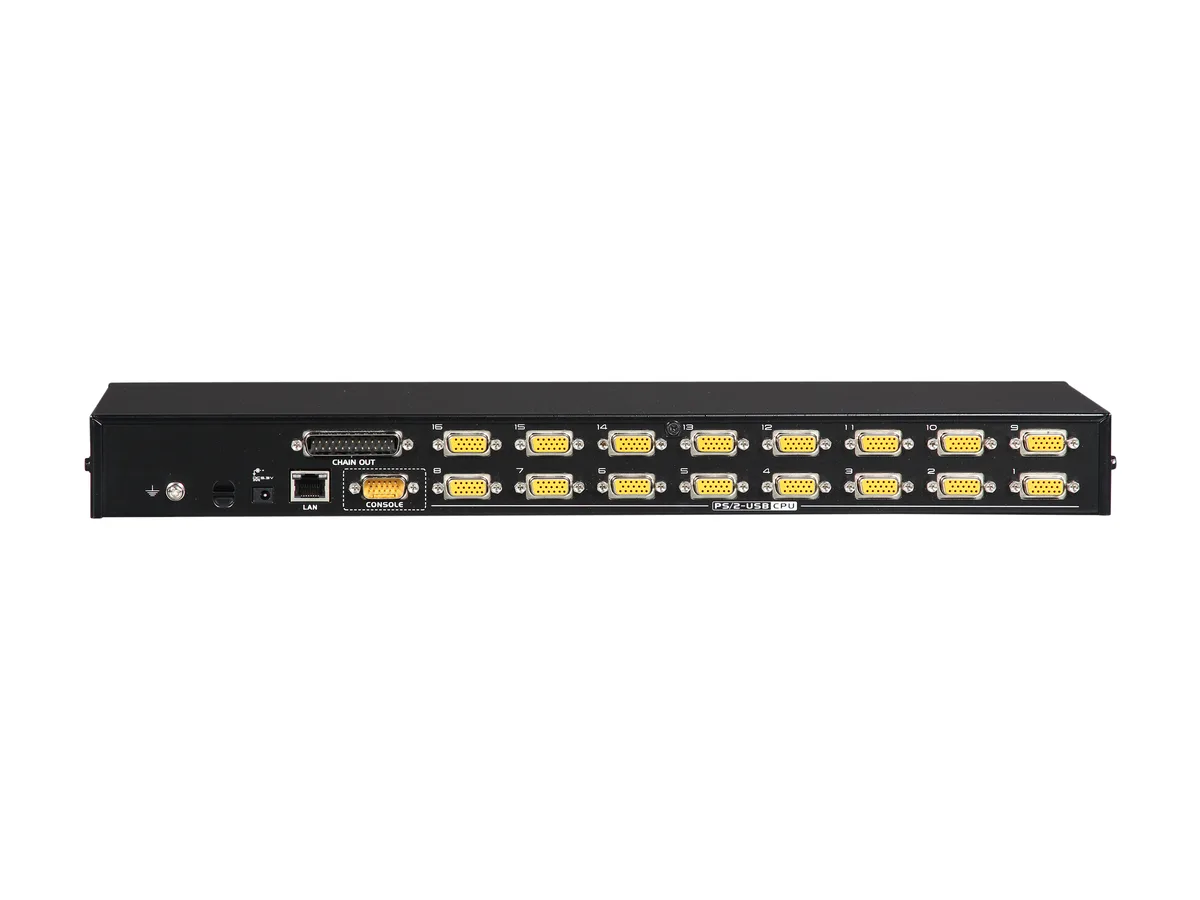

Sixteen computer ports
This model provides exactly 16 computer connection ports, expandable to 256 machines by daisy-chaining up to 15 additional units. Buyers needing more than 16 direct ports or higher remote video fidelity should evaluate other models. The switch includes two 6-foot KVM cables, a console cable, firmware cable, grounding wire, rack kit, feet, power adapter and documentation.
Highlights
- Monitor and control 16 computers from one console
- Access servers remotely via IP using a web browser
- Daisy-chain up to 15 additional units for 256 total computers
- Local video up to 2048x1536 resolution with DDC2B support
- Auto-scan interval adjustable from 1 to 255 seconds
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1716I |
| Type | USB, PS/2 |
| PC Connectors | SPHD-17 |
| Console Connectors | SPHD-18 |
| Computer Connections | 16 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | Local: 2048x1536; DDC2B Remote: 1600x1200@60Hz/24bit color depth |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | 1-255 sec. |
| LED Indicators | On Line: 16(Orange) Selected: 16(Green) Station ID: 2x7 segment(Orange) Power On : 1(Dark Green) 10/100 Mbps: 1(Orange/Green-at LAN port) |
| Temperature | Operation Temperature: 32F~122F (0C~50C) Storage Temperature: -4F~140F (-20C ~ +60C) |
| Humidity | 0 ~ 80% RH, Non-condensing |
| Power Features | Power Consumption: DC 5.3V; 9.5W: 35BTU/h |
| Features | 16-port remote access KVM switch - monitor and control up to 8 computers from a single KVM console Daisy chain up to 15 additional units - control up to 256 computers Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position Multiplatform support - Windows, Linux, Mac, and Sun Dual Interface - supports PS/2 or USB keyboard and mouse computers Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution Superior video quality - up to |

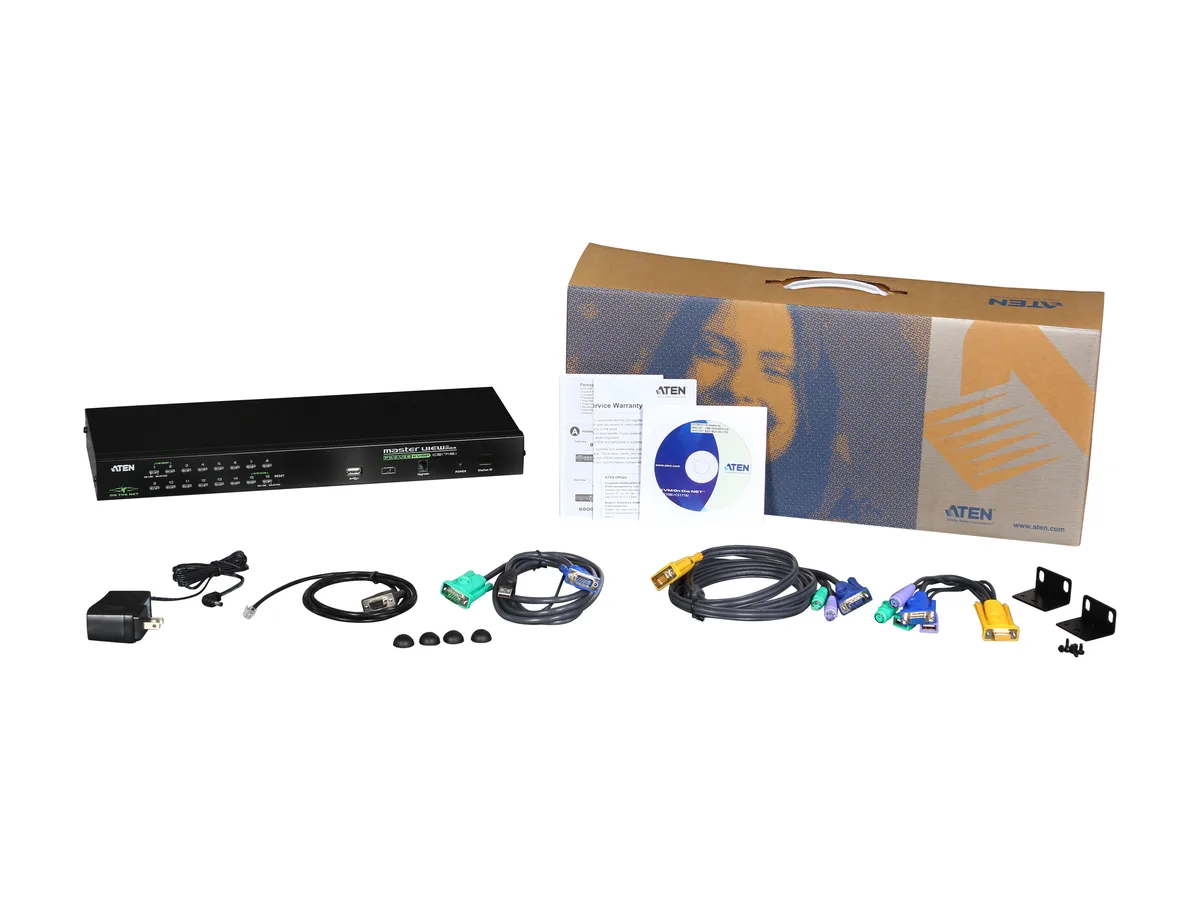

| Package Contents | 1x CS1716i KVM Switch 2x 6ft. Customer KVM cables( 1x PS/2; 1x USB) 1x Console cable 1x Frimware Upgrade Cable 1x Grounding Wire 1x Rack Mount Kit(2pcs) 1x Foot pad Set (4pcs) 1x Power Adapter 1x User Manual 1x Qiuck Start Guide 1x Software CD |
| Shipping weight | 4.06 kg |
| Package size | 541 × 234 × 117 mm |
Questions about this item
Should I pick the USB or PS/2 cable for each server?
The pack includes one USB and one PS/2 KVM cable; use the USB cable for servers with USB ports and the PS/2 cable for servers with PS/2 ports.
What resolution will I see on the local console versus a remote browser session?
The local console supports up to 2048x1536 with DDC2B, while remote sessions are limited to 1600x1200 at 60 Hz and 24-bit colour.
Does the 10/100 Mbps LAN port cap the remote session speed?
Yes, the built-in LAN port is 10/100 Mbps, so remote traffic cannot exceed 100 Mbps regardless of the upstream network.
