ATEN CS1716A 16-Port USB/PS2 KVM Switch
A 16-port KVM switch lets one PS/2 or USB console manage 16 computers and daisy-chains up to 31 units for 512 systems
- TypeUSB, PS/2
- PC Connectors16 x SPHD-15 Female (Yellow)
- Console ConnectorsKeyboard, Mouse, and Monitor 1 x SPHD-18 Male (Yellow) Flash
- Computer Connections16 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536
- Control 16 computers from one console with 16 direct ports
- Expand to 512 systems by daisy-chaining 31 additional units
- Access USB peripherals per computer via front panel port
- Support 2048 x 1536 video resolution for sharp display output
- Switch instantly using push buttons, hotkeys or on-screen display
Control Scope
The ATEN CS1716A is a 16-port KVM switch that lets one PS/2 or USB console manage up to sixteen directly connected computers. It targets administrators who need local, multi-platform access without network-dependent software agents.
Capacity Limits
Video output reaches 2048 x 1536 resolution across the single monitor port. Daisy-chaining supports 31 extra units for a 512-computer ceiling, while the front USB hub serves one peripheral at a time per selected system.
Bundled Impact
SPHD-15 cables for each computer and the SPHD-18 console cable are required but not listed as included; the RJ-11 flash port enables firmware updates, and front-panel buttons plus hot-key/OSD switching provide immediate control without extra software.
Highlights
- Control 16 computers from one console with 16 direct ports
- Expand to 512 systems by daisy-chaining 31 additional units

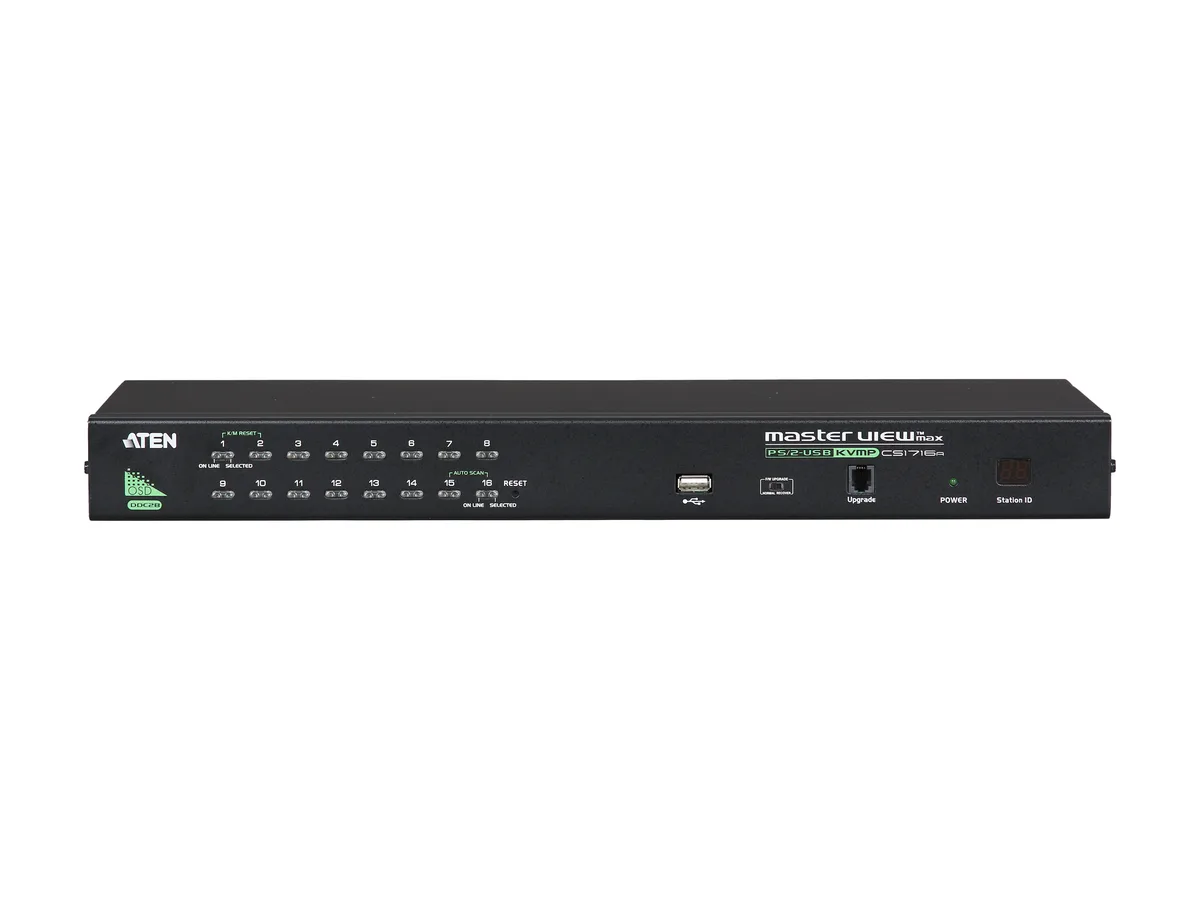

- Access USB peripherals per computer via front panel port
- Support 2048 x 1536 video resolution for sharp display output
- Switch instantly using push buttons, hotkeys or on-screen display
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1716A |
| Type | USB, PS/2 |

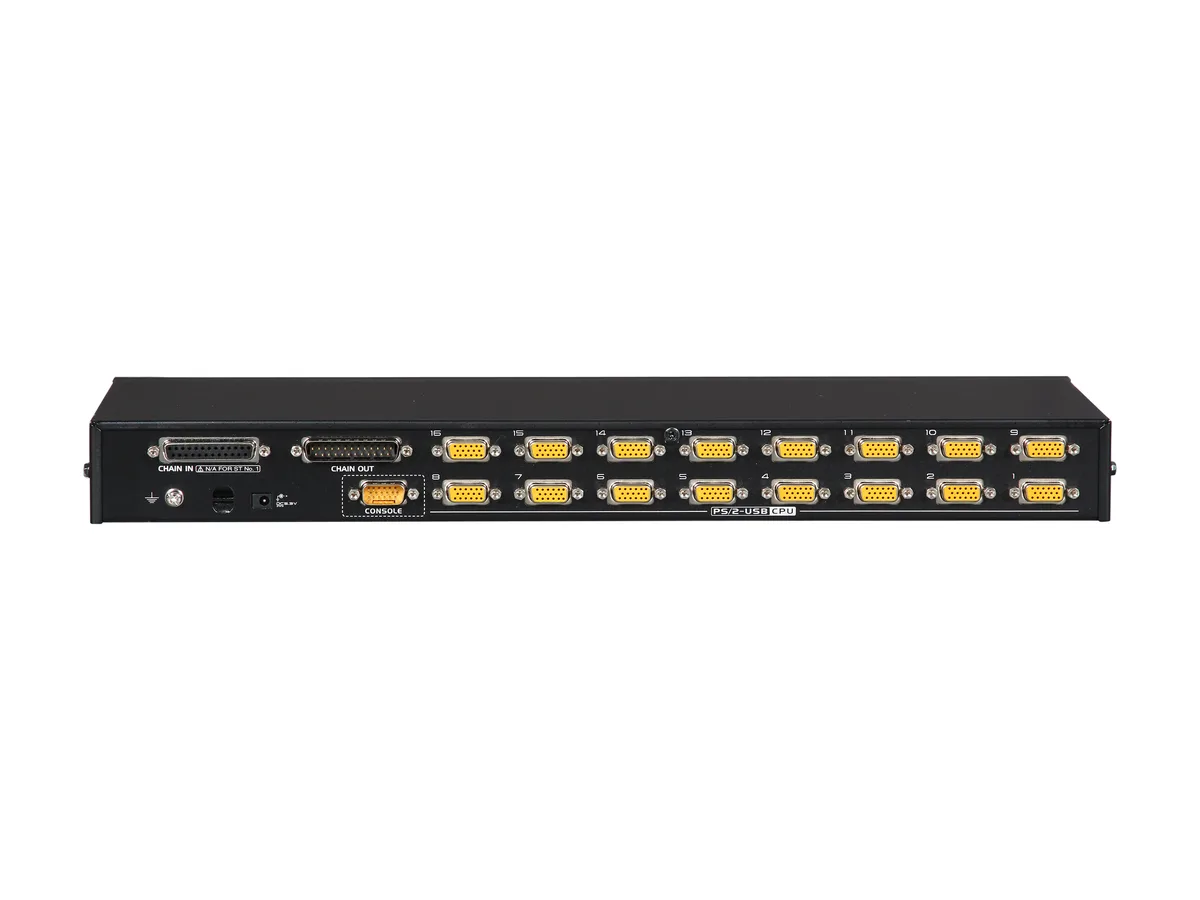

| PC Connectors | 16 x SPHD-15 Female (Yellow) |
| Console Connectors | Keyboard, Mouse, and Monitor 1 x SPHD-18 Male (Yellow) Flash ROM Upgrade 1 x RJ-11 Female (Black) |
| Computer Connections | 16 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | User Specified: 1-255 sec. |
| Temperature | Operation 32~122 F(0~50 C) Storage -4~140F (-20~60C) |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | Amps 1.6 Amps (MAX) Voltage 5 VDC @ 6.5W |
| Features | A single console controls up to 16 directly connected computers Daisy-chain up to 31 additional units - control up to 512 computers from a single console Front accessible USB port allows each computer to access USB peripherals Dual Interface -supports computers and console with PS/2 or USB keyboards and mice Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun Display Emulation Technology - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution Auto PS/2 and USB interface detection USB / PS/2 keyboard and mouse emulation |
| Dimensions | 17" x 1.7" x 6.3" |
| Weight | 9.46 |
| Shipping weight | 4.99 kg |
| Package size | 546 × 241 × 23 mm |
Questions about this item
Will the CS1716A work with the PS/2 keyboards and mice I already have on older servers?
Yes, the CS1716A supports both PS/2 and USB consoles, so your existing PS/2 peripherals connect directly to the SPHD-18 console port.
How can I verify the video signal is passing through at the rated 2048 x 1536 resolution after installation?
Use the on-screen display (OSD) or hot-key menu to confirm the active resolution; the switch handles up to 2048 x 1536 at the console port.
Which cables come in the box and what must I buy separately to connect 16 computers?
The unit includes the KVM switch and power adapter; you need 16 SPHD-15 to PS/2 or USB KVM cables (one per computer) purchased separately.
