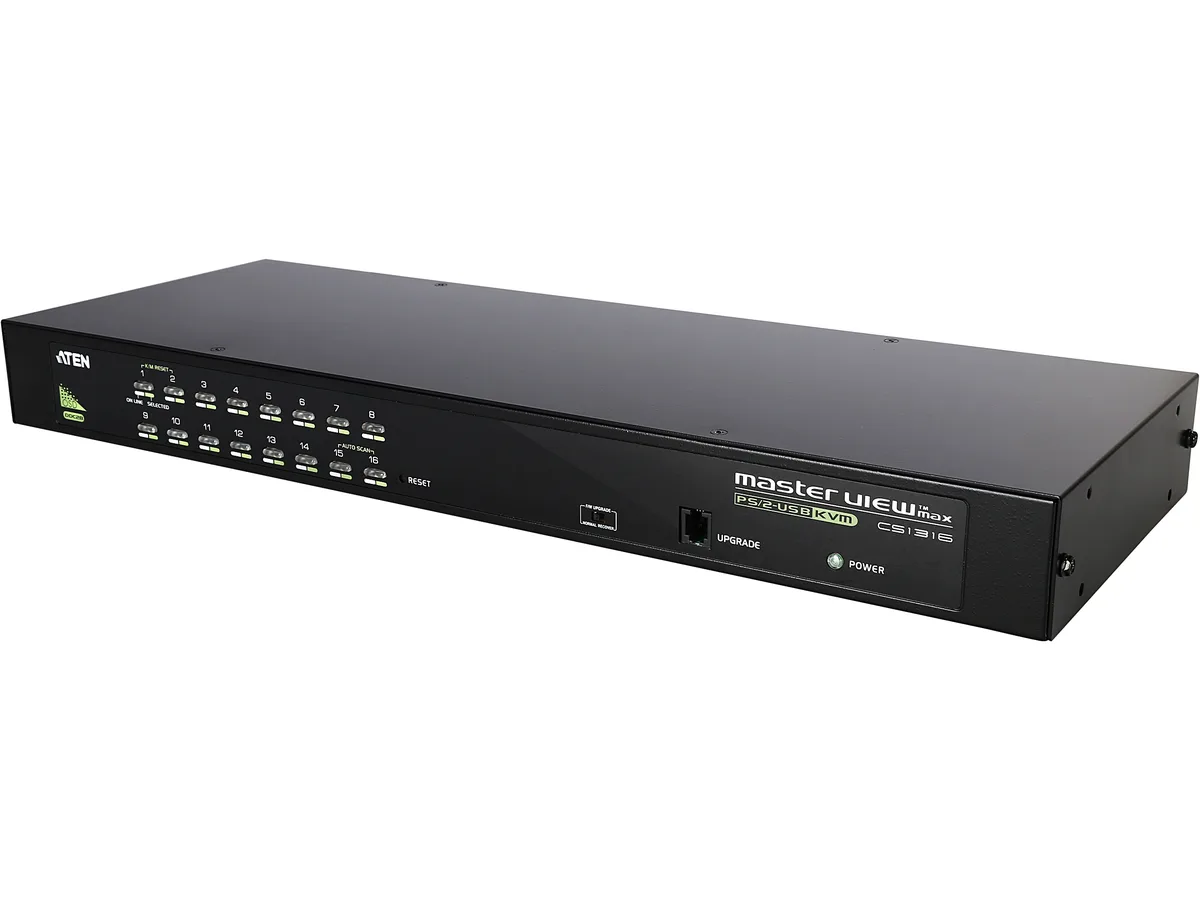

ATEN CS1316 16-port KVM switch
Controls 16 computers from one console with 2048 x 1536 video and push-button, hot-key or OSD switching
- TypeUSB, PS/2
- PC ConnectorsSPHD-15
- Console ConnectorsSPHD-18
- Computer Connections16 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536
- Control 16 computers from one USB-PS/2 console
- Cascade two levels to manage up to 256 systems
- Support for 2048 x 1536 video resolution
- Auto-scan switching at 1-255 second intervals
- 1U rack-mount form factor fits standard cabinets
16-port USB/PS/2 KVM switch
The ATEN CS1316 lets a single USB or PS/2 console manage up to 16 computers from one rack-mountable unit. It is built for server rooms and labs where operators need direct, local access to multiple heterogeneous systems without extra software.
Sustained multi-system access

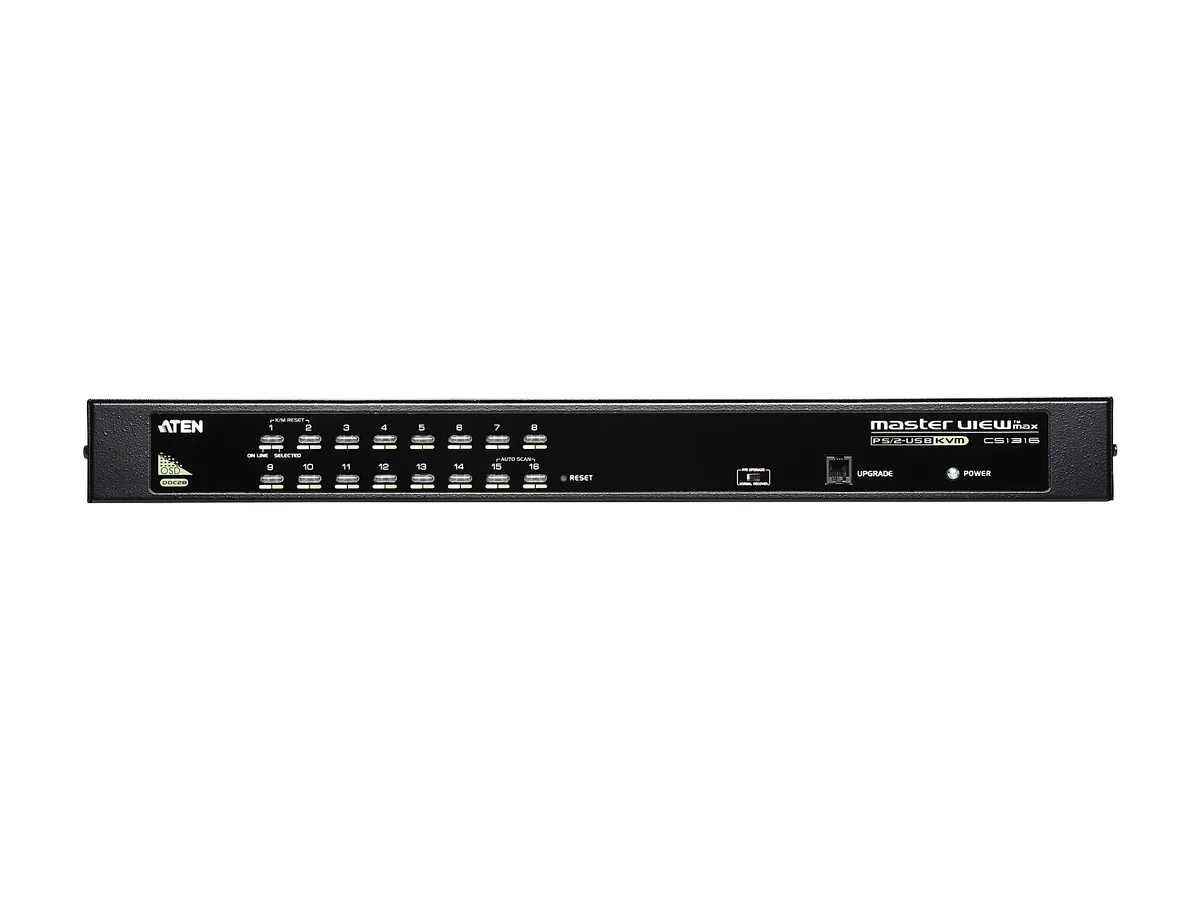

The switch draws 6.6 W at 5.3 V and is rated for continuous operation between 0 °C and 50 °C with humidity up to 80 % RH non-condensing. LED indicators show on-line and selected status for each of the 16 ports, and AutoScan cycles through connected computers at intervals from 1 to 255 seconds without operator intervention.
Replaces individual monitor/keyboard sets
One CS1316 removes the need for separate displays and input devices per server, saving rack space and cabling. Cascading two levels expands control to 256 computers, making the jump worthwhile when a single console must oversee dozens of legacy and current platforms.
Highlights
- Control 16 computers from one USB-PS/2 console
- Cascade two levels to manage up to 256 systems
- Support for 2048 x 1536 video resolution
- Auto-scan switching at 1-255 second intervals
- 1U rack-mount form factor fits standard cabinets
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1316 |
| Type | USB, PS/2 |

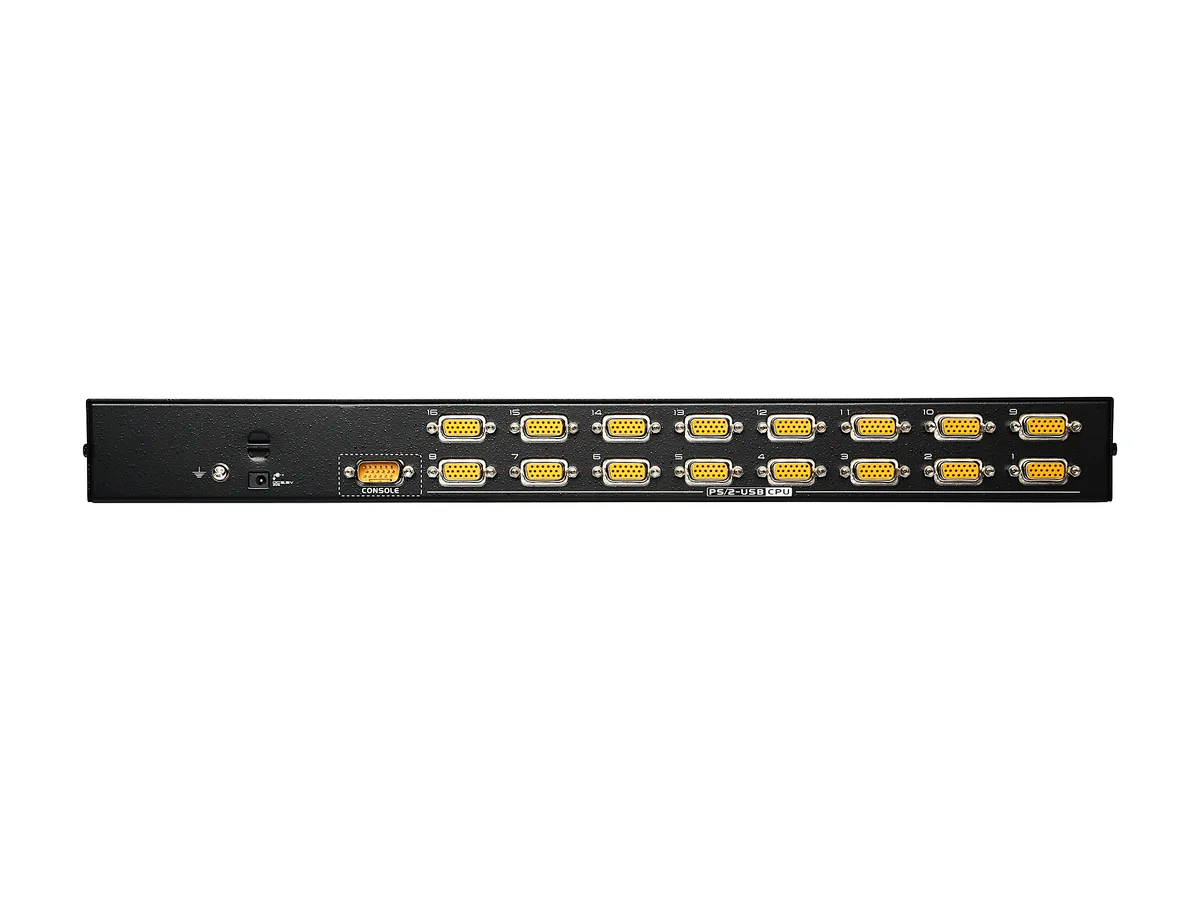

| PC Connectors | SPHD-15 |
| Console Connectors | SPHD-18 |
| Computer Connections | 16 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | 1-255 sec |
| LED Indicators | On Line: 16 (Orange) Selected: 16 (Green) Power On: 1 (Dark Green) |
| Temperature | Operation Temperature: 32F~122F (0C~50C) Storage Temperature: -4F~140F (-20C ~ +60C) |
| Humidity | 0 ~ 80% RH, Non-condensing |
| Power Features | Power Consumption: DC 5.3 V; 6.6 W |
| Features | One USB-PS/2 console controls 16 computers Cascade up to 2 levels* - control up to 256 computers Dual Interface - supports computers with PS/2 or USB keyboards and mice Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun Supports multimedia USB keyboards for PC, Mac and Sun Auto PS/2 and USB interface detection USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere Superior video quality - up to 2048 x 1536; DDC2B Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu Two level p |
| Dimensions | 17" x 6.3" x 1.73" |
| Weight | 4.2 lbs. |

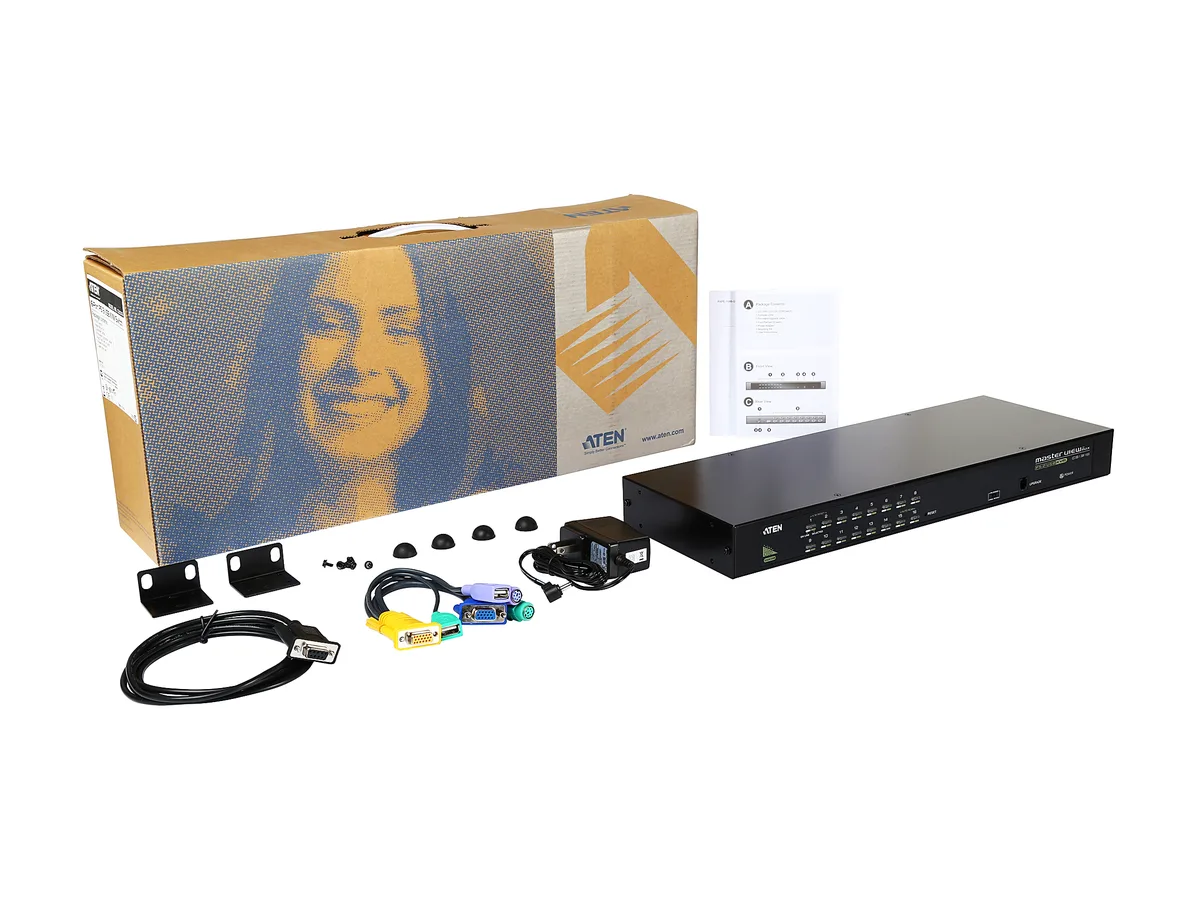

| Package Contents | 1 x CS1316 KVM Switch with Rack Mount Kit 1 x Console cable 1 x Firmware Upgrade cable 1 x Foot Pad set (4 pads) 1 x Power Adapter (6ft. AC Models) 1 x User Instructions |
| Shipping weight | 2.99 kg |
| Package size | 549 × 231 × 119 mm |
Questions about this item
How much power does the CS1316 draw and how hot does it get when left running all day?
It consumes 6.6 W at 5.3 V DC and is rated for continuous operation from 0 °C to 50 °C.
Which cables and console peripherals must I already have to connect 16 computers to this switch?
You need 16 SPHD-15 computer cables and a single SPHD-18 console cable plus a USB or PS/2 keyboard and mouse.
Will the CS1316 work with the older PS/2 servers I still keep in the rack?
Yes, the dual-interface design supports both PS/2 and USB keyboard and mouse connections on the same 16 ports.
