ATEN CS1308KIT 8-port KVM switch with 8 USB cables
Controls eight computers from one console with included USB cables and supports cascading up to 64 systems
- TypeD-Sub, USB, PS/2
- PC ConnectorsKeyboard, Mouse, and Monitor: 8 x SPHD-15 Female (Yellow)
- Console ConnectorsKeyboard, Mouse, and Monitor: 1 x SPHD-18 Male (Yellow) Flas
- Computer Connections8 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536; DDC2B
- Control 8 computers from one USB/PS2 console
- Cascade two levels to manage up to 64 systems
- Switch instantly via push buttons, hotkeys or OSD
- 2048 x 1536 video resolution with DDC2B support

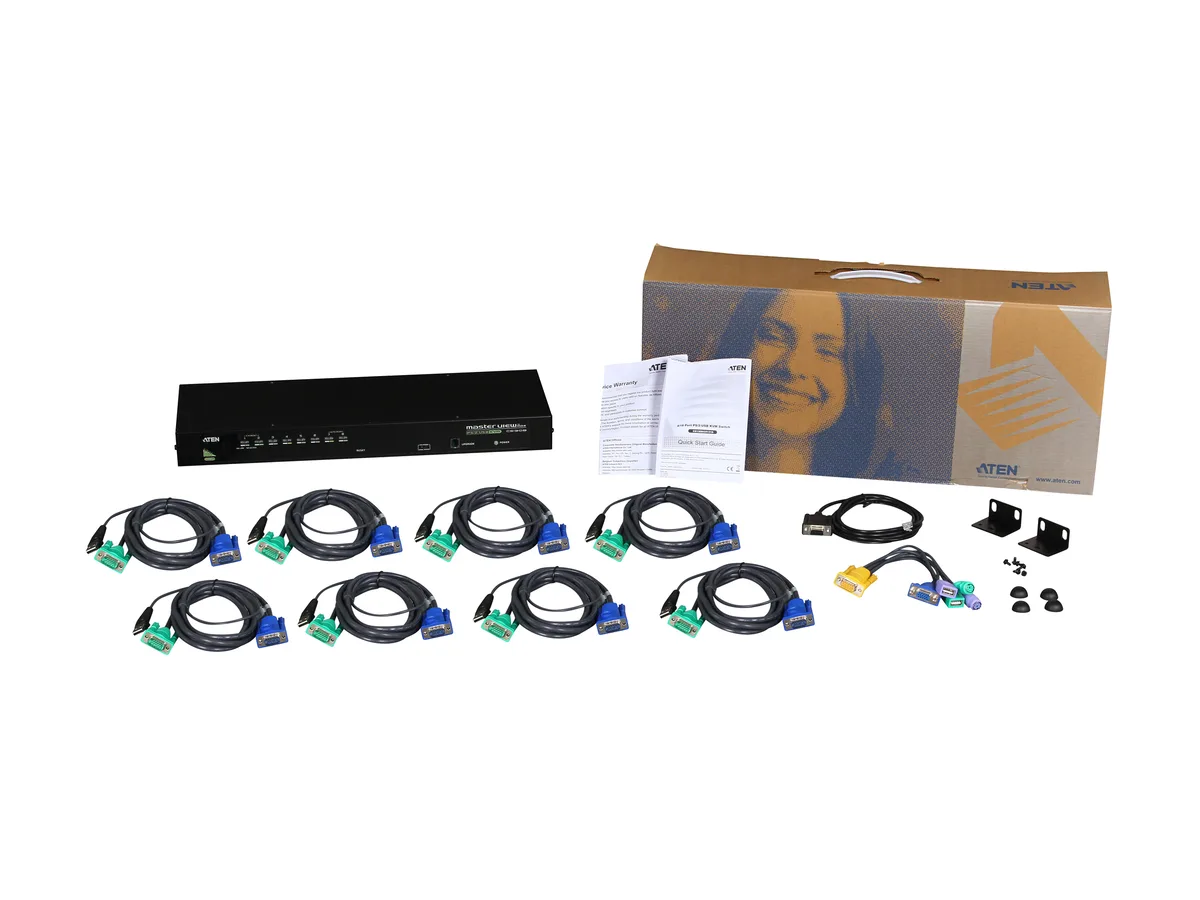

- Includes eight USB KVM cables at 4 ft, 6 ft and 10 ft lengths
Eight-port KVM control for server rooms
The ATEN CS1308KIT is an eight-port KVM switch that lets a single USB or PS/2 console manage up to eight computers. It ships with eight USB KVM cables in four-foot, six-foot and ten-foot lengths, so the kit is ready for rack deployment without extra cable purchases. Administrators who need to reduce desk clutter in a data centre or lab will find the combined switch and cable bundle convenient.
Sustained operation within rated thermal limits

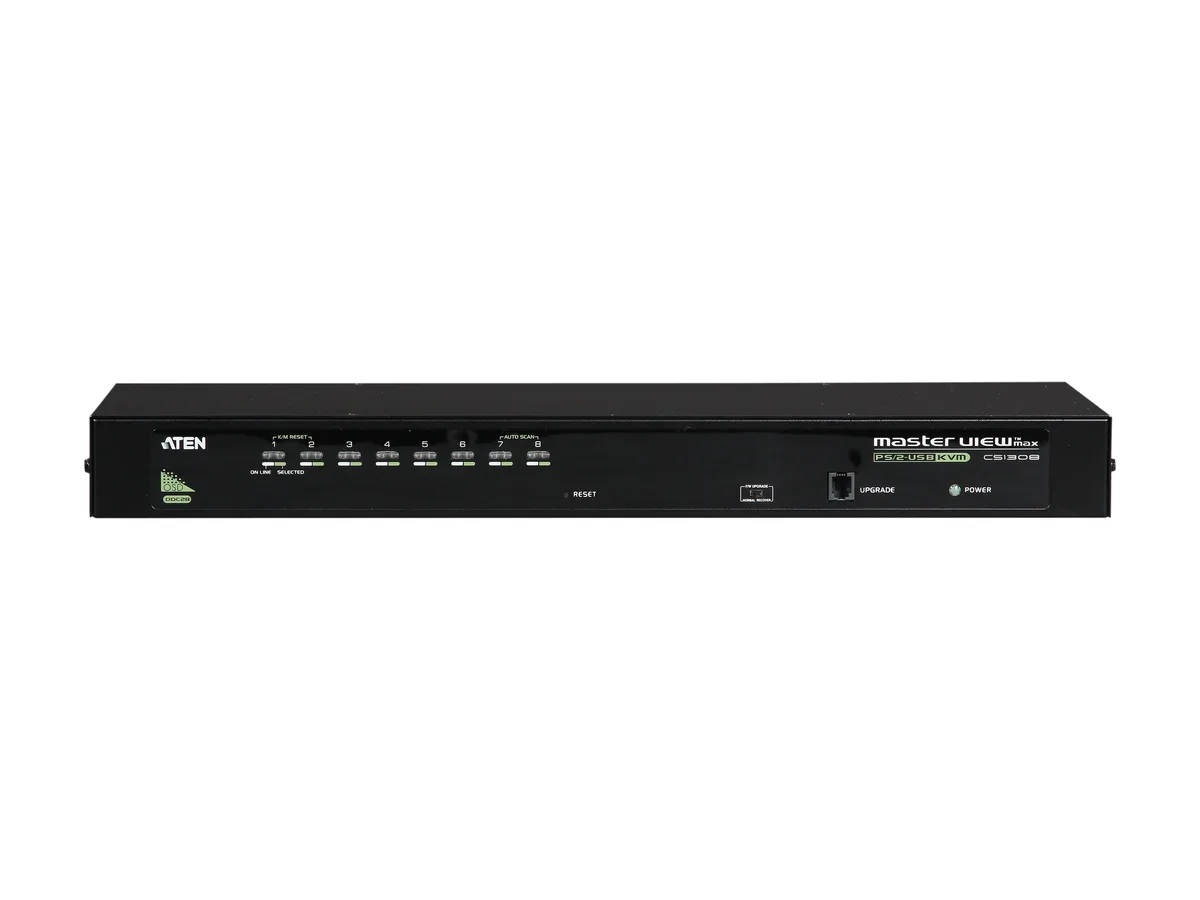

The unit is rated for continuous operation from zero to fifty degrees Celsius and storage from minus twenty to sixty degrees Celsius, with humidity up to eighty percent non-condensing. LED indicators show on-line and selected status for each port, while AutoScan cycles through connected systems at intervals from one to two hundred fifty-five seconds. These specifications support long monitoring sessions without thermal throttling concerns.
Rack-mount installation with cascading option

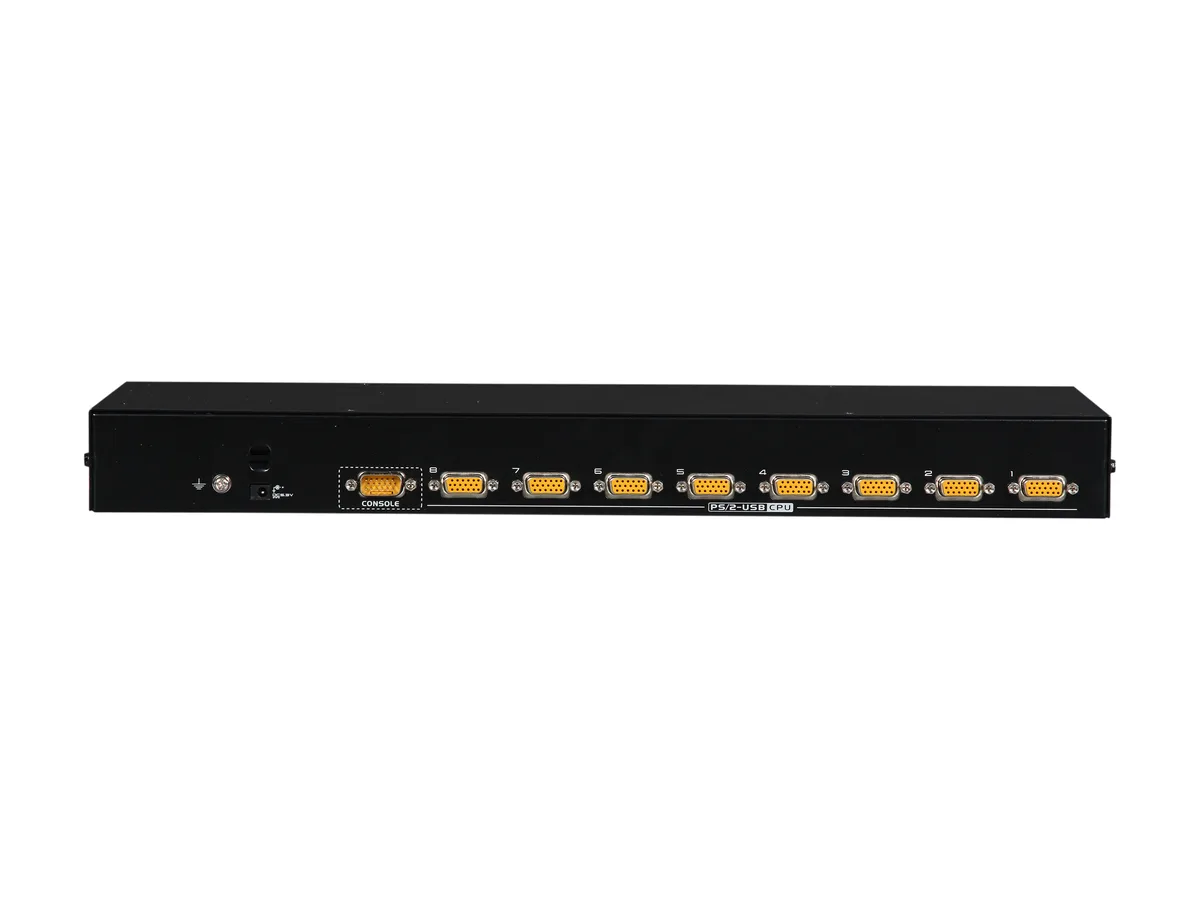

The switch measures seventeen inches wide, six point three inches deep and one point seven inches high, weighing four point two pounds, fitting a standard rack shelf. Dual-interface SPHD connectors accept both USB and PS/2 keyboard and mouse cables from the computers. Firmware upgrades use an RJ-eleven port, and the switch can cascade two levels to control up to sixty-four computers when expanded.
Highlights
- Control 8 computers from one USB/PS2 console
- Cascade two levels to manage up to 64 systems
- Switch instantly via push buttons, hotkeys or OSD
- 2048 x 1536 video resolution with DDC2B support
- Includes eight USB KVM cables at 4 ft, 6 ft and 10 ft lengths
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1308KIT |
| Type | D-Sub, USB, PS/2 |
| PC Connectors | Keyboard, Mouse, and Monitor: 8 x SPHD-15 Female (Yellow) |
| Console Connectors | Keyboard, Mouse, and Monitor: 1 x SPHD-18 Male (Yellow) Flash ROM Upgrade: 1 x RJ-11 Female (Black) |
| Computer Connections | 8 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536; DDC2B |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | 1-255 Seconds |
| LED Indicators | On Line: 8 (Orange) Selected: 8 (Green) Power On: 1 (Dark Green) |
| Temperature | Operation: 32-122 F degree (0-50 C degree) Storage: -4-140 F degree (-20-60 C degree) |
| Humidity | 0-80% RH, Non-condensing |
| Features | One USB-PS/2 console controls 8 computers Cascade up to 2 levels - control up to 64 computers Dual Interface - supports computers with PS/2 or USB keyboards and mice Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun Supports multimedia USB keyboards for PC, Mac and Sun Auto PS/2 and USB interface detection USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere Superior video quality - up to 2048 x 1536; DDC2B Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu Two level pass |
| Dimensions | 17.0" x 6.3" x 1.7" |
| Weight | 4.2 lbs. |
| Shipping weight | 5.90 kg |
| Package size | 540 × 235 × 23 mm |
Questions about this item
How much heat does the CS1308KIT produce when running continuously in a rack?
The unit operates between 0 and 50 °C and has no fan, so it adds only passive warmth to the rack.
Which console connectors must I already have to use the switch?
You need a keyboard, mouse and monitor that plug into a single SPHD-18 male (yellow) port.
Can I keep my PS/2 servers and still control them from the USB console?
Yes, the dual-interface design supports both PS/2 and USB computers on the same switch.
