ATEN CS1308 8-Port KVM Switch 2048 x 1536
Controls eight computers from one console with 2048 x 1536 video and cascades to 64 systems
- TypeUSB, PS/2
- PC ConnectorsSPHD-15
- Console ConnectorsSPHD-18
- Computer Connections8 Ports
- Monitor Connections1 Port
- Video Resolution2048 x 1536
- One console manages eight computers via USB or PS/2
- Cascade two levels to control up to sixty-four systems

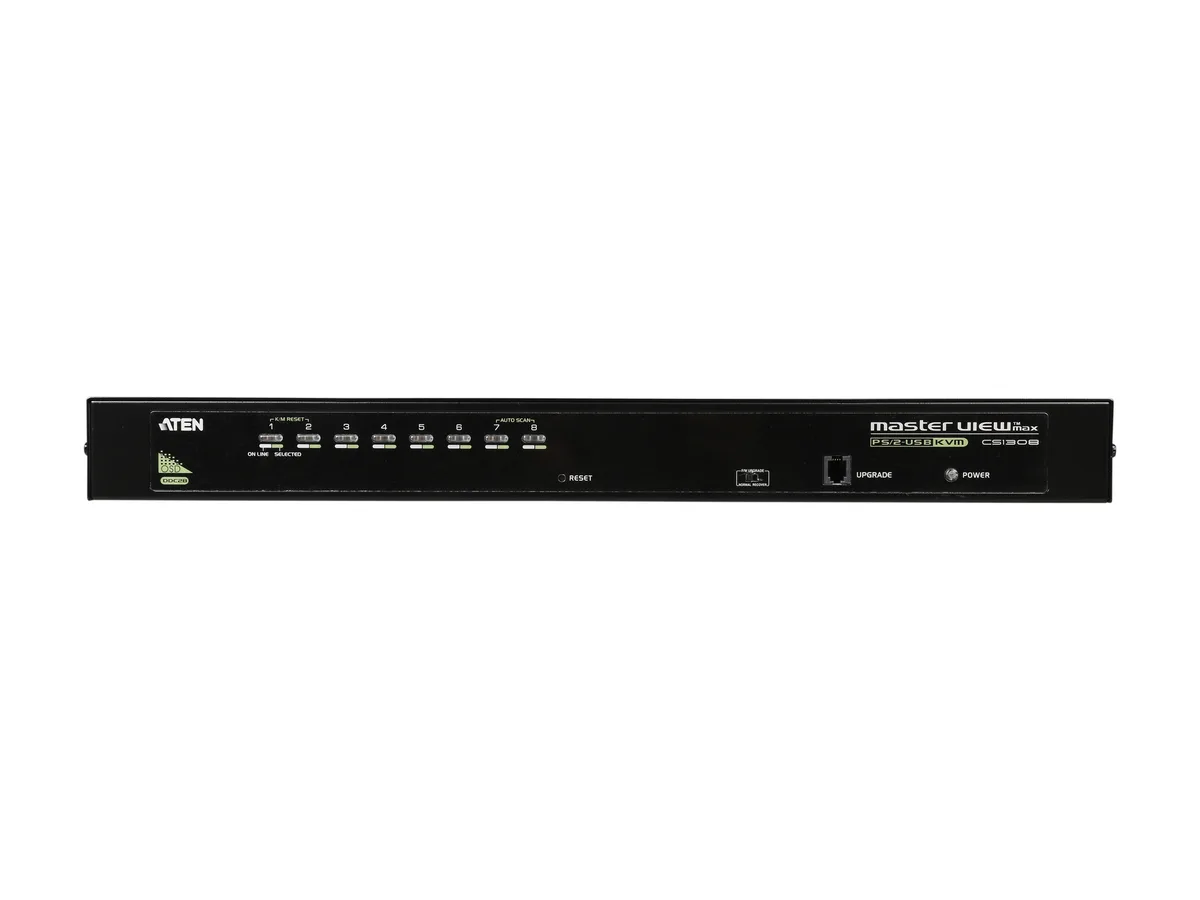

- Push buttons, hot keys or OSD select any connected PC
- Auto-scan cycles through ports at intervals from one to 255 seconds
- Supports video resolution up to 2048 by 1536
Eight-port desktop control
The ATEN CS1308 is a rack-mountable KVM switch that lets one USB or PS/2 console manage eight computers. It targets administrators who need single-point access to multiple servers or workstations in a 1U space. Multiplatform support covers Windows 2000 through Vista and Linux without extra drivers. Cascade capability extends control to 64 systems across two levels.
SPHD connectors and 1U build

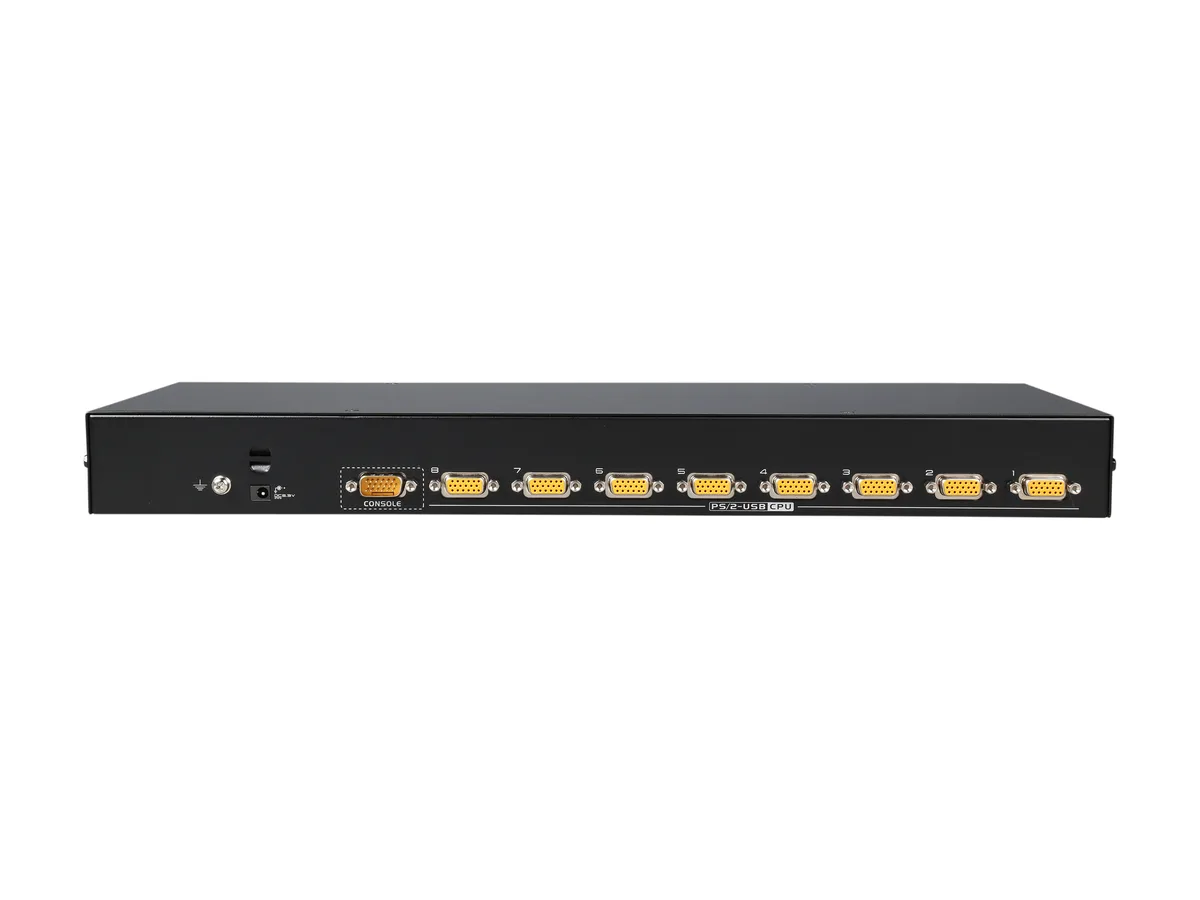

The unit uses SPHD-15 ports for computer links and an SPHD-18 port for the console, each carrying video, keyboard and mouse signals over a single cable. A supplied console cable and rack-mount kit enable immediate installation in standard cabinets. Metal chassis construction meets RoHS and WEEE environmental standards. Operating temperature range spans 32F to 122F with humidity up to 80 percent non-condensing.
Replaces separate keyboards and monitors
This switch removes the need for individual keyboards, mice and displays at every server, reducing hardware cost and rack clutter. The jump is worthwhile when managing more than two systems in a confined space and video resolution of 2048 x 1536 meets display requirements. Buyers who need digital video inputs, higher resolutions or remote-over-IP access should evaluate other models.
Highlights
- One console manages eight computers via USB or PS/2
- Cascade two levels to control up to sixty-four systems
- Push buttons, hot keys or OSD select any connected PC
- Auto-scan cycles through ports at intervals from one to 255 seconds
- Supports video resolution up to 2048 by 1536
Specifications
| Brand | ATEN |
|---|---|
| Model | CS1308 |
| Type | USB, PS/2 |
| PC Connectors | SPHD-15 |
| Console Connectors | SPHD-18 |
| Computer Connections | 8 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 2048 x 1536 |
| PC Selection | Push Buttons/Hot Keys/OSD |
| AutoScan Interval | 1-255 sec |
| LED Indicators | On Line: 8 (Orange) Selected: 8 (Green) Power On: 1 (Dark Green) |
| Temperature | Operation Temperature: 32F~122F (0C~50C) Storage Temperature: -4F~140F (-20C ~ +60C) |
| Humidity | 0 ~ 80% RH, Non-condensing |
| Power Features | Power Consumption: DC 5.3 V; 5 W |
| Features | One USB-PS/2 console controls 8 computers Cascade up to 2 levels - control up to 64 computers Dual Interface - supports computers with PS/2 or USB keyboards and mice Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun Supports multimedia USB keyboards for PC, Mac and Sun Auto PS/2 and USB interface detection USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere Superior video quality - up to 2048 x 1536; DDC2B Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu Two level pass |
| Dimensions | 17" x 6.3" x 1.73" |
| Weight | 4.2 lbs. |

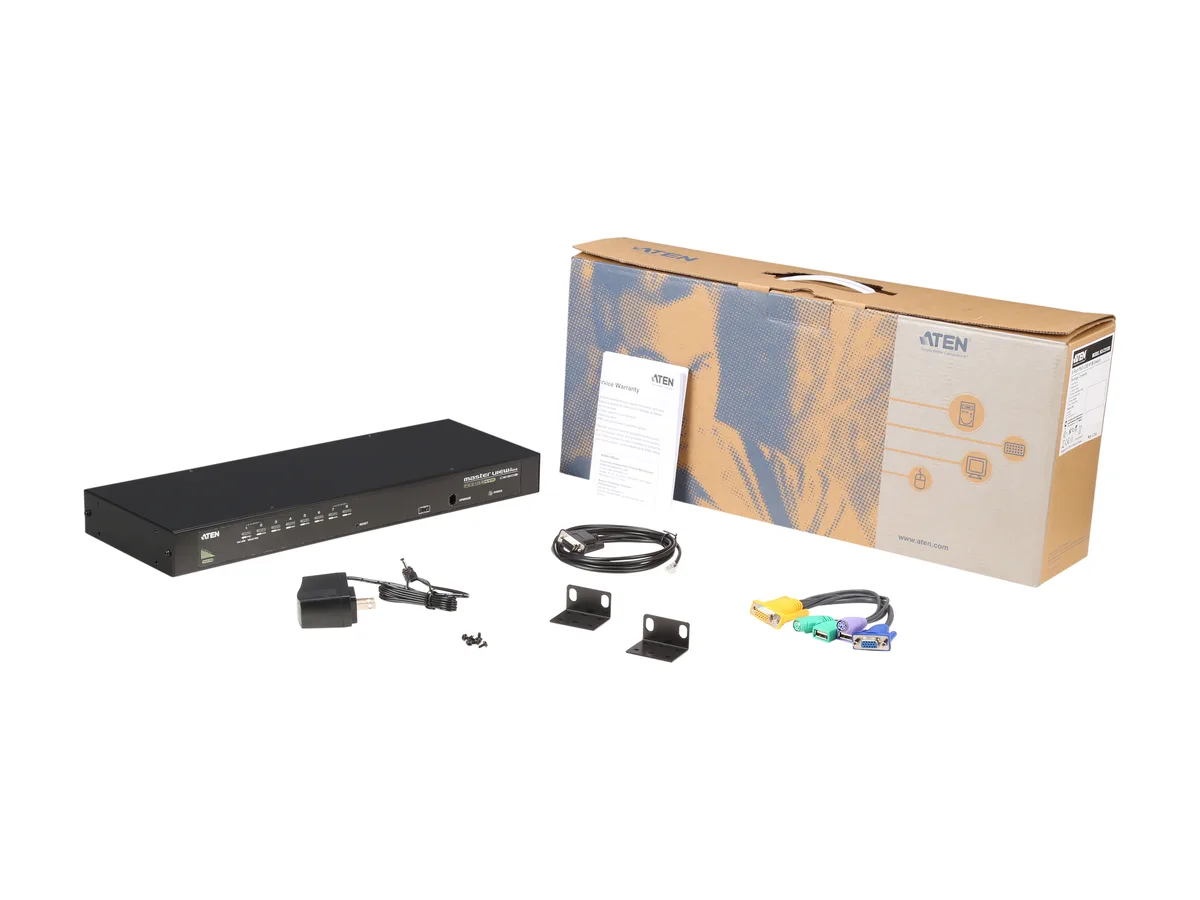

| Package Contents | 1x CS1308 KVM Switch with Rack Mount Kit 1x Console cable 1x Firmware Upgrade cable 1x Grounding wire 1x Foot Pad set (4 pads) 1x Power Adapter (AC Models) 1x User Manual 1x Quick Start Guide |
| Shipping weight | 2.72 kg |
| Package size | 541 × 239 × 124 mm |
Questions about this item
What video resolution does the SPHD-15 interface support on the CS1308?
The SPHD-15 computer ports deliver up to 2048 x 1536 resolution across all eight connected systems.
What rack depth and console cable length suit the CS1308?
The 1U chassis is 17 inches deep and includes a console cable for the SPHD-18 front port.
How do I cascade a second level of CS1308 switches, and what step is often missed?
Connect the first unit's console port to a computer port on the second unit, then assign unique OSD port names so the hot-key scan finds every target.
