ATEN
ATEN CL6700MW 17.3" 1920 x 1080 KVM switch
Integrated 17.3″ Full HD LCD console with keyboard and touchpad in a 1U sliding rail for single-computer KVM access via VGA, DVI or HDMI
- TypeD-Sub, DVI
- PC ConnectorsKB / Mouse: 1 x USB Type B Female (White) Monitor: 1 x DVI-D
- Console ConnectorsKeyboard: 1 x USB Type A Female (White) Mouse: 1 x USB Type
- Computer Connections1 Port
- Video Resolution1920 x 1080 @ 60Hz, DDC2B
- PC SelectionPush Buttons/Hot Keys
- Integrated 17.3" Full HD LCD console saves 1U rack space
- Single-rail sliding design allows independent monitor, keyboard and touchpad operation
- Three video inputs — VGA, DVI and HDMI — connect diverse sources
- Front USB port for external mouse plus rear second-console ports
- Operates from 0 to 50 °C with 100–240 VAC auto-ranging power
Integrated 1U rack console

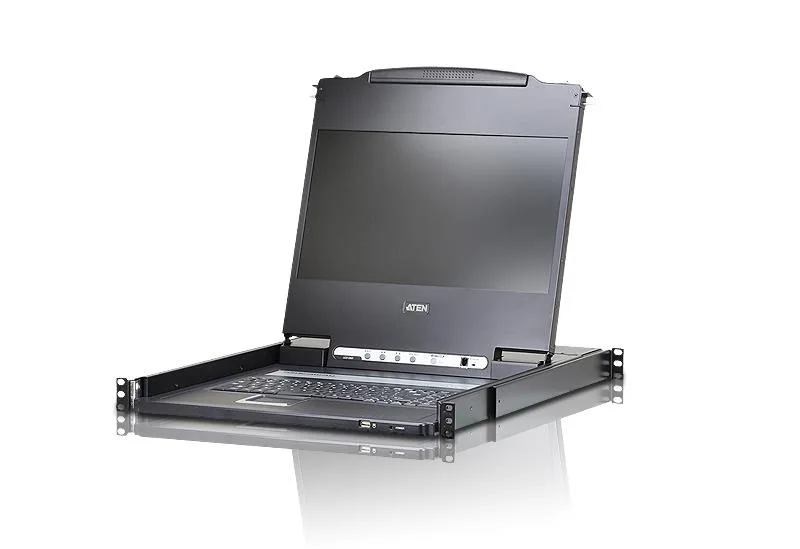

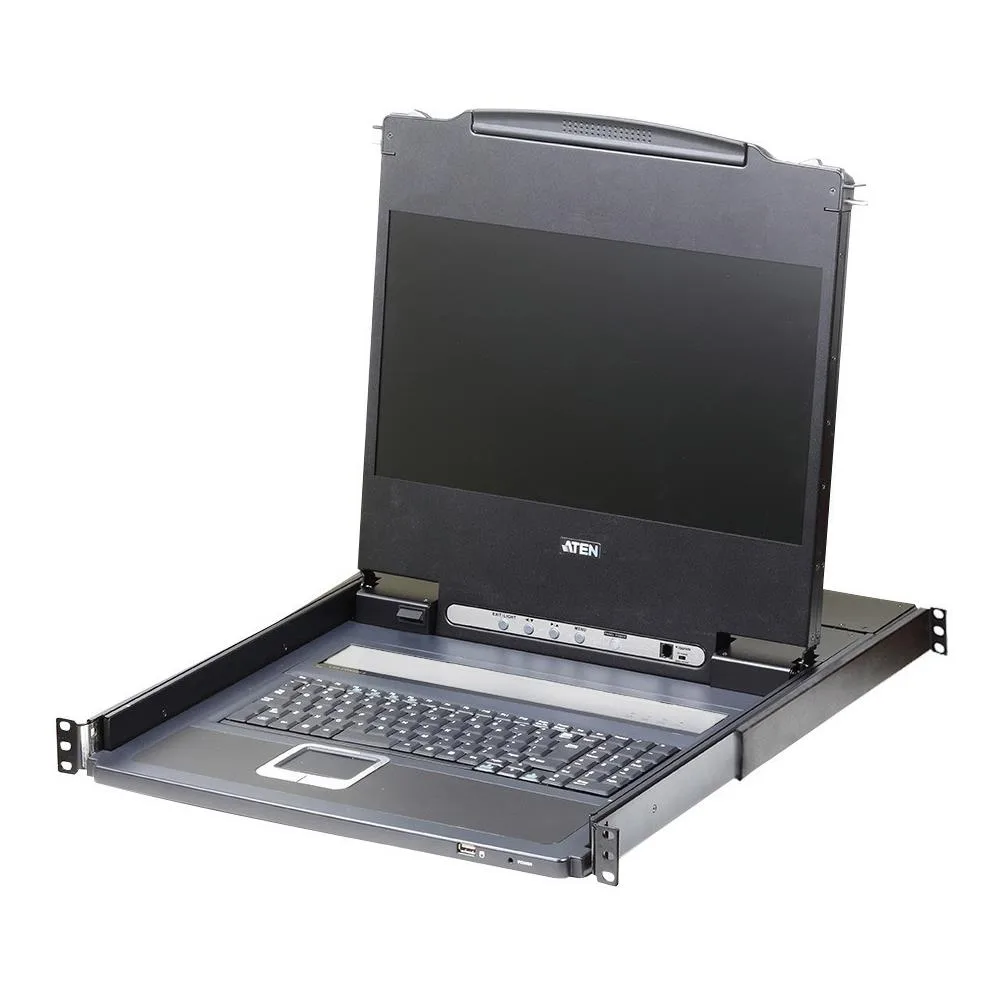

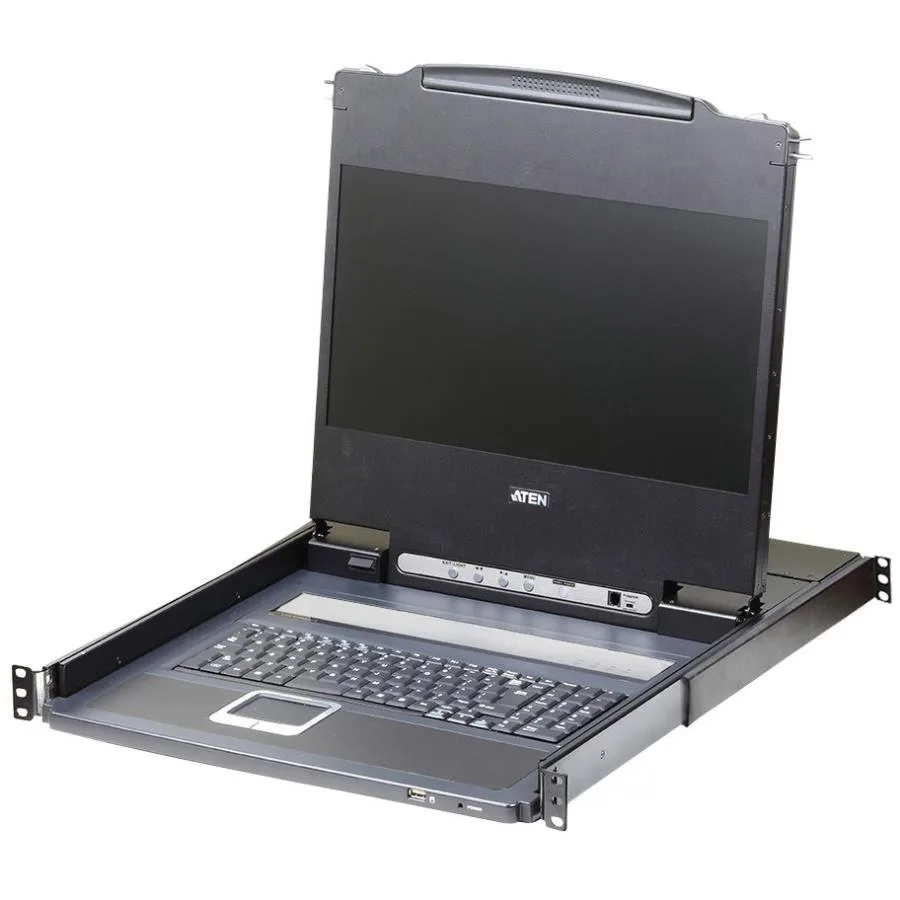

The ATEN CL6700MW combines a 17.3" LED-backlit Full HD LCD monitor, keyboard and touchpad in a single-rail sliding housing that occupies 1U of rack space. It provides front-end access for server rooms and data centres where a compact, self-contained console is required. The unit supports DVI, HDMI and VGA video sources for both the console and the connected computer. A standard rack-mount kit is included for immediate installation.
Sustained operation in a 1U enclosure
The console operates continuously between 0 and 50 degrees centigrade with humidity up to 80 percent non-condensing, and it draws a steady 19.4W whether supplied from 120V or 230V mains. Its single-rail design lets the display, keyboard and touchpad move independently, reducing mechanical strain during repeated slide-in and slide-out cycles. LED indicators for power and lock states remain visible during extended use.
Single-port Full HD KVM connection
The switch manages one computer connection at 1920 x 1080 resolution and 60Hz refresh via DVI-D, HDMI or VGA, with USB keyboard and mouse routed through a Type B upstream port. Port selection is handled by front push buttons or configurable hot keys. A second console can be attached at the rear for shared access, but only one computer is controlled at a time.
Highlights
- Integrated 17.3" Full HD LCD console saves 1U rack space
- Single-rail sliding design allows independent monitor, keyboard and touchpad operation
- Three video inputs — VGA, DVI and HDMI — connect diverse sources
- Front USB port for external mouse plus rear second-console ports
- Operates from 0 to 50 °C with 100–240 VAC auto-ranging power
Specifications
| Brand | ATEN |
|---|---|
| Model | CL6700MW |
| Type | D-Sub, DVI |

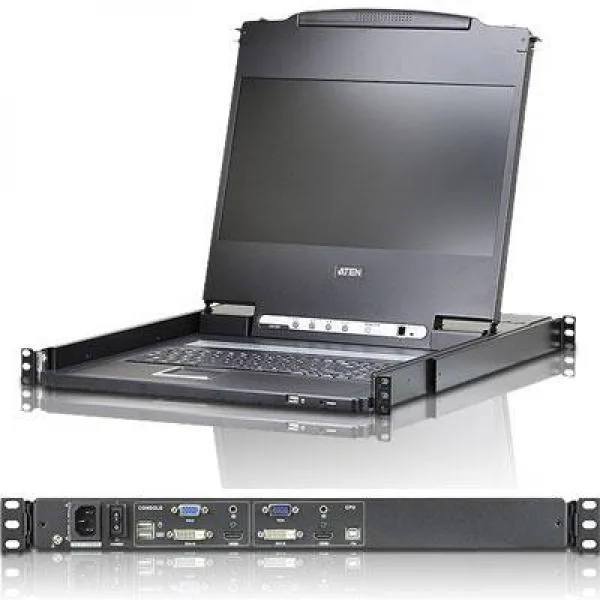

| PC Connectors | KB / Mouse: 1 x USB Type B Female (White) Monitor: 1 x DVI-D Female (White) 1 x HDB-15 (VGA) Male (Blue) 1 x HDMI Female (Black) Speaker: 1 x Mini Stereo Jack Female (Green) |
| Console Connectors | Keyboard: 1 x USB Type A Female (White) Mouse: 1 x USB Type A Female (White) Monitor: 1 x DVI-D Female (White) 1 x HDB-15 (VGA) Female (Blue) 1 x HDMI Female (Black) Speaker: 1 x Mini Stereo Jack Female (Green) |
| Computer Connections | 1 Port |
| Video Resolution | 1920 x 1080 @ 60Hz, DDC2B |
| PC Selection | Push Buttons/Hot Keys |
| LED Indicators | Power: 1 (Green) Lock: Num: 1 (Green) Caps: 1 (Green) Scroll: 1 (Green) |
| Temperature | Storage: -20 - 60 degrees centigrade Operation: 0 - 50 degrees centigrade |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | I/P Rating 100–240VAC; 50–60Hz; 1A Power Consumption 120V,19.4W / 230V,19.4W |
| Features | Integrated KVM console with a 17.3’’ LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase) Supports an external console with USB / DVI / VGA / HDMI connectors Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port) Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B Audio support for connecting spe |
| Dimensions | 1.70" x 18.90" x 23.20" |
| Weight | 28.80 lbs. |
| Package Contents | 1 x CL6700MW DVI LCD Console with Standard Rack Mount Kit 1 x Custom USB DVI KVM Cable Set 1 x Power Cord 1 x Firmware Upgrade Cable 1 x User Instructions |
| Shipping weight | 15.88 kg |
| Package size | 711 × 686 × 152 mm |
Questions about this item
How much power does the 17.3-inch console draw when running all day at 230V?
The unit consumes 19.4W at 230VAC, with an input rating of 100–240VAC, 50–60Hz, 1A.
What cables must I already have to connect a server to the DVI, HDMI and VGA ports on this KVM?
The package includes a custom USB DVI KVM cable set; you only need to supply any additional HDMI or VGA cables for your specific server outputs.
Will the 17.3-inch 1920 x 1080 panel work with an older rack KVM that outputs 1920 x 1080 @ 60Hz over DVI?
Yes, the console supports 1920 x 1080 @ 60Hz via DVI-D, HDMI or VGA, matching that resolution and refresh rate exactly.
