ATEN CL1308N 8-Port 19" LCD KVM Switch
Rack-mount 19" LCD console controls eight computers directly or up to 128 via cascade with USB and PS/2 support
- TypeUSB, PS/2
- PC ConnectorsKVM Ports: 8 x SPHD-17 Female (Yellow) FW Upgrade: 1 x RJ-11
- Computer ConnectionsDirect: 8 Maximum: 128 (via Cascade)
- Video Resolution1280×1024 @ 75 Hz ; DDC2B
- PC SelectionPush Buttons/Hot Keys
- LED IndicatorsOnline: 8 (Orange) Selected: 8 (Green) Power KVM 1 (Dark Gre
- Controls 8 servers directly from one console
- Cascades to 128 computers across two levels
- 19-inch LCD panel integrates display and keyboard
- Dual PS/2 and USB peripheral support built in
- 1280×1024 resolution at 75 Hz for clear viewing

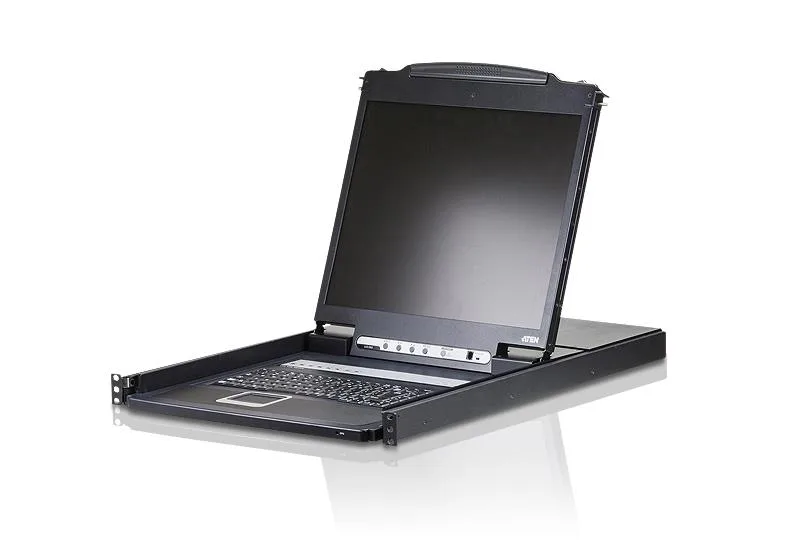

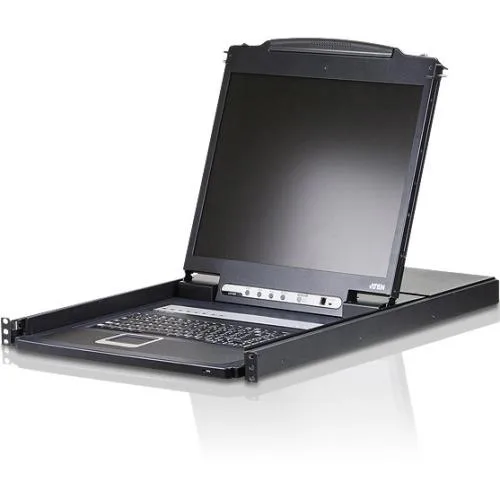

Integrated 19" LCD console
The ATEN CL1308N is a rack-mount KVM switch with a built-in 19-inch LCD panel, keyboard and touchpad in a 1U form factor. It provides direct control of eight computers through SPHD-17 ports and supports cascading to manage up to 128 systems. Dual PS/2 and USB interfaces allow connection to legacy and current hardware from a single console.
Suitable for mixed PS/2 and USB environments
This unit fits administrators who need local rack access to servers using either PS/2 or USB keyboard and mouse connections. It is not intended for operators who require remote IP-based management or digital video inputs such as DVI, HDMI or DisplayPort. Buyers needing higher video resolutions than 1280×1024 should consider alternative solutions.

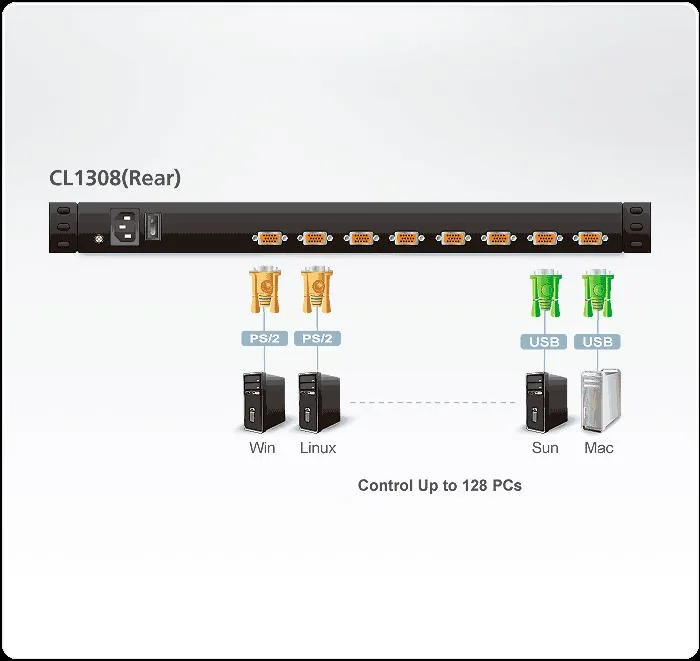

Maximum 128 computers via two-level cascade
The key specification is the ability to cascade up to eight switches across two levels, expanding the direct eight-port capacity to 128 connected computers. Video support is limited to 1280×1024 at 75 Hz with DDC2B signalling. Power input accepts 100–240 VAC at 50–60 Hz with a standard IEC60320/C14 socket.
Highlights
- Controls 8 servers directly from one console
- Cascades to 128 computers across two levels
- 19-inch LCD panel integrates display and keyboard
- Dual PS/2 and USB peripheral support built in
- 1280×1024 resolution at 75 Hz for clear viewing
Specifications
| Brand | ATEN |
|---|---|
| Model | CL1308N |
| Type | USB, PS/2 |
| PC Connectors | KVM Ports: 8 x SPHD-17 Female (Yellow) FW Upgrade: 1 x RJ-11 Female (Black) Power: 1 x 3-prong AC Socket (IEC60320/C14) |
| Computer Connections | Direct: 8 Maximum: 128 (via Cascade) |
| Video Resolution | 1280×1024 @ 75 Hz ; DDC2B |
| PC Selection | Push Buttons/Hot Keys |
| LED Indicators | Online: 8 (Orange) Selected: 8 (Green) Power KVM 1 (Dark Green) LCD 1 (Orange) Lock Num: 1 (Green) Caps: 1 (Green) Scroll: 1 (Green) |
| Temperature | Storage: -20 - 60 degrees centigrade Operation: 0 - 50 degrees centigrade |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | I/P Rating 100–240VAC; 50–60Hz; 1A Power Consumption: 120V, 22 W / 230V, 22.9 W |
| Features | A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches. Integrated KVM console with 19” LCD panel Dual Interface – supports computers with PS/2 or USB keyboards and mice Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun Supports USB keyboards for PC, Mac and Sun Auto PS/2 and USB interface detection USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B Convenient computer switching via front panel push buttons, hotkeys, or |
| Dimensions | 1.70" x 19.00" x 27.10" |
| Weight | 27.40 lbs. |
| Package Contents | 1 x CL1308 LCD KVM Switch with Rack Mount Kit 2x Custom KVM Cable Cables 1x Firmware Upgrade Cable 1x Power Cord 1 x User Instructions |
| Shipping weight | 18.60 kg |
| Package size | 688 × 483 × 43 mm |
Questions about this item
Should I choose the direct 8-port model or cascade for more computers?
The unit provides 8 direct SPHD-17 ports; cascading two levels expands control to 128 computers.
What does the 1280×1024 @ 75 Hz rating mean on the built-in 19" LCD?
The integrated panel displays up to 1280×1024 resolution at 75 Hz with DDC2B support.
What cables do the SPHD-17 KVM ports and RJ-11 firmware port actually connect?
SPHD-17 ports accept the supplied custom KVM cables for USB or PS/2 computers; RJ-11 is for the firmware upgrade cable only.
