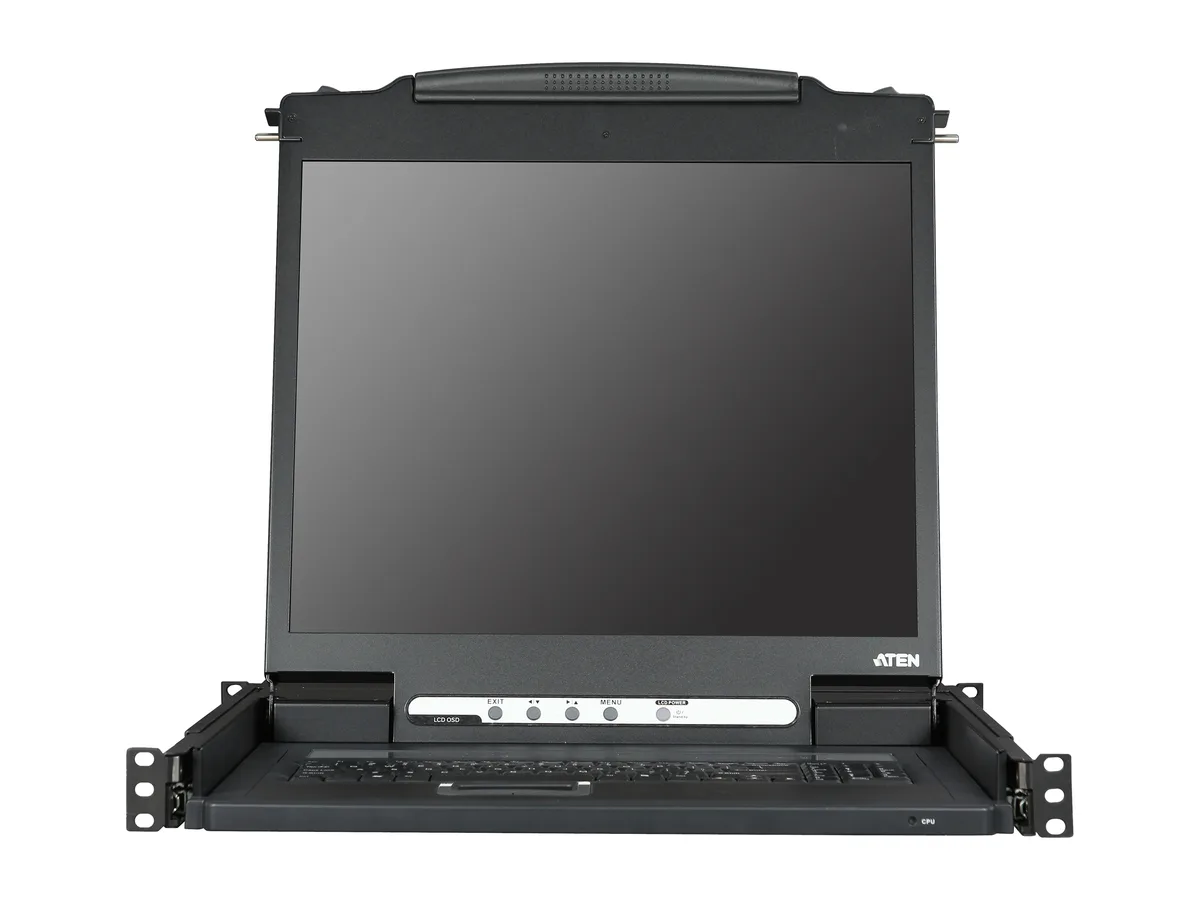

ATEN CL1000N 19 inch LCD KVM console in sliding 1U rack housing

ATEN

ATEN CL1000N 19" LCD KVM Switch 1280x1024

SKU CH-W7D0-28M3A MPN CL1000N

Integrated 19″ LCD KVM console with sliding 1U rack housing, 1280×1024 resolution and USB or PS/2 connectivity

  • TypeUSB, PS/2
  • Console Connectors1 x SPHD-15 Female (Yellow) 1 x 3-prong AC Socket
  • Video Resolution1280 x 1024
  • LED IndicatorsCPU: 1 (Green) Num Lock: 1 (Green) Caps Lock: 1 (Green) Scro
  • USB FeaturesUSB (with 2L-52xxUP USB KVM cable)
  • FeaturesIntegrated KVM console with a 19" LCD monitor in a sliding h

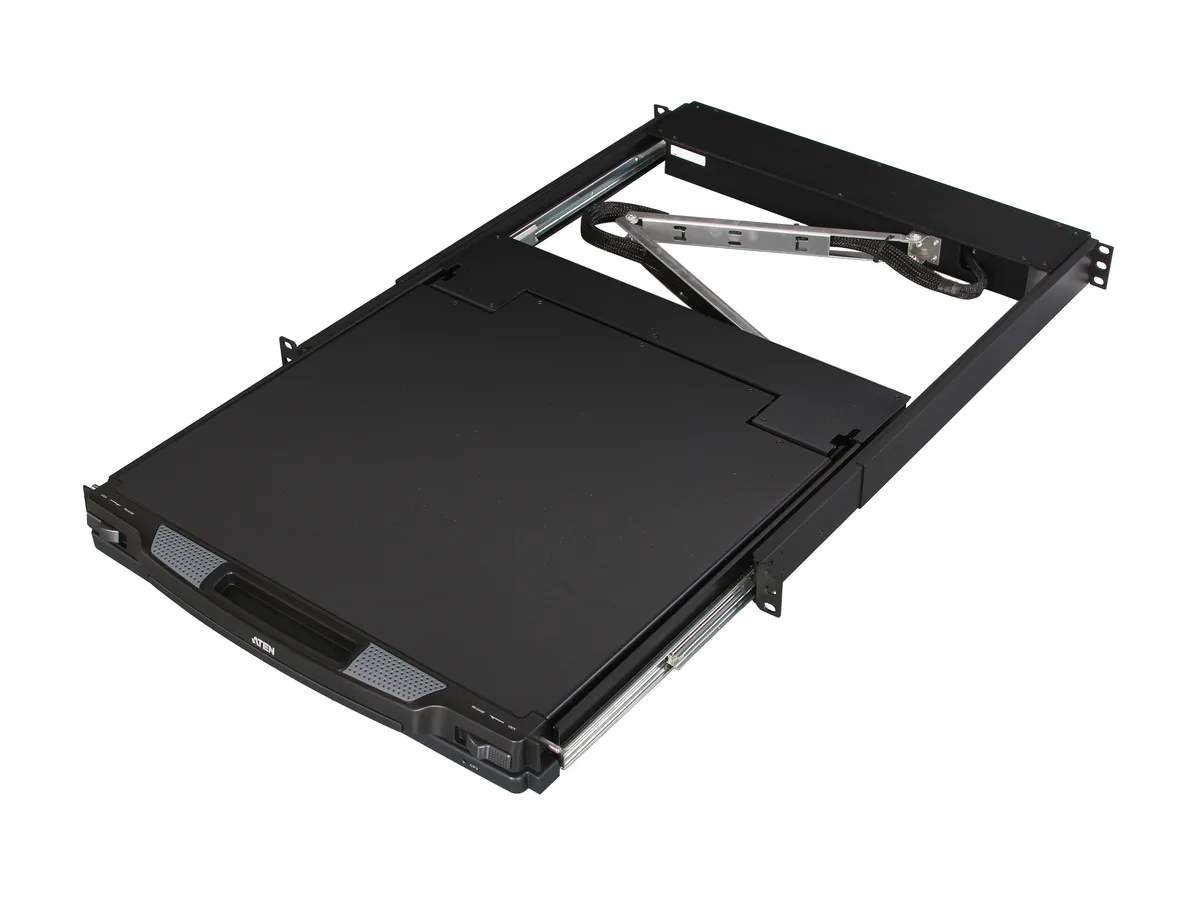

  • 19" LCD slides into 1U rack saving space
  • 1280 x 1024 resolution at 75Hz for clear display

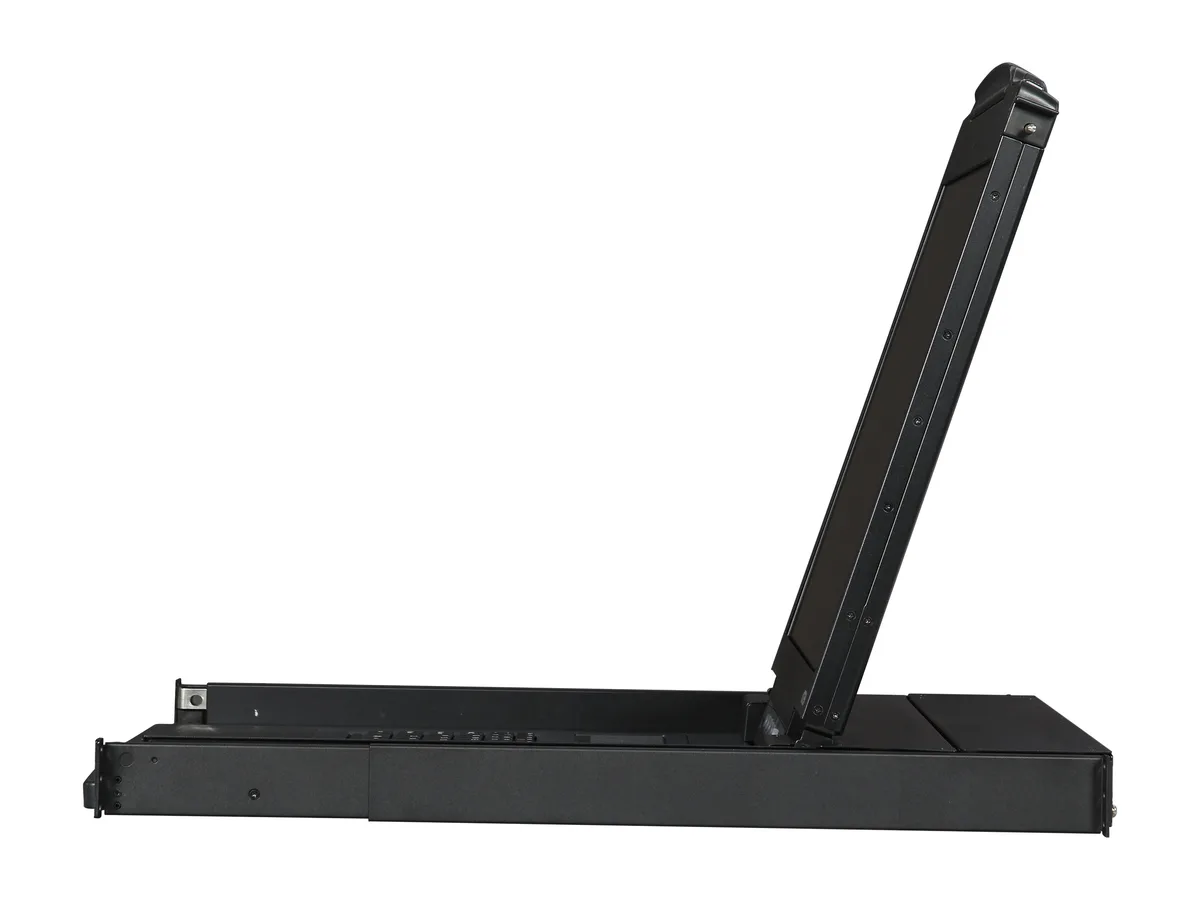

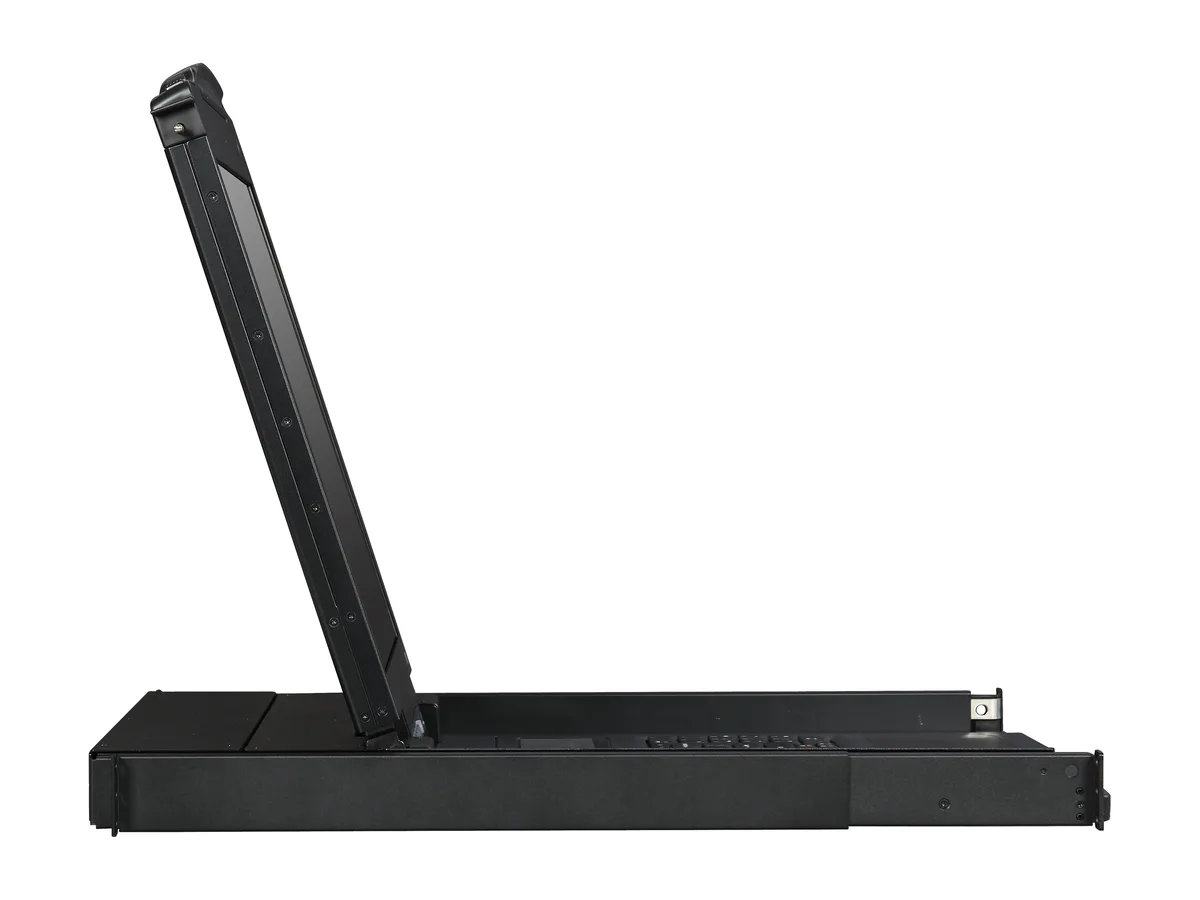

  • LCD rotates up to 115 degrees for comfortable viewing
  • USB and PS/2 support with SPHD-15 console connector
  • DDC emulation auto-adjusts video settings for optimal output

Integrated 19-inch LCD KVM Console

The ATEN CL1000N combines a 19-inch LCD monitor with a keyboard and touchpad in a sliding 1U rack housing. It supports USB and PS/2 server connections through SPHD-15 cables and delivers a maximum video resolution of 1280 x 1024 at 75Hz. The LCD module rotates up to 115 degrees for flexible viewing angles in data centre environments.

Rack Integration and Cabling Requirements

The unit mounts in a standard 1U rack space and includes an internal power supply with a 3-prong AC socket, eliminating the need for an external power brick. It requires 2L-52xxUP USB KVM cables to connect target computers and provides DDC emulation so attached systems automatically adjust video settings for the integrated panel. The sliding design with top and bottom clearance ensures smooth operation within the rack.

Suitable for Single-Consoles Rack Management

This console suits administrators who need a space-saving, single-user interface for managing multiple servers from one rack location. It is not intended for remote-over-IP access or multi-user concurrent control, and it does not support video resolutions higher than 1280 x 1024. Buyers requiring higher resolutions or IP-based KVM functionality should consider alternative solutions.

Highlights

  • 19" LCD slides into 1U rack saving space
  • 1280 x 1024 resolution at 75Hz for clear display
  • LCD rotates up to 115 degrees for comfortable viewing
  • USB and PS/2 support with SPHD-15 console connector
  • DDC emulation auto-adjusts video settings for optimal output

Specifications

BrandATEN
ModelCL1000N
TypeUSB, PS/2

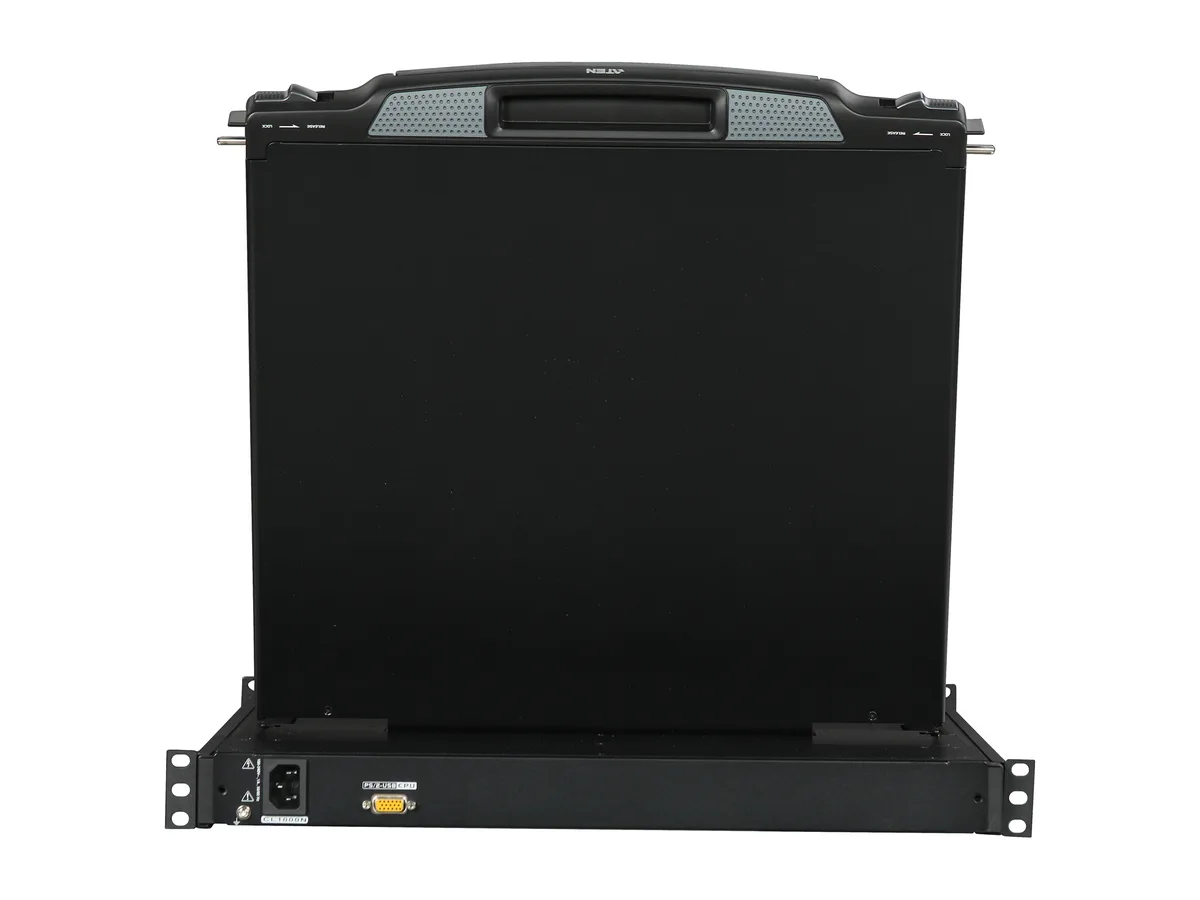

Console Connectors1 x SPHD-15 Female (Yellow)
1 x 3-prong AC Socket
Video Resolution1280 x 1024
LED IndicatorsCPU: 1 (Green)
Num Lock: 1 (Green)
Caps Lock: 1 (Green)
Scroll Lock: 1 (Green)
USB FeaturesUSB (with 2L-52xxUP USB KVM cable)
FeaturesIntegrated KVM console with a 19" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
LCD module rotates up to 115 for a more comfortable viewing angle
Improved design - optional single person installation kit
Compatible with most KVM switches
Internal power supply
High video resolution:
- Up to 1280 x 1024 @75Hz
- Supports DDC, DDC2, DDC2B
- DDC emulation of the LCD monitor - Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Keyboard language support: English (US); English (U
Dimensions23.03" x 19.02" x 1.73" (L x W x H)
Weight27.12 lbs.
Shipping weight16.42 kg
Package size719 × 681 × 23 mm

Questions about this item

What is the maximum resolution the built-in 19" LCD panel can sustain for continuous operation?

The integrated 19-inch LCD supports up to 1280 x 1024 at 75 Hz with DDC emulation so connected servers automatically match that resolution.

How much audible noise and heat does the unit generate when the console stays open all day in a 1U rack?

The CL1000N uses an internal power supply and has no fan, so it runs silently and adds minimal heat to the rack.

Which separate KVM cables are required to connect target computers to the SPHD-15 console port?

ATEN 2L-52xxUP USB KVM cables plug into the yellow SPHD-15 female connector to provide keyboard, mouse and video links for each server.
