ATEN
ATEN CE920 USB DisplayPort HDBaseT 2.0 KVM extender 4K 100m
Extends DisplayPort video up to 4K at 90 metres plus USB, audio, RS-232 and Ethernet over a single Cat6 cable
- HousingMetal
- VideoUp to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 10
- Serial InterfaceRS-232 on CE920L: 1 x DB-9 Female (Black) RS-232 on CE920R:
- Network InterfaceCE920L: 1 x RJ-45 Female (Black) CE920R: 1 x RJ-45 Female (B
- USB PortCE920L: 1 x USB Type B Female (White) CE920R: 3 x USB Type A
- Analog AduioCE920L: 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo
- Extends 4K video up to 100 metres over a single Cat6 cable
- HDBaseT 2.0 technology delivers video audio USB RS-232 and Ethernet together
- Local and remote units each measure 1.13 by 4.80 by 7.17 inches
- Metal housing with locking DC jacks for secure rack-mount installation
- Includes DisplayPort USB microphone speaker cables and mounting kits
Purpose-built KVM extension

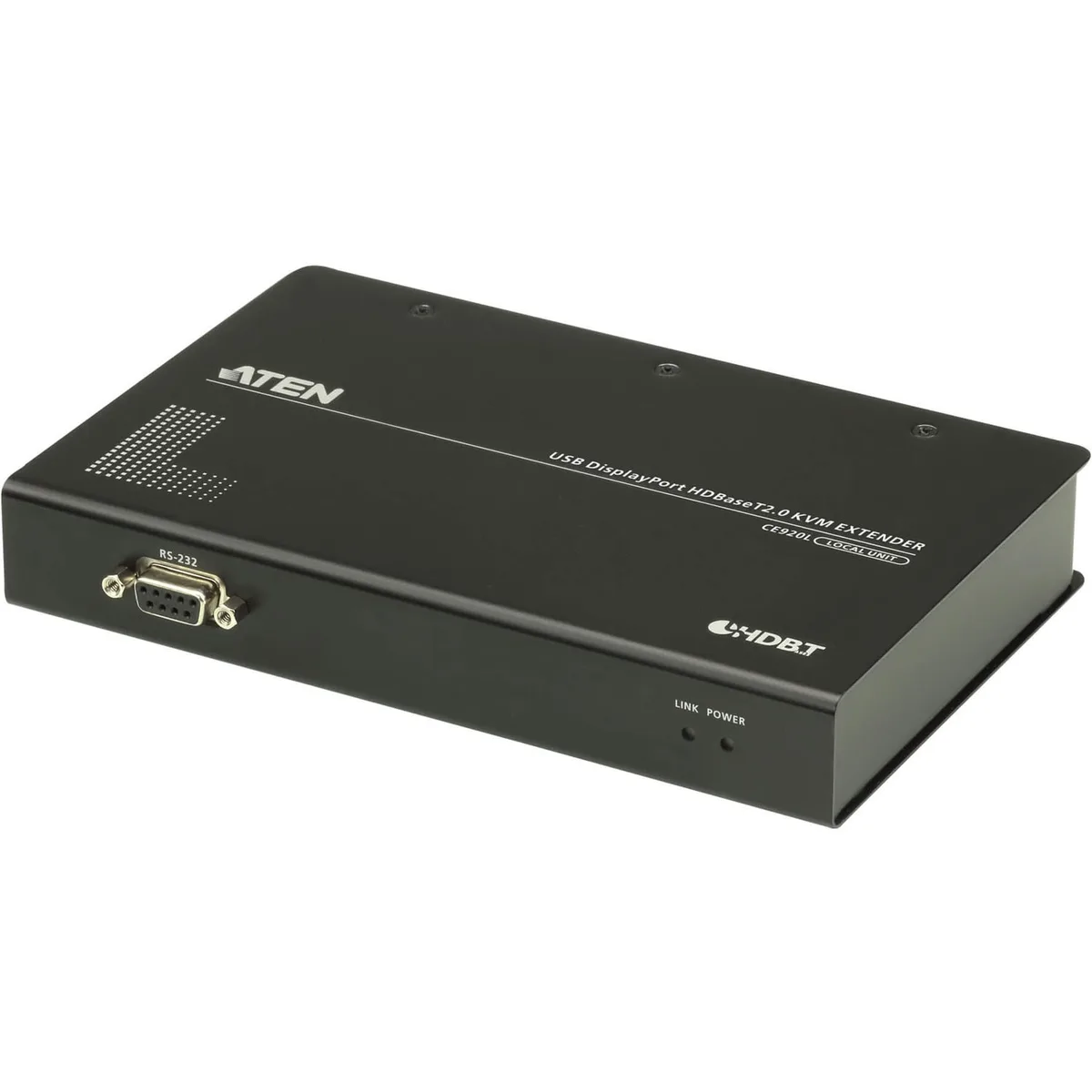

The ATEN CE920 is a USB DisplayPort HDBaseT 2.0 KVM extender designed for professional AV installations that require a single computer to be controlled from a remote console up to 100 metres away. It transports video, audio, USB, RS-232 and Ethernet signals over one Cat6, Cat6a or ATEN 2L-2910 cable. The metal-housed local and remote units each measure 1.13 by 4.80 by 7.17 inches and weigh 1.39 lbs and 1.41 lbs respectively.
4K video reach and fallback
The extender delivers 4096 x 2160 or 3840 x 2160 at 30 Hz 4:4:4 up to 90 metres on Cat5e and 100 metres on Cat6 or better, while 1080p signals reach the full 100 metres on any supported cable grade. Beyond those distances the link will not maintain the stated resolutions, so runs longer than 100 metres are outside the guaranteed operating window. Power draw is 3.99 W at the local unit and 6.74 W at the remote unit.
HDBaseT 2.0 single-cable boundary
HDBaseT 2.0 defines the maximum single-cable reach at 100 metres, which sets the hard limit for this extender regardless of cable quality. The standard also caps 4K transport at 30 Hz 4:4:4, so higher refresh rates or deeper colour formats cannot be carried. Installations needing longer runs, 60 Hz 4K or fibre transport must adopt a different technology.
Highlights
- Extends 4K video up to 100 metres over a single Cat6 cable
- HDBaseT 2.0 technology delivers video audio USB RS-232 and Ethernet together
- Local and remote units each measure 1.13 by 4.80 by 7.17 inches
- Metal housing with locking DC jacks for secure rack-mount installation
- Includes DisplayPort USB microphone speaker cables and mounting kits
Specifications
| Brand | ATEN |
|---|---|
| Model | CE920 |
| Housing | Metal |
| Video | Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) * 4K supported: 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4) |

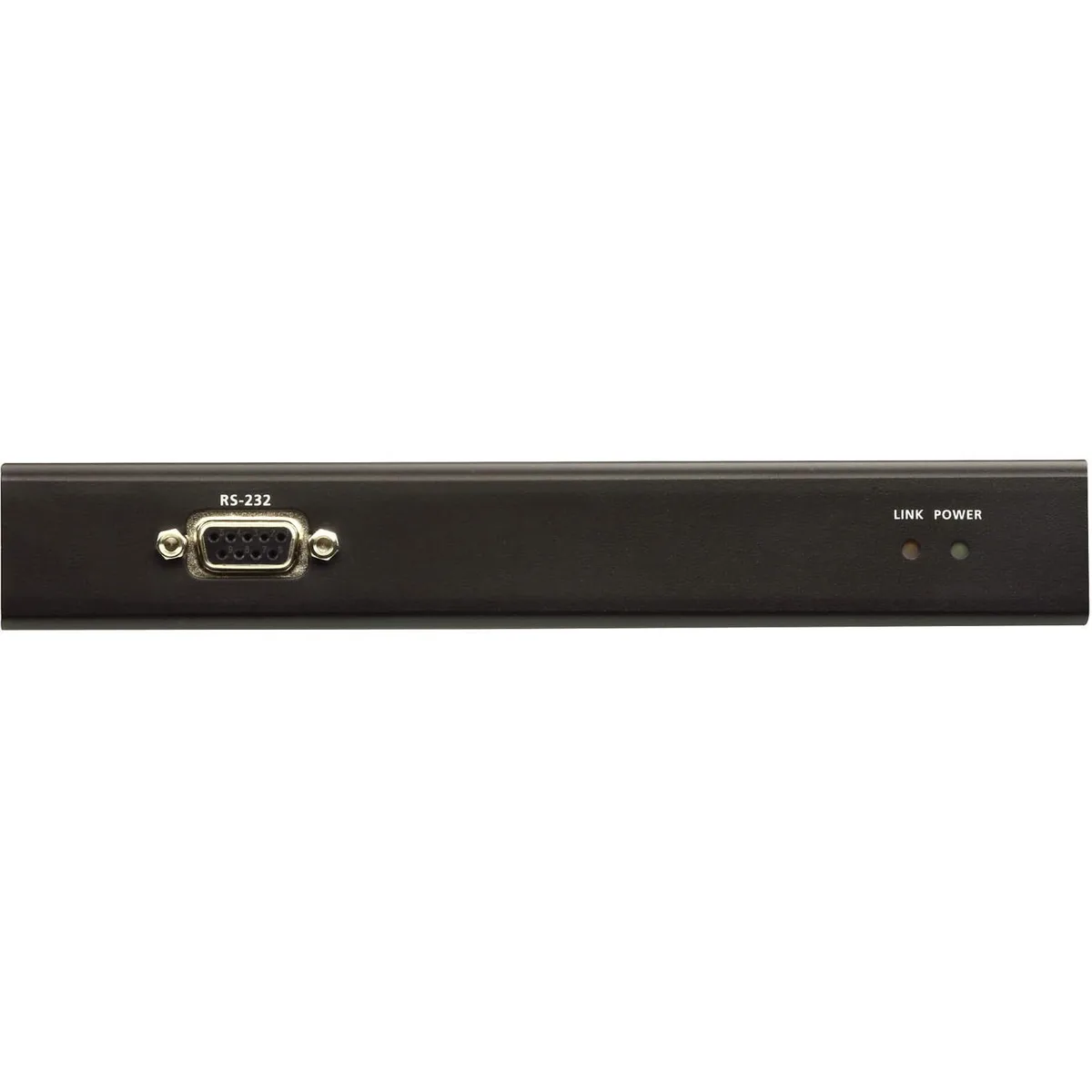

| Serial Interface | RS-232 on CE920L: 1 x DB-9 Female (Black) RS-232 on CE920R: 1 x DB-9 Male (Black) |
| Network Interface | CE920L: 1 x RJ-45 Female (Black) CE920R: 1 x RJ-45 Female (Black) |
| USB Port | CE920L: 1 x USB Type B Female (White) CE920R: 3 x USB Type A Female |
| Analog Aduio | CE920L: 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) CE920R: 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |

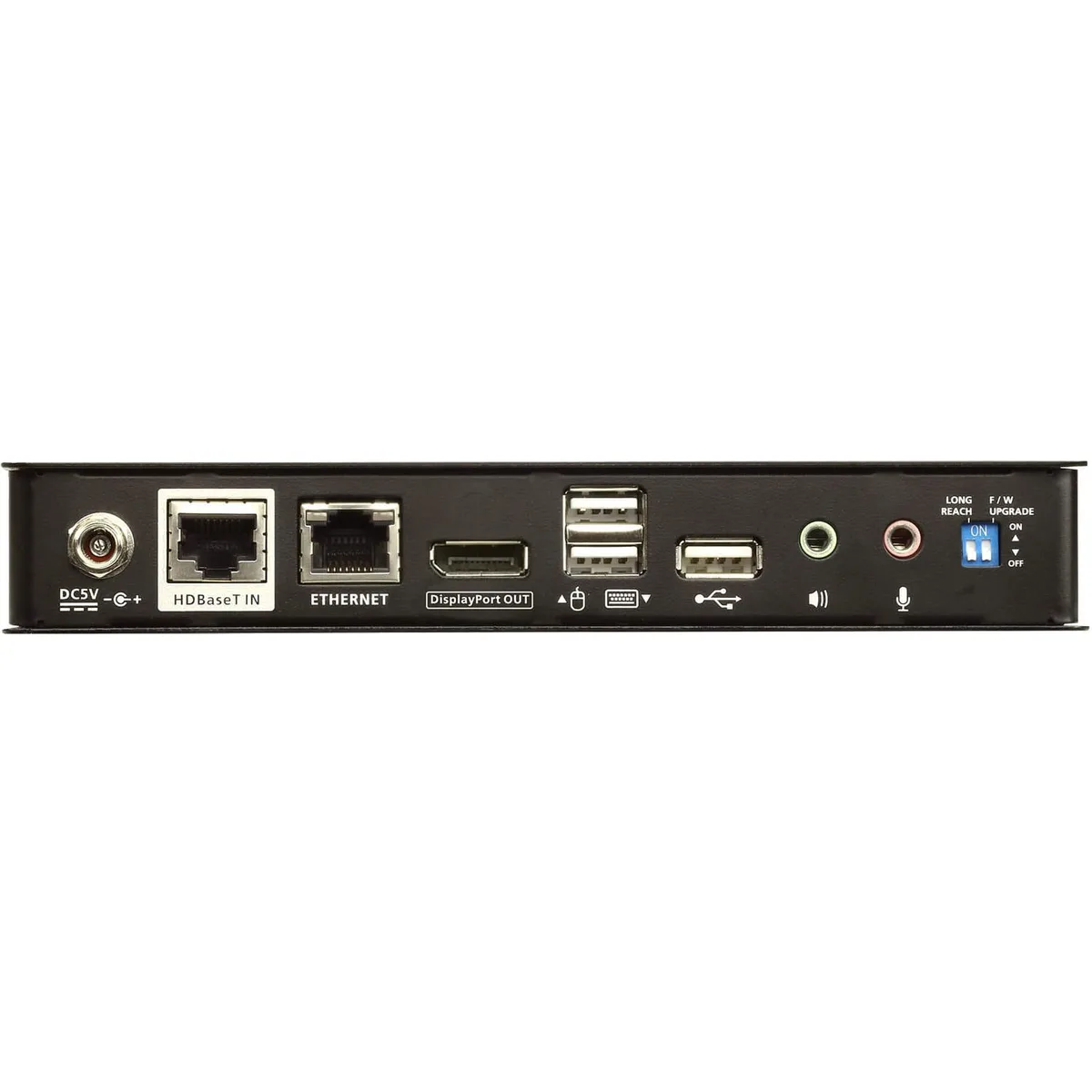

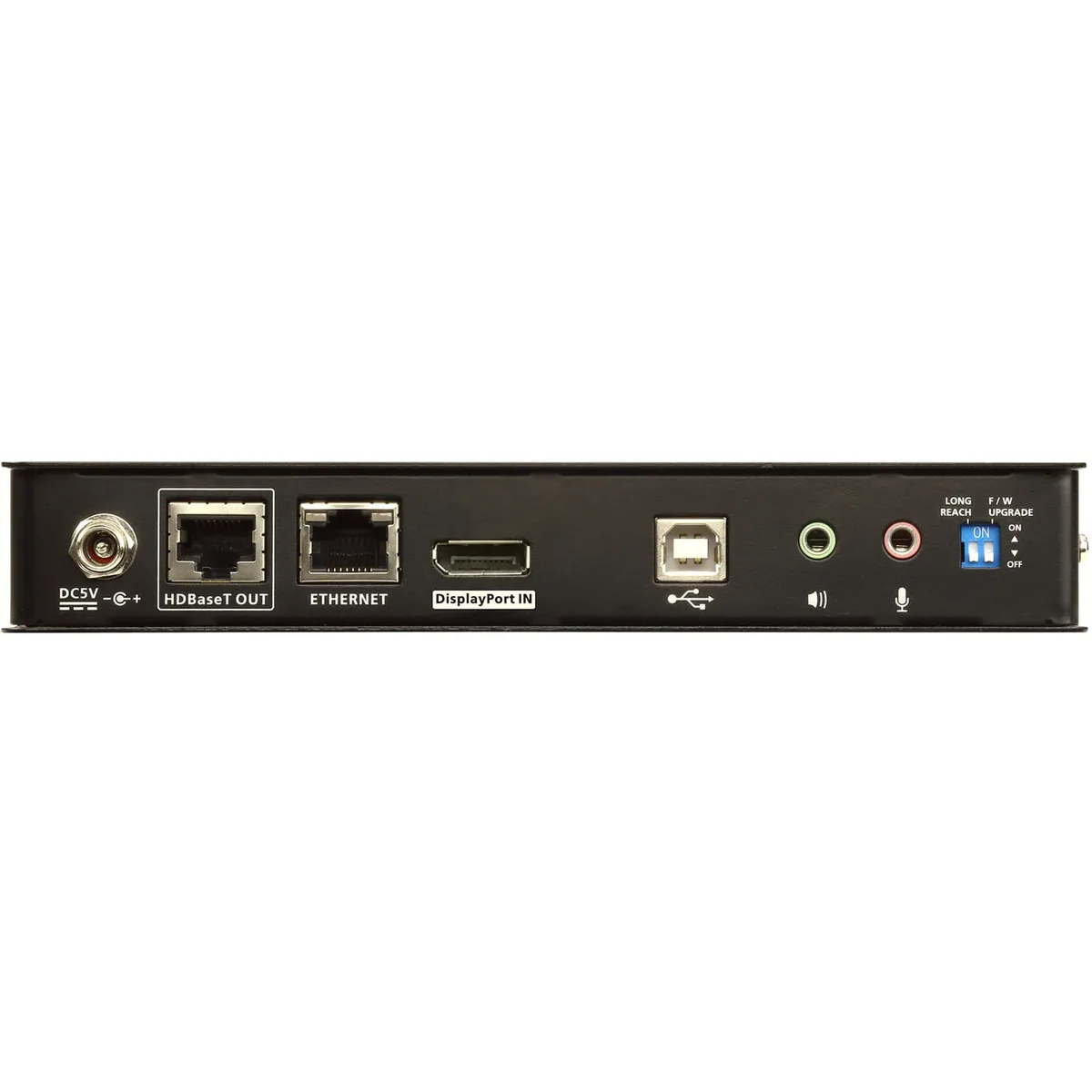

| Other Connector | CE920L: 1 x DisplayPort Female (Black) 1 x DC Jack with locking CE920R: 1 x DisplayPort Female (Black) 1 x DC Jack with locking |

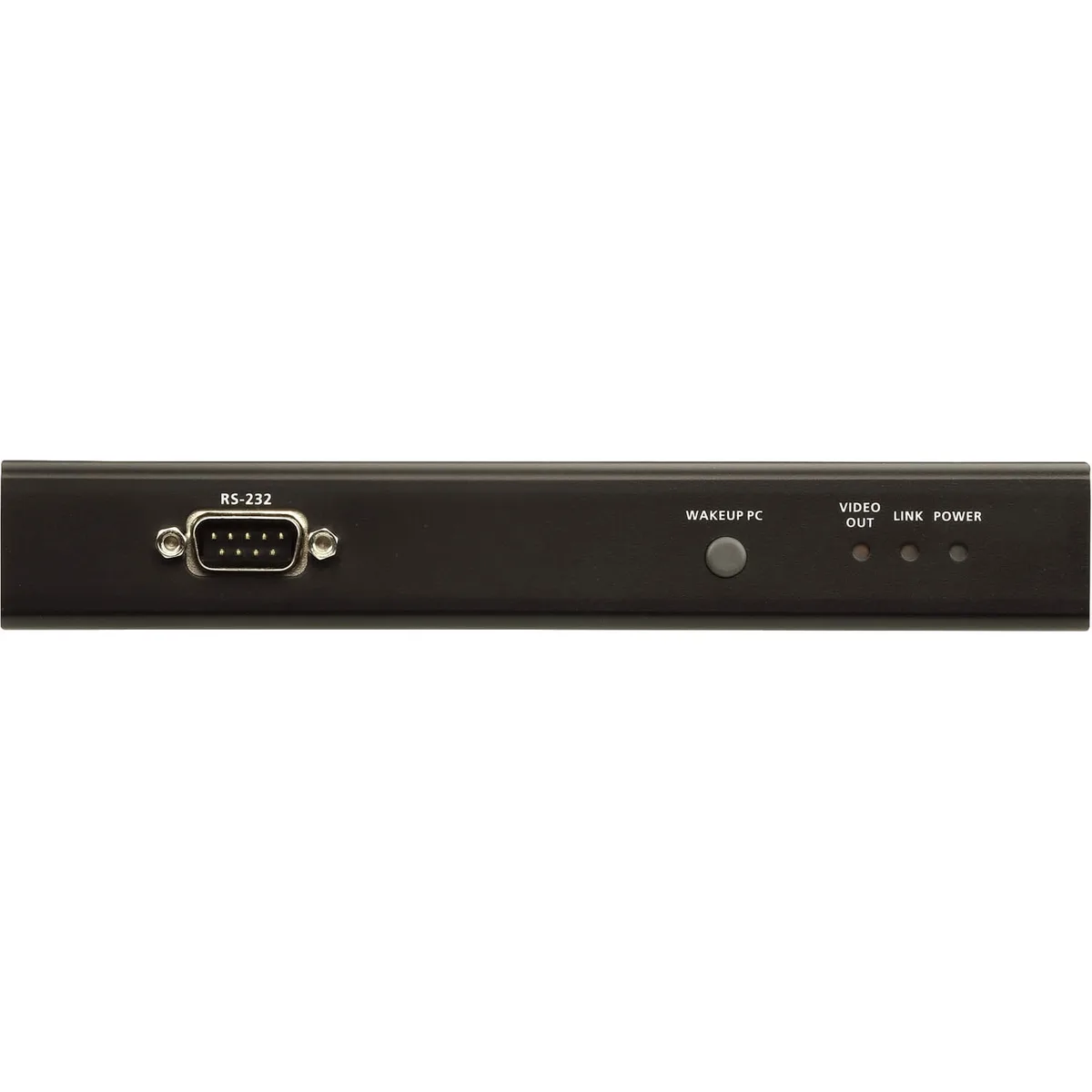

| LED Indicator | CE920L: Power: 1 (Green) Link: 1 (Orange) CE920R: Power: 1 (Green) Link: 1 (Orange) Video Output: 1 (Orange) |
| Power Consumption | CE920L: DC5V: 3.99W: 19BTU CE920R: DC5V: 6.74W: 47BTU |
| Specification | CE920L: Switches Long Reach Mode Switch: 1 x Slide Switch Firmware Upgrade: 1 x Slide Switch CE920R: Switches - Long Reach Mode Switch: 1 x Slide Switch - Firmware Upgrade: 1 x Slide Switch Pushbuttons: 1 x Push button Environmental: Operating Temperature: 0 - 40 celsius degree Storage Temperature: -20 - 60 celsius degree Humidity: 0-80% RH, Non-condensing |
| Feature | Supports HDBaseT 2.0 technology - Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable - Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions - Status detection and LED indication for HDBaseT signal transmission on remote unit EDID Buffer for smooth power-up and the highest quality display Long distance with superior video quality - HDBaseT Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910) - HDBaseT Long-Reach mode up to 1080P @ 150m Long Reach mode switch - switches betwee |
| Dimensions | CE920L: 1.13" x 4.80" x 7.17" CE920R: 1.13" x 4.80" x 7.17" |
| Weight | CE920L: 1.39 lbs. CE920R: 1.41 lbs. |
| Package Content | 1 x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit) 1 x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit) 1 x Microphone Cable 1 x Speaker Cable 1 x USB Type-A to Type-B Cable 1 x DisplayPort Cable 2 x Mounting Kits 2 x Power Adapters 1 x User Instructions |
| Shipping weight | 2.18 kg |
| Package size | 330 × 216 × 102 mm |
Questions about this item
Will the CE920R remote unit work with my existing Cat 5e patch panel at 1080p?
Yes, the extender delivers 1080p at 100 m over Cat 5e, so your current patch panel supports the full distance.
Which LEDs on the CE920R confirm an active 4K link after I power up?
The Power LED glows green, the Link LED glows orange, and the Video Output LED glows orange when a 4K signal is present.
Do I need to purchase any cables or adapters beyond what ships with the CE920 kit?
The box includes both extender units, a DisplayPort cable, a USB Type-A to Type-B cable, microphone and speaker cables, two power adapters, two mounting kits and user instructions — no extra cables are required.
