ATEN CE770 2-port KVM switch 1920x1200 900 ft
Two-port KVM extender drives a local and remote console up to 900 ft over Cat 5e cable at 1280 x 1024 resolution
- TypeD-Sub, USB
- PC ConnectorsDB-9, RJ-45, SPHD-17, Mini Stereo Jack
- Console ConnectorsHDB-15, USB, Mini Stereo Jack
- Computer Connections2 Ports
- Monitor Connections1 Port
- Video Resolution1920 x 1200 @ 60Hz (300 ft); 1280 x 1024 @ 60Hz ( 900 ft)
- Control two computers from one console with dual USB and VGA ports
- Extend keyboard, video and mouse up to 900 ft over Cat 5e cable
- View 1920 x 1200 at 60 Hz up to 300 ft distance
- Auto de-skew synchronises RGB signals for a clear image at range
- Rack-mountable local and remote units fit standard 19-inch cabinets
Two-port KVM extender with Cat 5e reach

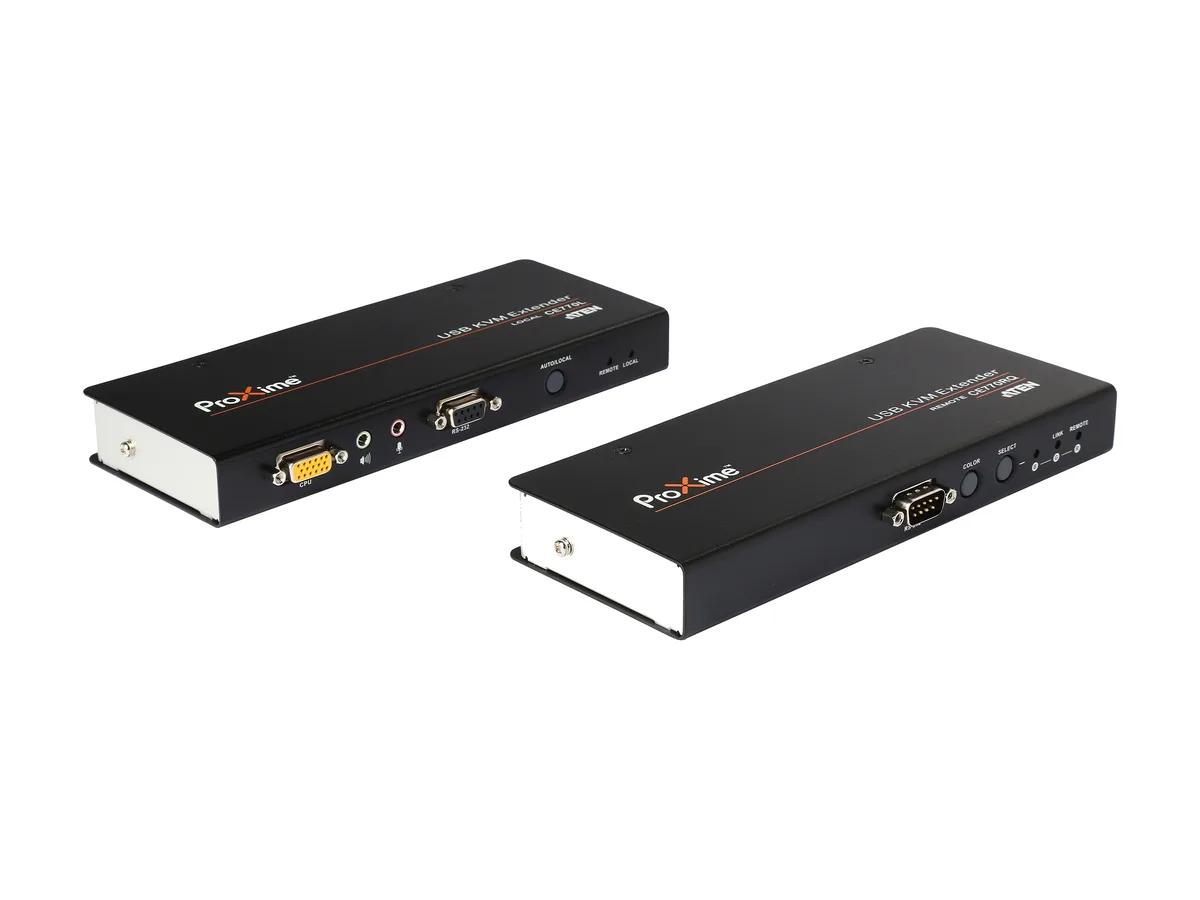

The ATEN CE770 is a two-port KVM switch that extends keyboard, video and mouse signals over Cat 5e cable up to 900 ft. It consists of a local unit and a remote unit, each with its own console connections. The system supports dual console operation so the same computer can be controlled from either location. It is designed for server rooms or industrial environments where the operator must be separated from the hardware.
Video headroom at distance
At 300 ft the extender delivers 1920 x 1200 at 60 Hz. At the full 900 ft the supported resolution drops to 1280 x 1024 at 60 Hz. The built-in de-skew function automatically compensates for cable skew to maintain image quality. Buyers who need WUXGA resolution at the maximum 900 ft distance will find this unit does not meet that requirement.
Analog VGA over Cat 5e interface
The console and computer video connections use HDB-15 (VGA) and the extension link uses RJ-45 Cat 5e. No digital video interface such as HDMI, DisplayPort or DVI is provided. If the target systems or displays require a digital video connection, this extender will not be compatible.
Highlights
- Control two computers from one console with dual USB and VGA ports
- Extend keyboard, video and mouse up to 900 ft over Cat 5e cable
- View 1920 x 1200 at 60 Hz up to 300 ft distance
- Auto de-skew synchronises RGB signals for a clear image at range
- Rack-mountable local and remote units fit standard 19-inch cabinets
Specifications
| Brand | ATEN |
|---|---|
| Model | CE770 |
| Type | D-Sub, USB |
| PC Connectors | DB-9, RJ-45, SPHD-17, Mini Stereo Jack |
| Console Connectors | HDB-15, USB, Mini Stereo Jack |
| Computer Connections | 2 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 1920 x 1200 @ 60Hz (300 ft); 1280 x 1024 @ 60Hz ( 900 ft) |
| PC Selection | Push Buttons/OSD |
| Power Features | Amps: 700 mA Local 1A remote Voltage: 5.3 VDC Power Consumption: 3.5 W / 12 BTU/h Local 5.1 W / 17.4 BTU/h Remote |

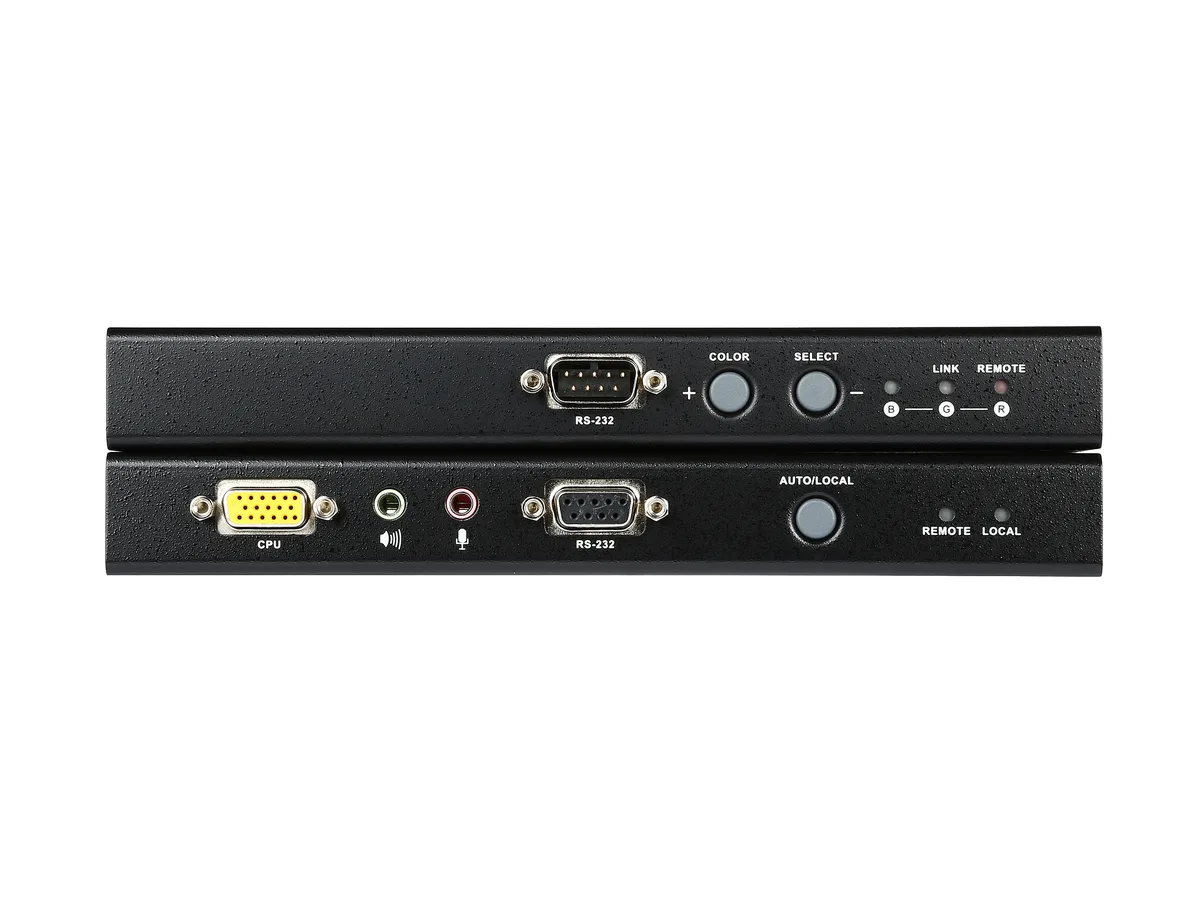

| Features | Local and Remote Units connect at distances up to 900 ft using Cat 5e cable Dual console operation - control your system from either the local or remote consoles De-skew Function - automatically synchronizes the time delay of RGB signals for distance compensation Built-in ASIC for greater reliability and compatibility Auto Signal Compensation (ASC) RS-232 serial ports - allow you to connect to a serial terminal, or a serial devices Sun/Mac keyboard support and emulation Audio Enabled - supports stereo speakers and microphone USB over current detection and prevention Pushbutton operat |
| Dimensions | 7.8" x 3.1" x 1" |
| Weight | 2.2 lbs. |
| Package Contents | 1x CE770L USB KVM Extender (Local Unit) 1x CE770R USB KVM Extender (Remote Unit) 1x USB KVM Cable (6 ft) 2x Power Adapter 1x Rack Mount Kits 2x Grounding Wire 1x User Manual 1x Quick Start Guide |
| Shipping weight | 1.91 kg |
| Package size | 328 × 213 × 99 mm |
Questions about this item
Will the CE770 work with my existing Cat 5e cabling at the full 900 ft distance?
The CE770 supports up to 900 ft over Cat 5e cable at 1280 x 1024 @ 60Hz; at 300 ft it delivers 1920 x 1200 @ 60Hz.
How can I verify the CE770 is operating correctly once installed?
Use the front-panel push buttons or the on-screen display to switch between the two connected computers and confirm video at the expected resolution.
What comes in the box and what must I provide separately?
The package includes the local and remote units, a 1.8 m USB KVM cable, two power adapters, rack-mount kit, two grounding wires, user manual and quick start guide; you supply the Cat 5e cable for the link.
