ATEN
ATEN CE700A USB KVM Extender 150m 1920x1200
Extends USB keyboard, monitor and mouse control up to 150 metres over Cat 5e cable with dual-console access and resolutions up to 1920 x 1200
- TypeD-Sub, USB
- Console ConnectorsKeyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Fema
- Computer Connections1 Port
- Video Resolution1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 10
- PC SelectionPush Buttons
- Temperature0ºC to 50ºC(32ºF to 122ºF)
- Control from two locations with dual console operation
- Extend USB keyboard, video and mouse up to 150m over Cat 5e
- Resolution scales from 1920 x 1200 at 30m to 1280 x 1024 at 150m
- Rack-mountable unit fits standard enclosures at 4.9 x 3.2 x .9 inches
- Built-in ASIC improves reliability for continuous use
USB KVM Extender over Cat 5e
The ATEN CE700A extends USB keyboard, video and mouse signals up to 150 metres over a single Cat 5e cable. It supports one local and one remote console for dual-user access. Maximum video resolution is 1920 x 1200 at 60 Hz over 30 metres. The unit operates from a 5.3 V DC supply and fits a standard rack-mount kit.
IT managers needing remote server access at distance
Suits administrators who must control a single computer from a separate room or cabinet up to 150 metres away. Dual console operation allows local and remote users to share the same system. Not for setups requiring multi-computer switching, digital video formats beyond analog VGA, or resolutions higher than 1920 x 1200.
150-metre analog VGA extension limit
The defining specification is the 150-metre reach at 1280 x 1024 resolution over Cat 5e wiring. At 30 metres the extender delivers 1920 x 1200 at 60 Hz, dropping to 1600 x 1200 at 100 metres. This distance-resolution trade-off determines whether the device fits the installation.
Highlights
- Control from two locations with dual console operation
- Extend USB keyboard, video and mouse up to 150m over Cat 5e
- Resolution scales from 1920 x 1200 at 30m to 1280 x 1024 at 150m
- Rack-mountable unit fits standard enclosures at 4.9 x 3.2 x .9 inches
- Built-in ASIC improves reliability for continuous use
Specifications
| Brand | ATEN |
|---|---|
| Model | CE700A |
| Type | D-Sub, USB |

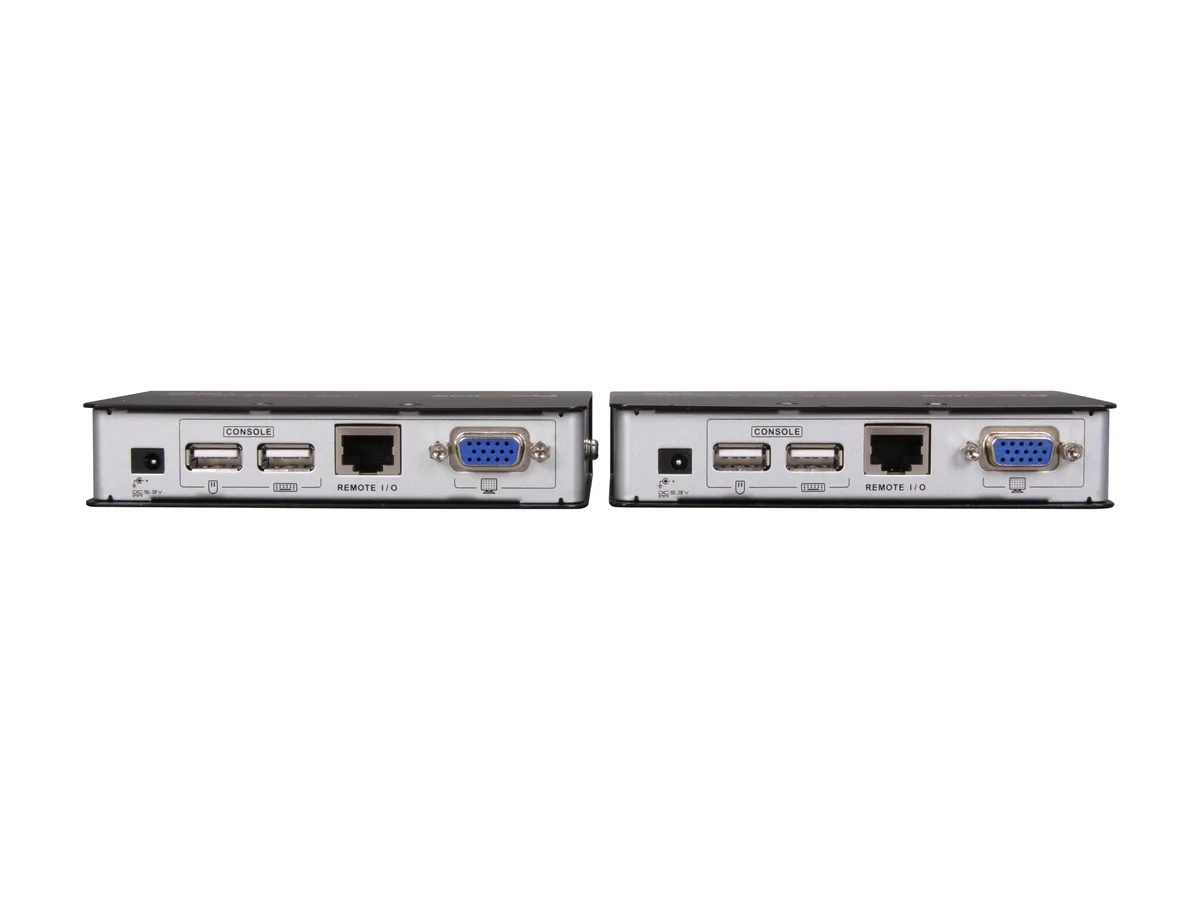

| Console Connectors | Keyboard 1 x USB Type A Female (White) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (White) |
| Computer Connections | 1 Port |
| Video Resolution | 1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m) |
| PC Selection | Push Buttons |
| Temperature | 0ºC to 50ºC(32ºF to 122ºF) |
| Humidity | 0-80% RH, Non-condensing |
| Features | Cat 5e cable connects the Local and Remote Units - up to 150m apart Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles Built-in ASIC for greater reliability and compatibility Auto Signal Compensation (ASC) USB Keyboard and USB Mouse Ports USB overcurrent detection and prevention Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes. Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection Automatic gain control - adjusts signal st |
| Dimensions | 4.9" x 3.2" x 0.9" |
| Weight | 1.4 lbs. |
| Shipping weight | 1.38 kg |
| Package size | 290 × 175 × 107 mm |
Questions about this item
What Cat 5e cable length do I need to reach the 150 m maximum distance?
Use a single Cat 5e cable up to 150 m between the local and remote units; at that length the extender delivers 1280 x 1024 @ 60 Hz.
Will my existing VGA monitor work at its native 1600 x 1200 resolution?
Yes — the extender supports 1600 x 1200 @ 60 Hz over distances up to 100 m, so a VGA monitor at that resolution will display correctly.
How can I confirm the extender is passing video at 1920 x 1200 after installation?
Connect a monitor to the remote HDB-15 port, set the display to 1920 x 1200 @ 60 Hz, and verify the image is stable at up to 30 m cable length.
