ATEN CE100 KVM Switch Extender 330 ft 1920x1200
Extends a single PC's VGA, keyboard and mouse up to 330 ft over Cat5e cable at 1920 x 1200 resolution
- TypeD-Sub, USB
- PC ConnectorsKeyboard / Mouse: 1 x USB Type B Female (White) Video: 1 x H
- Console ConnectorsKeyboard: 1 x USB Type A Female (White) Video: 1 x HDB-15 Fe
- Computer Connections1 Port
- Monitor Connections1 Port
- Video Resolution1920 x 1200
- Extends VGA and USB control up to 330 ft over Cat 5e cable
- Single PC connects to one remote console with 1920 x 1200 resolution
- Real-time DDC communication preserves monitor EDID data automatically
- Compact local and remote units each measure 3.54 x 2.17 x 0.94 inches
- RoHS and WEEE certified with 0.5 W local and 1.25 W remote power draw
KVM extension over Cat5
The ATEN CE100 extends a single computer's VGA video, USB keyboard and USB mouse up to 330 ft using Cat 5e cable. It consists of a local unit that attaches to the PC and a remote unit that provides console connections. Maximum supported resolution is 1920 x 1200. The kit includes both units, a USB/VGA cable, grounding wires, a power adapter for the remote unit and a mounting kit.
Single-system remote access
This extender suits administrators who need to place a monitor, keyboard and mouse away from one PC in server rooms, industrial sites or digital signage setups. It does not suit users who must control multiple computers from one console or who require digital video interfaces such as DVI, HDMI or DisplayPort. Buyers needing longer reach than 330 ft should also look elsewhere.
1920 x 1200 over 330 ft
The decisive specification is the 1920 x 1200 video resolution delivered at distances up to 330 ft over Cat 5e cabling. If the installation demands higher resolutions, longer cable runs or multi-computer switching, this model will not meet those requirements.
Highlights
- Extends VGA and USB control up to 330 ft over Cat 5e cable
- Single PC connects to one remote console with 1920 x 1200 resolution
- Real-time DDC communication preserves monitor EDID data automatically
- Compact local and remote units each measure 3.54 x 2.17 x 0.94 inches
- RoHS and WEEE certified with 0.5 W local and 1.25 W remote power draw
Specifications
| Brand | ATEN |
|---|---|
| Model | CE100 |
| Type | D-Sub, USB |

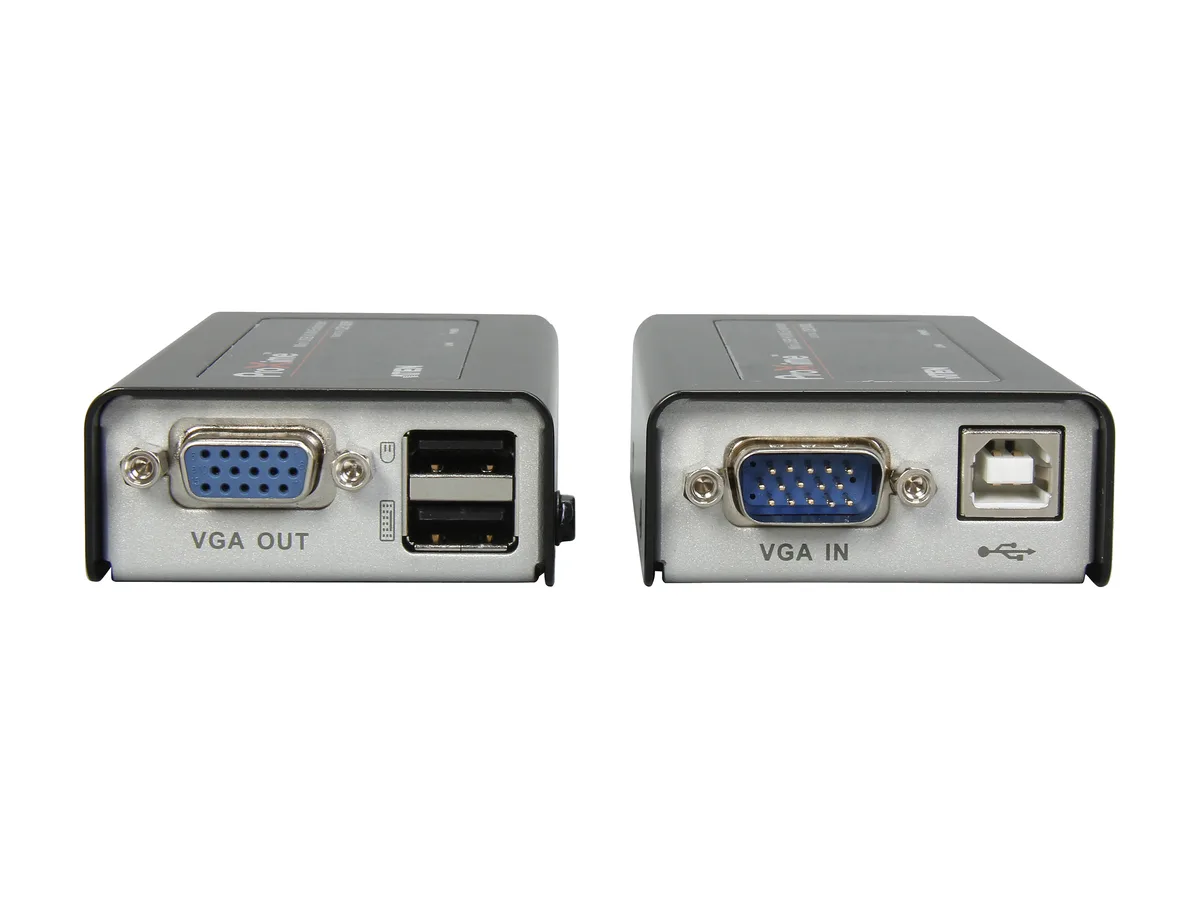

| PC Connectors | Keyboard / Mouse: 1 x USB Type B Female (White) Video: 1 x HDB-15 Male (Blue) |
| Console Connectors | Keyboard: 1 x USB Type A Female (White) Video: 1 x HDB-15 Female (Blue) Mouse: 1 x USB Type A Female (White) |
| Computer Connections | 1 Port |
| Monitor Connections | 1 Port |
| Video Resolution | 1920 x 1200 |
| LED Indicators | Link: 1 (Blue) Power: 1 (Green) |
| Temperature | Operating: 0 - 50 degrees centigrade Storage: -20 - 60 degrees centigrade |
| Humidity | 0% to 80%,Non-Condensing |
| Power Features | Power Consumption: DC5V, 0.5W for CE100L DC5V, 1.25W for CE100R |
| Features | Extends local PC VGA/keyboard/Mouse to Remote side Uses Cat 5e cable to connect the local and remote units Easily add or remove computers connected to the installation Supports real time DDC communication Superior video quality - up to 1920 x 1200 Allow access to a computer from the remote console up to 100 m distance Support manual compensation adjustment for better video quality No external power supply needed for local unit Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) Wall mountable |
| Dimensions | 3.54 x 2.17" x 0.94" |
| Weight | 0.35 lbs. |

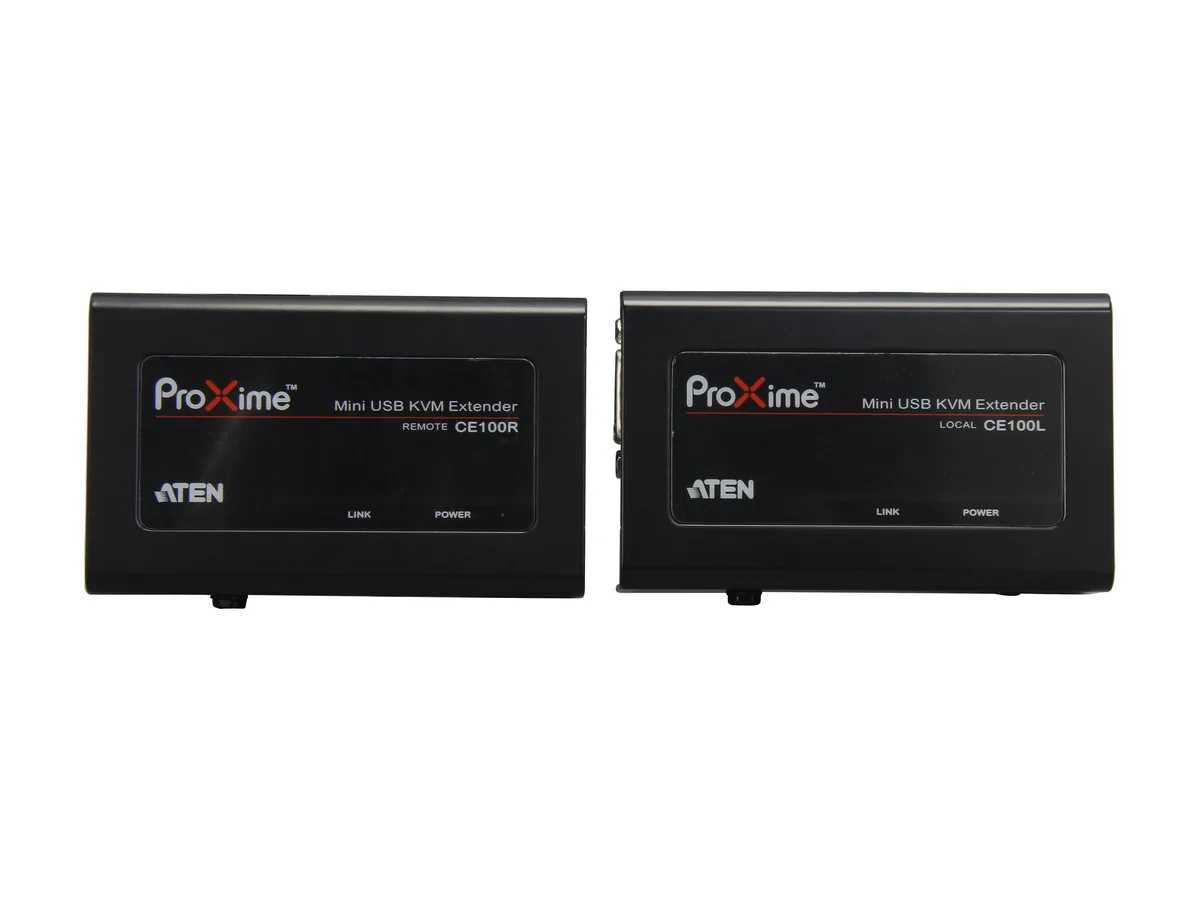

| Package Contents | 1x CE100L Mini USB KVM Extender (Local Unit) 1x CE100R Mini USB KVM Extender (Remote Unit) 1x USB/VGA Cable 2x Grounding Wires 1x Power Adapter (for Remote Unit) 1x Mounting Kit 1x User Guide |
| Shipping weight | 0.75 kg |
| Package size | 239 × 155 × 58 mm |
Questions about this item
How far does the Cat5e link carry 1920 x 1200 video?
The extender delivers WUXGA resolution up to 330 ft over Cat5e cable.
What clearance does the local and remote unit need?
Each unit measures 3.54 x 2.17 x 0.94 inches and weighs .35 lbs, fitting in tight rack or desk spaces.

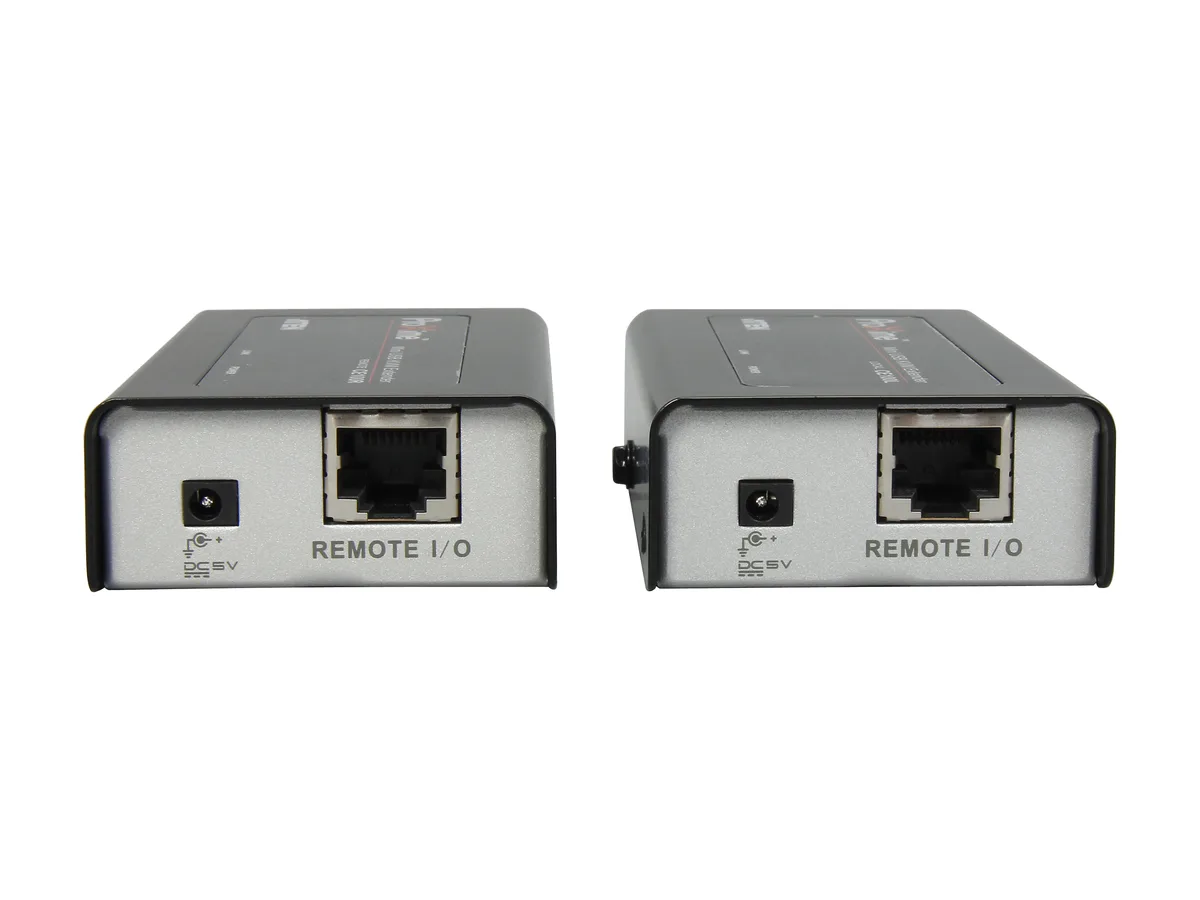

Which unit needs the power adapter and where does it plug in?
Only the remote CE100R requires the included 5 V DC adapter; connect it to the remote unit's power jack before linking the Cat5e cable.
