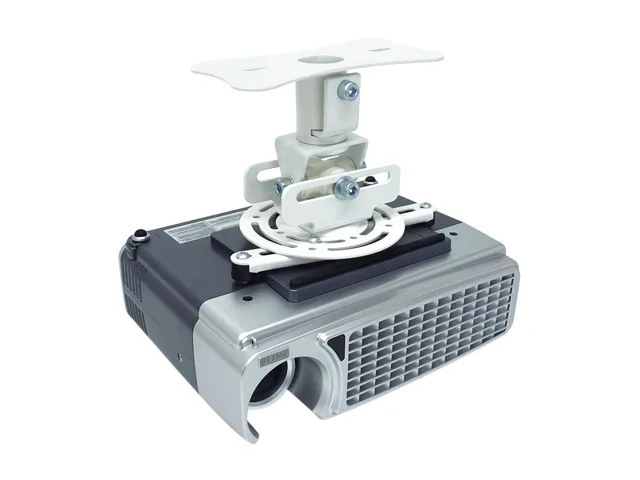

White steel projector flush mount with four bracket sizes and 360° rotation

Atdec

Atdec TH-WH-PJ-FM Projector Flush Mount 15 kg 360° rotation

SKU CH-HH84-95GJQ

Flush mount holds projectors up to 15 kg with 360° rotation, ±40° pitch, ±20° roll and quick-release maintenance

  • TypeProjector Mounts
  • CompatibilitySuits 90% of projectors weighing up to 15kgs (33lbs) Feature
  • SpecificationsUniversal Projector Flush Mount
  • FeaturesDevice Supported: ProjectorMaximum Load Capacity: 14.97 kgFe
  • Suits 90% of projectors up to 15 kg
  • 127 mm minimum drop keeps projector close to ceiling
  • +/- 40° pitch and +/- 20° roll for precise image alignment
  • Full 360° rotation allows any orientation
  • Quick-release mechanism simplifies installation and maintenance

Universal Projector Flush Mount

The Atdec TH-WH-PJ-FM is a ceiling-mounted bracket designed for projectors weighing up to 15 kg. It suits approximately 90% of models on the market and includes four sets of extension brackets for a custom fit. A quick-release mechanism simplifies installation and maintenance. The mount is constructed from steel with a white finish.

Ceiling Structure and Projector Fixings

Verify that your ceiling can support the combined weight of the mount and projector, using the supplied hardware for wooden joists or concrete. Confirm the projector's mounting hole pattern aligns with the included M2.5, M3 and M4 screws. Ensure the 127 mm minimum drop from the ceiling suits your room height and viewing angles.

Mechanical Adjustment Range

The mount provides a minimum ceiling distance of 127 mm and allows pitch adjustment of +/- 40° plus roll adjustment of +/- 20° for image alignment. Full 360° rotation enables flexible projector orientation. As a passive steel assembly weighing approximately 4.20 lb, it adds no operational noise or power draw to the installation.

Highlights

  • Suits 90% of projectors up to 15 kg
  • 127 mm minimum drop keeps projector close to ceiling
  • +/- 40° pitch and +/- 20° roll for precise image alignment
  • Full 360° rotation allows any orientation
  • Quick-release mechanism simplifies installation and maintenance

Specifications

Brandatdec
ModelTH-WH-PJ-FM
TypeProjector Mounts
CompatibilitySuits 90% of projectors weighing up to 15kgs (33lbs)
Features minimum distance from ceiling 127mm (5")
Maximum pitch adjustment of +/- 40°
Maximum roll adjustment of +/- 20°
360° rotation
Quick release for easy maintenance
Colour: White
SpecificationsUniversal Projector Flush Mount
FeaturesDevice Supported: ProjectorMaximum Load Capacity: 14.97 kgFeatures: SwivelColor: WhiteMaterial: SteelPackage Contents: 1 x Flush Mount Assembly2 x 50mm Extension Brackets2 x 75mm Extension Brackets2 x 100mm Extension Brackets2 x 150mm Extension Brackets8 x Square Nut4 x M5 x 10 mm Socket Button Cap Screw1 x 6mm Allen Key2 x Nylon Anchor Plug2 x 20mm Washer4 x 10mm Washer4 x 8mm Washer4 x M2.5 x 15 Crossed Recessed Screws4 x M3 x 15 Crossed Recessed Screws4 x M3 x 20 Crossed Recessed Screws4 x M4 x 15 Crossed Recessed Screws4 x M4 x 20 Crossed Recessed Screws4 x M4 x 25 Crossed Recess
Shipping weight2.27 kg
Package size178 × 155 × 140 mm

Questions about this item

What hardware comes in the box and do I need to buy any cables or brackets separately?

The package includes the flush mount assembly, two each of 50 mm, 75 mm, 100 mm and 150 mm extension brackets, square nuts, socket button cap screws, an Allen key, nylon anchor plugs, washers and crossed recessed screws in M2.5, M3 and M4 sizes; no extra cables or brackets are required.

Which extension bracket length should I select for my projector?

Use the pair that places the projector at the correct drop from the ceiling; the four supplied lengths (50 mm, 75 mm, 100 mm, 150 mm) let you match most installations without purchasing additional parts.

What does the 15 kg load rating mean when the mount is installed on a real ceiling?

The mount supports projectors up to 15 kg (33 lb) and provides +/- 40° pitch, +/- 20° roll and 360° rotation while sitting a minimum of 127 mm from the ceiling.
