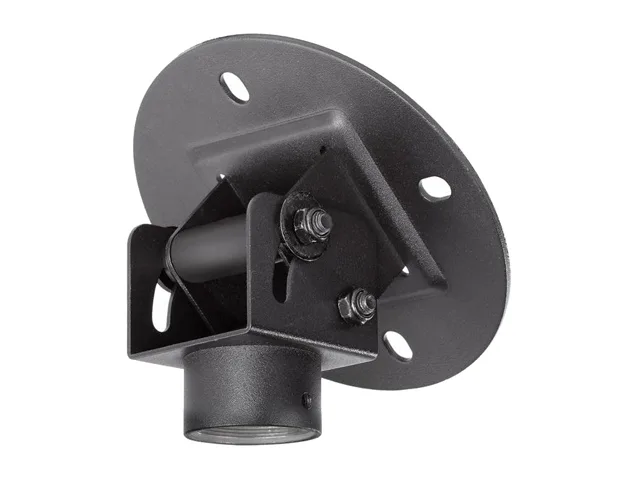

Black steel ceiling TV mount with telescopic pole and tilt bracket

Atdec

Atdec TH-1040-CTL 17-42" tilt ceiling tv mount 55 lbs VESA 200x200

SKU CH-5H9W-KK8D2 MPN TH-1040-CTL

Ceiling tilt mount holds 17-42" displays up to 55 lbs with VESA patterns to 200x200 mm and telescopic pole adjustable from 900 mm to 1800 mm

  • NameCeiling Tilt Long Mount
  • Mount StyleCeiling Mount
  • ColorBlack
  • TV Size Capacity17" to 42"
  • TV Weight CapacityMax. load 55 lbs.
  • VESA Compatible75mm x 75mm; 100mm x 100mm; 100mm x 100mm; 200mm x 100mm; 20
  • Ceiling mount frees floor space for 17 to 42 inch screens
  • Telescopic pole adjusts 900mm to 1800mm from ceiling for optimal viewing height
  • Tilt function enables 20 degree adjustment to reduce glare
  • Supports up to 55 lbs across VESA 75x75 to 200x200 patterns
  • Includes all mounting hardware and 10 year limited warranty

Ceiling Tilt Mount 17-42 Inches

The Atdec TH-1040-CTL is a ceiling-mounted bracket designed for flat-panel displays measuring 17 to 42 inches. It supports a maximum load of 55 lbs and fits VESA patterns from 75x75 mm up to 200x200 mm. The adjustable telescopic pole sets the screen between 900 mm and 1800 mm from the ceiling. A secondary height adjustment adds 765 mm of travel for precise positioning.

Upgrade From Fixed Ceiling Brackets

This mount replaces static ceiling plates that offer no tilt or height flexibility. The jump is worth it when the viewing angle must change for different seating positions or when the screen needs to clear furniture below. Infinite tilt adjustment up to 20 degrees lets you dial the exact angle without discrete steps. The included pole assembly and tension tool make post-installation changes straightforward.

Check VESA Pattern And Ceiling Structure

Verify that your display uses one of the listed VESA patterns: 75x75, 100x100, 200x100 or 200x200 mm. Confirm the screen weight does not exceed 55 lbs and the diagonal falls within the 17 to 42 inch range. Ensure the ceiling can accept the supplied coach screws and nylon anchors for a secure mount. The package includes multiple screw sizes (M4, M5, M6) and spacers for the display side.

Highlights

  • Ceiling mount frees floor space for 17 to 42 inch screens
  • Telescopic pole adjusts 900mm to 1800mm from ceiling for optimal viewing height
  • Tilt function enables 20 degree adjustment to reduce glare
  • Supports up to 55 lbs across VESA 75x75 to 200x200 patterns
  • Includes all mounting hardware and 10 year limited warranty

Specifications

BrandAtdec
SeriesCeiling Tilt Long Mount
ModelTH-1040-CTL
NameCeiling Tilt Long Mount
Mount StyleCeiling Mount
ColorBlack
TV Size Capacity17" to 42"
TV Weight CapacityMax. load 55 lbs.
VESA Compatible75mm x 75mm; 100mm x 100mm; 100mm x 100mm; 200mm x 100mm; 200mm x 200mm
FeatureAdjustable telescopic pole allows:
- Minimum distance from ceiling: 900mm (35.5")
- Maximum distance from ceiling: 1800mm 70.87")
Secondary display height adjustment: 765mm (30.12")
Infinite display adjustment of 20 degree in any direction; portrait to landscape rotation
Display 360 degree rotation around the pole
Quick attachment/quick release mechanism with security features
Enhanced safety features
Advanced cable management
All mounting hardware included
Height4.000
Width9.500
Weight18.7
Shipping weight9.07 kg
Package size1003 × 241 × 102 mm

Questions about this item

What ceiling height range does the 1040 model's telescopic pole cover?

The adjustable pole extends from 900mm (35.5") to 1800mm (70.87") down from the ceiling, with an additional 765mm (30.12") of secondary height adjustment at the display bracket.

Which hardware in the box secures the ceiling plate to a wooden joist?

Use the four supplied coach screws with the 5mm Allen key; the nylon anchors are only for concrete or masonry ceilings.

When should the tension tool included with the TH-1040-CTL be used?

The tension tool adjusts the tilt friction joint on the display bracket; use it if the screen drifts from its set angle over time.
