Three white cylindrical mesh Wi-Fi 7 nodes with flat tops

ASUS

ASUS ZenWiFi BD4 (W-3-PK) mesh Wi-Fi system

SKU CH-HM0F-22VMH MPN BD4 (W-3-PK)

Three-unit mesh system delivers dual-band WiFi 7 up to 3600 Mbps across 6500 sq. ft. with dual 2.5G ports and built-in security

  • WAN PortsPort Forwarding Port Triggering DMZ DDNS
  • LAN PortsDHCP Server IGMP Snooping IPTV Manually Assign IP Address Wa
  • Wi-Fi StandardsWiFi 7 (802.11be) (2.4GHz): up to 688 Mbps WiFi 7 (802.11be)
  • Frequency Band2.4 GHz 5 GHz
  • SecurityAiProtection VPN WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
  • Parental Controls"Allow you to block access to unwanted websites and apps." W

Option 3-Pack

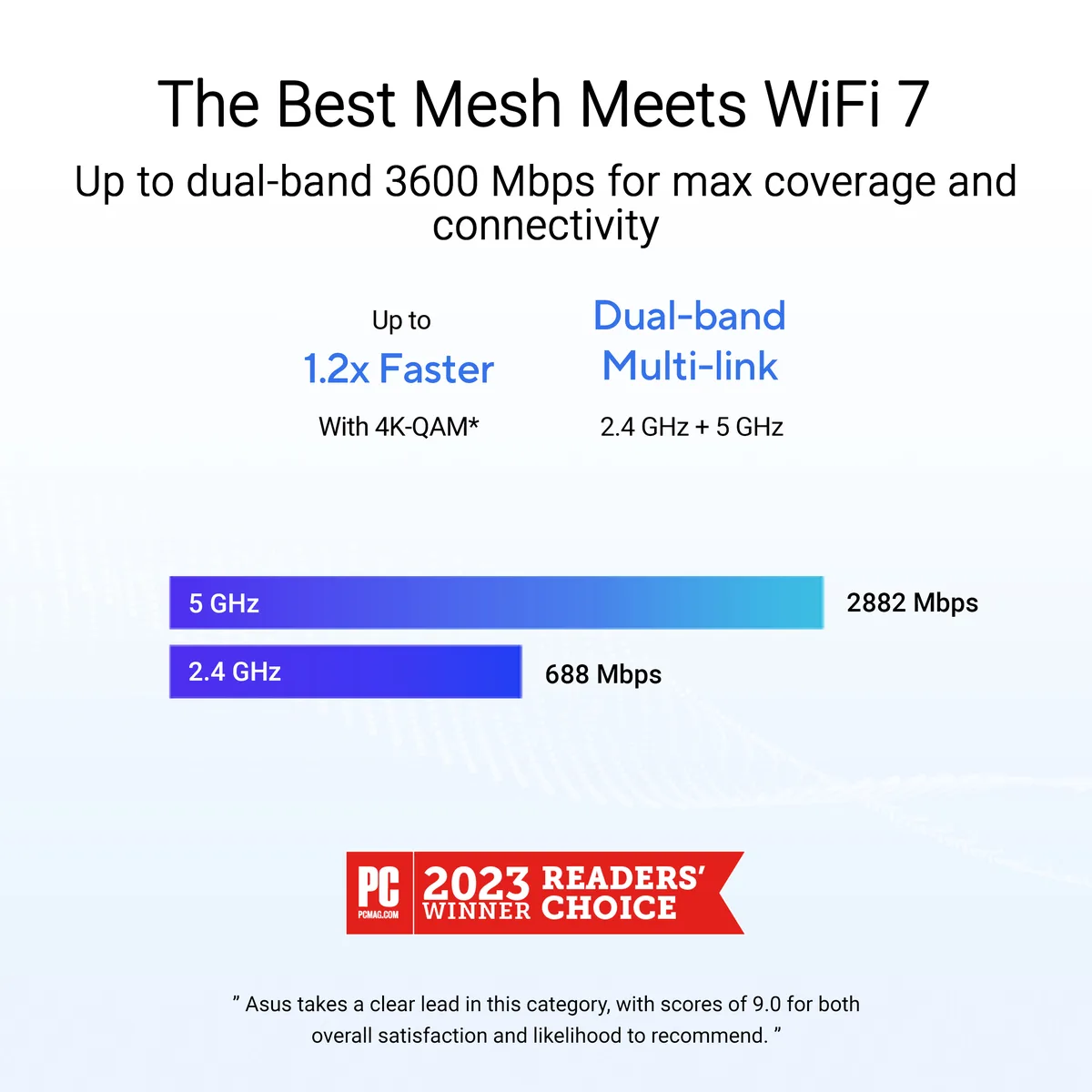

  • Dual-band WiFi 7 delivers up to 3600 Mbps combined speed

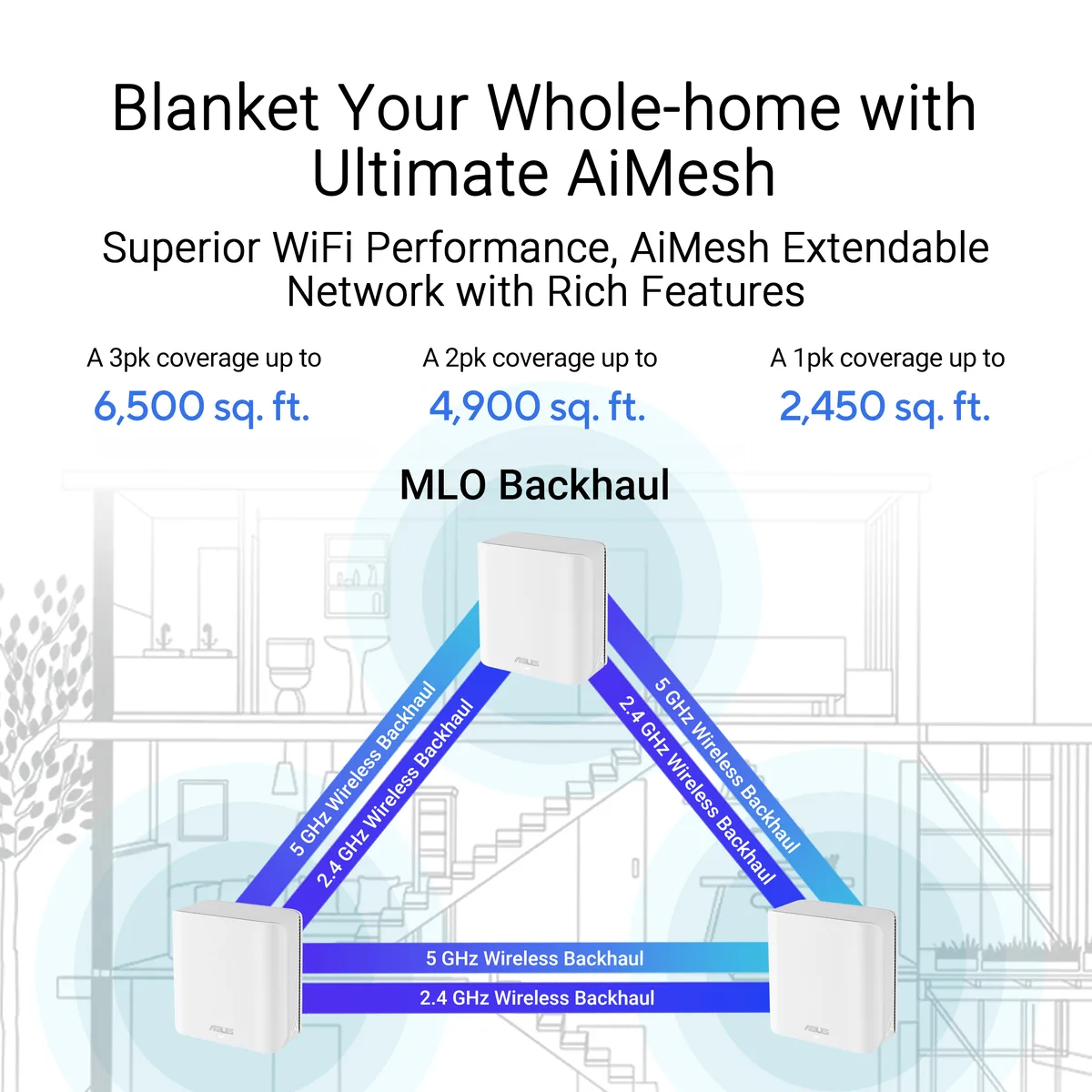

  • Three-unit mesh covers up to 6500 sq ft with seamless roaming
  • Dual 2.5G Ethernet ports provide fast wired backhaul or device links

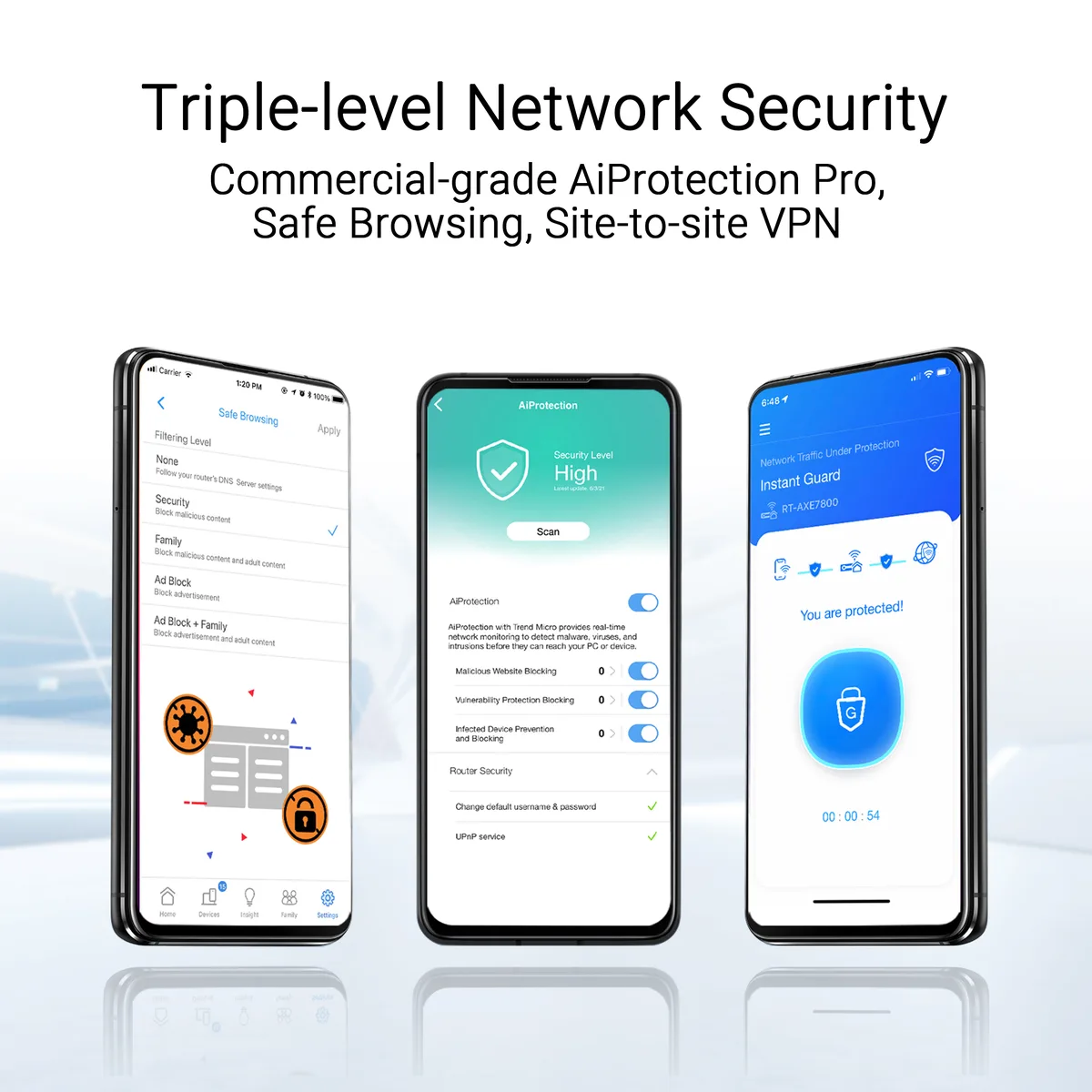

  • Commercial-grade AiProtection Pro plus VPN secures every connected device 24/7
  • Smart Home Master SSIDs simplify IoT, parental controls and VPN setup

Whole-home WiFi 7 mesh system

The ASUS ZenWiFi BD4 three-pack delivers dual-band WiFi 7 across areas up to 6500 square feet. Each node provides 2.4 GHz and 5 GHz radios with combined throughput up to 3600 Mbps. The system targets households that want seamless roaming and a single network name throughout every room.

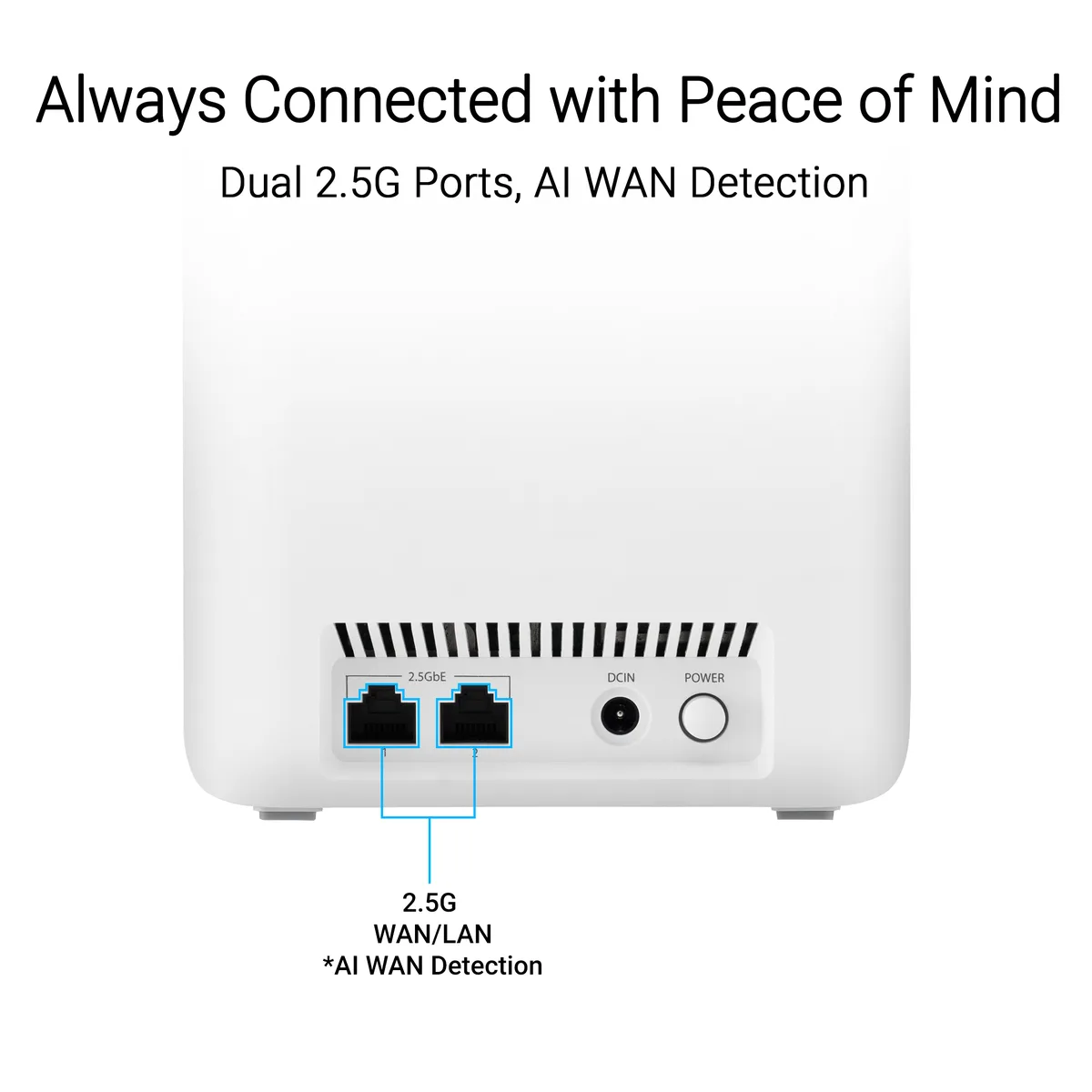

Dual 2.5G Ethernet ports per node

Two 2.5G ports on every unit auto-detect WAN or LAN roles, freeing you from separate switch purchases for wired backhaul or high-speed NAS links. AiMesh lets you add compatible ASUS routers later without reconfiguring the whole network. The package includes an RJ45 cable and power adapters for each node.

Passive cooling with 12 V 1.5 A supply

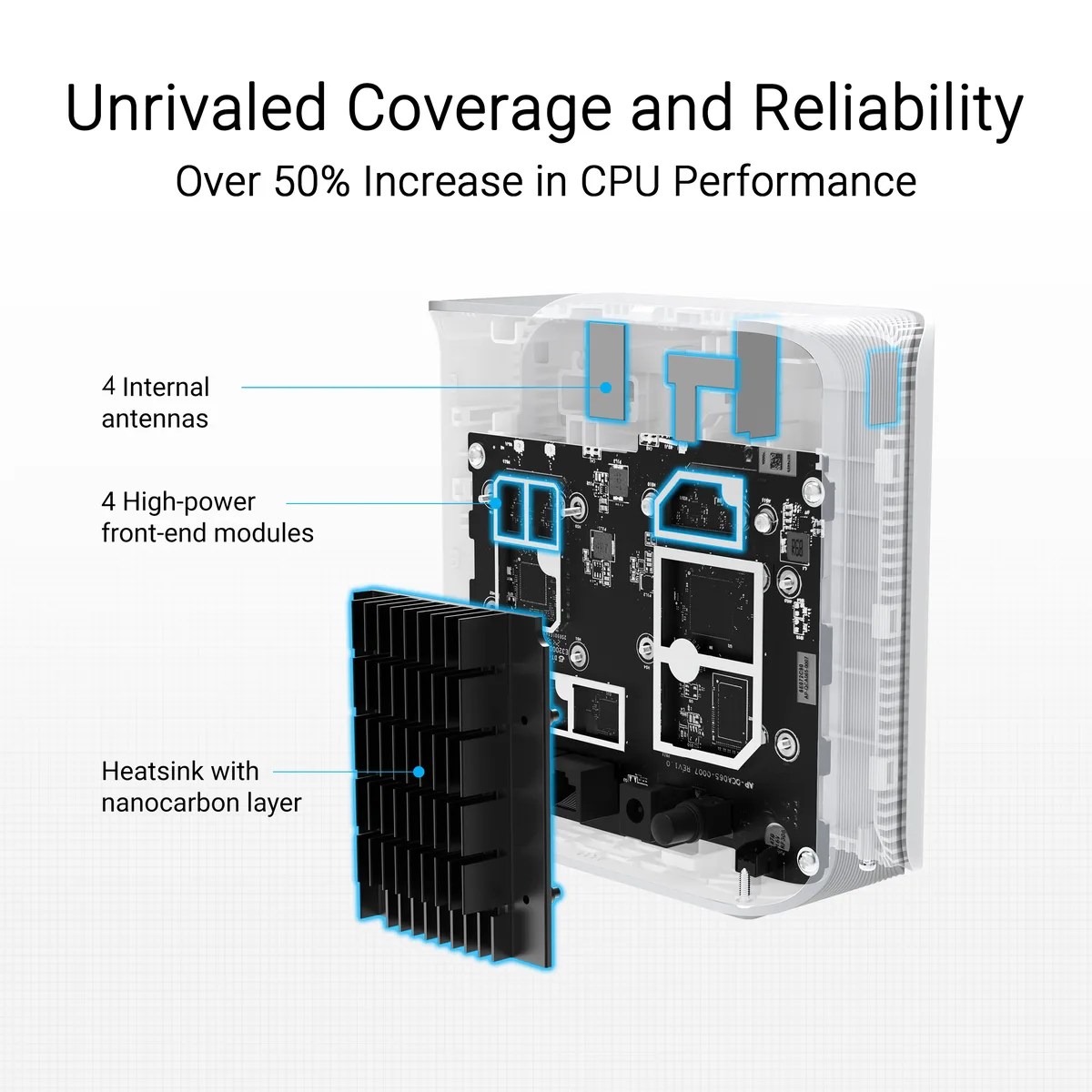

A quad-core 1.5 GHz processor runs inside a fanless chassis that relies on internal heatsinks, so operation stays silent in living spaces. The external power brick accepts 110 V to 240 V at 50 Hz to 60 Hz and outputs 12 V at 1.5 A maximum. AiProtection Pro and parental controls run continuously without audible noise.

Highlights

  • Dual-band WiFi 7 delivers up to 3600 Mbps combined speed
  • Three-unit mesh covers up to 6500 sq ft with seamless roaming
  • Dual 2.5G Ethernet ports provide fast wired backhaul or device links
  • Commercial-grade AiProtection Pro plus VPN secures every connected device 24/7
  • Smart Home Master SSIDs simplify IoT, parental controls and VPN setup

Specifications

BrandASUS
ModelZenWiFi BD4 (W-3-PK)
Part Number90IG0960-MA1C4V
WAN PortsPort Forwarding
Port Triggering
DMZ
DDNS
LAN PortsDHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
Wi-Fi StandardsWiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
Frequency Band2.4 GHz
5 GHz
SecurityAiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall
Parental Controls"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Reward
Parental Control - Safe Browsing
Customized Internet Schedule
Power SupplyAC Input : 110V~240V (50~60Hz)
DC Output : 12V with max. 1.5A current
Package ContentZenWiFi BD4
RJ45 cable
Power adapter
Warranty card
Quick start guide
Shipping weight2.27 kg
Package size330 × 178 × 152 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much combined WiFi 7 throughput can the three nodes deliver before the link saturates?

The system is rated for up to 3600 Mbps total, with 688 Mbps on the 2.4 GHz band and 2882 Mbps on the 5 GHz band.

What are the power draw and cooling arrangement when every node runs continuously?

Each unit draws a maximum of 1.5 A at 12 V from its adapter and relies on a quad-core 1.5 GHz CPU with robust passive cooling.

Which wired uplink does the primary node need from the modem or ONT to feed the mesh?

The primary node uses a 2.5 Gbps Ethernet WAN port that auto-detects the link speed.
