ASUS

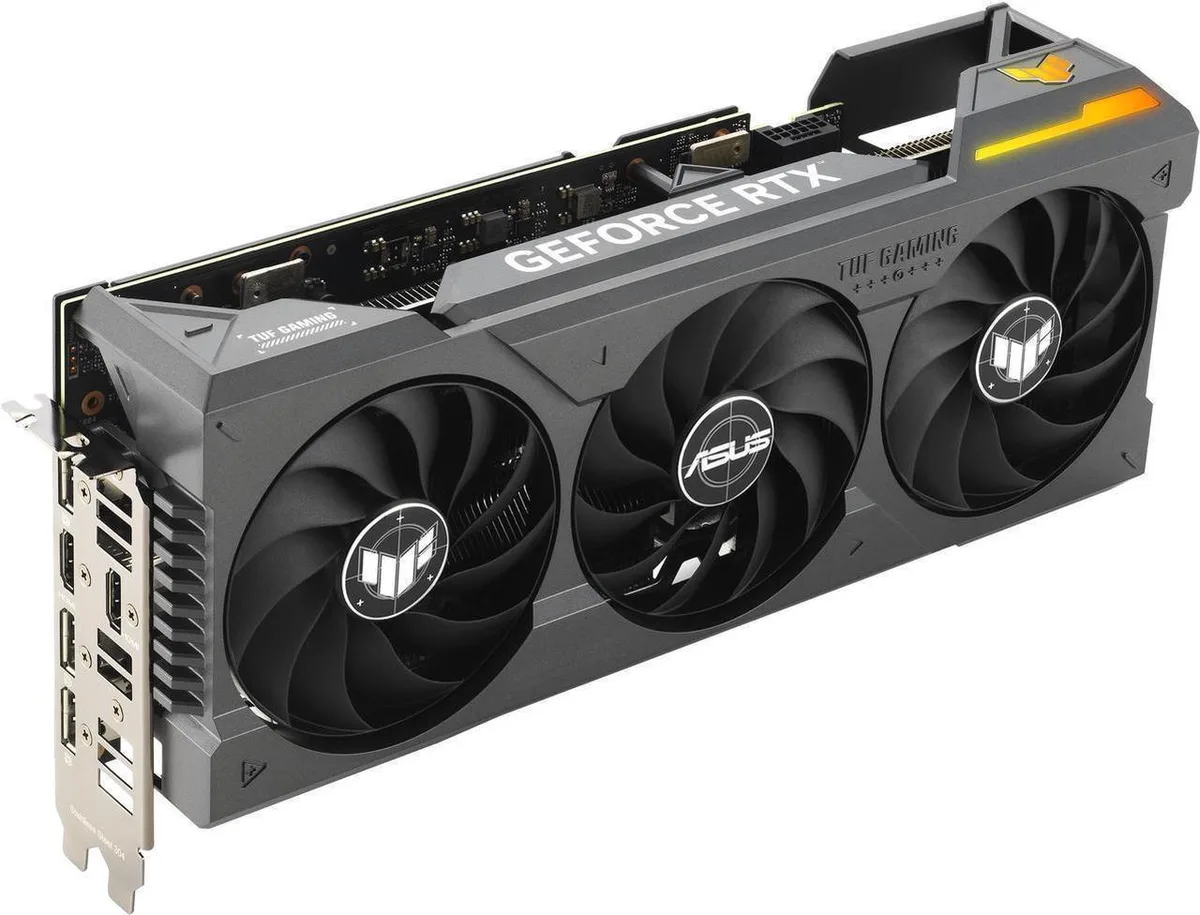

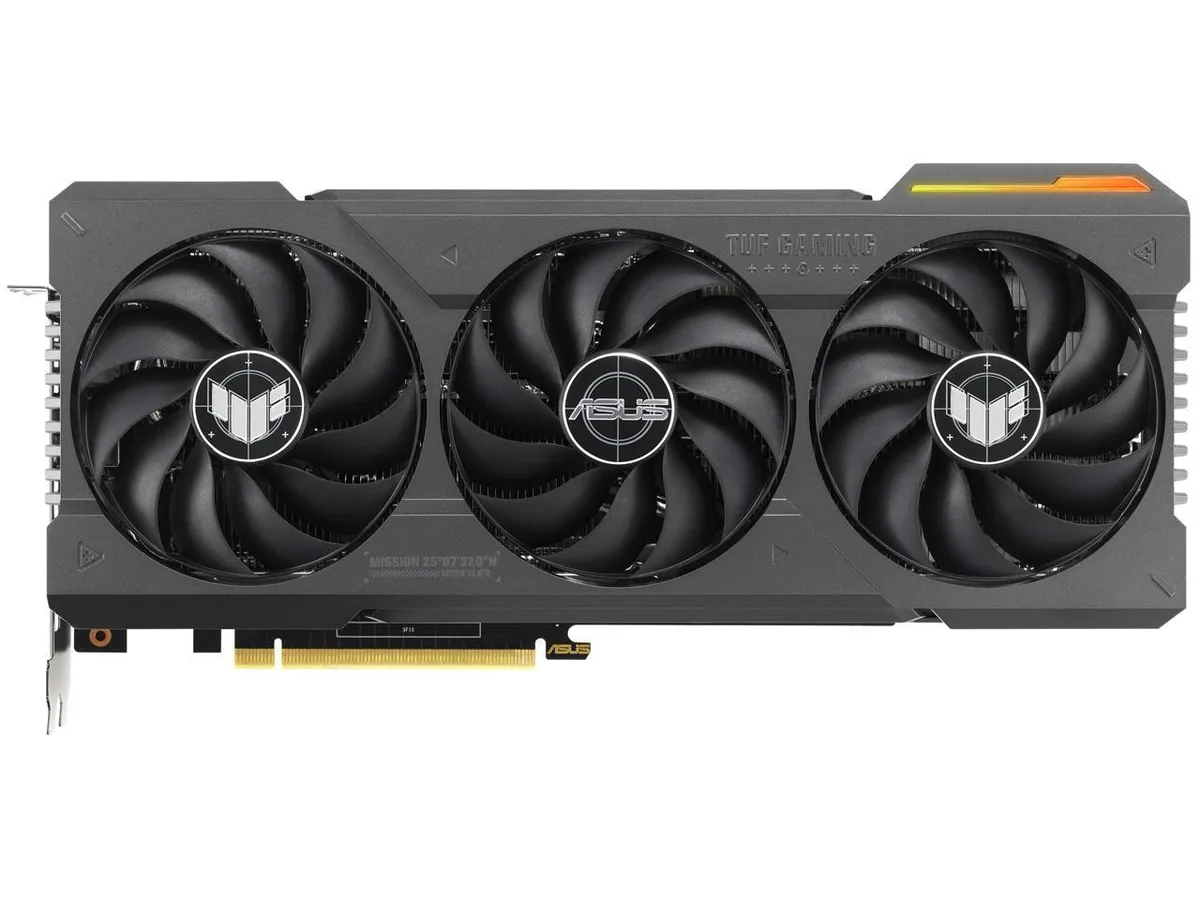

ASUS TUF Gaming GeForce RTX 4070 Ti OC 12GB graphics card
A GeForce RTX 4070 Ti with 12 GB GDDR6X, 7680 CUDA cores and a 2760 MHz OC boost clock, cooled by axial-tech fans and a metal exoskeleton for durability
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4070 Ti
- Core Clock2310 MHz
- Boost Clock2760 MHz
- NVIDIA DLSS 3 boosts frame rates with 4th-gen Tensor Cores
- 3rd-gen RT Cores double ray-tracing performance for realistic lighting
- OC mode pushes boost clock to 2760 MHz for extra headroom
- Axial-tech fans deliver 21% more airflow with dual ball bearings
- Military-grade capacitors rated 20K hours at 105C ensure durable power delivery
ASUS TUF Gaming RTX 4070 Ti 12GB
The ASUS TUF Gaming GeForce RTX 4070 Ti is built for gamers and creators who need strong 1440p and entry 4K performance. It uses the NVIDIA Ada Lovelace architecture with 7680 CUDA cores and 12GB of GDDR6X memory on a 192-bit bus. The card connects through a PCI Express 4.0 interface and offers two HDMI 2.1a and three DisplayPort 1.4a outputs for up to four displays.
Sustained load behaviour with 2760 MHz boost
In OC mode the boost clock reaches 2760 MHz while the default mode runs at 2730 MHz, giving stable frequency headroom during long sessions. Fourth generation Tensor Cores enable DLSS 3 frame generation and third generation RT cores accelerate ray tracing workloads without throttling. The 21% airflow increase from the scaled Axial-tech fans helps maintain these clocks over extended periods.
Thermals noise and power durability
Dual ball fan bearings are rated to last up to twice as long as conventional sleeve designs, reducing noise drift over time. Military-grade capacitors rated for 20K hours at 105C keep the power rail stable under continuous load. A metal exoskeleton adds structural rigidity and vents that improve heat dissipation, while Auto-Extreme manufacturing enhances overall reliability.
Highlights
- NVIDIA DLSS 3 boosts frame rates with 4th-gen Tensor Cores
- 3rd-gen RT Cores double ray-tracing performance for realistic lighting
- OC mode pushes boost clock to 2760 MHz for extra headroom
- Axial-tech fans deliver 21% more airflow with dual ball bearings
- Military-grade capacitors rated 20K hours at 105C ensure durable power delivery
Specifications
| Brand | ASUS |
|---|---|
| Series | TUF Gaming |
| Model | TUF-RTX4070TI-O12G-GAMING |
| Part Number | 90YV0IJ0-M0AA00 |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4070 Ti |
| Core Clock | 2310 MHz |
| Boost Clock | 2760 MHz |
| CUDA Cores | 7680 |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 2 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 285W |
| Recommended PSU Wattage | 750W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 305 mm |
| Slot Width | 3.25 Slot |
Questions about this item
How loud and hot does the TUF-RTX4070TI-O12G-GAMING run when pushed to its 2760 MHz OC boost clock all day?
The card uses scaled-up Axial-tech fans that move 21% more air and dual ball bearings rated for twice the lifespan of conventional designs, while military-grade capacitors rated for 20K hours at 105°C keep the power rail stable during sustained loads.
What power connectors and PSU capacity must I already own for the TUF-RTX4070TI-O12G-GAMING to work?
You will need a power supply with native 12VHPWR or enough 8-pin PCIe cables for the included adapter, plus sufficient wattage headroom for a 12GB GDDR6X card with a 2760 MHz boost clock.
Will the TUF-RTX4070TI-O12G-GAMING fit and run alongside my older PCIe 3.0 motherboard and 1080p monitor?
Yes, the PCI Express 4.0 interface is backward compatible with PCIe 3.0 slots, and the HDMI 2.1a and DisplayPort 1.4a outputs support 1080p up to 7680 x 4320 resolution.
