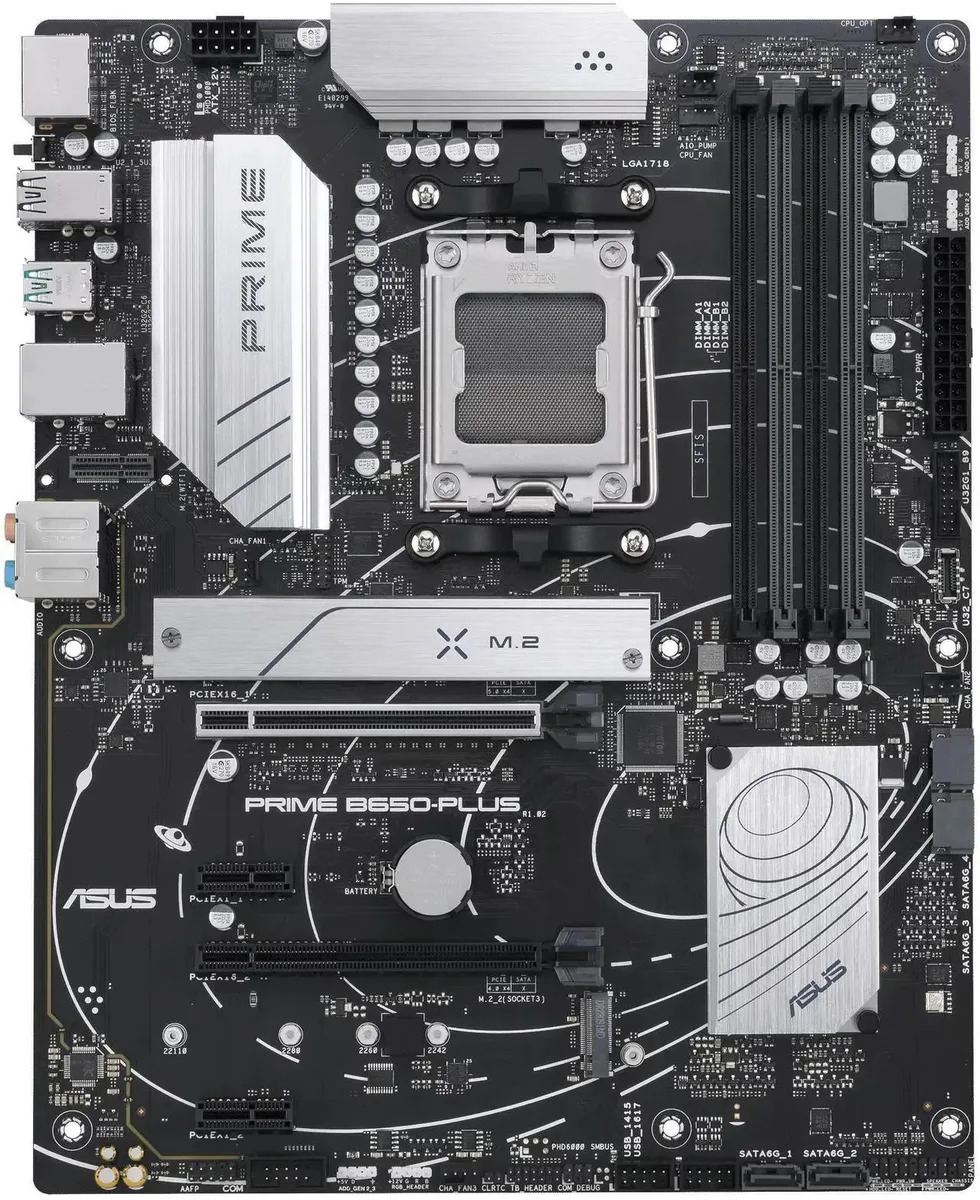

ATX motherboard with AM5 socket CPU installed, silver VRM heatsinks, black M.2 shield, dark PCB

ASUS

ASUS PRIME B650-PLUS + Ryzen 5 9600X AMD motherboard CPU combo

SKU CH-MS1D-D5VYK

AM5 motherboard with DDR5 support, PCIe 5.0 M.2, 2.5Gb LAN and bundled Ryzen 5 9600X CPU

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 7000 Series Desktop Processors* * Refer t
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) /
  • Maximum Memory Supported256GB

model PRIME B650-PLUS

Show 2 more configurations

+CPU +Ryzen 5 9600X

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors with AM5 socket
  • PCIe 5.0 M.2 slot enables ultrafast storage performance for demanding workloads
  • 5Gb Ethernet provides high-speed wired networking for low-latency gaming
  • DDR5 memory support up to 6400 MT/s with ASUS OptiMem II for stable overclocking
  • Comprehensive cooling with VRM, M.2 and PCH heatsinks plus Fan Xpert 2+

AM5 socket combo for Ryzen 9000 and 7000 series

This bundle pairs an ASUS PRIME B650-PLUS motherboard with a Ryzen 5 9600X processor. The AM5 socket supports current and future desktop CPUs from the 7000, 8000 and 9000 series. Four DDR5 slots accept up to 256 GB of memory in dual-channel mode. The board targets builders who want a single purchase for a modern platform foundation.

PCIe 5.0 M.2 slot and 2.5 Gbps LAN set the speed

The primary M.2 socket runs at PCIe 5.0 x4, while the second operates at PCIe 4.0 x4. Both accept 2242, 2260, 2280 and 22110 modules. Four SATA 6 Gbps ports provide additional storage lanes. Network traffic is handled by a Realtek 2.5 Gbps Ethernet controller. USB 3.2 Gen 2 Type-C and USB4 support round out the high-speed external interfaces.

VRM, M.2 and PCH heatsinks with hybrid fan headers

A VRM heatsink, dedicated M.2 heatsink and PCH heatsink manage thermals without active cooling on the board itself. Hybrid fan headers and Fan Xpert 2+ allow precise curve control for case airflow. Addressable Gen 2 RGB headers and a standard Aura RGB header support synchronised lighting. BIOS FlashBack updates the firmware via a USB stick without a CPU or memory installed.

Highlights

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors with AM5 socket
  • PCIe 5.0 M.2 slot enables ultrafast storage performance for demanding workloads
  • 5Gb Ethernet provides high-speed wired networking for low-latency gaming
  • DDR5 memory support up to 6400 MT/s with ASUS OptiMem II for stable overclocking
  • Comprehensive cooling with VRM, M.2 and PCH heatsinks plus Fan Xpert 2+

Specifications

BrandASUS
SeriesPrime
ModelPRIME B650-PLUS+R5 9600X
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800*
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureSupports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
PCI Express 4.0 x16AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the ASUS support site
PCI Express x12 x PCIe 4.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SATA RAIDAMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Max LAN Speed2.5Gbps
Wireless LANVertical M.2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately.
Back I/O Ports4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the motherboard with the Ryzen 5 9600X or buy the board alone?

This listing is a fixed combo that includes the ASUS PRIME B650-PLUS motherboard and the Ryzen 5 9600X processor together.

What does the 6400+(OC) DDR5 figure mean once the system is built?

It shows the highest overclocked memory speed the board can reach with EXPO modules; actual speed depends on the CPU memory controller and the specific kit installed.

What does the PCIe 5.0 M.2 slot cap in practice?

The primary M.2 slot runs at PCIe 5.0 x4 from the Ryzen 7000/9000 CPU, so a PCIe 5.0 drive can reach its full rated throughput there.
