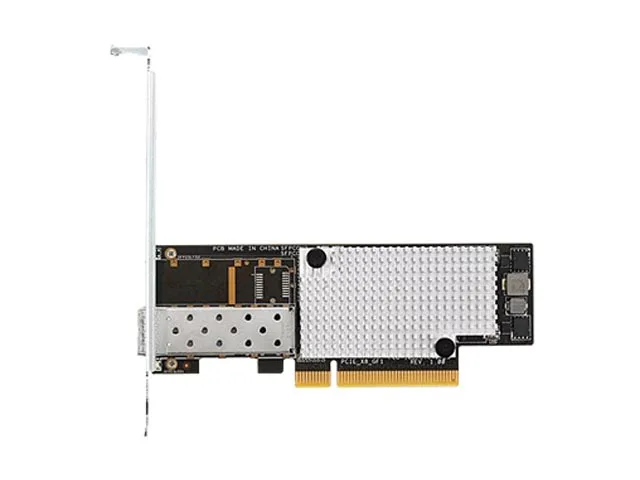

ASUS PEB-10G network card, compact PCIe x8 board with SFP+ cage, silver brackets included

ASUS

ASUS PEB-10G/57811-1S 10Gbps SFP+ network card

SKU CH-VXDQ-T9477

A 10Gbps SFP+ network adapter with a BCM 57811S controller, PCI-E Gen2 x8 interface, and a compact 4.72" x 1.77" form factor supporting LC fibre and direct-attach copper

  • Speed10Gbps
  • ConnectorsLC Fiber Optic
  • InterfacePCI-E Gen2 x8
  • FeaturesController: BCM 57811S Module Type: Supports SFP+ SR Optical
  • Package Contents1 x Full-height Bracket (Default) 1 x Low-profile Bracket wi
  • 10 Gbps throughput for demanding workloads
  • PCI-E Gen2 x8 interface for broad server compatibility
  • Compact 4.72" x 1.77" design fits tight chassis
  • Supports fibre up to 10 km and copper up to 5 m
  • Includes full-height, low-profile and node brackets

ASUS PEB-10G 10GbE SFP+ Adapter

The ASUS PEB-10G/57811-1S is a 10Gbps network interface card built around the BCM 57811S controller. It targets servers and workstations that need 10 Gigabit Ethernet over fibre or direct-attach copper. The PCI-E Gen2 x8 interface supplies the necessary bandwidth for line-rate traffic. Buyers who need 25GbE or higher speeds will need a different controller.

Compact form factor with three bracket options

The card measures 4.72" by 1.77", which is lower than a standard low-profile design, allowing installation in dense chassis. A full-height bracket, a low-profile bracket with screws and a small node bracket with screws are all included in the package. LC fibre connectors accept SFP+ SR, SFP+ LR or direct-attach copper modules. Builders without an available x8 slot cannot use this adapter.

PCI-E Gen2 x8 bandwidth and cable reach limits

The Gen2 x8 link provides up to 50 Gbps of raw throughput, sufficient for the 10GbE port. Supported cables include single-mode fibre up to 10km, multimode 62.5/50um fibre up to 300m and passive twin-ax copper up to 5m. Longer runs or higher port counts require additional hardware not covered by this card.

Highlights

  • 10 Gbps throughput for demanding workloads
  • PCI-E Gen2 x8 interface for broad server compatibility
  • Compact 4.72" x 1.77" design fits tight chassis
  • Supports fibre up to 10 km and copper up to 5 m
  • Includes full-height, low-profile and node brackets

Specifications

BrandASUS
ModelPEB-10G/57811-1S
Speed10Gbps
ConnectorsLC Fiber Optic
InterfacePCI-E Gen2 x8
FeaturesController: BCM 57811S
Module Type: Supports SFP+ SR Optical Module, SFP+ LR Optical Module, Direct Attached Copper
Form Factor: 4.72" x 1.77" (Lower Than Standard Low-profile)
Support Cable Type:
SMF up to 10km (LR)
MMF 62.5/50um up to 300m (SR)
Passive Twin-AX up to 5m (SFP+ Direct Attach)
Package Contents1 x Full-height Bracket (Default)
1 x Low-profile Bracket with Screws
1 x Small Bracket(for Node) with Screws
1 x Support DVD (per carton)
Shipping weight0.44 kg
Package size246 × 163 × 102 mm

Questions about this item

What throughput does the PCI-E Gen2 x8 interface cap at in practice?

The PCI-E Gen2 x8 interface provides up to 10 Gbps bandwidth, matching the card's rated speed for 10GbE operation.

What bracket options are included for mounting in different chassis heights?

The package includes a full-height bracket, a low-profile bracket with screws, and a small node bracket with screws for flexible installation.

How is the SFP+ module installed, and what step is often missed?

Insert the SFP+ SR, LR or Direct Attach Copper module until it clicks, then connect the LC fibre or copper cable; the click confirms the module is fully seated.
