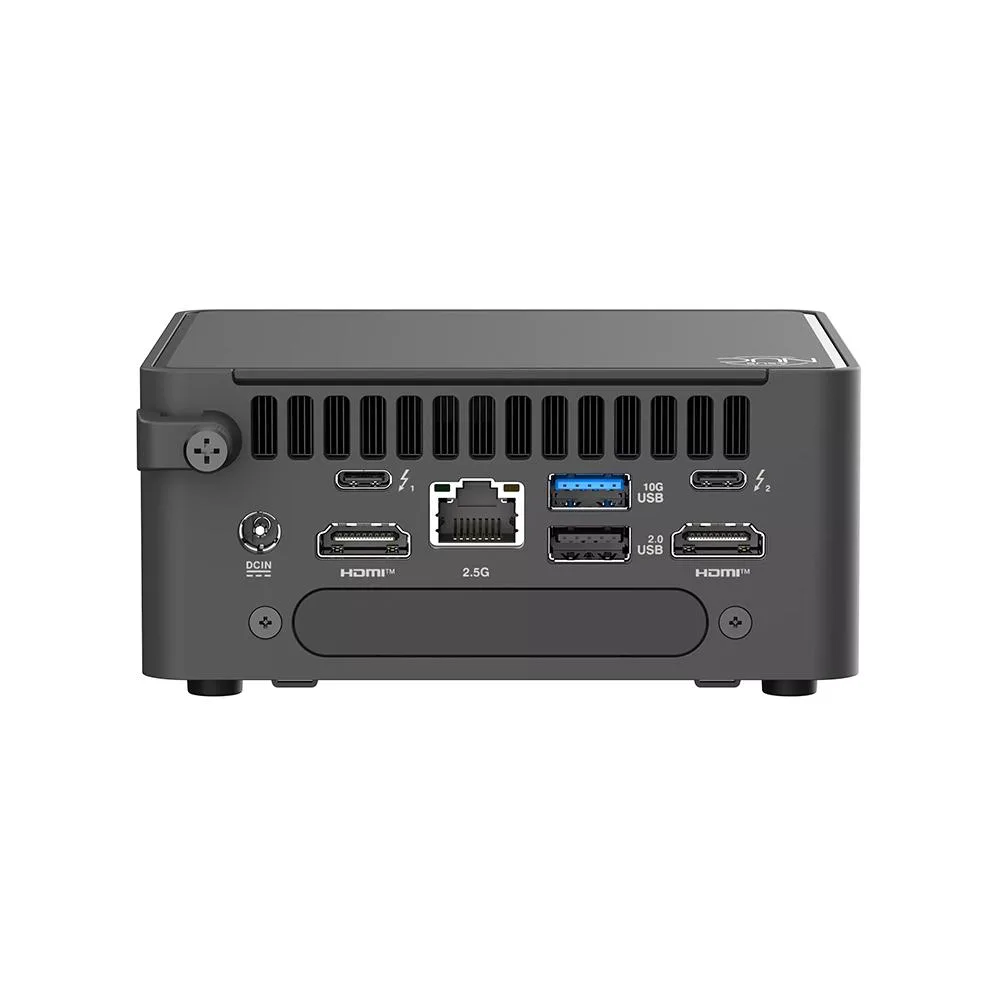

Compact tall barebone mini PC with matte dark finish

ASUS

ASUS NUC15CRHU5 Core Ultra 5 225H barebone mini PC

SKU CH-CB05-194H2 MPN NUC15CRHU5

Barebone mini PC supporting up to 96 GB DDR5-5600 memory and NVMe storage, driven by a 14-core Core Ultra 5 225H with Arc graphics, dual HDMI 2.1 and Thunderbolt 4 for four 4K displays, 226V LAN.

  • Form FactorTall
  • AI FeaturesAI Ready
  • CPU TypeIntel Core Ultra 5 225H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 5600

Group Barebone

  • 14-core Intel Core Ultra 5 225H delivers responsive performance for demanding workloads
  • Dual-channel DDR5-5600 support up to 96 GB enables smooth multitasking
  • Intel Arc graphics and vPro technology provide enhanced visuals and enterprise security
  • Quad 4K display output via dual HDMI 2.1 and Thunderbolt 4 with DisplayPort 2.1
  • Tool-less 0.48 L chassis allows quick upgrades while keeping a compact footprint

What this barebone mini PC delivers

The ASUS NUC 15 Pro NUC15CRHU5 is a new barebone system built around an Intel Core Ultra 5 225H processor with 14 cores and Intel Arc graphics. It ships without memory or storage so you can choose DDR5-5600 SO-DIMMs up to 96 GB and two NVMe SSDs in 2280 and 2242 sizes. The 0.48 L tool-less chassis keeps the footprint small while allowing quick upgrades.

Who should build on this platform

This unit suits professionals who need Intel vPro security, quad 4K display output via dual HDMI 2.1 and Thunderbolt 4 with DisplayPort 2.1, and modern connectivity including Wi-Fi 7 and Bluetooth 5.4. It is not for buyers who want a complete system with RAM and an SSD pre-installed, nor for builds that require discrete graphics cards or additional PCIe expansion slots beyond the two M.2 sockets.

The specification that decides fit

The board provides two 262-pin SO-DIMM slots limited to DDR5 5600 with a 96 GB ceiling and dual-channel support. If your workload demands more memory capacity, different memory speeds, or a form factor that accepts standard DIMMs, this barebone will not meet those requirements.

Highlights

  • 14-core Intel Core Ultra 5 225H delivers responsive performance for demanding workloads
  • Dual-channel DDR5-5600 support up to 96 GB enables smooth multitasking
  • Intel Arc graphics and vPro technology provide enhanced visuals and enterprise security
  • Quad 4K display output via dual HDMI 2.1 and Thunderbolt 4 with DisplayPort 2.1
  • Tool-less 0.48 L chassis allows quick upgrades while keeping a compact footprint

Specifications

BrandASUS
SeriesNUC 15 PRO
ModelNUC15CRHU5
Form FactorTall
AI FeaturesAI Ready
CPU TypeIntel Core Ultra 5 225H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 NVMe PCIe G4x4 SSD
1 x M.2 2242 NVMe PCIe x4 SSD
Discrete Graphic CardIntel Arc Graphics
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel i226V
Max LAN Speed10/100/1000/2500Mbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington
1 x DC-in
Input120W
Dimensions117mm x 112mm x 54mm
Weight1.3 lbs
PackagingVESA Mount & Screws / AC Power Adapter/ Power Cord

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Can I reuse my current DDR5-5600 SO-DIMMs in the NUC15CRHU5's two 262-pin slots?

Yes, the board accepts dual-channel DDR5-5600 modules up to 96 GB total across both slots.

How can I confirm the Intel Arc Graphics and Thunderbolt 4 ports are active after assembly?

Device Manager should list Intel Arc Graphics and two Thunderbolt 4 controllers; connecting a display to each HDMI 2.1 and Thunderbolt port verifies video output.

Which parts are included and which must I supply for the NUC15CRHU5 barebone?

The chassis, motherboard with Core Ultra 5 225H, Wi-Fi 7, Bluetooth 5.4, dual HDMI 2.1 and Thunderbolt 4 are included; you must add DDR5 SO-DIMMs and NVMe SSDs.
