ASUS
ASUS NUC 16 Pro Mini PC NUC16GDKU5 Core Ultra 5 325
A compact barebone mini PC with an Intel Core Ultra 5 325 processor, 57 AI TOPS, dual Thunderbolt 4 ports, dual 2.5G LAN, Wi-Fi 7 and Bluetooth 6.0
RAM and SSD size Barebone
- Intel Core Ultra 5 325 with 16 cores up to 4.5 GHz powers demanding AI workloads
- Dedicated NPU delivers 57 TOPS for machine learning and advanced data analysis
- Dual 2.5 GbE LAN plus Wi-Fi 7 and Bluetooth 6.0 ensure fast reliable networking
- Thunderbolt 4 with DisplayPort 2.1 supports up to four displays and high-speed peripherals
- Tool-free 144×117×42 mm chassis with dual-fan cooling enables easy DDR5 7200 MT/s and PCIe 5.0 upgrades
Intel Core Ultra 5 325 mini PC for enterprise AI

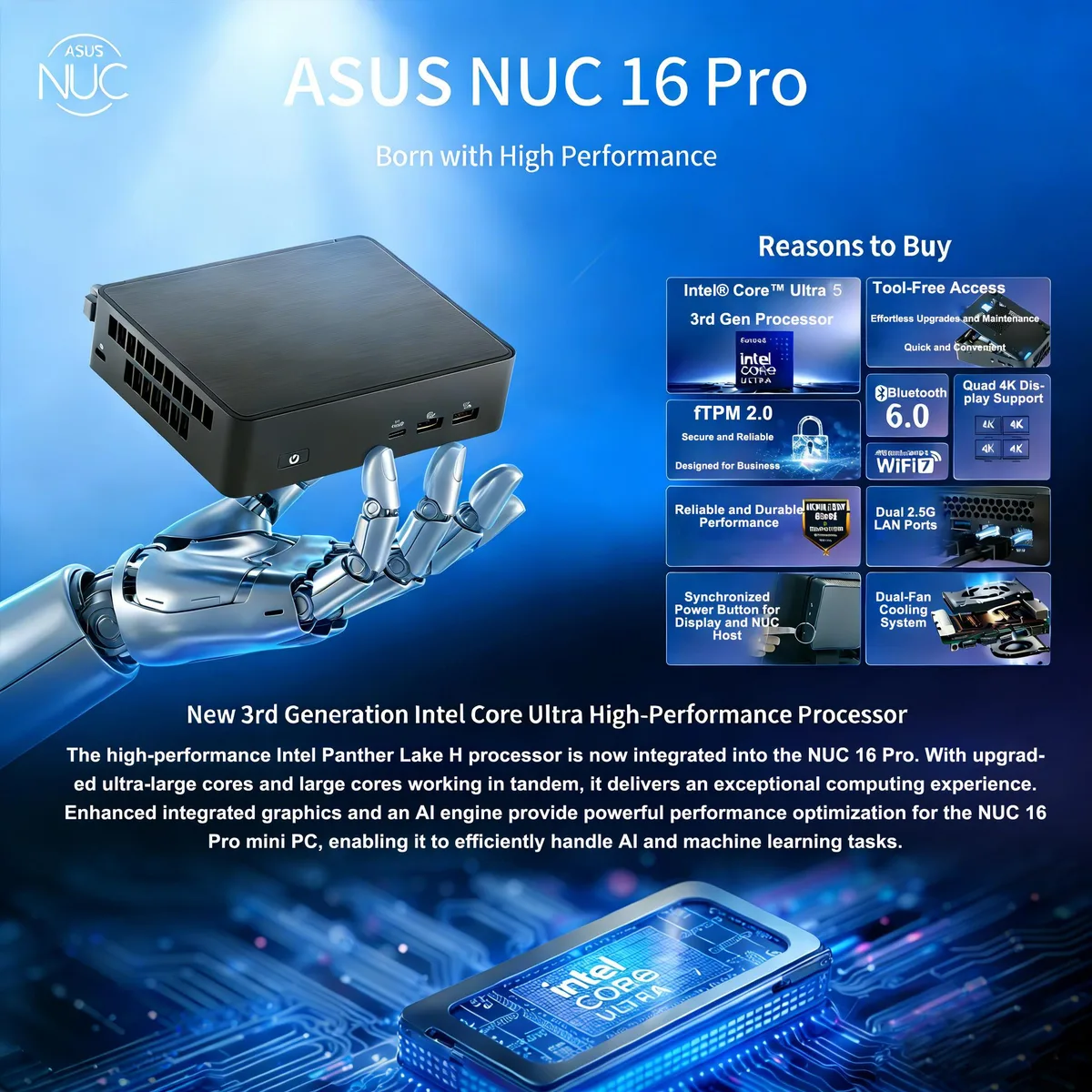

The ASUS NUC 16 Pro is a barebone system built around the Intel Core Ultra 5 325 processor with 16 cores and a 4.5 GHz maximum frequency. Its integrated Intel graphics and 57 TOPS NPU target AI development and machine learning workloads. The compact 144 x 117 x 42 mm chassis suits offices needing high compute density.
DDR5 7200 MT/s and PCIe 5.0 headroom for memory
The platform supports DDR5 memory at 7200 MT/s and PCIe 5.0 SSDs, giving headroom for large datasets and fast model loading. Dual 2.5G LAN, Wi-Fi 7 BE211 and Bluetooth 6.0 handle heavy network traffic. The 45 W TDP ceiling means sustained all-core turbo will throttle under prolonged full-load AI training.
Dual Thunderbolt 4 and toolless chassis change

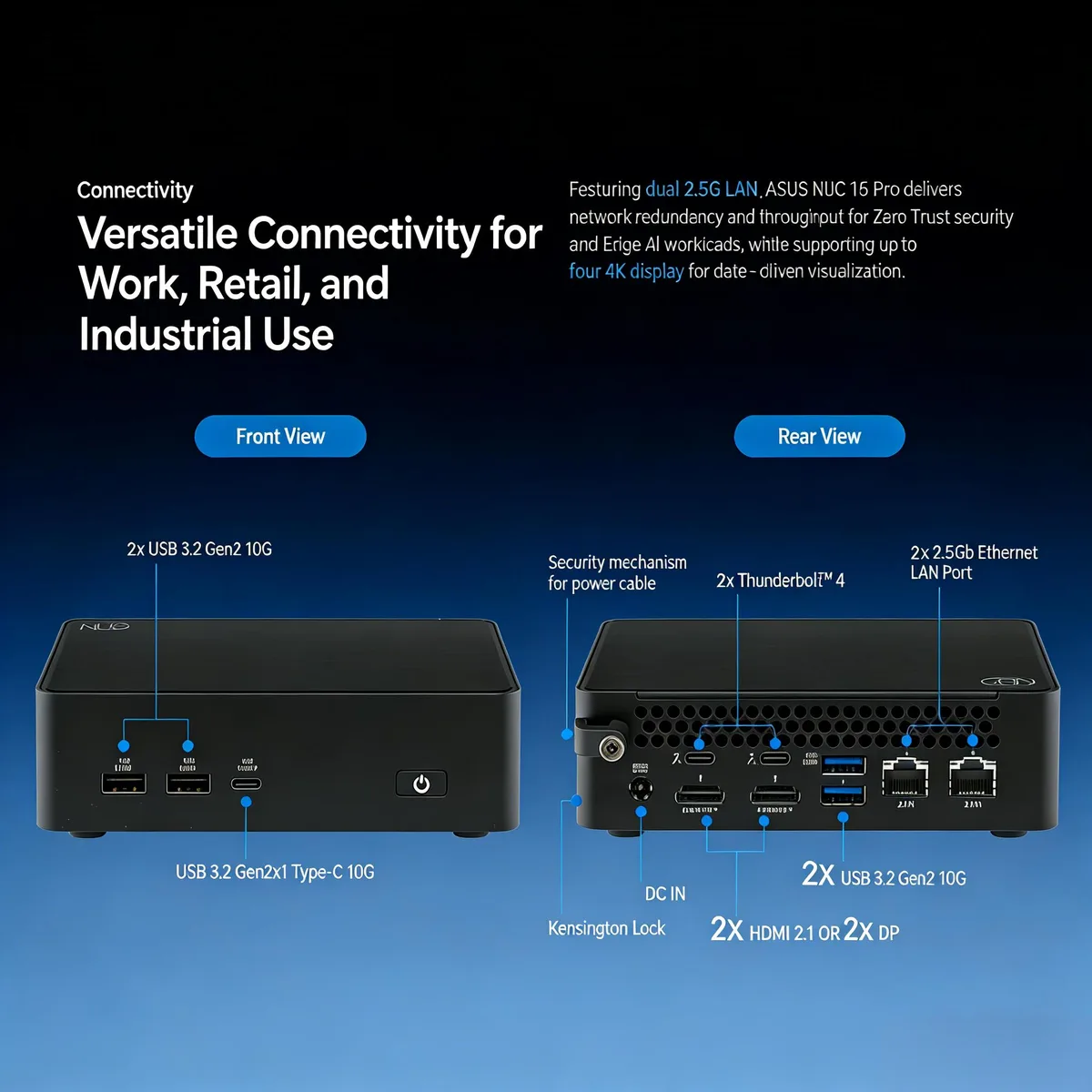

Two Thunderbolt 4 Type-C ports with DisplayPort 2.1 drive up to four displays and high-speed peripherals from a single cable. The toolless chassis allows IT staff to install memory and storage in seconds without screws. MIL-STD 810H certification and fTPM 2.0 firmware meet ruggedisation and security requirements for field deployments.
Highlights
- Intel Core Ultra 5 325 with 16 cores up to 4.5 GHz powers demanding AI workloads
- Dedicated NPU delivers 57 TOPS for machine learning and advanced data analysis
- Dual 2.5 GbE LAN plus Wi-Fi 7 and Bluetooth 6.0 ensure fast reliable networking
- Thunderbolt 4 with DisplayPort 2.1 supports up to four displays and high-speed peripherals
- Tool-free 144×117×42 mm chassis with dual-fan cooling enables easy DDR5 7200 MT/s and PCIe 5.0 upgrades
Specifications
| Brand | ASUS |
|---|---|
| Series | NUC 16 PRO |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
ASUS NUC 16 Pro NUC16GDKU5 Core Ultra 5 325 8GB 256GB barebone mini PC
ASUS NUC 16 Pro Mini PC NUC16GDKU5 Intel Core Ultra 5 325 16GB 512GB
Questions about this item
Will the dual 2.5G LAN ports work with my existing gigabit switch?
Yes, the Intel I226-V and I226-LM ports auto-negotiate down to 1 Gbps so they connect to any gigabit switch without configuration.
How can I verify the 57 TOPS NPU is active after setup?
Open Windows Task Manager, select the Performance tab and choose NPU 0; sustained load should show utilisation on the dedicated AIBoost engine.
Does the box include RAM or a PCIe 5.0 SSD, or must I buy them separately?
This barebone ships without memory or storage; you need to add DDR5 7200 MT/s SO-DIMMs and a PCIe 5.0 M.2 SSD yourself.
