Green rectangular micro-ATX motherboard with black slots and silver heatsinks

ASUS

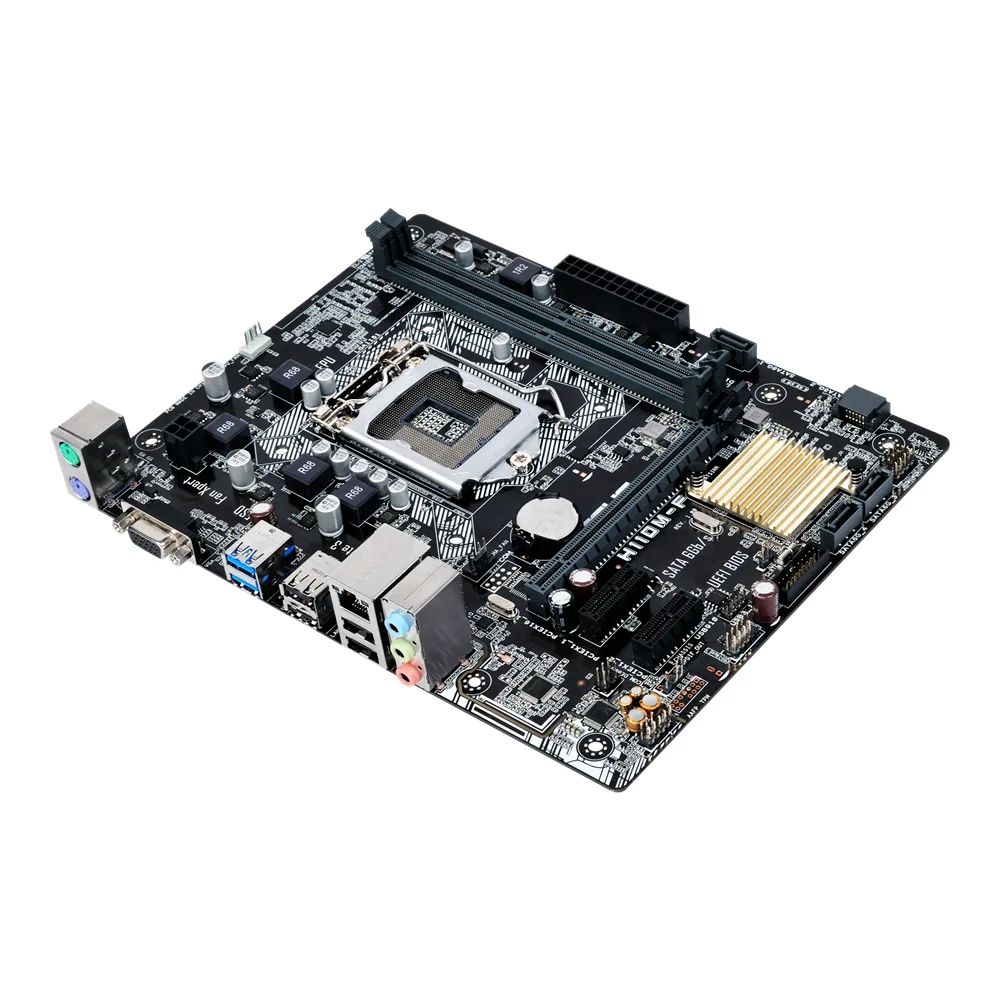

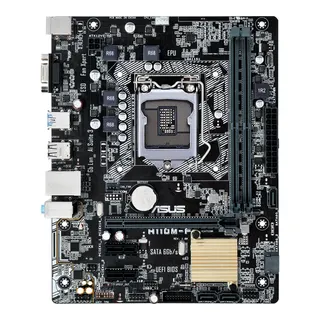

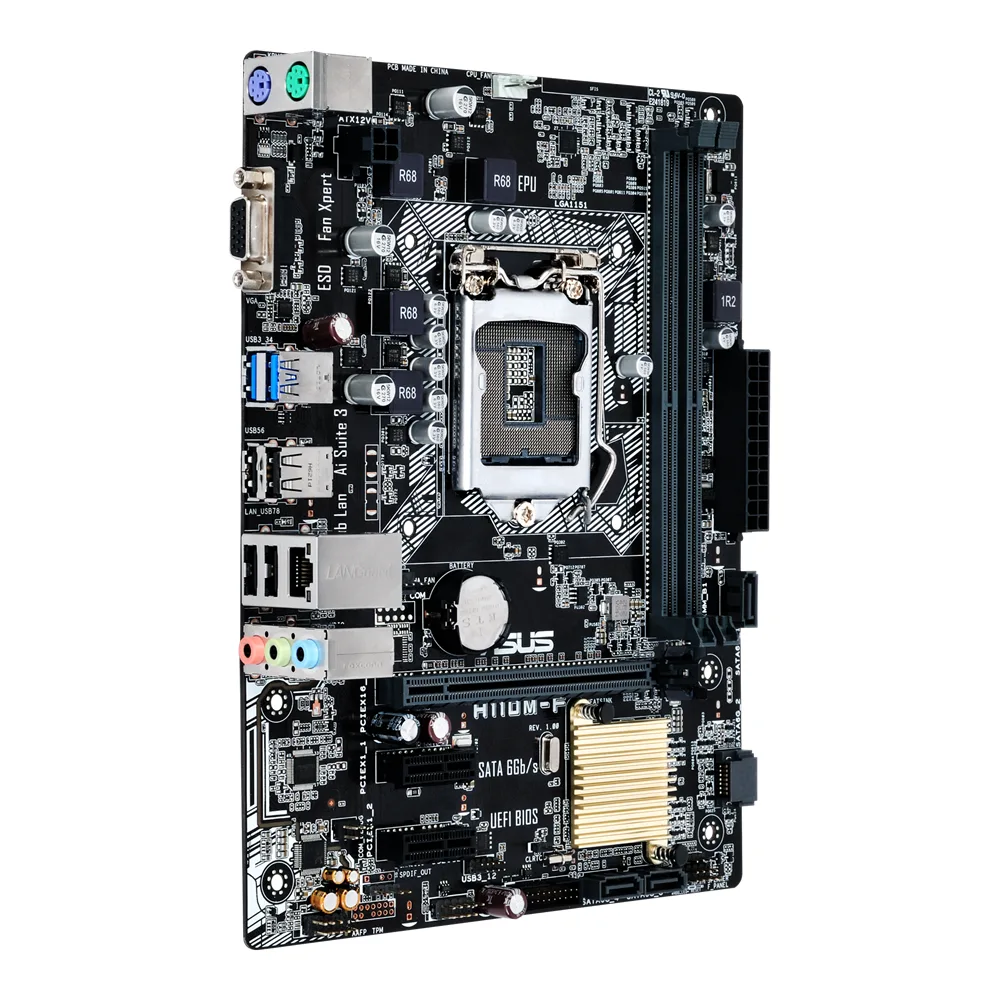

ASUS H310M-F Intel motherboard

SKU CH-971F-4A4E4

Micro-ATX LGA 1151 board with H310 chipset, dual-channel DDR4 to 32 GB, VGA output up to 1920 x 1200 at 60 Hz, and 5X Protection II safeguards

  • CPU Socket TypeLGA 1151
  • CPU TypeLGA1151
  • ChipsetH310
  • Supports up to 32 GB DDR4 memory
  • Integrated Intel HD Graphics via VGA up to 1920 x 1200 at 60 Hz
  • LGA 1151 socket for 14 nm Intel processors
  • 5X Protection II hardware safeguards for dependable stability
  • Fan Xpert advanced fan controls for cooling and silent performance

ASUS H310M-F Intel LGA 1151 motherboard

The ASUS H310M-F is a micro-ATX board built around the Intel H310 chipset for LGA 1151 processors. It supports 6th and 7th Generation Core i7, i5, i3, Pentium and Celeron CPUs with a 14 nm design. The board provides two DDR4 DIMM slots with a maximum capacity of 32 GB and dual-channel architecture. Integrated Intel HD Graphics drive a VGA port at up to 1920 x 1200 resolution at 60 Hz.

Easy micro-ATX installation with 5X Protection II

The micro-ATX form factor fits standard chassis mounting points and aligns with common I/O shields. 5X Protection II adds hardware safeguards such as overvoltage protection, LANGuard and stainless-steel rear I/O for dependable stability. The media-acclaimed UEFI BIOS includes EZ Flash 3 for straightforward firmware updates without an operating system. DDR4 modules simply seat into the two DIMM slots; XMP profiles are supported though chipset limits may cap speeds at 2133 MHz or 2400 MHz depending on the installed processor.

Sustained-load behaviour with Fan Xpert cooling

Under continuous workloads the Fan Xpert utility adjusts fan curves dynamically to maintain thermal headroom while keeping acoustics low. The 5X Protection II circuitry monitors voltage and temperature thresholds to prevent throttling during extended sessions. Shared graphics memory allocates up to 1024 MB for the integrated GPU, providing a stable frame buffer for display output without discrete graphics. The board delivers consistent operation for everyday computing and light gaming loads over long periods.

Highlights

  • Supports up to 32 GB DDR4 memory
  • Integrated Intel HD Graphics via VGA up to 1920 x 1200 at 60 Hz
  • LGA 1151 socket for 14 nm Intel processors
  • 5X Protection II hardware safeguards for dependable stability
  • Fan Xpert advanced fan controls for cooling and silent performance

Specifications

BrandASUS
ModelH310M-F
CPU Socket TypeLGA 1151
CPU TypeLGA1151
ChipsetH310

Questions about this item

How can I verify the 5X Protection II safeguards are active after building with the H310M-F?

Enter the UEFI BIOS and open the hardware-monitor section; it reports voltage, temperature and fan-speed readings that confirm the protection circuits are functioning.

What components come with the H310M-F and what must I provide separately?

The motherboard includes an I/O shield and driver disc; you must add an LGA 1151 processor, DDR4 memory modules, storage drives, a power supply and a case.

Which memory speed should I choose for a 7th Generation Intel Core i5 on this H310M-F?

DDR4 2400 MHz modules are supported at full speed with 7th Generation CPUs; DDR4 2133 MHz is the maximum for 6th Generation processors.
