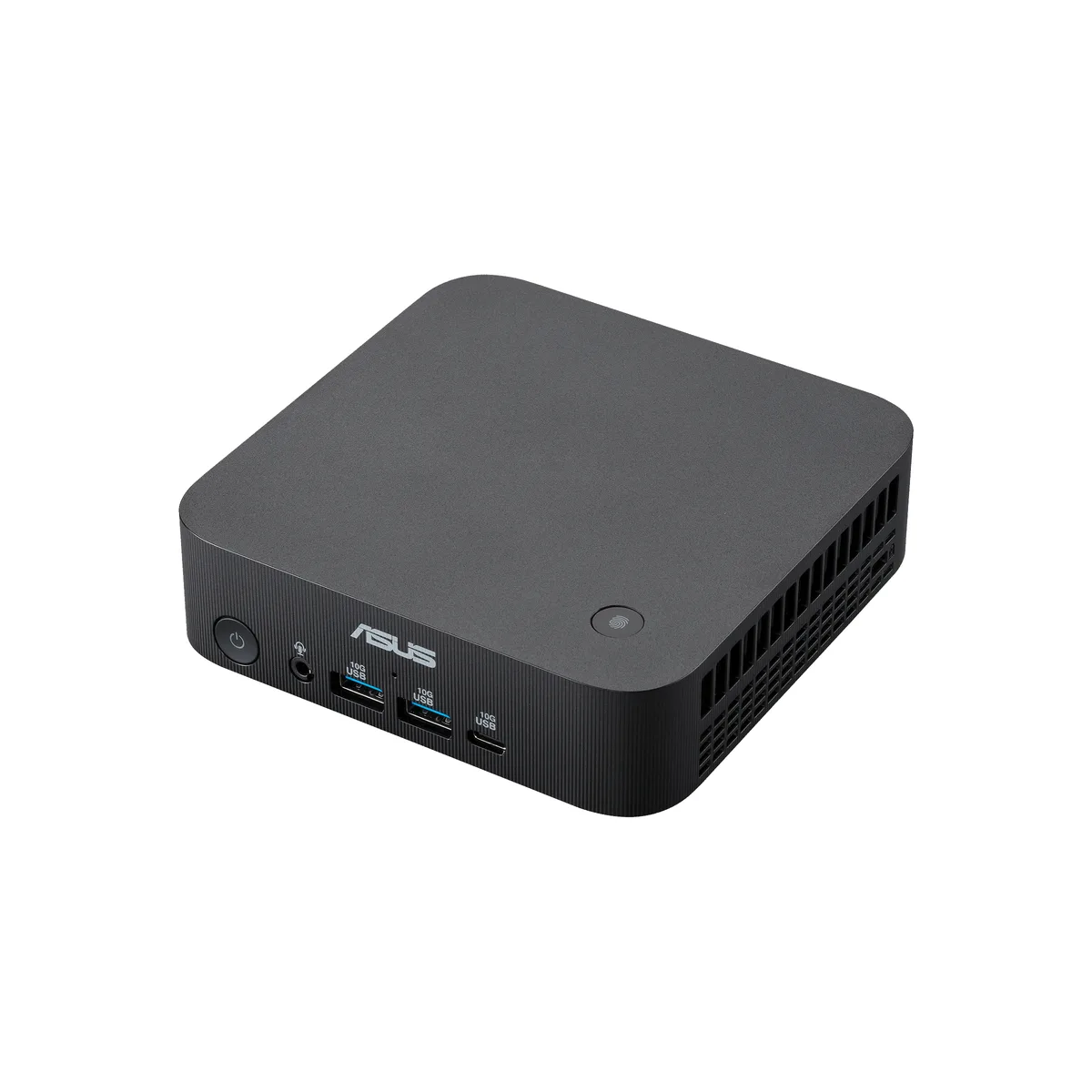

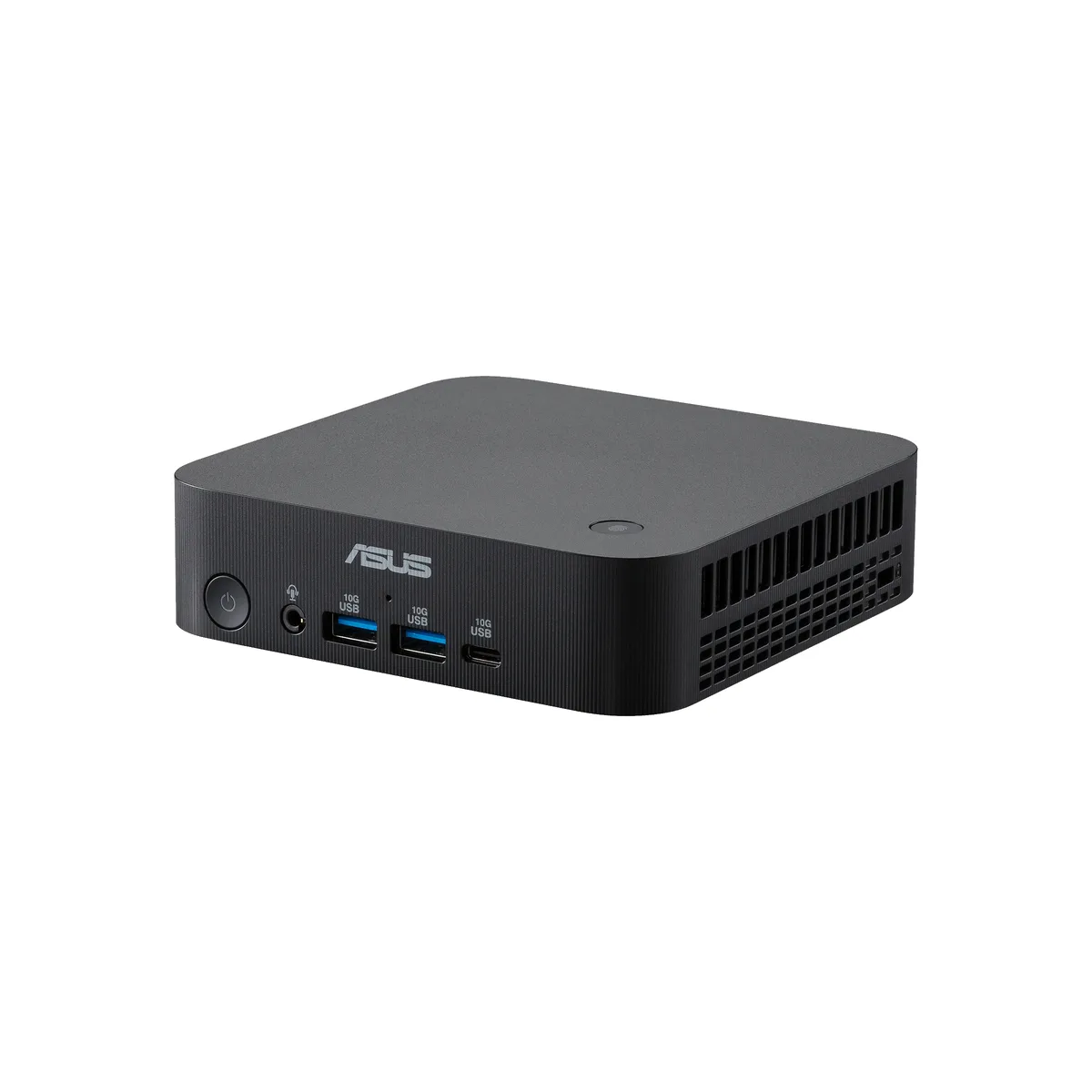

Small black slim mini PC barebone with toolless chassis and VESA mount

ASUS

ASUS ExpertCenter PN54-S1-BB5000ETL barebone mini PC Ryzen 5 220 6-core

SKU CH-ET3X-SJEZ6 MPN PN54-S1-BB5000ETL

A 6-core Ryzen 5 220 barebone with Radeon 740M graphics, dual 2.5G LAN, Wi-Fi 7, Bluetooth 5.4, USB4, two M.2 NVMe slots, DDR5-5600 SO-DIMM support and tool-free chassis access

  • ColorBlack
  • Form FactorSlim
  • CPU TypeAMD Ryzen 5 220
  • CPU Cores6-Core
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 5600

Type AMD Ryzen 5 220

  • Six-core Ryzen 5 220 powers efficient multitasking
  • Radeon 740M graphics drives up to four 4K displays
  • Wi-Fi 7 and Bluetooth 5.4 deliver ultrafast wireless connectivity
  • Dual 2.5 GbE LAN ports plus USB4 enable versatile high-speed I/O
  • Tool-free 34 mm chassis allows quick memory and storage upgrades

Barebone mini PC with Ryzen 5 220

This ASUS ExpertCenter barebone mini PC comes with a soldered AMD Ryzen 5 220 six-core processor and integrated AMD Radeon 740M graphics. It is built for system integrators and IT buyers who want a compact, fanless-ready platform they can finish with their own DDR5 5600 SO-DIMMs and up to two PCIe Gen4x4 NVMe drives. The 34 mm slim chassis supports VESA mounting and tool-free access for quick assembly.

Suited for office, signage and light HTPC builds

The platform fits commercial desktops, digital signage players and home-theatre PCs that need 4K 60 Hz output on up to four displays via HDMI 2.1 and dual DisplayPort 1.4. Dual 2.5 GbE LAN, Wi-Fi 7 and Bluetooth 5.4 cover modern network needs. Buyers who need discrete graphics performance, more than 64 GB of memory, or a pre-installed operating system and storage should look at a fully configured mini PC instead.

Soldered six-core Ryzen 5 220 processor

The CPU is not socketed and cannot be swapped or upgraded after purchase. This single fact decides whether the unit matches the project: if the workload demands a different core count, a higher TDP envelope or a user-replaceable processor, this barebone is not the right starting point.

Highlights

  • Six-core Ryzen 5 220 powers efficient multitasking
  • Radeon 740M graphics drives up to four 4K displays
  • Wi-Fi 7 and Bluetooth 5.4 deliver ultrafast wireless connectivity
  • Dual 2.5 GbE LAN ports plus USB4 enable versatile high-speed I/O
  • Tool-free 34 mm chassis allows quick memory and storage upgrades

Specifications

BrandASUS
SeriesExpertCenter
ModelPN54-S1-BB5000ETL
Part Number90MR01D2-M001D0
ColorBlack
Form FactorSlim
CPU TypeAMD Ryzen 5 220
CPU Cores6-Core
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
M.2 Slot2 x M.2 2280 PCIe Gen4x4 NVMe SSD (supports 256GB ~ 2TB)
Integrated GraphicsAMD Radeon 740M
LAN2 x Realtek RTL8125B-CG (2.5 GbE)
Max LAN Speed2.5Gbps
Wireless LANMediatek MT7925B22M, Wi-Fi 7, 2x2
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4

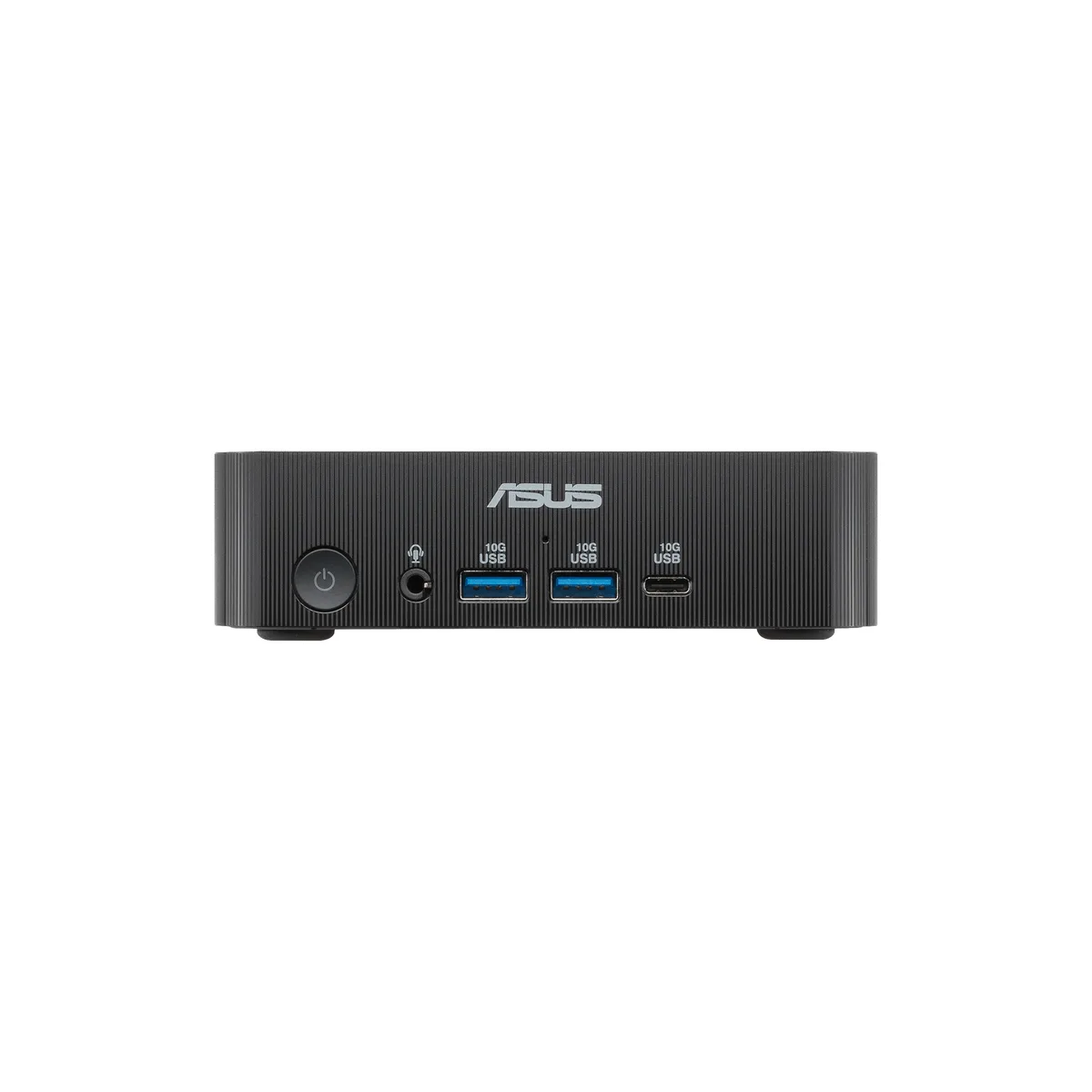

Front USB1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
HDMI1 x HDMI 2.1 (up to 4K@60Hz)
DisplayPort2 x DisplayPort 1.4

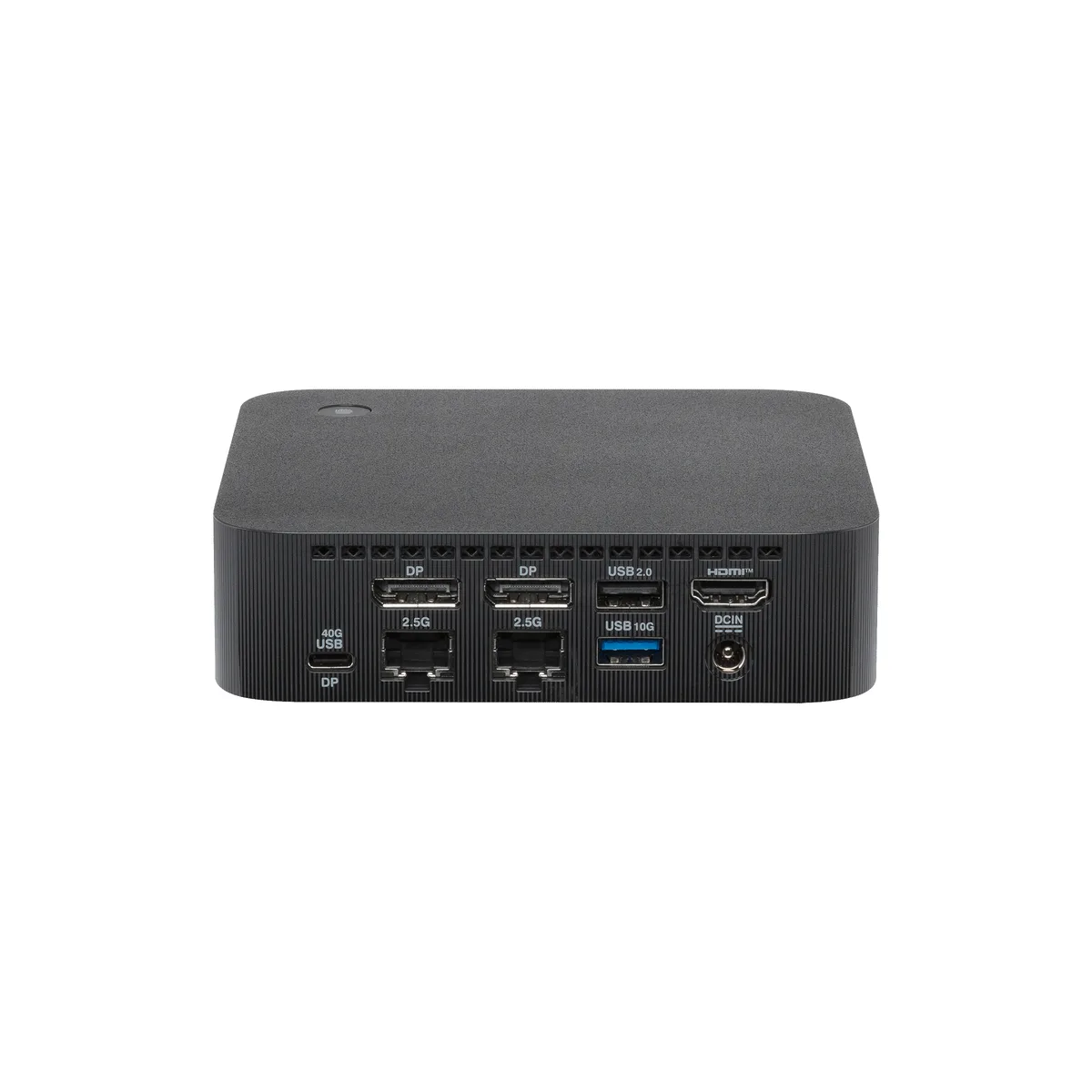

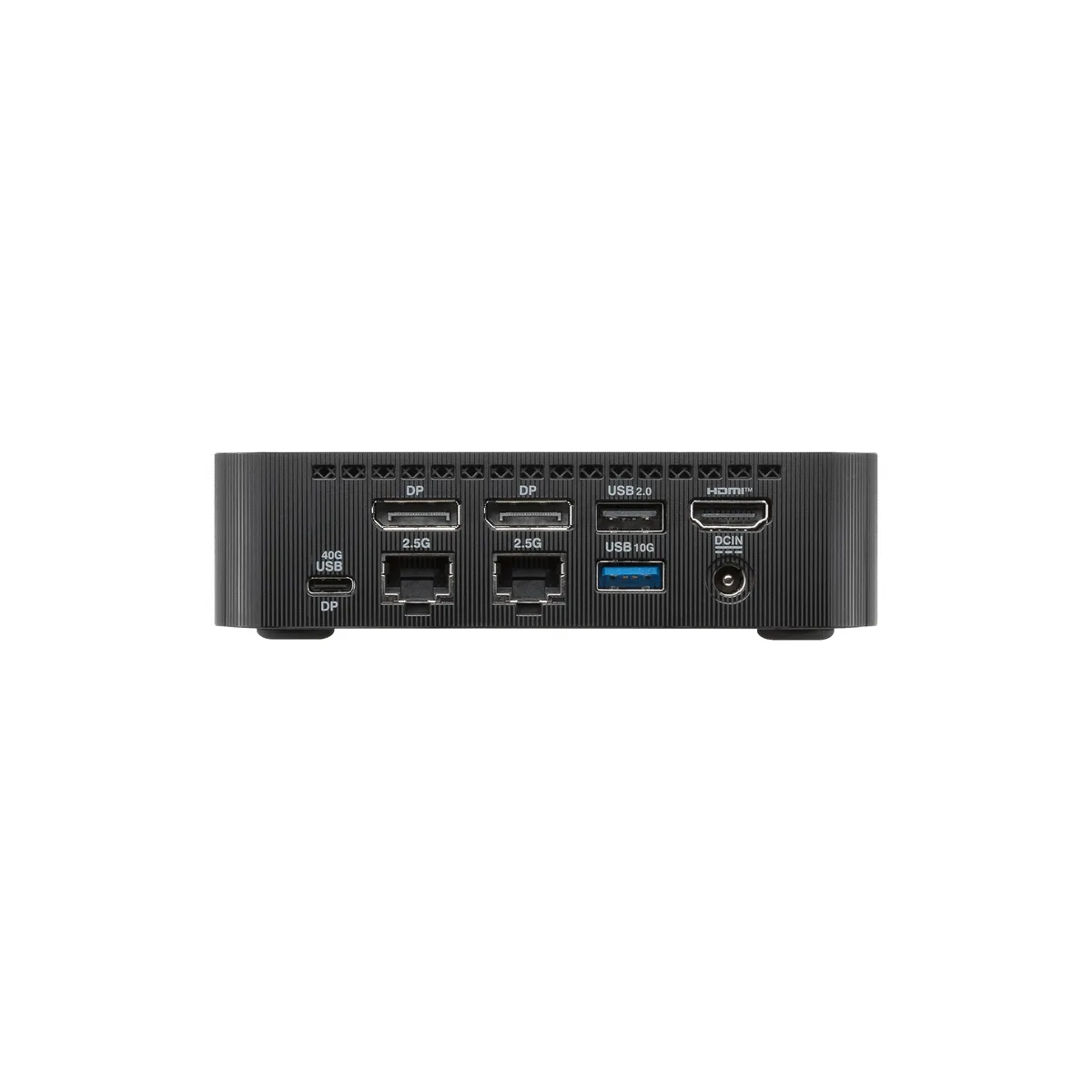

Rear USB1 x USB 4.0 Type-C (with DP1.4/PD-in*, 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 (5V/0.5A)
RJ452 x Realtek 2.5G LAN (RJ45)
Other Rear Ports1 x DC-in
1 x Kensington Lock Slot (Side)
Power Supply120W Power Adapter
Dimensions1.34" x 5.12" x 5.12" (0.6L)
Weight1.21 lbs.
FeaturesTPM: dTPM 2.0 (Hardware)
Internal Speaker: Yes
PackagingVESA Mount / AC Power Adapter / Power Cord
Shipping weight1.59 kg
Package size188 × 157 × 135 mm
