ASUS
ASUS DUAL-RX7600-O8G-EVO graphics card
A refurbished Radeon RX 7600 with 2048 stream processors, 8GB GDDR6 memory on a 128-bit bus, dual-fan cooling and PCI Express 4.0 x8 interface
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 7000 Series
- GPURadeon RX 7600
- ArchitectureRDNA 3
- Stream Processors2048
- 8GB GDDR6 memory handles modern textures smoothly
- Dual-fan cooler keeps the Radeon RX 7600 running quietly
- PCI Express 4.0 x8 interface delivers high bandwidth to the GPU

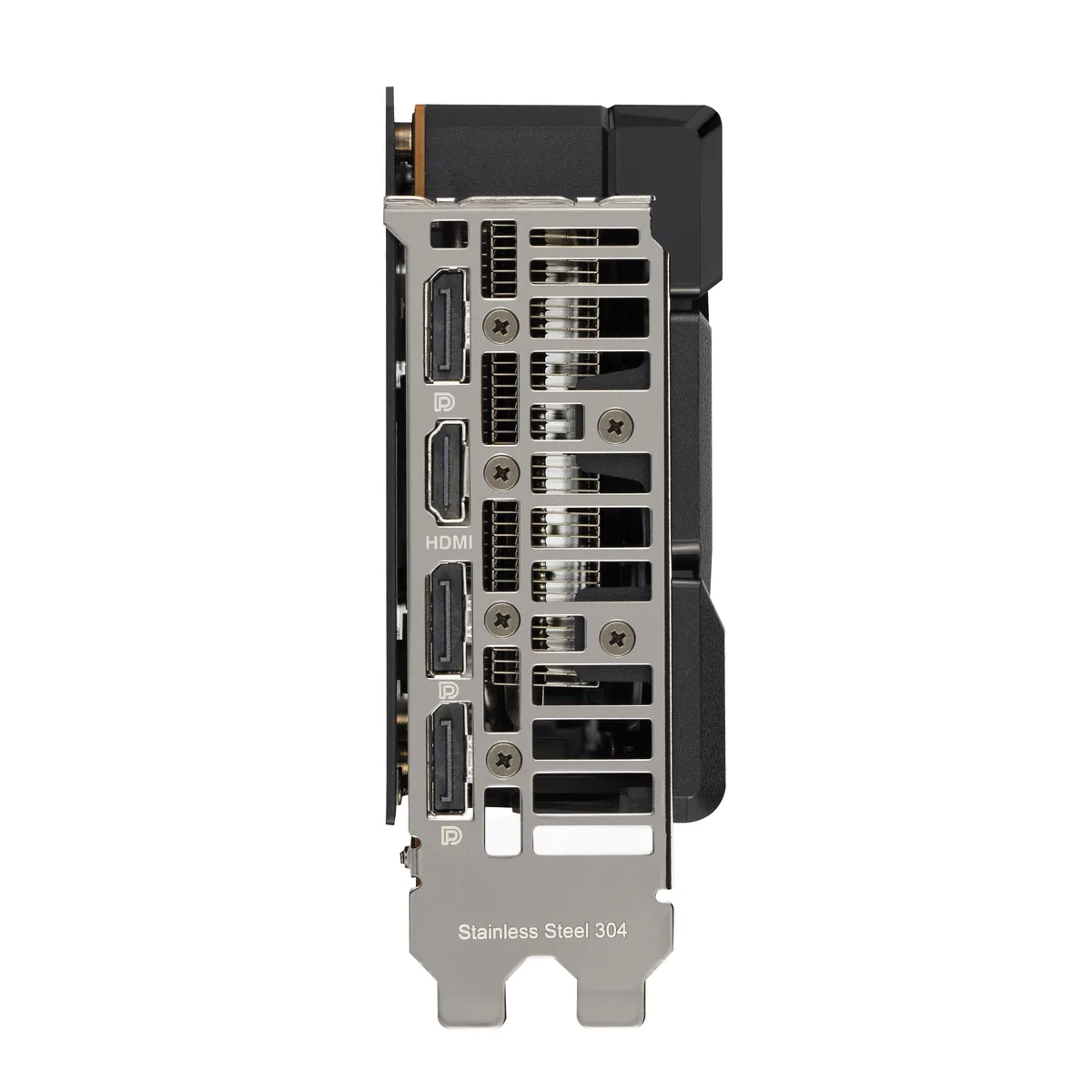

- HDMI 2.1 plus three DisplayPort 1.4 outputs drive up to four displays
- RDNA 3 architecture with 2048 stream processors powers 1080p and 1440p gaming

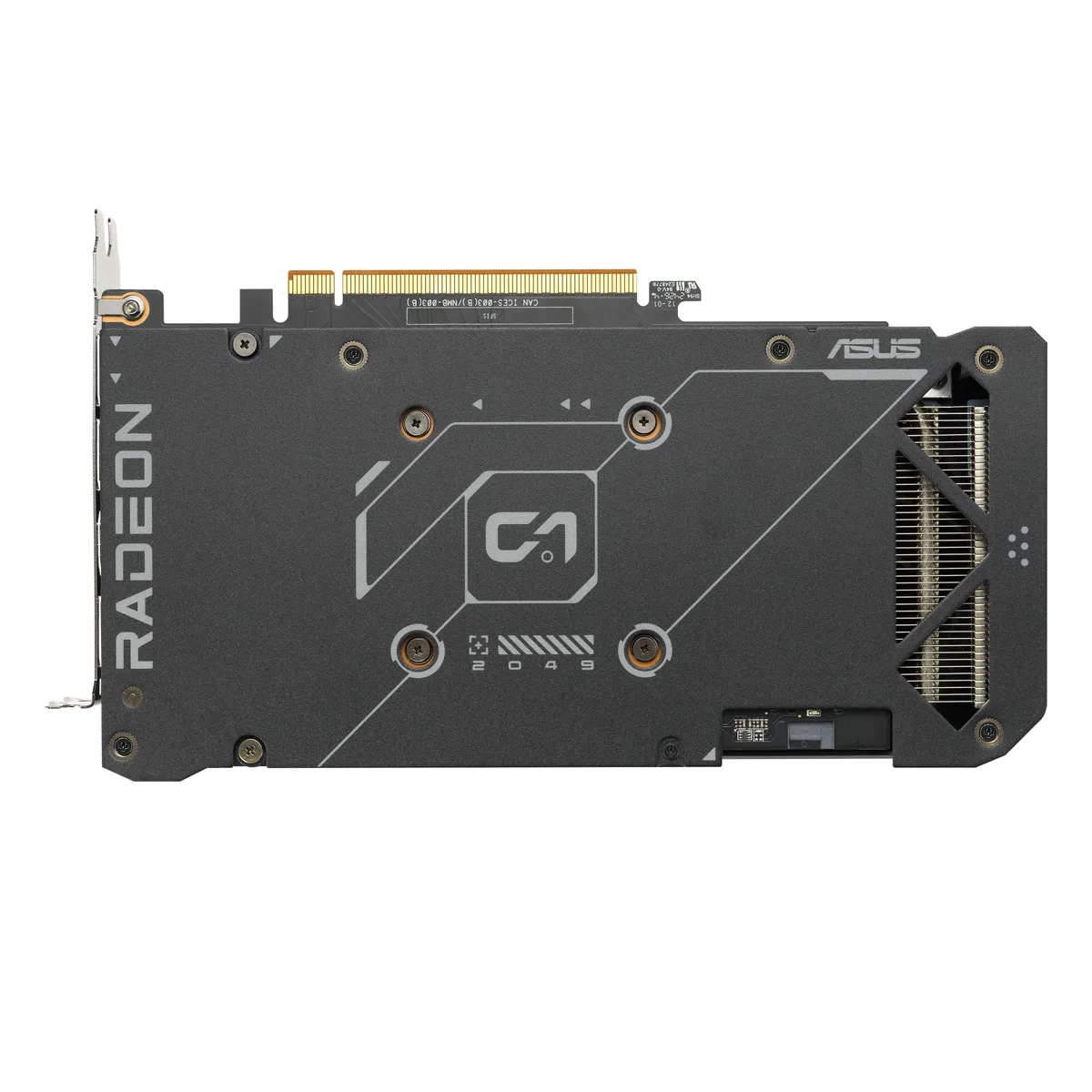

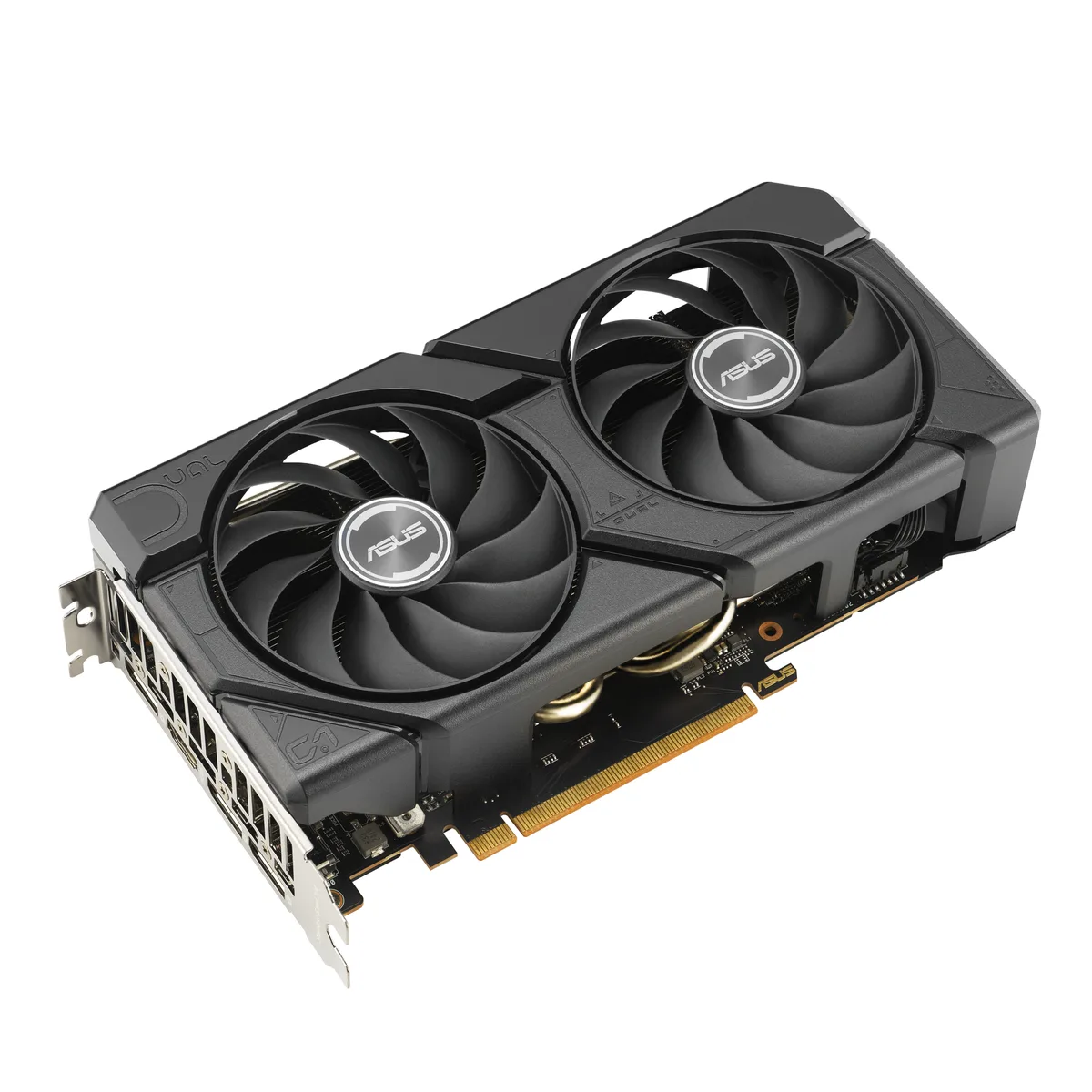

ASUS Dual Radeon RX 7600 8GB
The ASUS Dual Radeon RX 7600 graphics card uses the RDNA 3 architecture with 2048 stream processors and 8GB of GDDR6 memory on a 128-bit bus. It connects through a PCI Express 4.0 x8 interface and fits in ATX cases with a 245 mm length and 2.5-slot width. The dual-fan cooler handles a 165W thermal design power with a single 8-pin power connector.
Upgrade from older 1080p cards
Moving up from an older 1080p GPU brings the RDNA 3 architecture, DirectX 12 Ultimate support and modern display outputs including HDMI 2.1 and DisplayPort 1.4. The jump is worth it when you need hardware AV1 decode, four-monitor support or the 7680 x 4320 maximum resolution for high-DPI workflows.
8GB frame buffer for 1080p and 1440p
The 8GB GDDR6 buffer comfortably handles 1080p ultra settings and 1440p high settings in current titles. At 1440p ultra or 4K the 128-bit bus and 8GB capacity become the limiting factor, so texture quality may need to be lowered to stay within VRAM headroom.
Highlights
- 8GB GDDR6 memory handles modern textures smoothly
- Dual-fan cooler keeps the Radeon RX 7600 running quietly
- PCI Express 4.0 x8 interface delivers high bandwidth to the GPU
- HDMI 2.1 plus three DisplayPort 1.4 outputs drive up to four displays
- RDNA 3 architecture with 2048 stream processors powers 1080p and 1440p gaming
Specifications
| Brand | ASUS |
|---|---|
| Series | Dual |
| Model | DUAL-RX7600-O8G-EVO |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 7000 Series |
| GPU | Radeon RX 7600 |
| Architecture | RDNA 3 |
| Stream Processors | 2048 |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4 |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Thermal Design Power | 165W |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 245 mm |
| Slot Width | 2.5 Slots |
| Shipping weight | 1.16 kg |
| Package size | 375 × 216 × 66 mm |
Questions about this item
Will the 245 mm length and 2.5 slot width fit my ATX case?
The card measures 245 mm long and occupies 2.5 slots, so verify your case clearance and motherboard spacing before purchase.
Does the PCI Express 4.0 x8 interface and single 8-Pin power connector need a 550W PSU?
A 550W supply is recommended for the 165W board; seat the card fully in the x8 slot and attach the 8-Pin connector firmly to avoid no-post issues.
How often should I clean the double fans to keep the 165W thermal design stable?
Blow dust from the dual fans every few months; the 165W design relies on unobstructed airflow through the heatsink fins.
