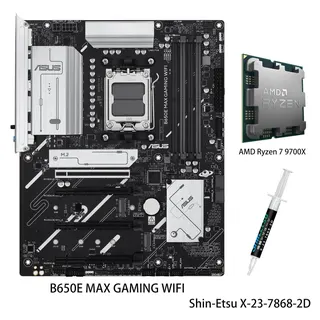

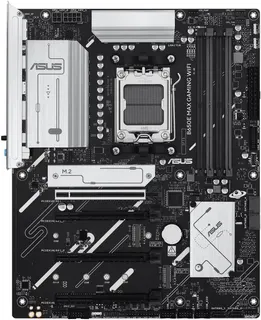

ASUS B650E MAX GAMING WIFI motherboard with Ryzen 7 9700X CPU installed, black ATX board with silver heatsinks and I/O shield visible

ASUS

ASUS B650E MAX GAMING WIFI + Ryzen 7 9700X AMD motherboard CPU combo

SKU CH-QWSV-J7A7J

A motherboard and CPU combo with AM5 socket, DDR5 support up to 192 GB, PCIe 5.0 slots, Wi-Fi 6E, 2.5 Gb Ethernet, Bluetooth 5.3, and an 8-core 16-thread Ryzen 7 9700X processor boosting to 5.5 GHz

  • CPU Socket TypeAM5
  • ChipsetAMD B650
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to 8000+MT/s (OC)
  • Maximum Memory Supported192GB
  • Channel SupportedDual Channel

model B650E MAX GAMING WIFI

Show 2 more configurations

+CPU +Ryzen 7 9700X

  • Ready for AI workloads with AM5 platform support
  • 8 cores and 16 threads deliver high gaming frame rates
  • DDR5 memory up to 8000 MT/s and 192 GB capacity
  • PCIe 5.0 x16 slot plus PCIe 5.0 M.2 for fastest GPUs and storage
  • Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Ethernet for low-latency networking

AM5 combo with B650E chipset and 8-core Zen 5 CPU

This bundle pairs an ASUS B650E MAX GAMING WIFI motherboard with an AMD Ryzen 7 9700X processor. The board uses the AM5 socket and supports DDR5 memory up to 8000 MT/s with a 192 GB maximum capacity. It delivers PCIe 5.0 lanes for both the primary graphics slot and the first M.2 socket.

Suits builders moving to AM5 with Zen 5 CPUs

The 8-core, 16-thread processor reaches a 5.5 GHz max boost clock and is unlocked for overclocking. Integrated graphics provide DisplayPort and HDMI output via the motherboard rear I/O. Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gbps Ethernet handle networking. Four SATA ports and three M.2 slots cover storage.

PCIe 5.0 M.2 slot for fastest SSD performance

The top M.2 socket runs at PCIe 5.0 x4 when a Ryzen 9000 or 7000 series CPU is installed, giving the highest available throughput for a boot drive. The second M.2 slot operates at PCIe 4.0 x4. The 8+2+1 phase VRM, 6-layer PCB and alloy chokes keep power delivery stable under load.

Highlights

  • Ready for AI workloads with AM5 platform support
  • 8 cores and 16 threads deliver high gaming frame rates
  • DDR5 memory up to 8000 MT/s and 192 GB capacity
  • PCIe 5.0 x16 slot plus PCIe 5.0 M.2 for fastest GPUs and storage
  • Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Ethernet for low-latency networking

Specifications

BrandASUS
ModelB650E MAX GAMING WIFI+R7 9700X
CPU Socket TypeAM5
ChipsetAMD B650
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to 8000+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
PCI Express 3.0 x162 x PCIe 3.0 x16 slots (support x1 mode)***
*** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
* Specifications vary by CPU types.
SATA RAID0/1/5/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports1 x USB 10Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan header
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS Driver Hub
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Windows 11Supported
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 7 9700X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR5 memory speed and capacity does the B650E MAX GAMING WIFI support for the Ryzen 7 9700X?

The board has four 288-pin DDR5 slots running dual-channel up to 8000+ MT/s overclocked with a maximum capacity of 192 GB and supports unbuffered ECC modules.

Can I keep my PCIe 3.0 x16 expansion cards and SATA drives when using this motherboard?

Two PCIe 3.0 x16 slots run at x1 mode and share bandwidth with two of the four SATA 6 Gb/s ports; using either x16 slot disables its paired SATA port.

How do I confirm the Wi-Fi 6E and Bluetooth 5.3 are active after building the system?

Check Device Manager for a Wi-Fi 6E 802.11ax adapter and Bluetooth 5.3 radio, then connect to a 6 GHz network and pair a Bluetooth device to verify both links.
