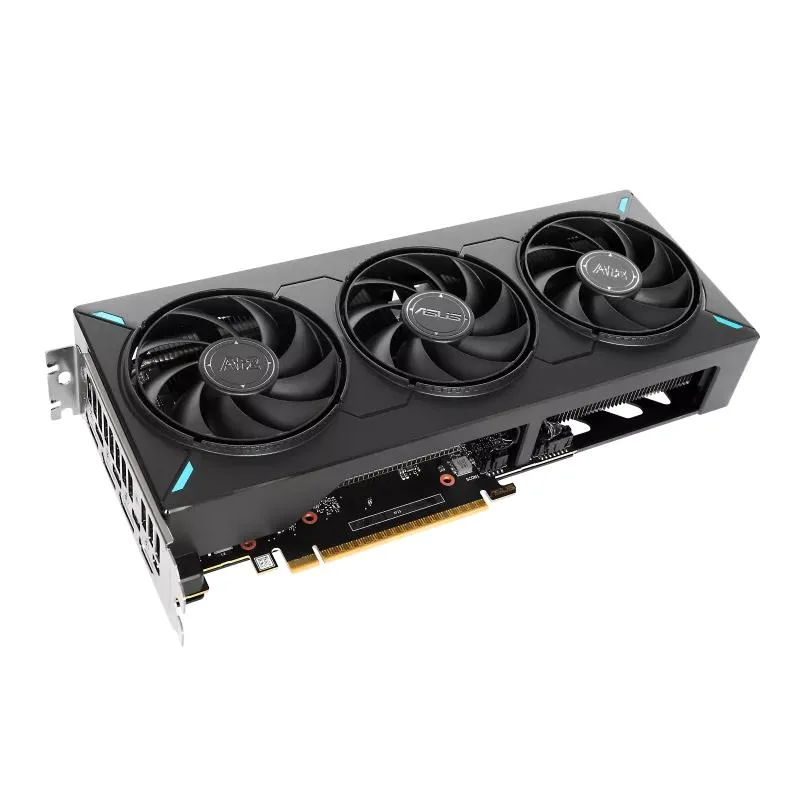

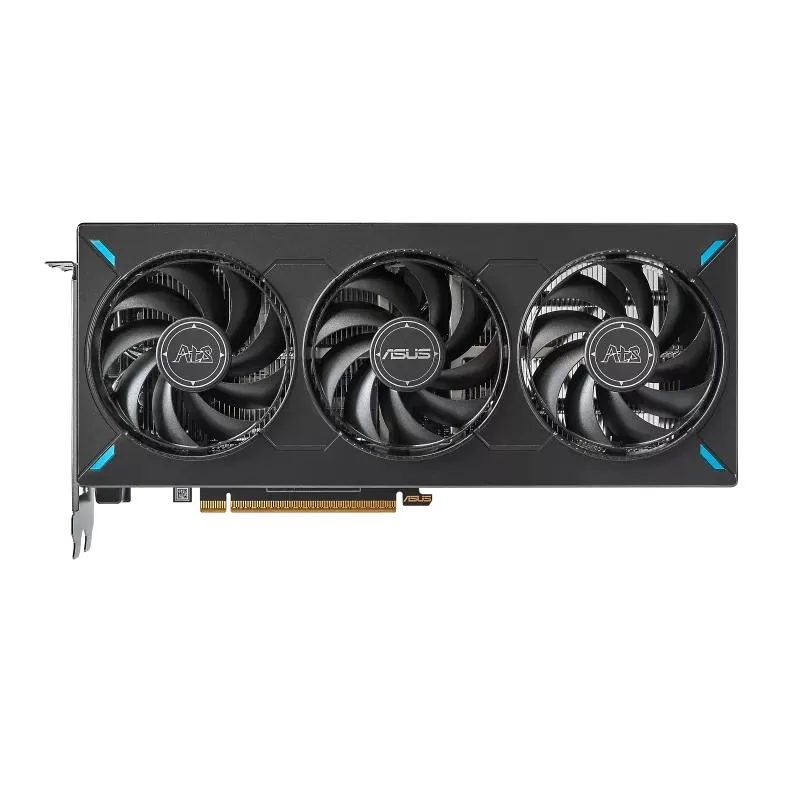

Black dual-slot graphics card with three axial fans and silver backplate, HDMI and three DisplayPort outputs visible

ASUS

ASUS ATS GeForce RTX 5060 8GB GDDR7 graphics card OC edition

SKU CH-CAQ0-SGDJY

GeForce RTX 5060 graphics card with 8GB GDDR7 memory, 3840 CUDA cores, and PCI Express 5.0 x8 interface

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • ArchitectureBlackwell
  • Boost ClockOC mode: 2595MHz Default mode: 2565MHz (Boost Clock)

model ATS OC

Struck-through versions exist but are not stocked here.

  • GDDR7 memory delivers 28 Gbps bandwidth for fast texture streaming
  • 3840 CUDA cores accelerate ray-tracing and AI workloads
  • Boost clock reaches 2595 MHz in OC mode for higher frame rates
  • PCI Express 5.0 x8 interface doubles lane throughput versus previous standard
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four displays

Target Build

The ASUS ATS GeForce RTX 5060 is an 8 GB graphics card built on the Blackwell architecture for gamers and creators who need modern display outputs and PCI Express 5.0 bandwidth in a compact form factor. It delivers 3840 CUDA cores and GDDR7 memory for 1440p gaming and content-creation workloads.

Memory Subsystem

The 128-bit GDDR7 interface running at 28 Gbps provides the memory bandwidth that determines whether the card can feed the GPU at 1440p without stalling. This single specification decides if the 5060 matches your resolution and texture-quality targets.

Display Connectivity

One HDMI 2.1b port and three DisplayPort 2.1b connectors enable four simultaneous monitors at high refresh rates and support the latest HDR and DSC features for current high-performance panels.

Highlights

  • GDDR7 memory delivers 28 Gbps bandwidth for fast texture streaming
  • 3840 CUDA cores accelerate ray-tracing and AI workloads
  • Boost clock reaches 2595 MHz in OC mode for higher frame rates
  • PCI Express 5.0 x8 interface doubles lane throughput versus previous standard
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four displays

Specifications

BrandASUS
SeriesATS
ModelATS-RTX5060-O8G
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
ArchitectureBlackwell
Boost ClockOC mode: 2595MHz
Default mode: 2565MHz (Boost Clock)
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length269 mm
Card Dimensions (L x H)268.3 x 120 x 50 mm
10.56 x 4.72 x 1.97 inches
Slot Width2.5 Slots

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 2595 MHz OC boost clock mean once the card is installed?

In OC mode the GPU can reach 2595 MHz; default mode runs at 2565 MHz. Actual speeds depend on workload, power limit and cooling.

What does PCI Express 5.0 x8 cap in practice?

The slot provides up to 5.0 x8 bandwidth; throughput is limited by the motherboard lane allocation and CPU support.

What does the 128-bit GDDR7 memory interface need to fit or mount?

The card uses a standard PCI Express 5.0 x8 slot and requires a case with enough length and height clearance for a dual-slot design.
