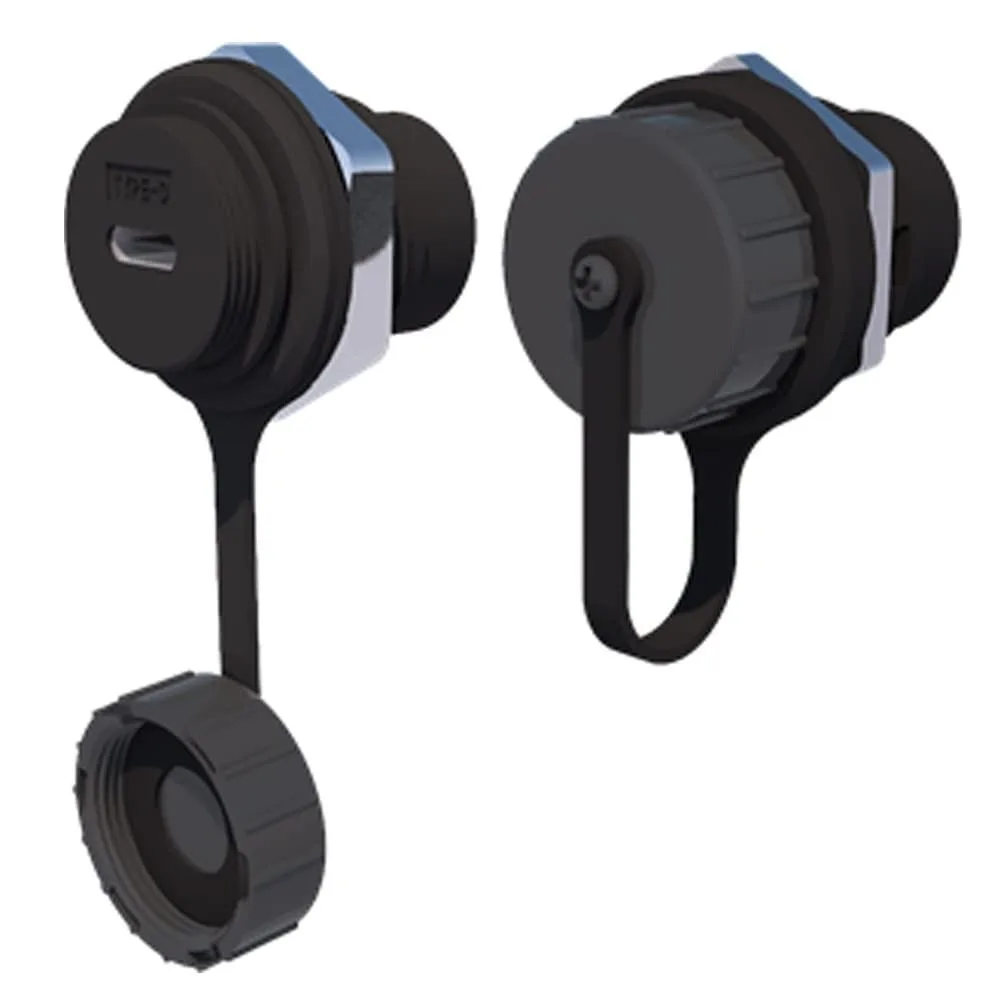

Panel-mount USB-C connector with threaded housing and waterproof cap

Astro Gaming

Astro Gaming 2 in 1 Accessory 24 PIN USB 3.1 IP67

SKU CH-P6VR-3ZN74

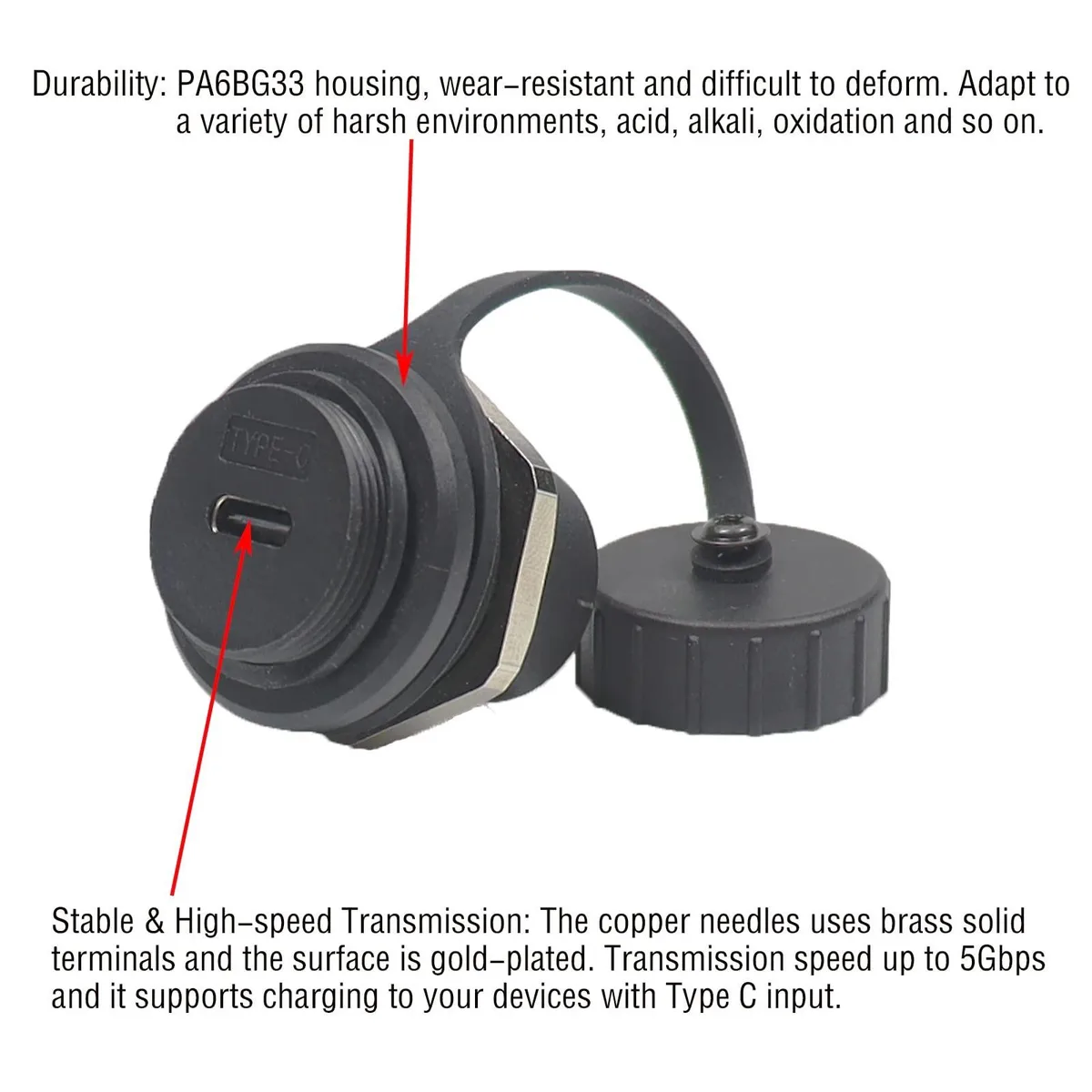

IP67-rated 24-pin USB 3.1 Type-C panel-mount coupler delivers 5 Gbps data and 5 A charging through a gold-plated, phosphor-copper contact in a PA6BG33 housing

  • IP67 waterproof rating protects against dust and immersion
  • USB 3.1 transmission up to 5 Gbps for fast data and charging
  • PA6BG33 housing resists acid, alkali and oxidation in harsh environments
  • Gold-plated phosphor copper contacts ensure stable 5 A current at 12 V
  • Tool-free plug-in installation through 24 mm panel mount hole

Industrial USB-C panel connector

This IP67-rated feed-through connector brings USB 3.1 Type-C connectivity to panels and enclosures that face water, dust, oil or vibration. The 24-pin female-to-female coupler supports 5 Gbps data and up to 5 A charging at 12 V, making it suitable for machine interfaces, outdoor kiosks or vehicle-mounted systems. PA6BG33 housing and a silicone seal withstand -40 °C to 120 °C operating temperatures.

Tool-free installation with sealed caps

Each of the five units ships with a threaded locking nut for panels thicker than 2 mm and a matching waterproof dust cap that maintains the IP67 seal when the port is not in use. Gold-plated phosphor-copper contacts resist corrosion in acidic or alkaline atmospheres, while the UL94 V-0 flame-retardant shell meets industrial safety requirements. No soldering or special tools are needed — simply insert a standard USB-C cable from either side.

Verify panel cut-out and cable orientation

The mounting hole must be exactly 24 mm in diameter with an M24 × 1.5 thread, so confirm your enclosure wall matches that specification before ordering. Rated voltage is 12 V and rated current is 5 A; do not exceed these limits. If throughput drops to 30 Mbps, reversing the cable restores full speed. Operating humidity is rated to 90 % RH at 86–106 kPa atmospheric pressure.

Highlights

  • IP67 waterproof rating protects against dust and immersion
  • USB 3.1 transmission up to 5 Gbps for fast data and charging
  • PA6BG33 housing resists acid, alkali and oxidation in harsh environments
  • Gold-plated phosphor copper contacts ensure stable 5 A current at 12 V
  • Tool-free plug-in installation through 24 mm panel mount hole

Specifications

No published specifications for this item yet.

Questions about this item

How often will the gold-plated phosphor copper contacts need replacement in a harsh environment?

The contacts feature 6u inch gold plating over phosphor copper for corrosion resistance and a rated 10mOhm contact resistance, with PA6BG33 housing rated UL94V-0 for acid and alkali resistance.

What is the first limit reached when running at the 5A 12V rating continuously?

The connector is rated for 5A at 12V with 500MOhm insulation resistance and AC1000V compressive strength, while the IP67 seal and silicone rubber ring maintain integrity from -40C to 120C operating temperature.

How much heat does the connector generate when transmitting at 5Gbps all day?

Gold-plated brass terminals and 10mOhm contact resistance minimise resistive heating during 5Gbps data transfer and 5A charging, while the PA6BG33 housing and UL94V-0 rating handle sustained operating temperatures up to 120C.
