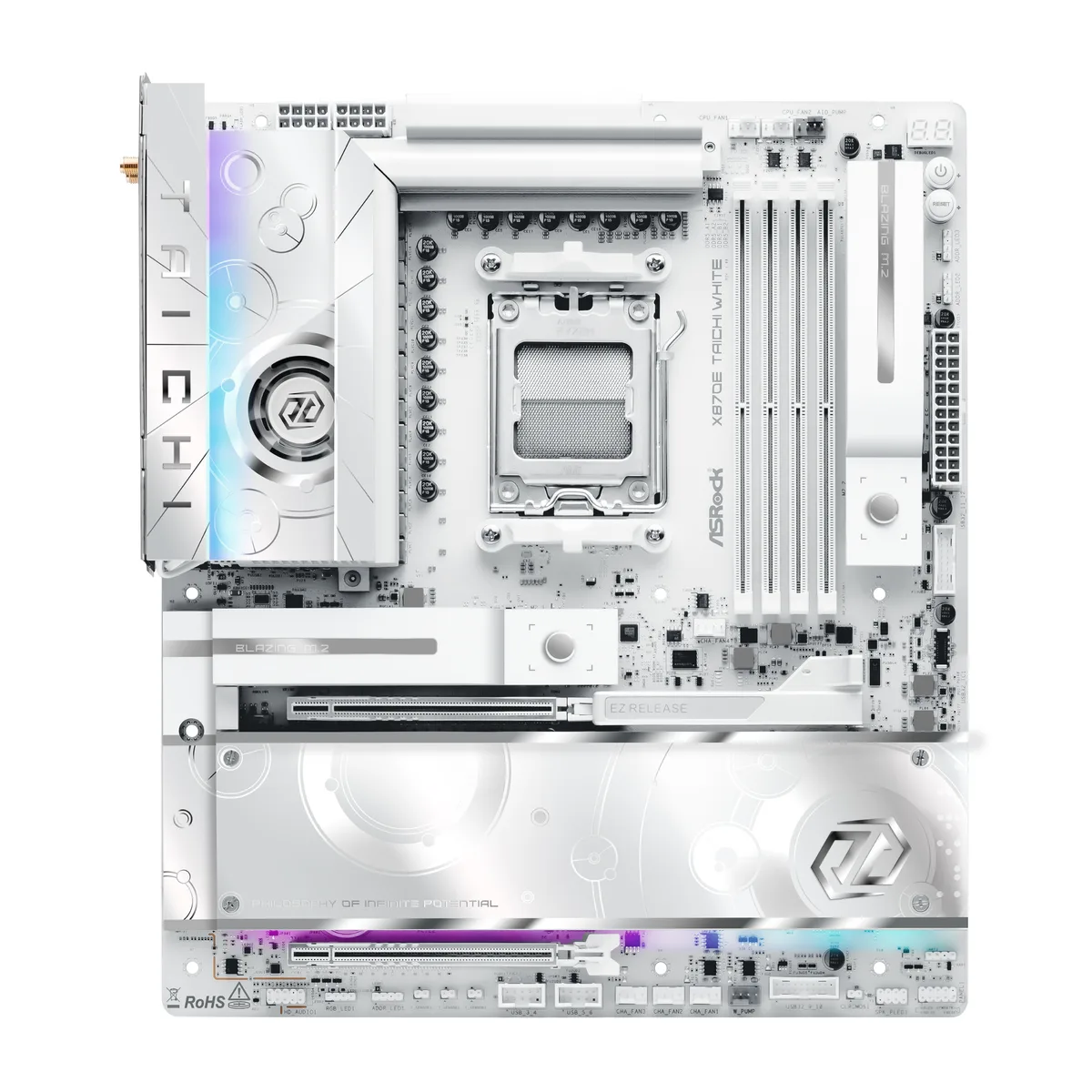

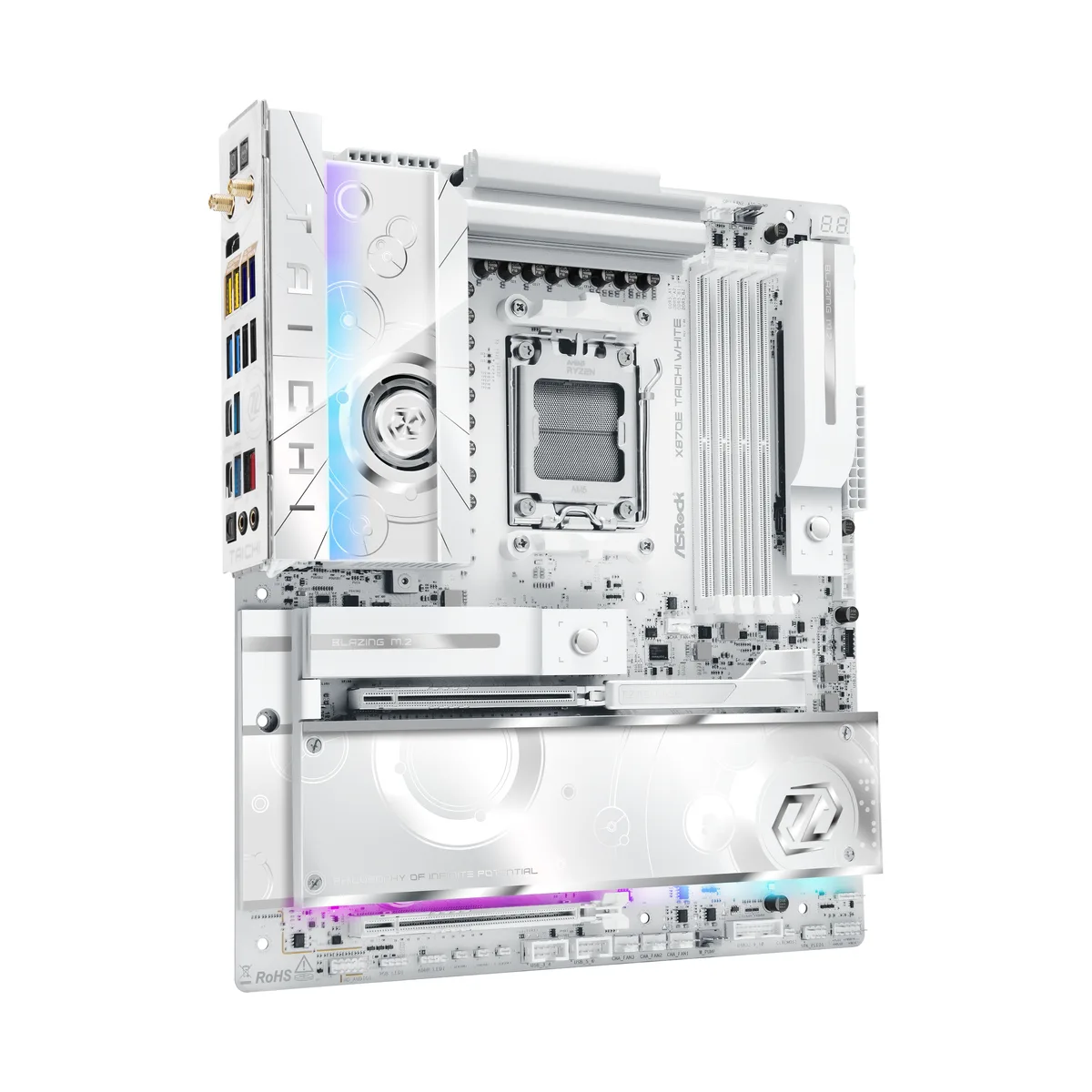

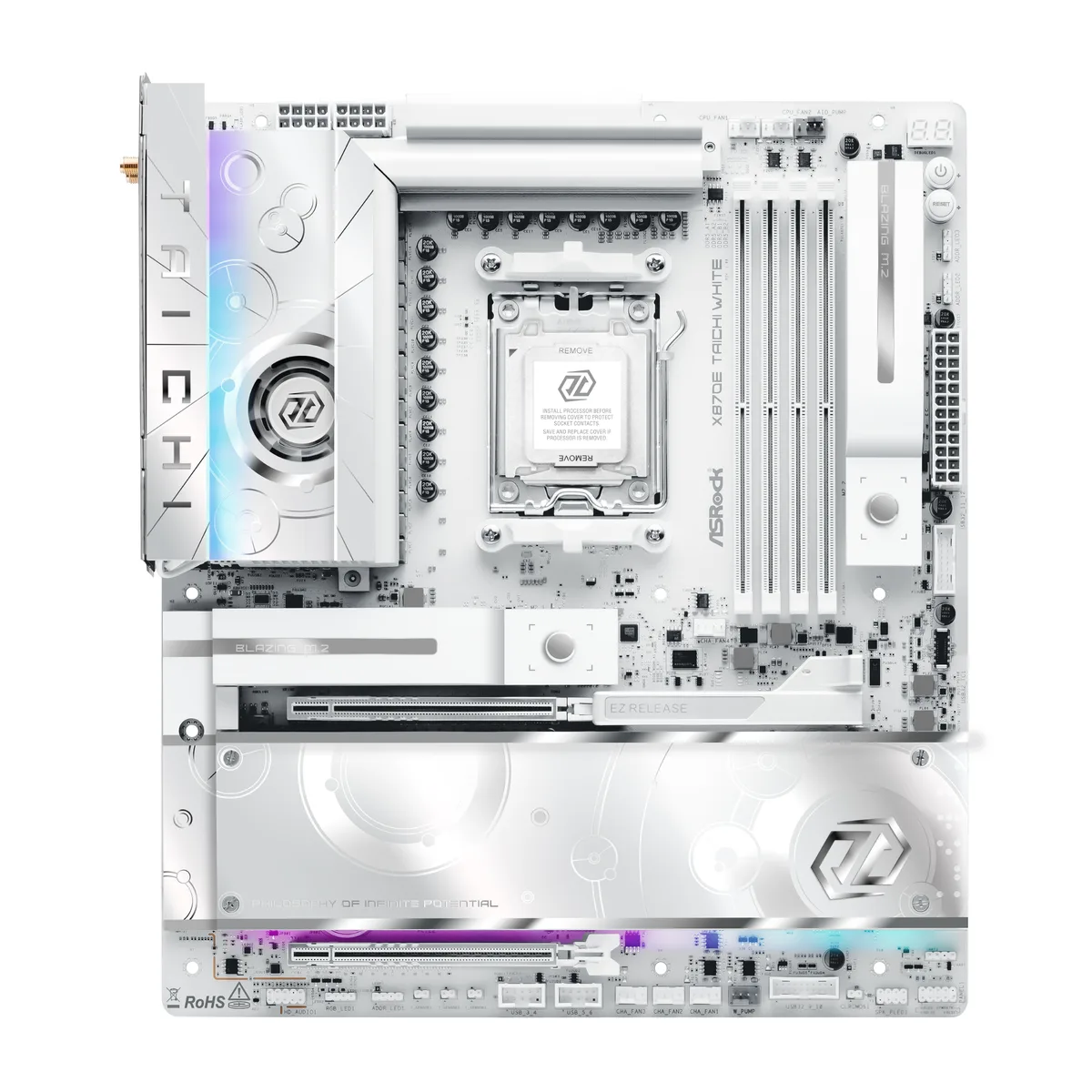

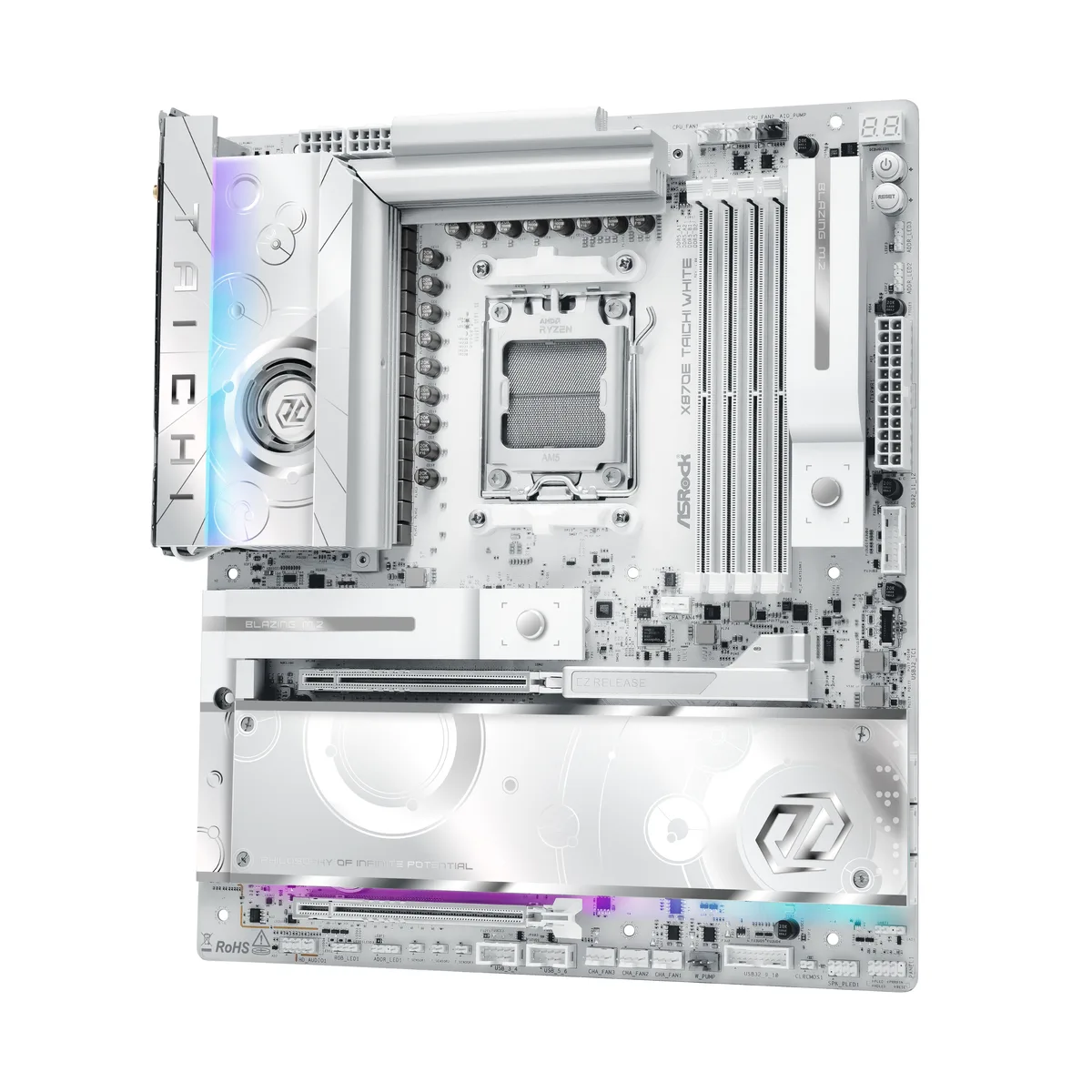

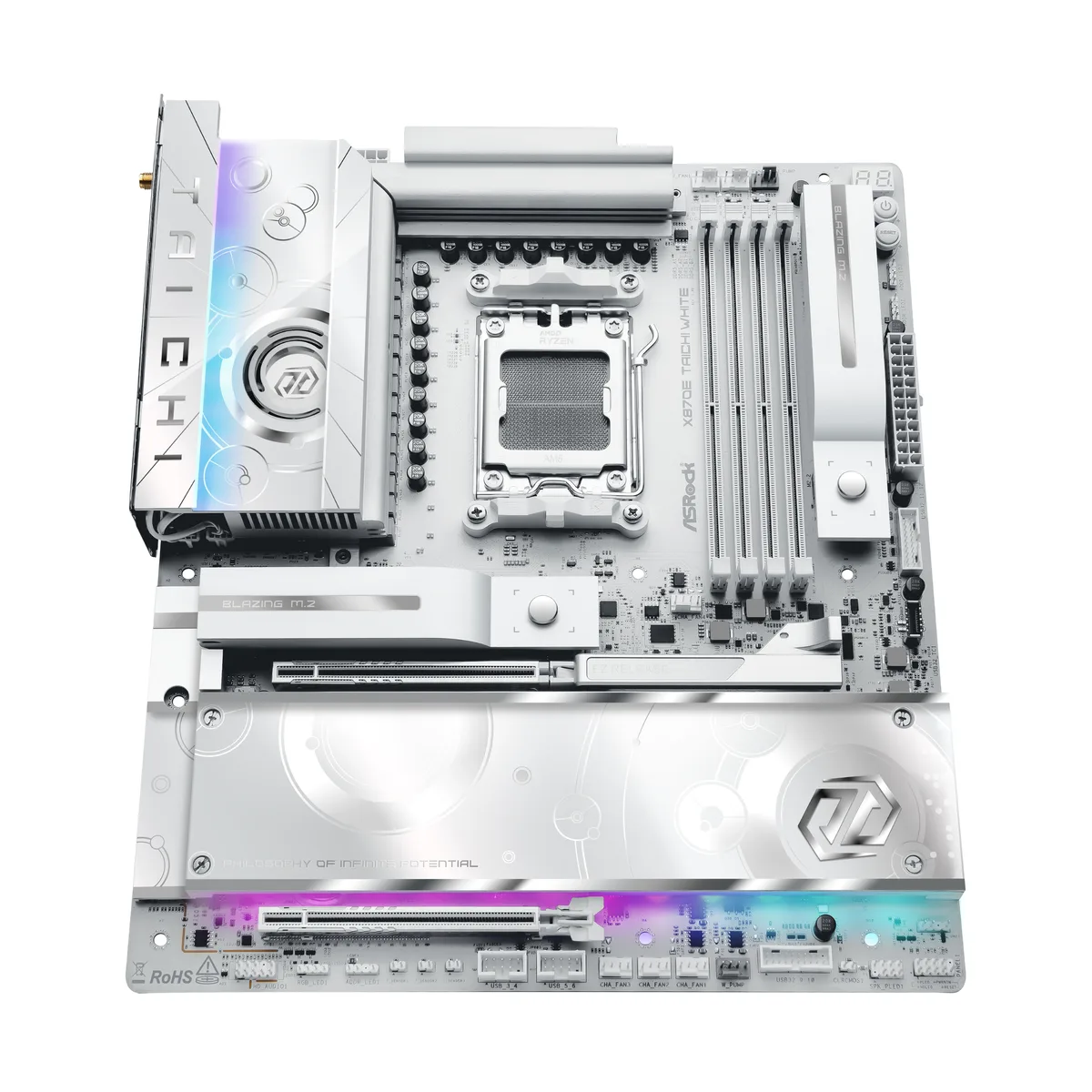

White EATX motherboard with silver heatsinks and full-coverage VRM armor

ASRock

ASRock X870E Taichi White AMD motherboard

SKU CH-HAZY-4TB68 MPN X870E Taichi White

EATX AM5 board with 24-phase power, DDR5 up to 8200 MHz, dual PCIe 5.0 x16 slots, four M.2 sockets, 10 GbE LAN, Wi-Fi 7, dual USB4 and front USB 3.2 Gen2x2 header

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
  • ChipsetAMD X870E
  • South BridgeAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 8200

Option X870E TAICHI WHITE

Struck-through versions exist but are not stocked here.

Style White

  • Supports Ryzen 9000, 8000 and 7000 Series CPUs on AM5 socket with 24+2+1 phase 110A power design
  • DDR5 memory up to 8200 MHz overclocked via EXPO or XMP profiles across four 288-pin slots
  • Two PCIe 5.0 x16 slots plus four M.2 sockets supporting PCIe 5.0 x4 and 4.0 x4 with toolless heatsinks
  • Wi-Fi 7 and 10GbE LAN plus dual USB4 40Gbps Type-C rear ports and front USB 3.2 Gen2x2 20Gbps header
  • ESS SABRE9219 DAC with WIMA caps and Nahimic Audio on an all-white EATX board with Polychrome RGB and BIOS Flashback

Flagship AM5 Platform

The ASRock X870E Taichi White is an EATX motherboard built for AMD Ryzen 9000, 8000 and 7000 Series processors on the AMD X870E chipset. It delivers a 24+2+1 phase power design rated at 110A SPS and a 512Mb BIOS on an 8-layer 2oz copper server-grade low loss PCB.

Enthusiasts and Workstation Builders

This board suits users who need dual PCIe 5.0 x16 slots, four M.2 sockets with Gen5 and Gen4 support, 10GbE LAN, Wi-Fi 7 and dual USB4 40Gbps rear ports. Builders requiring more than four DIMM slots, legacy PCI slots or a smaller form factor should consider alternative models.

DDR5 Capacity and Storage Headroom

Four DDR5 slots support up to 256GB in dual-channel mode with EXPO and XMP profiles up to 8200 MHz. One PCIe 5.0 x4 M.2 and three PCIe 4.0 x4 M.2 sockets provide high-speed storage expansion, while three SATA 6Gb/s ports handle additional drives.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 Series CPUs on AM5 socket with 24+2+1 phase 110A power design
  • DDR5 memory up to 8200 MHz overclocked via EXPO or XMP profiles across four 288-pin slots
  • Two PCIe 5.0 x16 slots plus four M.2 sockets supporting PCIe 5.0 x4 and 4.0 x4 with toolless heatsinks
  • Wi-Fi 7 and 10GbE LAN plus dual USB4 40Gbps Type-C rear ports and front USB 3.2 Gen2x2 20Gbps header
  • ESS SABRE9219 DAC with WIMA caps and Nahimic Audio on an all-white EATX board with Polychrome RGB and BIOS Flashback

Specifications

BrandASRock
SeriesTaichi
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
ChipsetAMD X870E
South BridgeAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 8200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP / AMD EXPO
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x162 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
Other Slots1 x M.2 (Key E)
Serial ATA (SATA)3 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1
Onboard Video ChipsetAMD RDNA Graphics
Audio ChipsetRealtek ALC4082
Audio Channels5.1 Channels
LAN ChipsetMarvell AQC113
Max LAN Speed10Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes
Video PortsHDMI
HDMI1 x HDMI
RJ451 x RJ45
USB 3.110 x USB 3.1
USB 3.010 x USB 3.0
USB 1.1/2.06 x USB 2.0
USB Type-C2 x USB4 Type-C, 1 x USB 3.2 Gen2x2 Type-C
S/PDIF Out1 x Optical
Audio Ports3 Ports
Onboard USB5 x USB 3.2 + 4 x USB 2.0 + 1 x USB Type-C® header, with USB 3.2 Gen 2x2
Form FactorEATX
LED LightingRGB
Dimensions (W x L)12.0" x 10.5"
Power Pin24 Pin
Windows 11Supported
Shipping weight3.72 kg
Package size356 × 318 × 79 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR5 memory kit speed and capacity does the X870E Taichi White support out of the box?

The board runs DDR5 8200 (OC) with AMD EXPO or Intel XMP profiles across four slots, up to 256 GB total in dual-channel mode.

Will my existing PCIe 4.0 graphics card and M.2 drives work at full speed in the PCIe 5.0 and 4.0 slots?

Yes, the two PCIe 5.0 x16 slots and four M.2 sockets are backward compatible, so PCIe 4.0 cards and drives operate at their rated Gen 4 bandwidth.

How can I confirm the 10 GbE LAN and Wi-Fi 7 are active after the first boot?

Check Device Manager for the Marvell AQC113 10 GbE adapter and the 802.11be wireless controller, then run a speed test against a 10 GbE switch or Wi-Fi 7 router.
